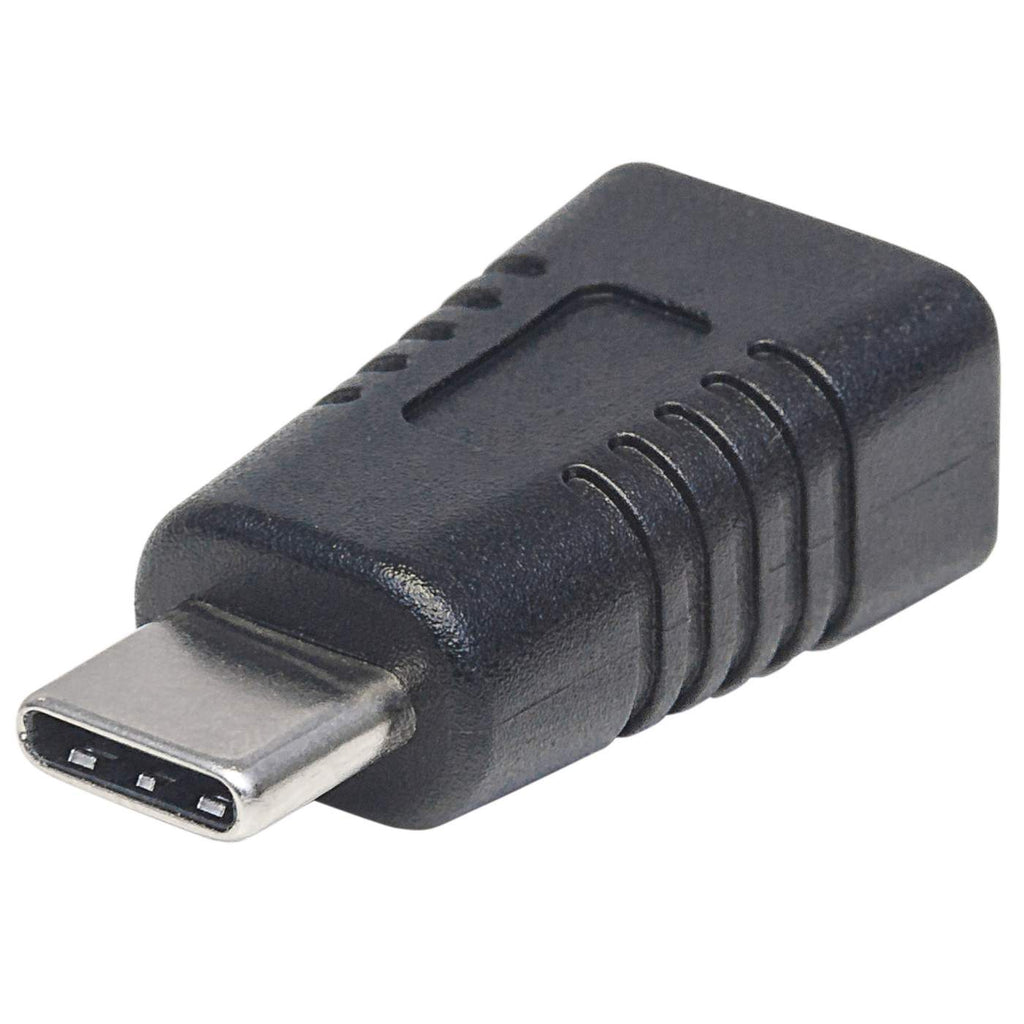

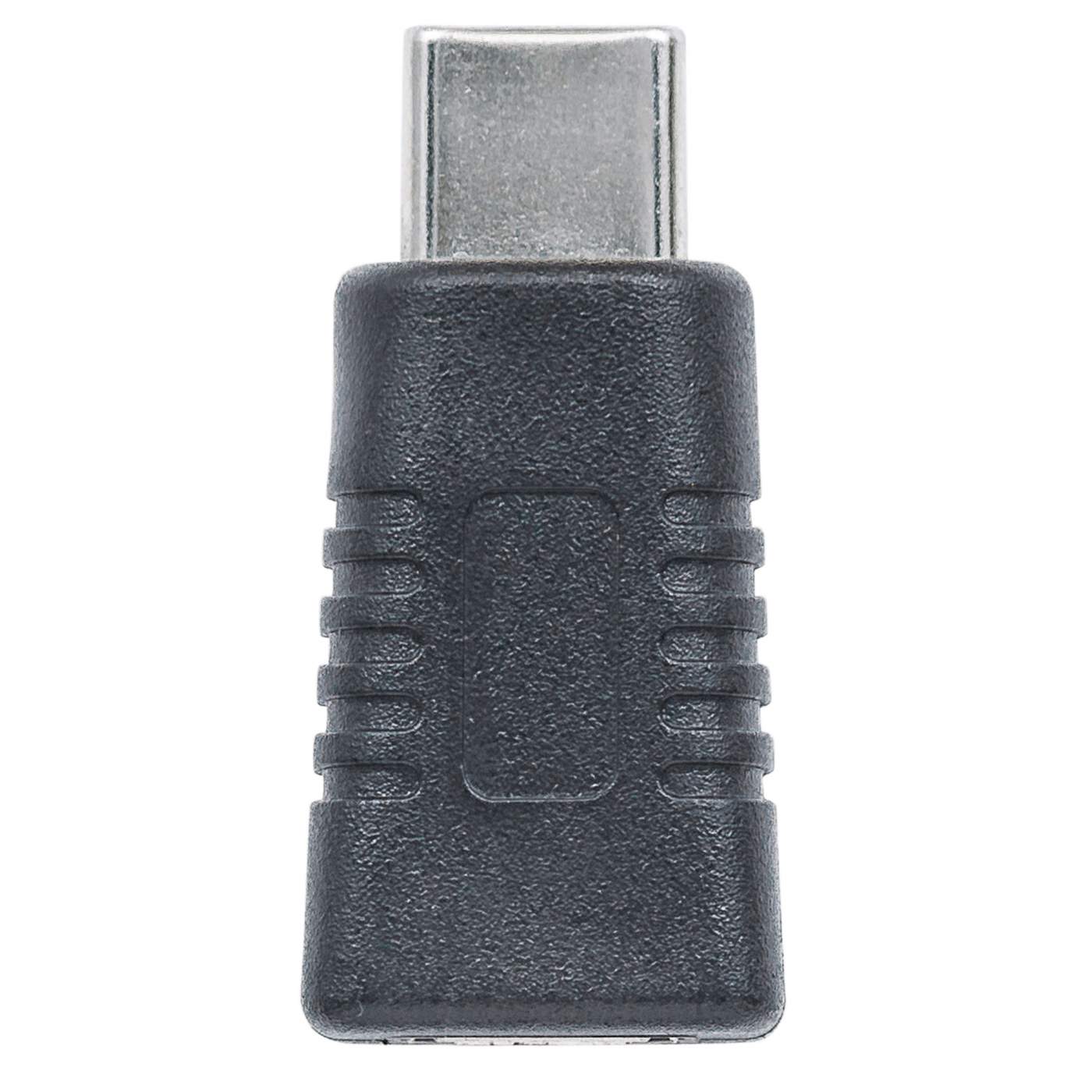

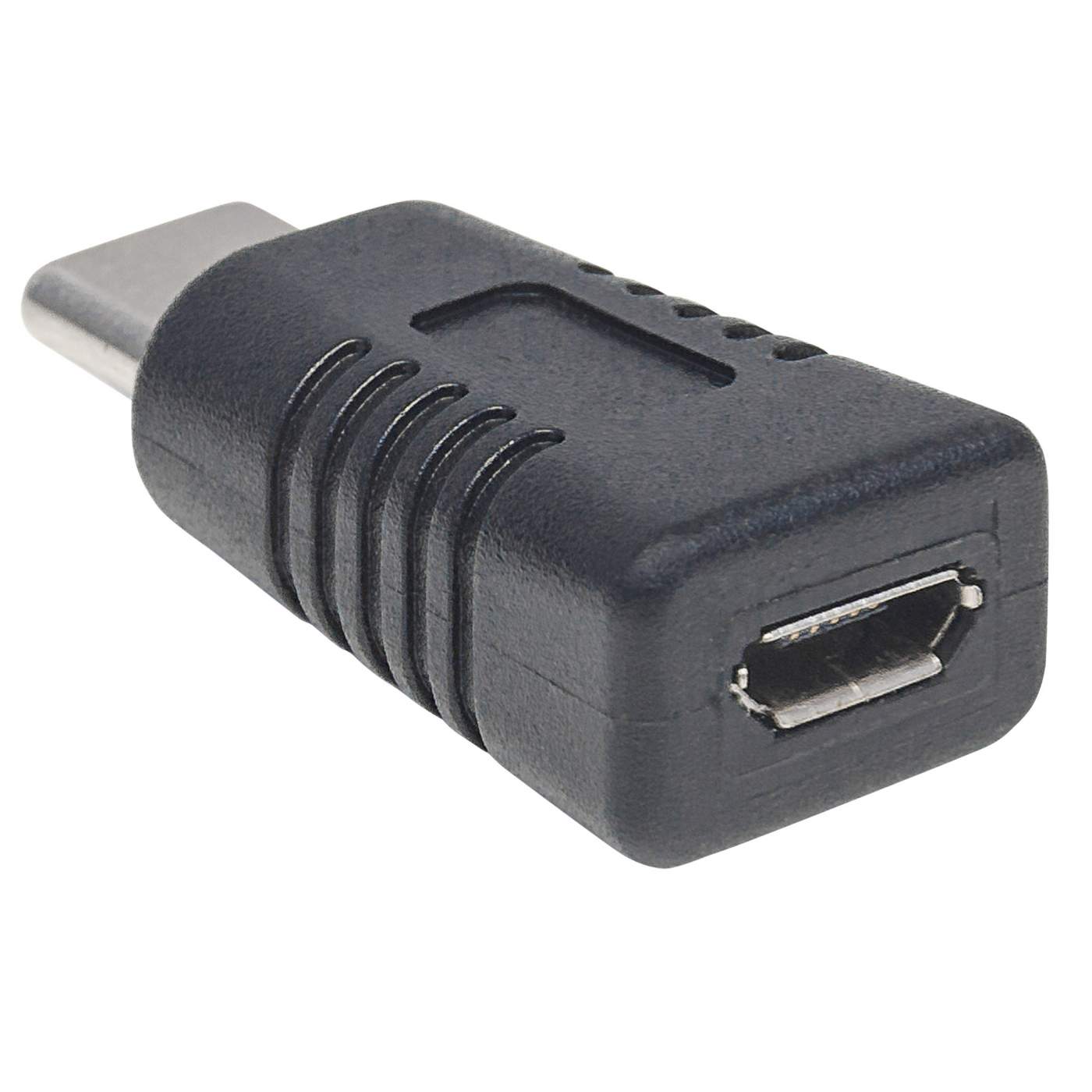

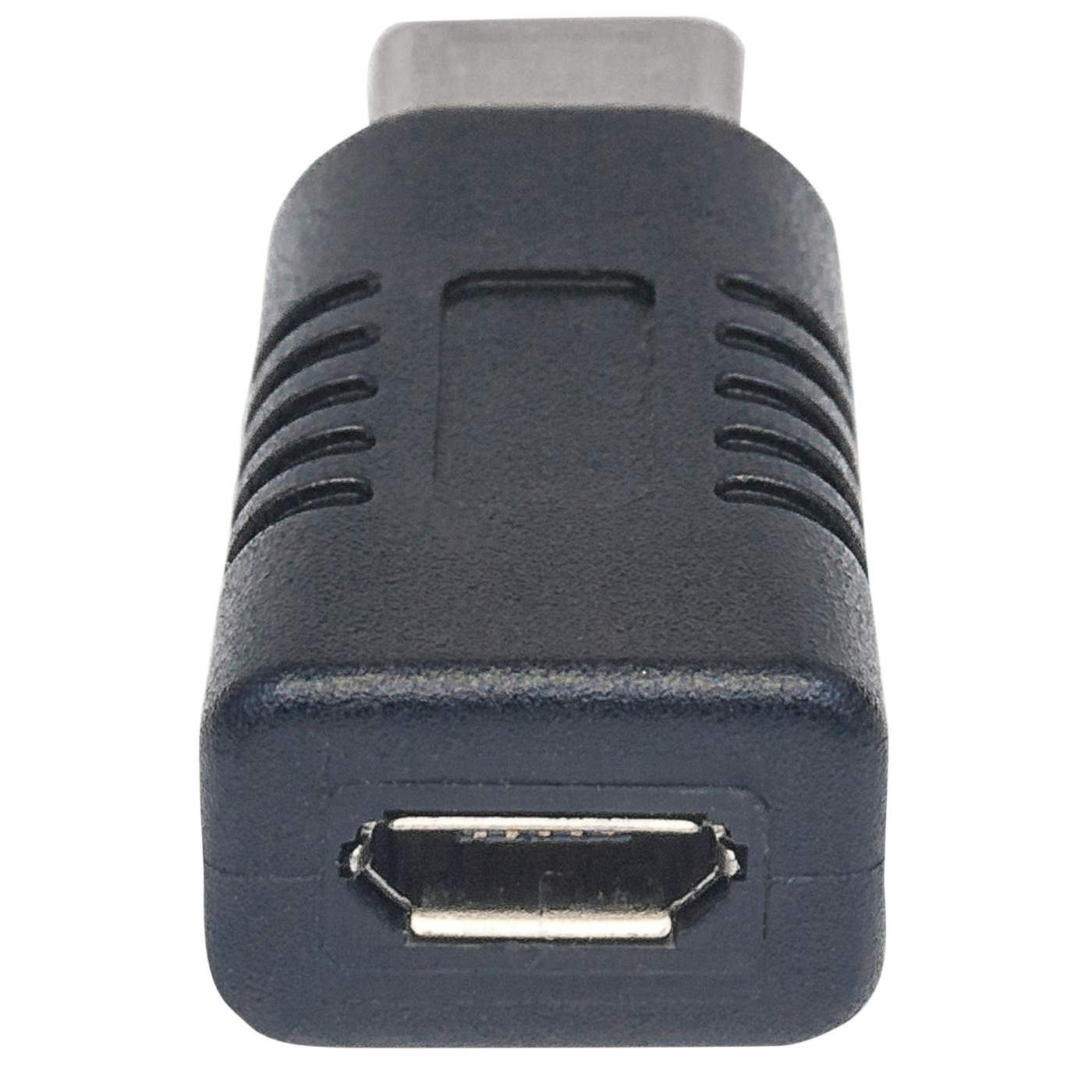

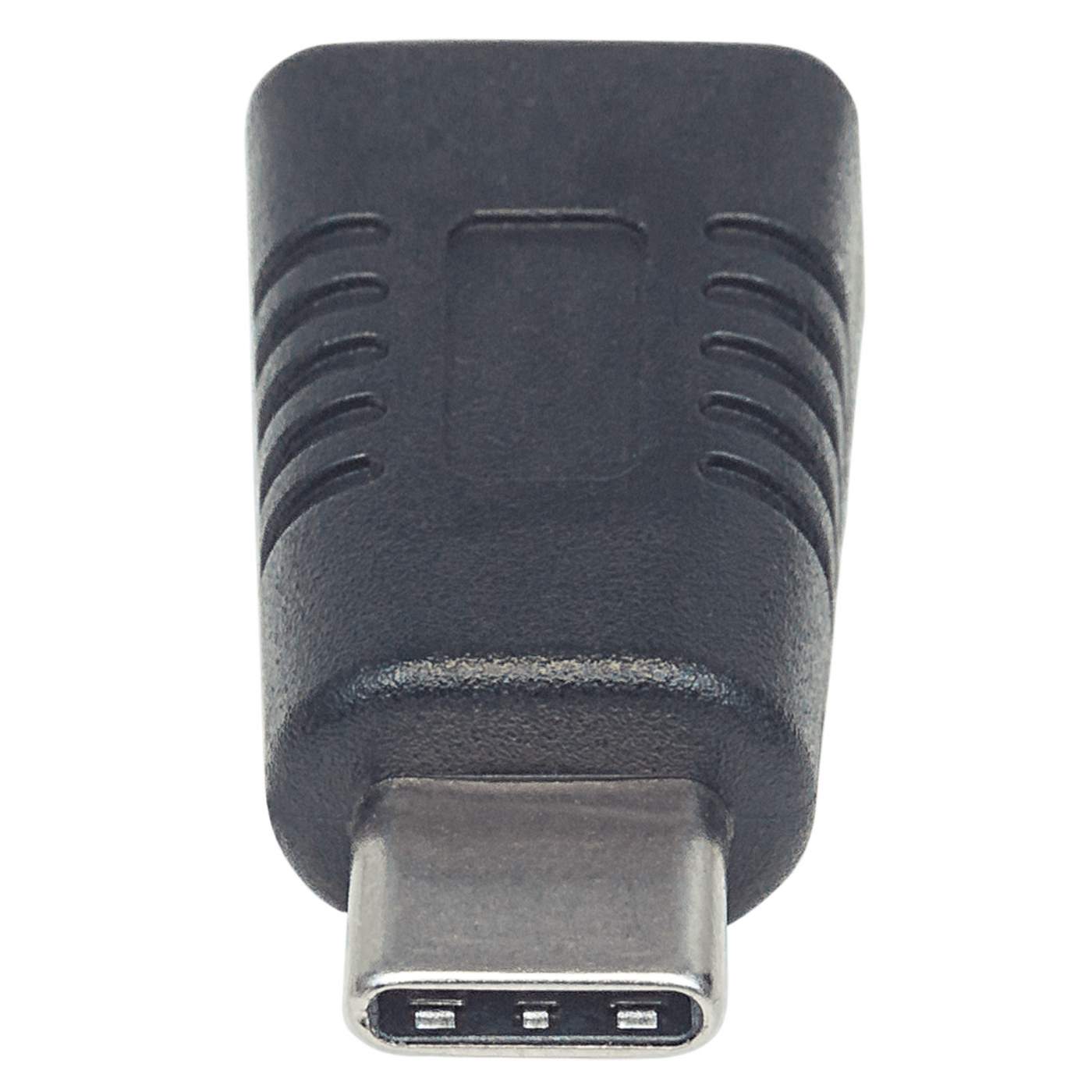

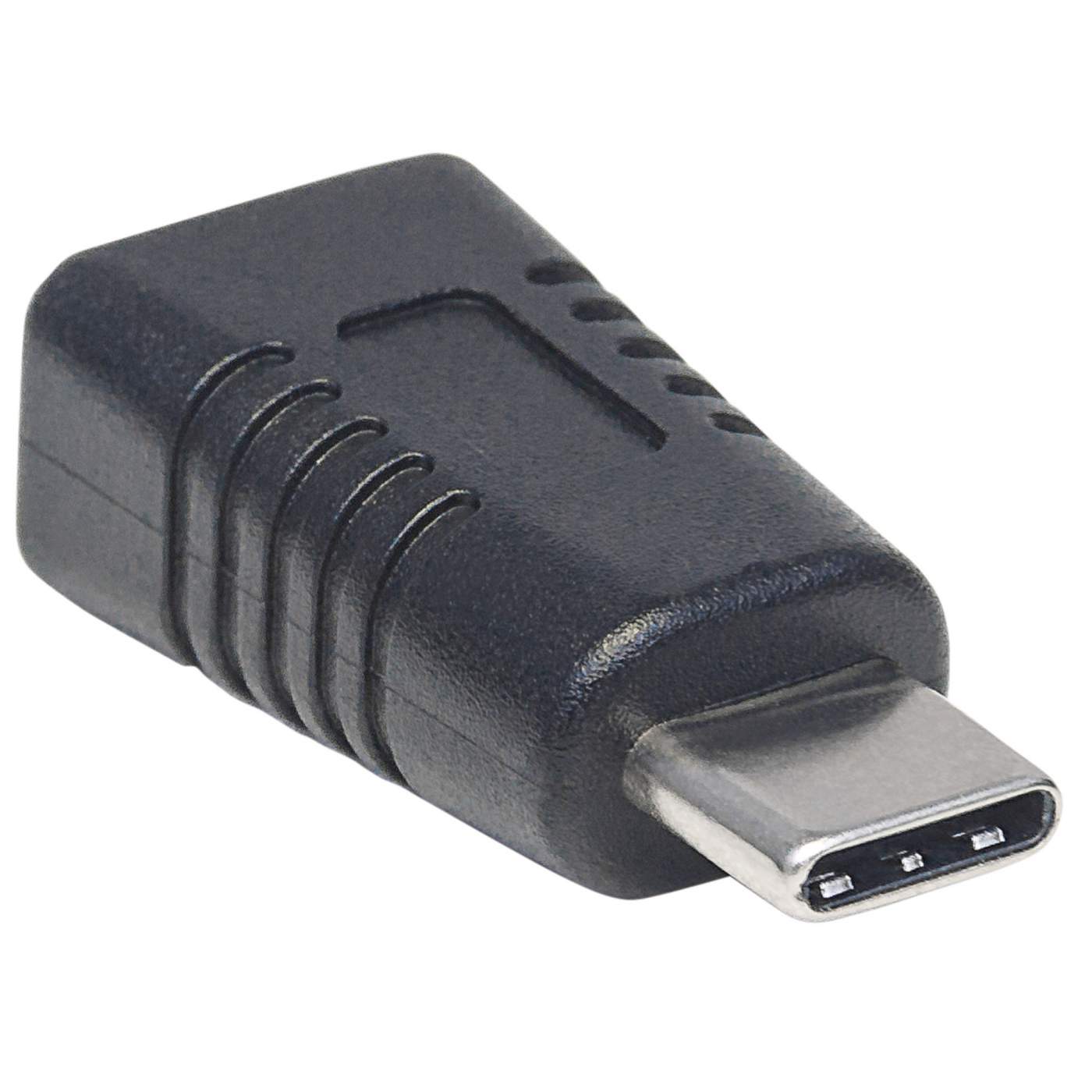

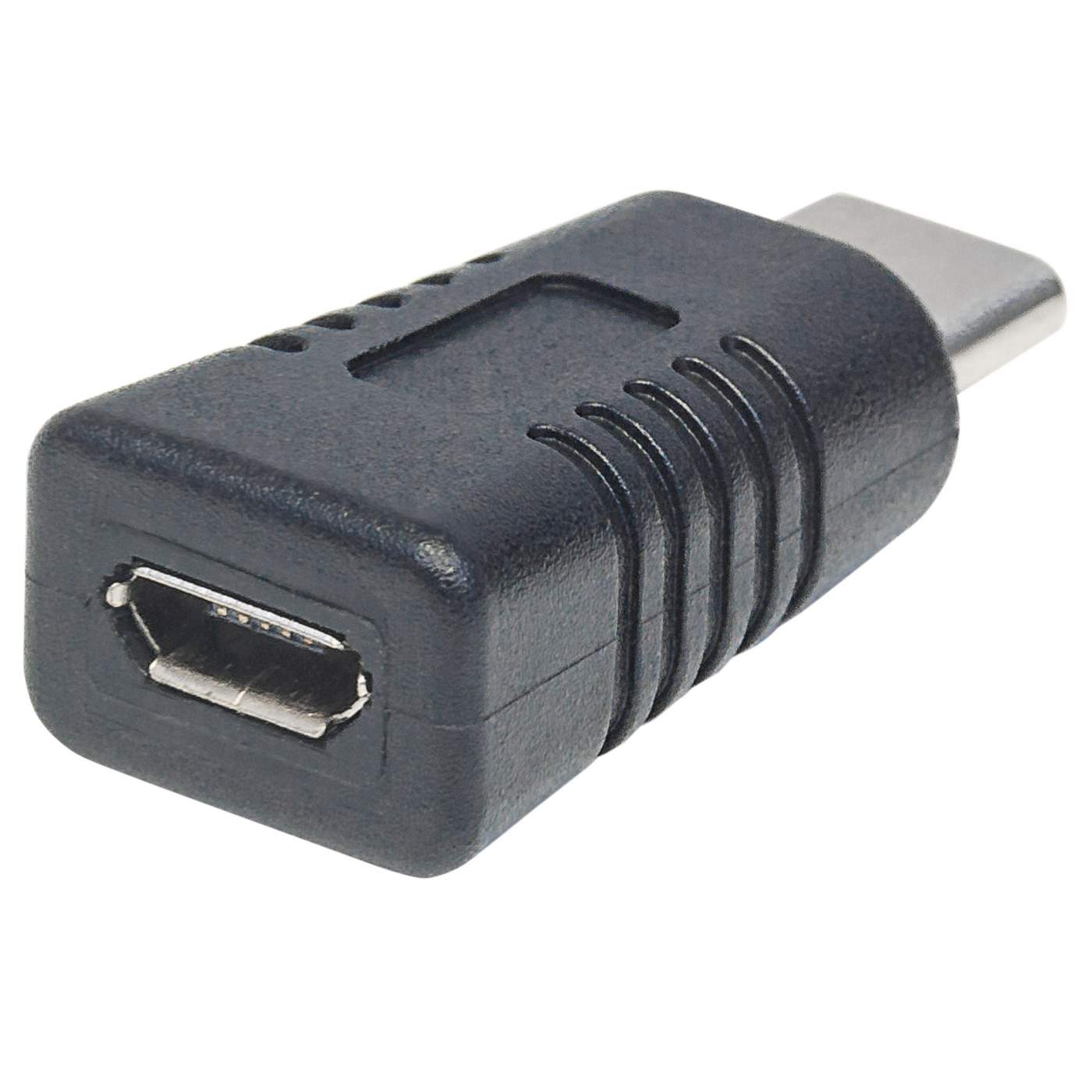

USB-C to USB Micro-B Adapter

An additional use for your USB Micro-B cables.
The Manhattan USB 3.1 Micro-B to Type-C Adapter is an ultra-compact adapter that allows you to turn a Micro-B cable into a USB-C connection. Measuring only 37 millimeters (1.5 in.), the adapter is designed with portability and simplicity in mind. With charge and sync capabilities at up to 3 A and 480 Mbps respectively, you will quickly and easily keep your device ready for whatever is next.

• USB-C adapter for use with USB Micro-B cables
• USB Type-C connector charges and syncs your USB-C device with a USB Micro-B cable
• Supports speeds up to 480 Mbps and 3 A charging
• Nickel-plated connections for best performance
• Ultra-compact, portable design
• Lifetime Warranty

Standards and Certifications

• UL 2725

• USB 2.0

• USB 3.1

  General

• Nickel plated

• Molded PVC boot

• 5.1K Ω resistor

  Connections

• One 5-pin USB Micro-B (female)

• One 24-pin USB Type-C (male)

  Electrical

• Insulation resistance: 5M Ω

• Contact resistance: 2 Ω

  Physical

• 37 x 17 x 10 mm (1.5 x 0.7 x 0.4 in.)

• 3.8 g (0.13 oz)

  Operating Environment

• Operation Temperature: 32 – 104°F (0 – 40°C)

• Storage Temperature: -4 – 140°F (-20 – 60°C)

• Humidity (noncondensing): 0 – 96%

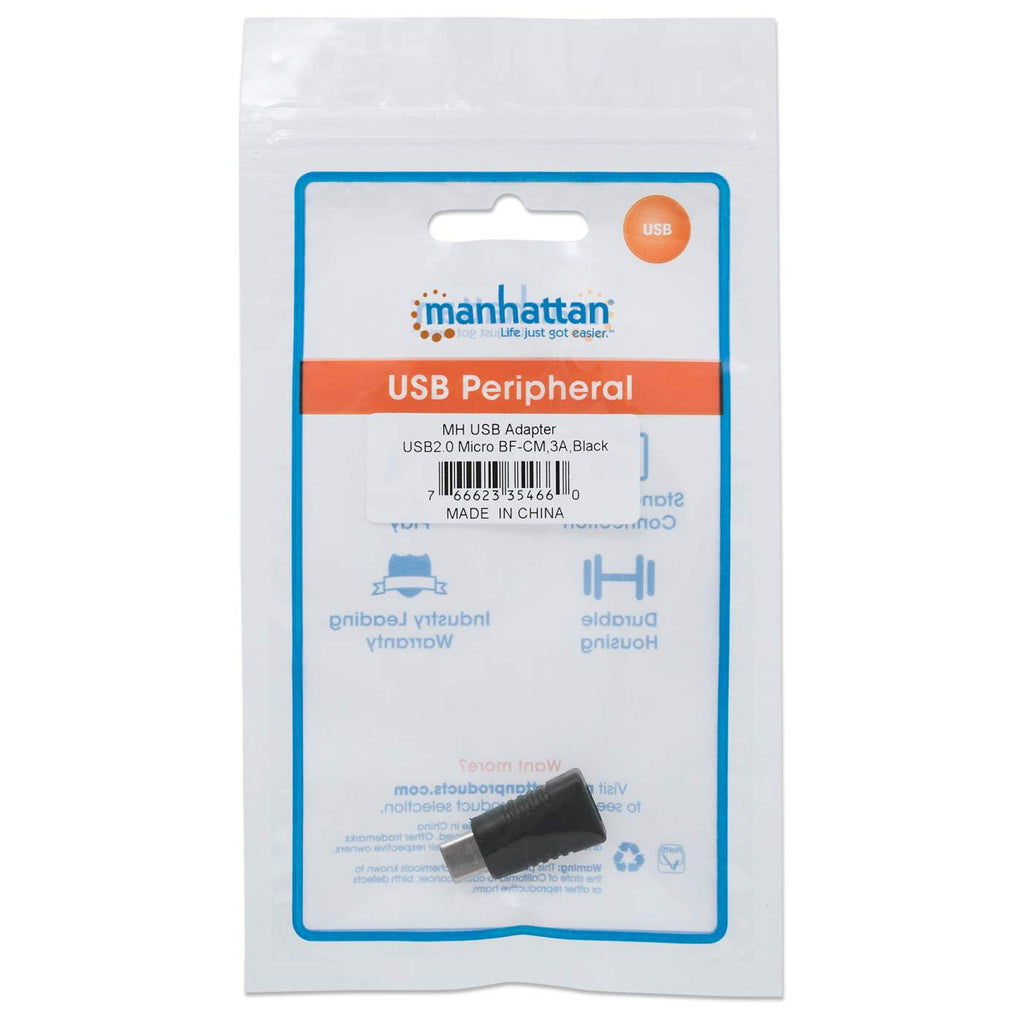

  Package contents

• USB 3.1 Micro-B to Type-C Adapter

Warning

• Additional SKUs

• Amazon ASIN: B074ZCR6D3
• EAN: 0766623354660
• UPC: 766623354660



• Physical Specifications

• Weight: 0 kg
• Dimensions: 37 (L) x 17 (W) x 10 (H) [mm]
• Packaging: Bag
