Easily distribute a single Ultra-High-Definition (UHD) signal to two displays.

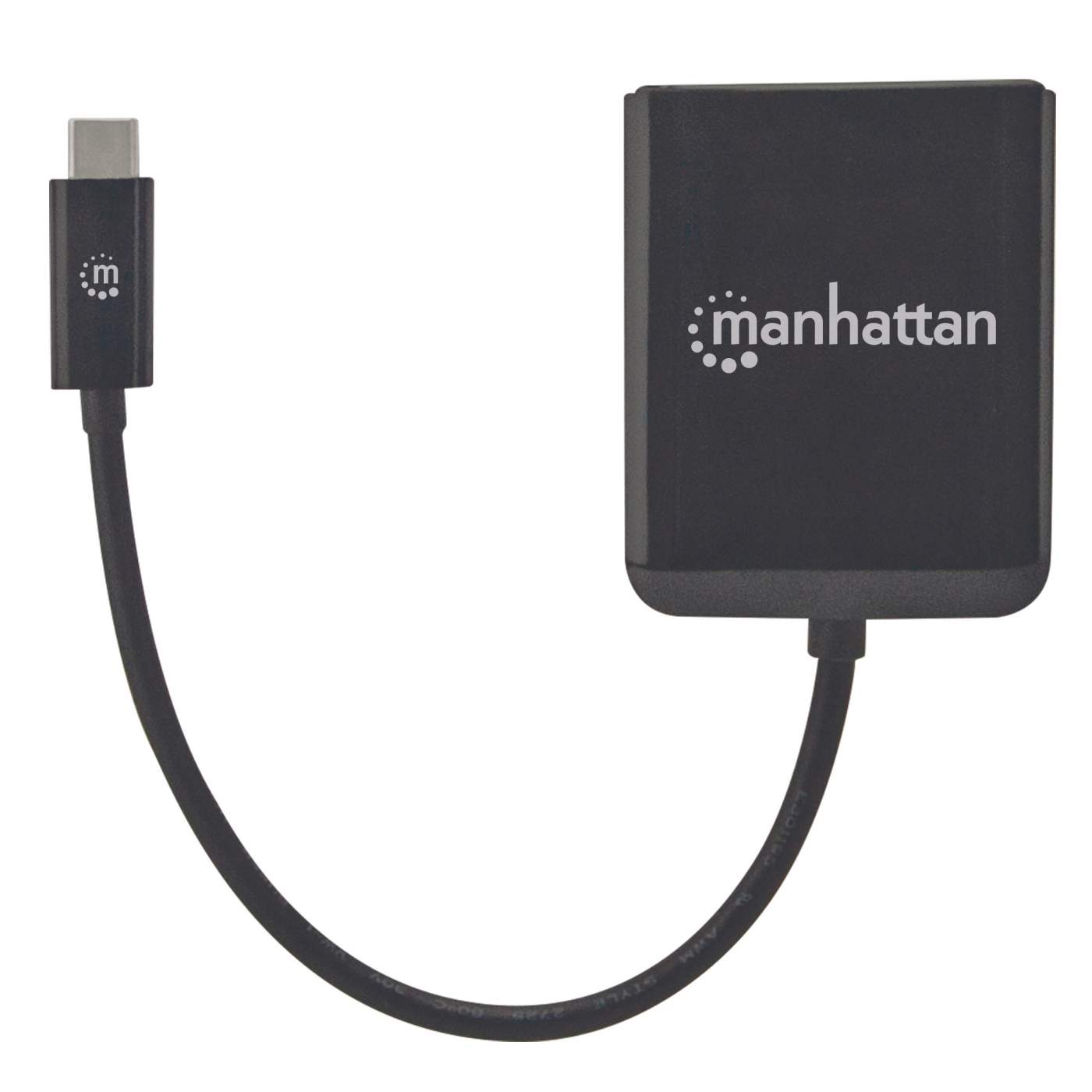

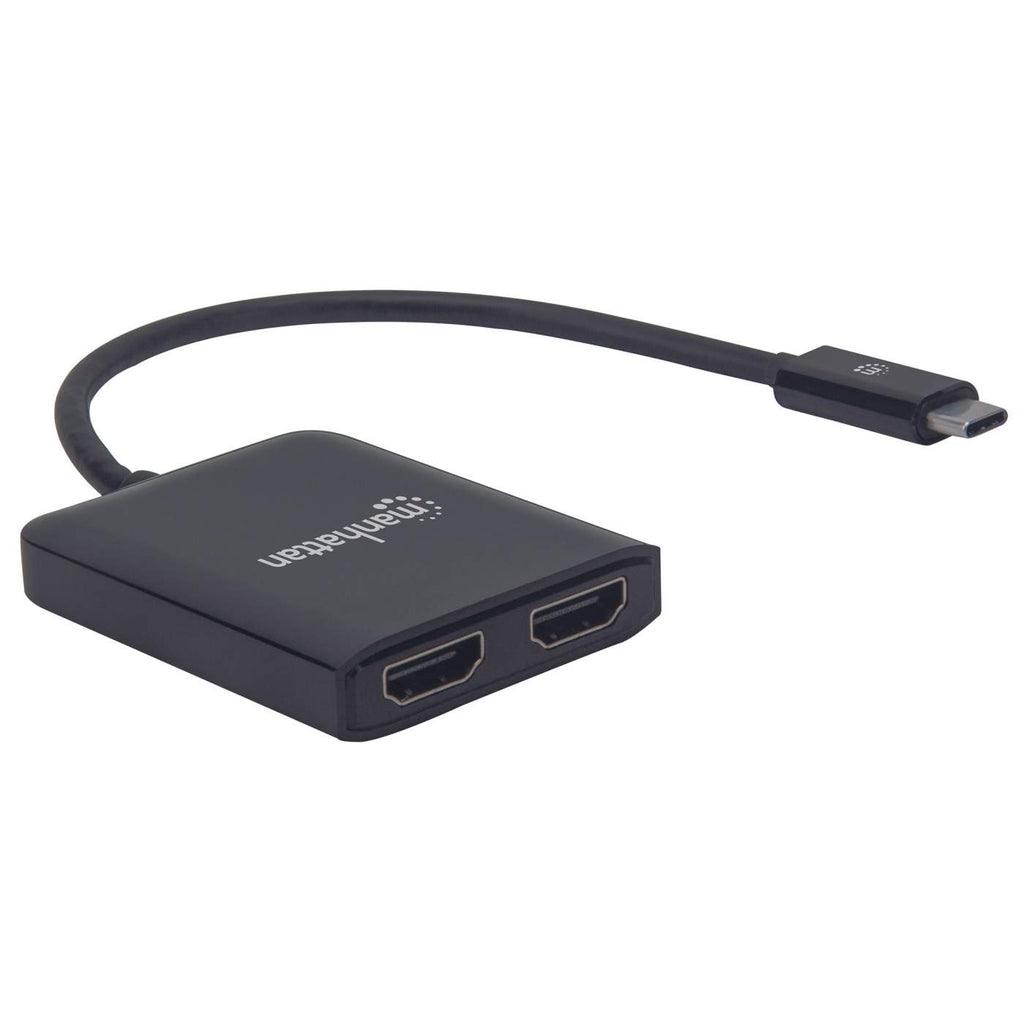

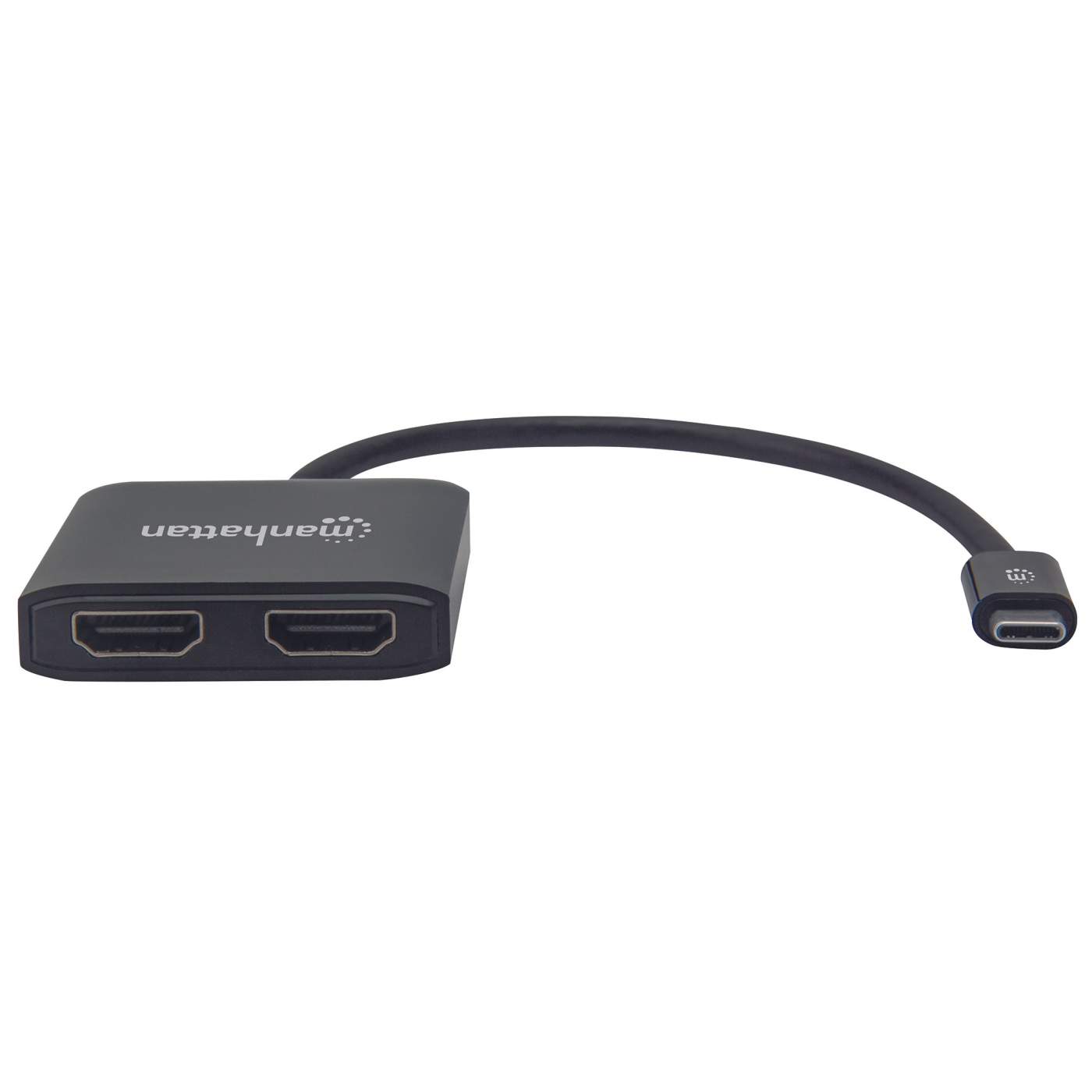

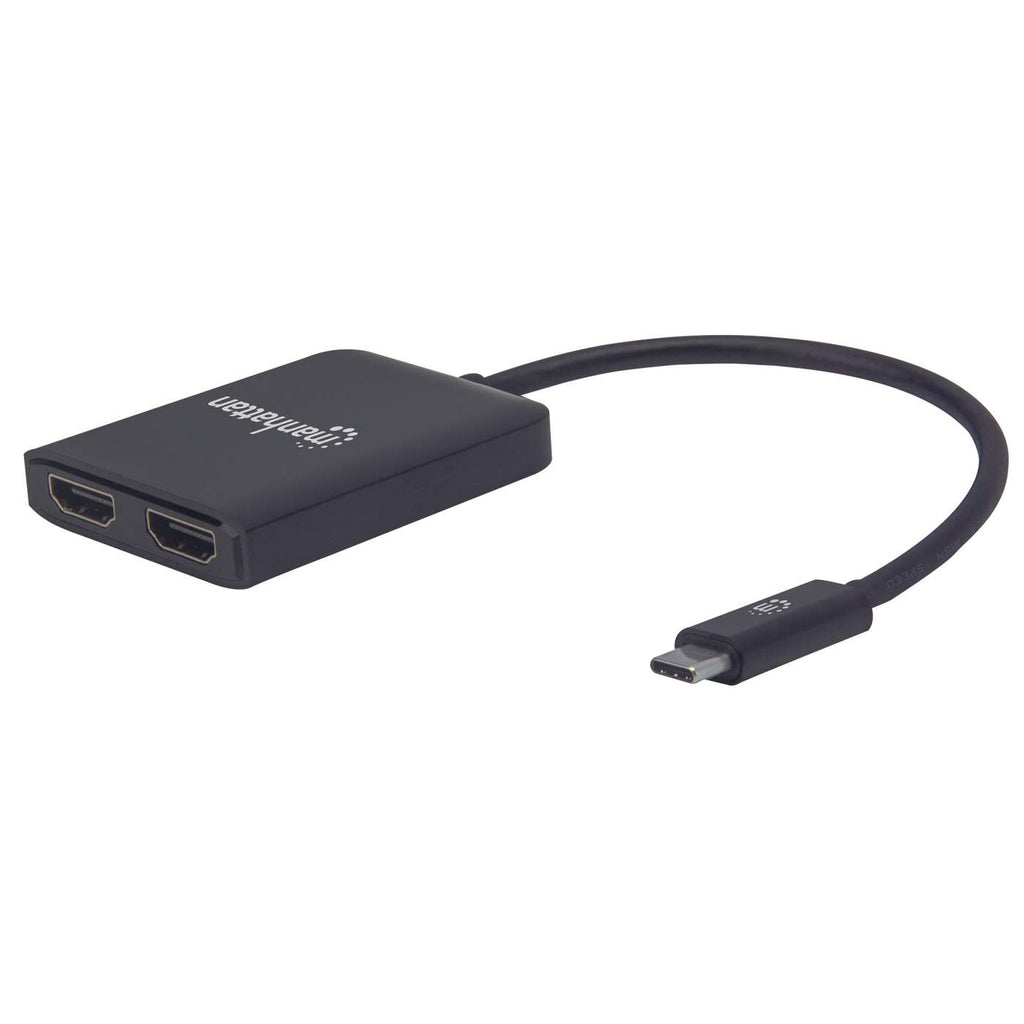

The Manhattan USB-C to Dual HDMI Converter - MST Hub establishes a fast, simple and convenient link between a newer USB Type-C-equipped media source (e.g., computer, tablet, smartphone, etc.) and up to two existing HDMI displays. It perfectly translates an audio/video signal from a single USB-C source into HDMI format (up to 4k@30Hz) and streams it simultaneously to one or two compatible displays.

Flexible Solution for Many A/V Applications

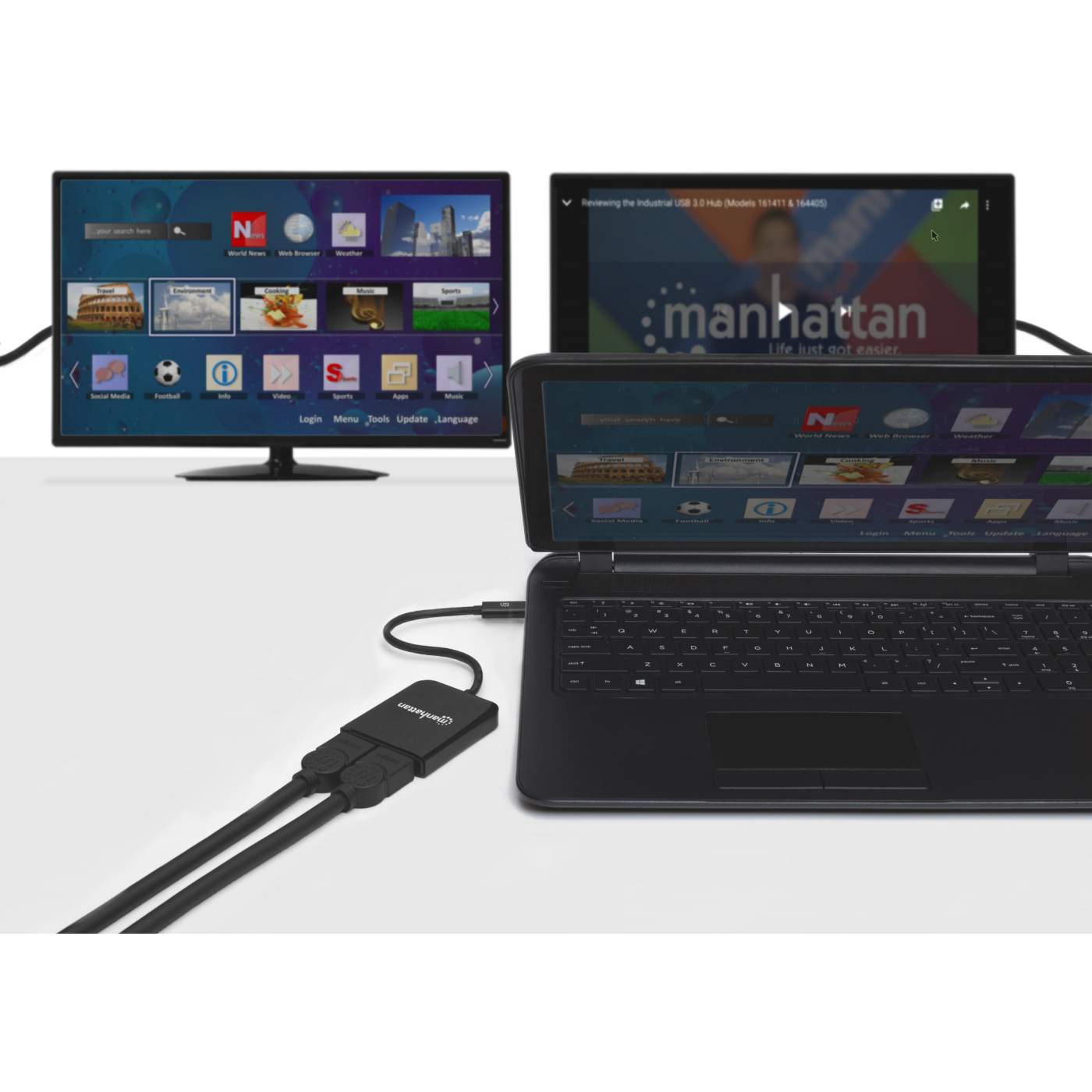

Ideal for trade shows, classrooms, video conferencing, presentations, office and retail applications, the Manhattan USB-C to Dual HDMI Converter - MST Hub distributes a synchronous signal, in either Mirrored or Extended modes, to two HDMI displays. The included MST feature can create a video wall, offering a more immersive experience whether in a gaming session, in a conference room or at the home office.

Quality Construction and Easy Installation

Full compliance with HDMI, USB-C, and DP, standards ensures that the Manhattan USB-C to Dual HDMI Converter - MST Hub can provide years of superior service and reliable performance. Setup is easy: simply connect the HDMI cables (not included) to the adapter and plug its USB-C connector into your device. That's all that's needed to complete this affordable, dual-UHD-display solution - no software/hardware configuration or complicated settings required.

• Supports 4K@30Hz resolution (Ultra-High-Definition, UHD), full 3D video and Deep Color
• Supports Mirror, Extended and Video-Wall modes
• Mirror mode duplicates the computer screen onto the connected displays
• Extended mode expands the desktop workspace onto the connected displays
• Video-wall mode uses two screens as one for a more immersive experience; requires a graphics card that supports video-wall function
• Mac OS X supports Mirror mode on up to two displays and Extended mode only on one display
• Plug and Play; requires no external power supply
• Three-year warranty

Standards and Certifications

• DP 1.2 over USB-C

• HDCP

• CE

• FCC

• RoHS2

  Connections

• One USB-C male (input)

• Two HDMI female (output)

  Signal Input/Output

• Input video signal: 0.5 – 1.0 V p-p

• Input DDC signal: 5 V p-p (TTL)

• Maximum single-link range: 5.4 Gbps, 3840x2160 at 30 Hz resolution

• Output video: HDCP

  Video Resolutions

• 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz

  Physical

• Cable Length: 195 mm (7.96 in.)

• Dimensions: 60 x 49 x 12 mm (2.36 x 1.93 x 0.47 in.)

• Weight: 49 g (1.8 oz.)

• Housing: plastic

  Operating Environment

• Operation Temperature: 0 – 40°C (32 – 104°F)

• Storage Temperature: -20 – 60°C (-4 – 140°F)

• Humidity (noncondensing): 0 – 96%

  System Requirements

• Windows XP/Vista/7/8.1/10

• Mac 10.12.x or above

• DP 1.2 graphics card

  Package Contents

• USB-C to Dual HDMI Converter - MST Hub

• Quick Instruction Guide

• Datasheet
• Datasheet     » Download


• Declaration of Conformity     » Download




• Manual
• Quick Instruction Guide     » Download
