Easily connect a USB type-C device with an HDMI display and USB peripherals

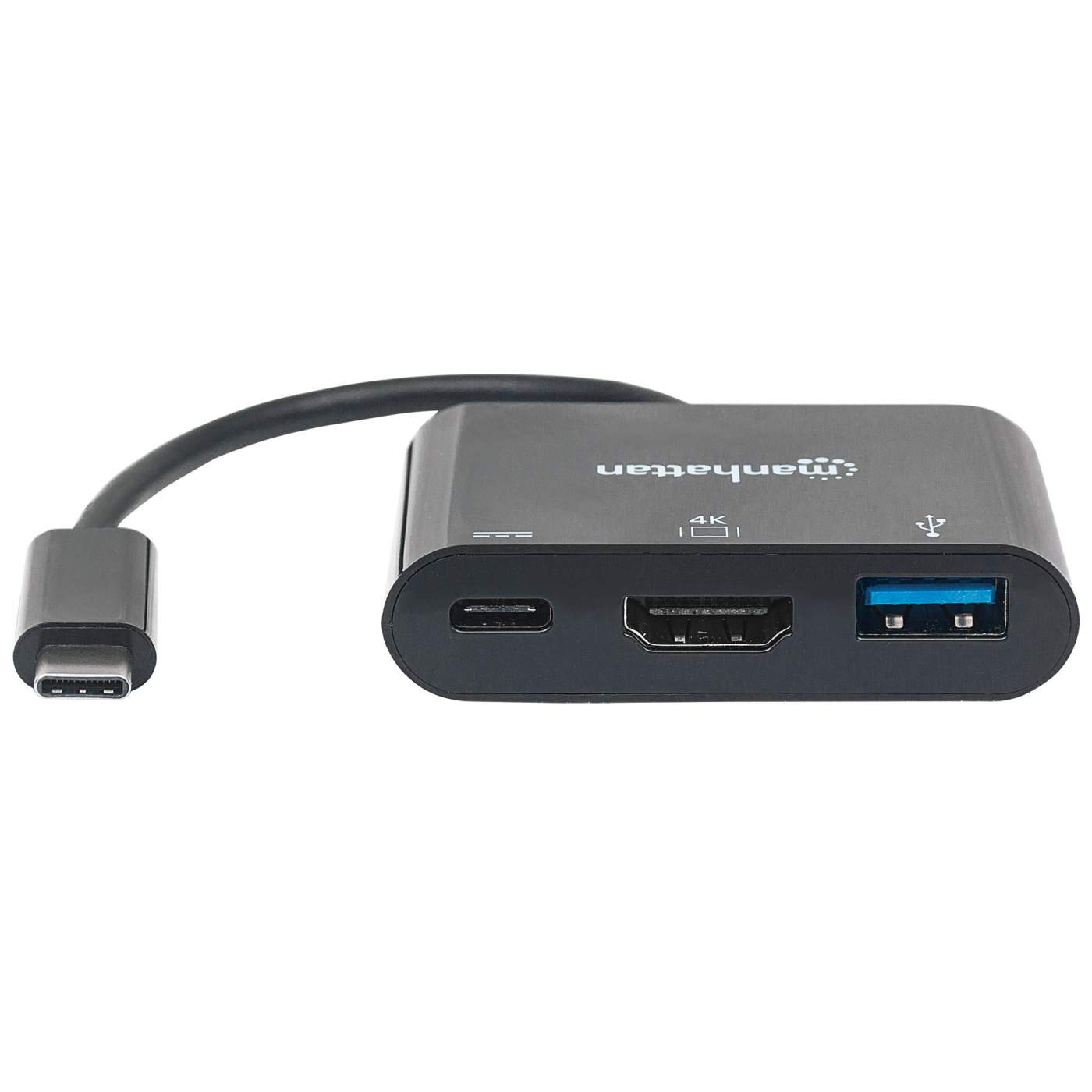

The Manhattan USB Type-C HDMI Docking Converter establishes a fast, simple and convenient link between newer USB type-C equipped media sources (computers, tablets, etc.) and existing HDMI displays (monitors, projectors, etc.), in either mirror- or extended-display mode. Create a mini-workstation by adding any USB 3.0 peripheral such as a mouse, keyboard, hub, external memory device and more with the integrated USB 3.0 port. Charge a device through the type-C charging port. The Manhattan USB Type-C HDMI Docking Converter is easy and quick to install. No complicated configuration or setup is required to enhance the functionality of your type-C device. Its all-in-one design achieves a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and work spaces neat and orderly.

• Multi-function docking converter connects a USB Type-C port to an HDMI display, USB 3.2 Gen 1, SuperSpeed (5 Gbps) Type-A port and Type-C charging port
• Enjoy Ultra High-Definition(UHD) video and audio on an HDMI monitor, projector or other display device
• Mirror or Extended display modes support video resolutions up to 1080p@60Hz or 3840x2160p@30Hz
• Provides a standard USB 3.0 type-A port to connect mice, keyboards or portable memory devices (and more) or to charge and sync a portable electronic device
• USB-A port supports superspeed (5Gbps) data transmission, charging up to 7.5W (5V/1.5A); BC1.2 compliant
• USB-C supports 5Gbps data transmission
• Supports USB Power Delivery (PD) function up to 60 W; requires an external PD charger – available from Manhattan
• Compatible with all USB type-C supported desktops, notebooks and tablets including Apple MacBook, Chromebook Pixel and more
• Compliant with DisplayPort 1.2 Alternate Mode (DP Altmode)
• Plug and Play
• Fully shielded to reduce EMI and other interference sources
• Molded PVC boot and strain relief
• Lifetime Warranty

Standards and Certifications

• USB 3.1

• HDMI

• HDCP 1.4

• CE

• FCC

• RoHS2

• WEEE

  General

• Bus powered, up to 60 watts

• Overcurrent protection

  Connections

• USB type-C, 24-pin, male

• HDMI, 19-pin, female

• USB type-C, 24-pin, female

• USB type-A, 4-pin, female

  Video Resolutions

• 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200, 3840 x 2160p@30Hz

  Physical

• 24-AWG cable gauge

• Mylar and aluminum shielding

• Withstanding voltage: 300 VDC

• Insulation resistance: 10 MΩ

• Conductive resistance: 5 Ω

• Thermal plastic casing

• Length: 8 cm (3 in.)

• Weight: 31 g (1.1 oz.)

• Shielded

• Housing: ABS plastic

  Operating Environment

• Operation Temperature: 32 ~ 104°F (0 ~ 40°C)

• Storage Temperature: -4 ~ 140°F (-20 ~ 60°C)

• Humidity (noncondensing): 5 ~ 90%

  System Requirements

• Windows XP/Vista/7/8.1/10 or Linux or Mac 9.x/10.x or above

  Package Contents

• SuperSpeed USB C HDMI Docking Converter

• Quick Instruction Guide

• Additional SKUs

• Amazon ASIN: B01M0WSWSC
• EAN: 0766623152037
• UPC: 766623152037



• Physical Specifications

• Product net weight: 0.03 kg
• Product gross weight: 0.07 kg
• Dimensions: 45 (L) x 43 (W) x 14.5 (H) [mm]
• Packaging: Retail Box
