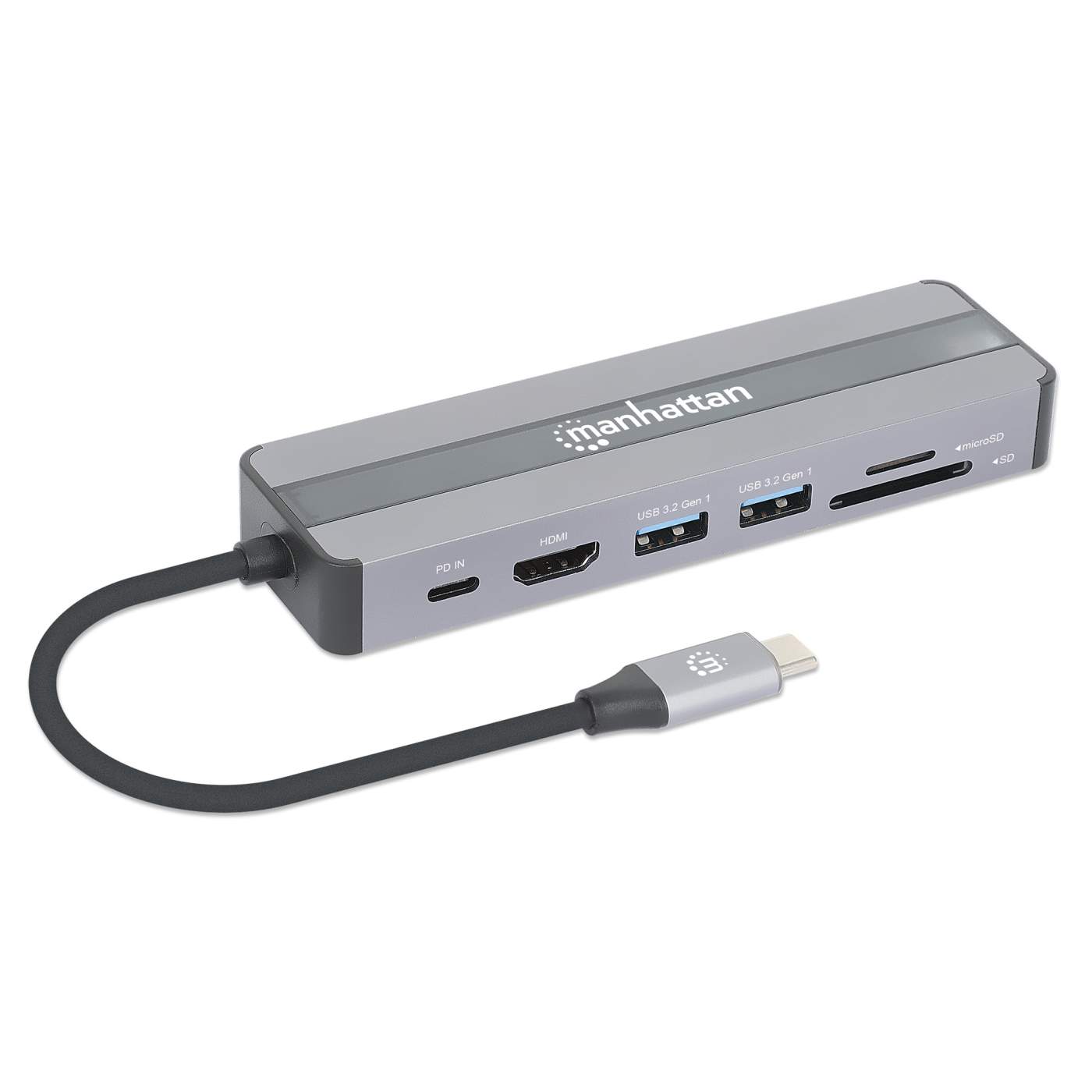

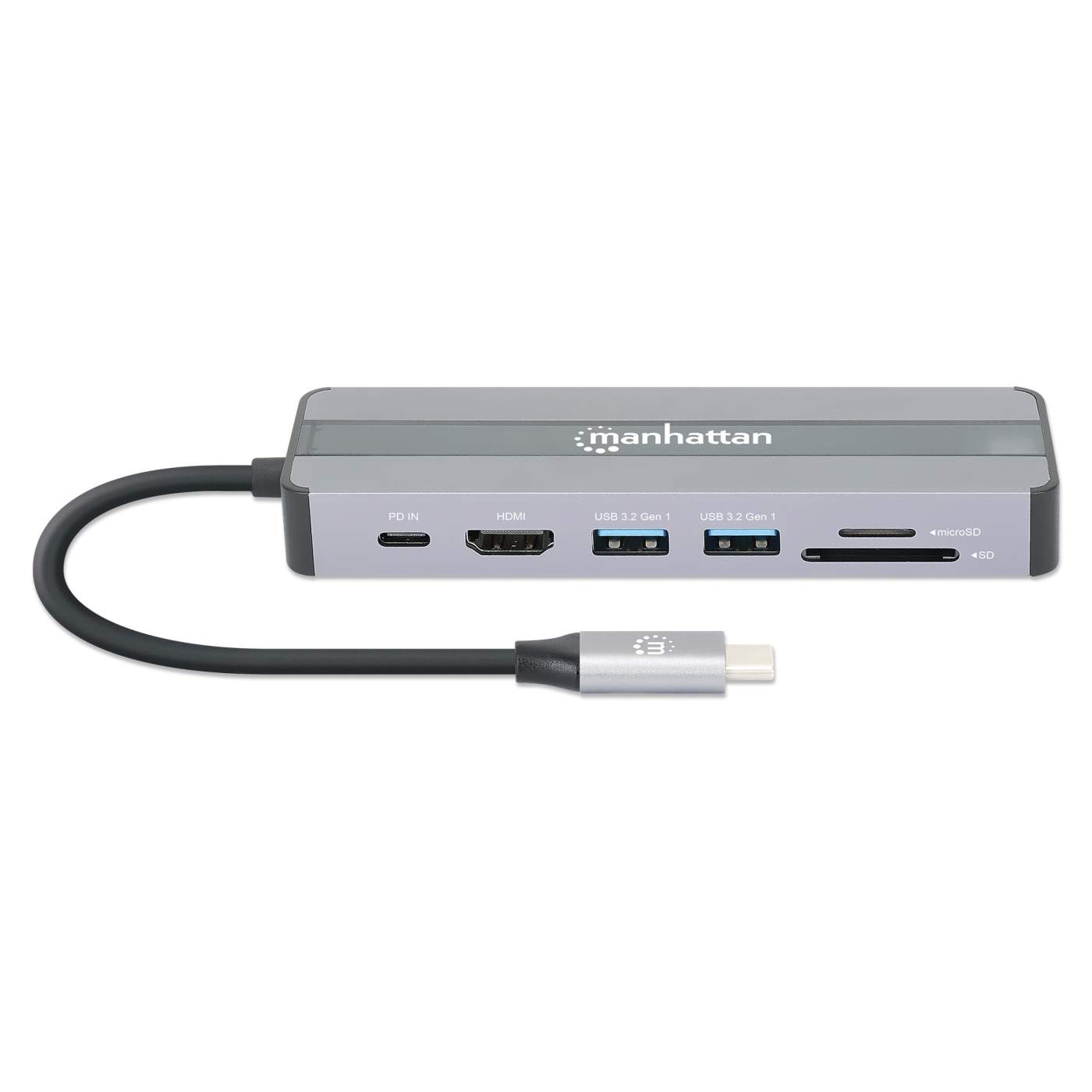

USB-C Docking Station with PD Charging - connect HDMI monitor, network, peripherals and (micro)SD cards to your device

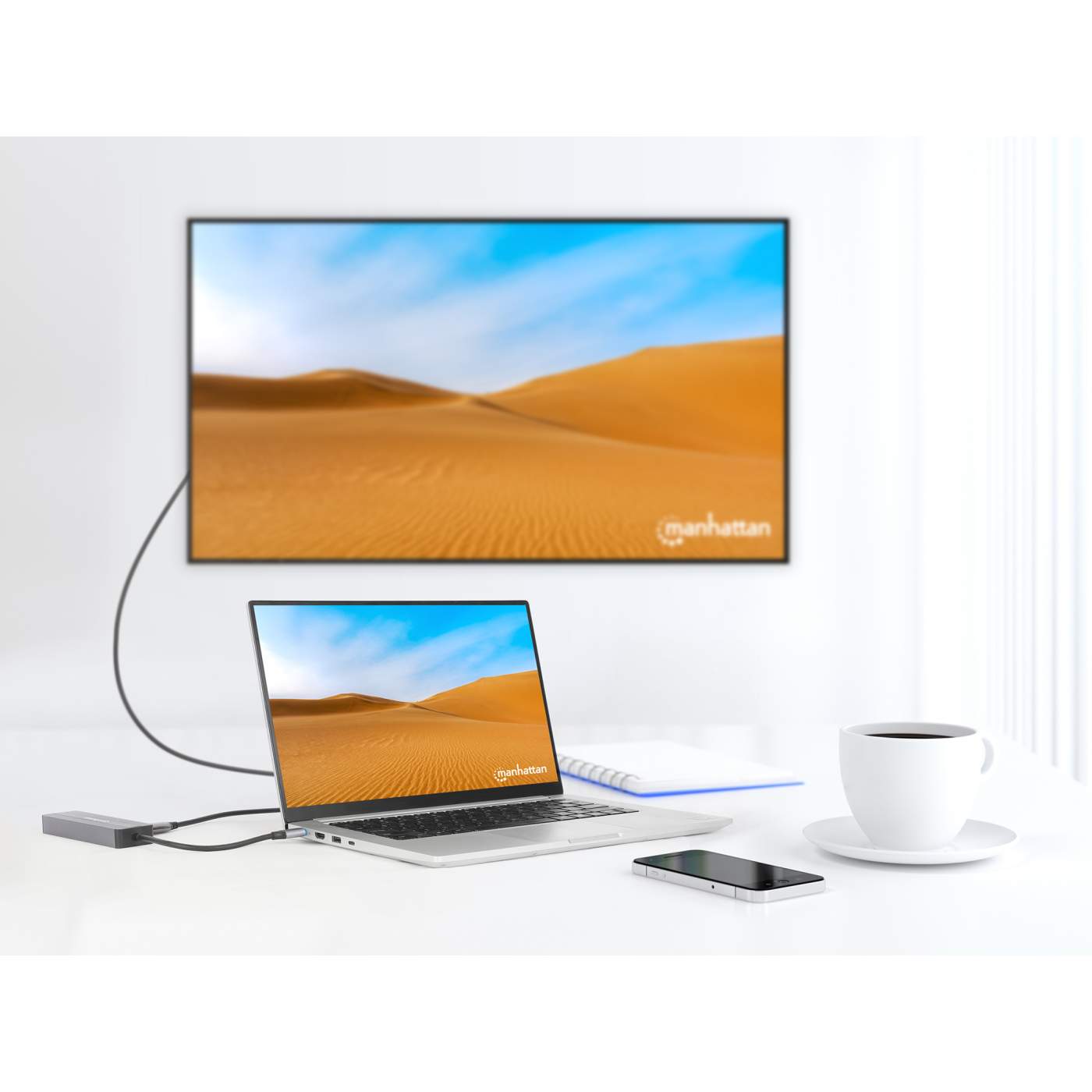

Increase your productivity with this highly versatile multiport adapter from Manhattan that combines a 4K HDMI connection, a USB hub, a wired gigabit network link, device-power capability and card reader into one. This USB-C dock establishes a fast, simple and convenient link between newer USB Type-C equipped media sources (laptops, PCs, MacBooks, Chromebooks, computers, tablets, etc.) and existing HDMI displays (monitors, TVs and projectors) for 4K30Hz Ultra High Definition (UHD) images in either mirror- or extended-display mode.

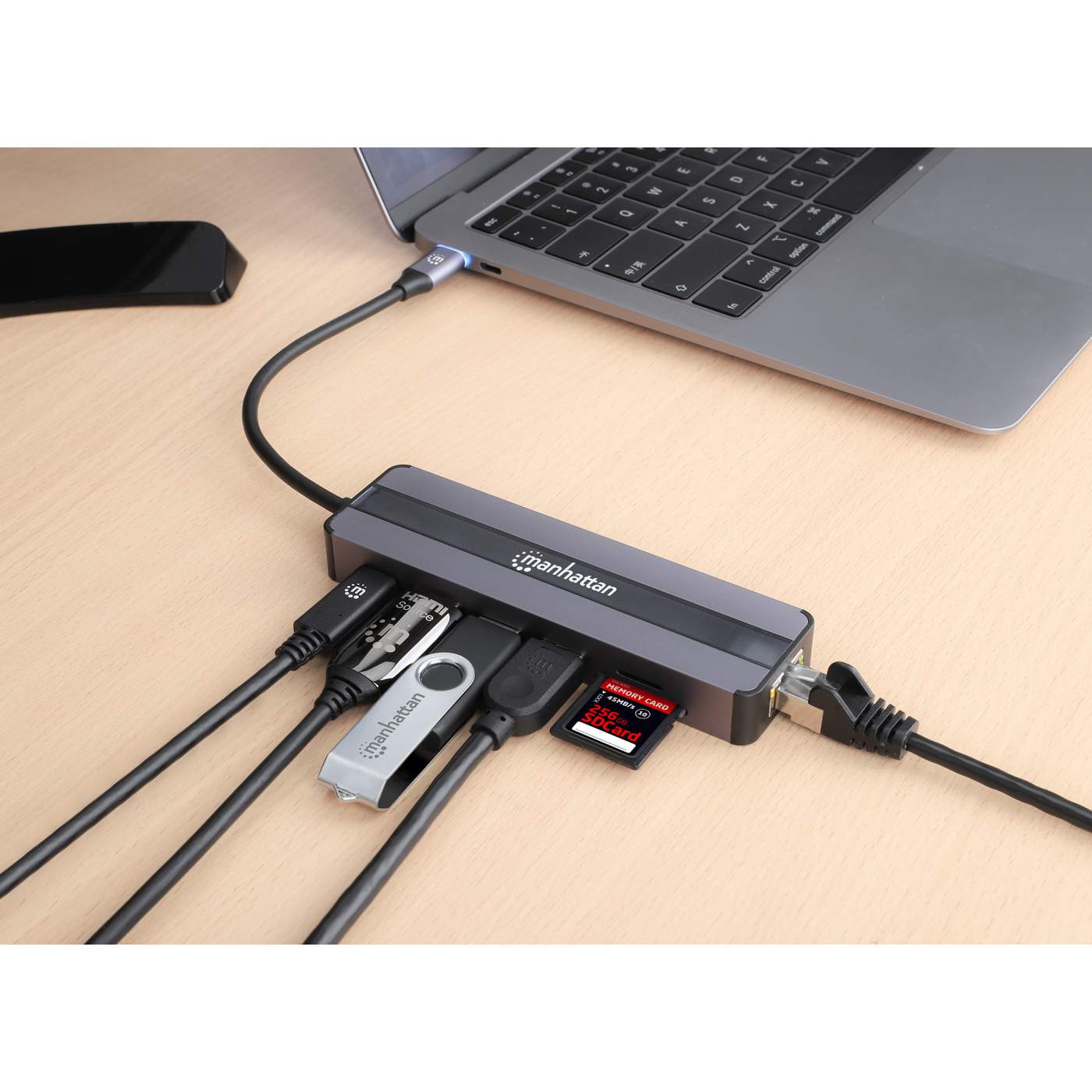

Connections to all your peripherals

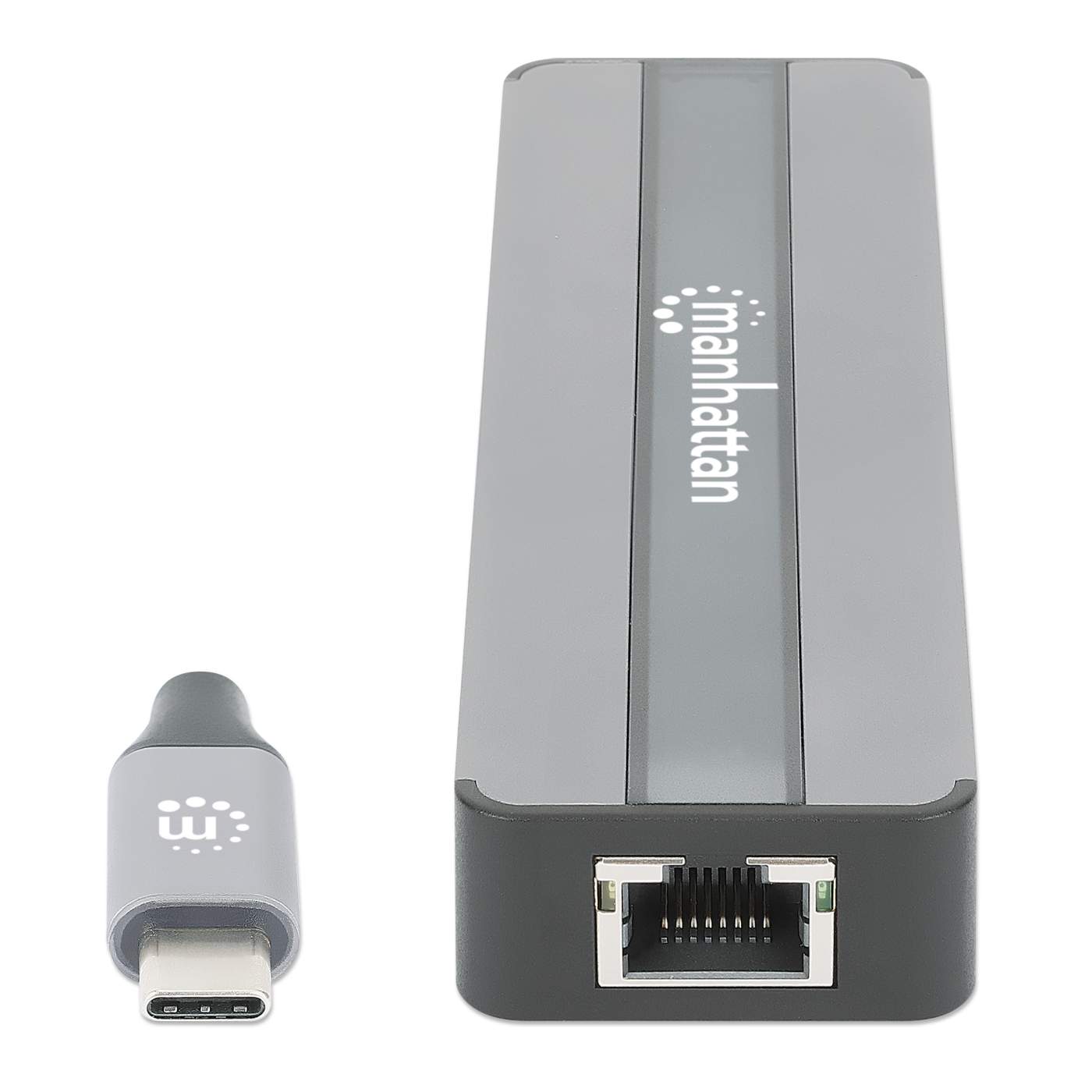

With two USB-A ports (5 Gbps transfer speeds) for mice, keyboards or flash drives, and two slots for SD/microSD cards, this docking station easily satisfies all your connectivity demands. Plus, its Gigabit RJ45 port provides 10/100/1000 Mbps connectivity to the wired network connection that’s missing in most modern Ultrabooks™ and MacBooks®.

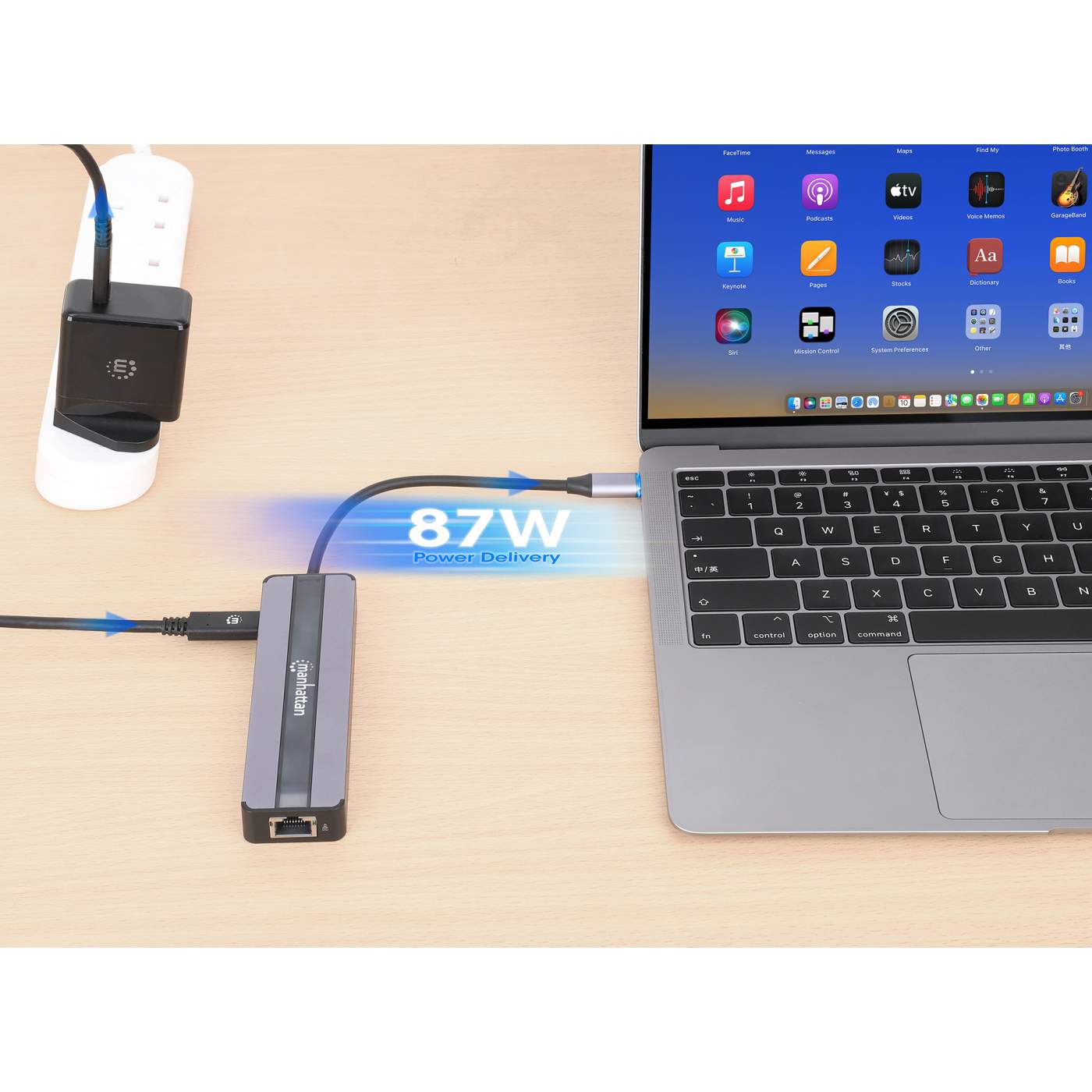

Up to 87 W charging power with USB-C Power Delivery (PD)

The included USB-C PD port lets you charge your notebook with power up to 87 W while simultaneously charging your other mobile devices, such as smartphones or tablets, through the USB-A ports. The Power Delivery function also provides faster charging than standard chargers, since it determines the power needs of compatible devices and supplies it at the quickest and safest rate.

Take your phone to the big screen

Connect any Android 9 and later smartphone that supports video output over USB-C DP Alt Mode to enjoy your apps and media even more. Watch a video on your monitor or flip through the slides of your presentation - all from your phone.

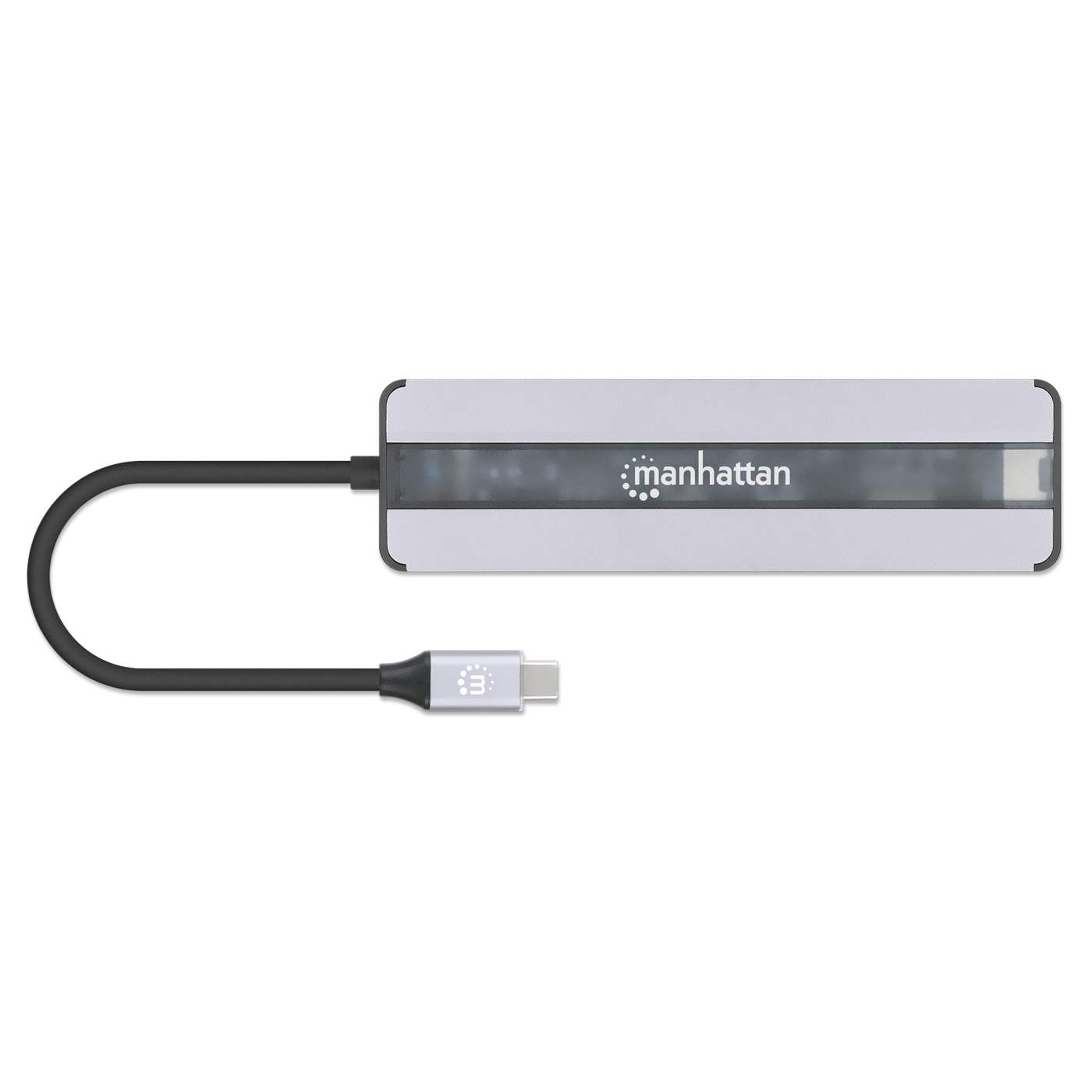

A multiport adapter that's made to go where you go

Sturdy aluminum housing makes this multiport adapter the perfect travel companion. With its many connectivity options, it has a footprint of only 126 x 36 x 16 mm (4.96 x 1.42 x 0.63 in.), so it's small enough to fit in an outer notebook bag pocket.

• Connects to your display, network and peripherals while charging your devices
• One HDMI port with resolutions up to Ultra-High-Definition (UHD) 4K@30Hz (3840×2160)
• One Gigabit Ethernet (10/100/1000) port for faster downloads, media streaming and gaming
• Supports USB Power Delivery (PD) function up to 87 W; requires an external PD charger - available from Manhattan
• Two USB 3.2 Gen 1 (formerly USB 3.0) Type-A ports with SuperSpeed transfer rates up to 5 Gbps and charging up to 4.5 W (5 V / 0.9 A)
• USB-A ports to connect mice, keyboards, flash drives and more or to charge and sync mobile devices
• SD and microSD card slots with read/write function; slots support cards up to 2 TB and data transfer speeds up to 104 Mbps
• Compliant with DisplayPort 1.2 Alternate Mode (DP Alt Mode)
• Compatible with all USB-C DP-Alt-Mode-supported desktops, notebooks and tablets including MacBook®, Chromebook™, Pixel™ and more
• Lets your smartphone work like a desktop PC while also charging it (desktop setup requires devices with Android 9 or above that offer video output over USB-C)
• Built-in, sturdy 18 cm (7 in.) cable with molded aluminum boot
• Sturdy, sleek aluminum housing, great for both desktop and travel
• Portable, compact and lightweight design that easily fits into laptop bag pockets
• Plug-and-play installation; Windows®, macOS®, Chrome OS™ and Android™ compatible
• HDCP 1.4 compliant
• Three-year warranty

Standards and Certifications

• DP 1.2 Alt Mode over USB-C

• USB 3.2 Gen 1

• HDMI 1.4

• HDCP 1.4

• CE

• FCC

• RoHS

• REACH

• UKCA

  General

• USB-A ports data transfer speed: 5 Gbps

• Bus-powered operation (except charging functions)

• USB-C PD charging port: 87.0 W (20.0 V at 5.0 A) max.

• USB-A charging: 4.5 W (5.0 V at 0.9 A) max.

  Connections

• One USB-C 24-pin, male

• One HDMI 19-pin, female

• One 10/100/1000 Mbps RJ45, female

• Two USB-A 9-pin, female

• One SD memory slot

• One microSD memory slot

• One USB-C 24-pin, Power Delivery, female

  Physical

• Dimensions (L x W x H): 126 x 36 x 16 mm (4.96 x 1.42 x 0.63 in.)

• Net weight: 71 g (2.5 oz.)

• Gross weight: 107 g (3.77 oz.)

• Cable length: 18 cm (7 in.)

• Cable diameter: 28 AWG

• Aluminum housing

  Operating Environment

• Operation temperature: 0 - 70°C (32 - 158°F)

• Storage temperature: -10 - 90°C (14 - 194°F)

• Humidity (noncondensing): 10 - 90% RH

  System Requirements

• Windows 7/8.1/10/11, Chrome OS, macOS or Android

  Package Contents

• USB-C 7-in-1 Docking Station with Power Delivery

• Instructions

• Additional SKUs

• Amazon ASIN: B0C29ZC8BM
• EAN: 0766623153928
• UPC: 766623153928



• Physical Specifications

• Product net weight: 0.07 kg
• Product gross weight: 0.11 kg
• Dimensions: 126 (L) x 36 (W) x 16 (H) [mm]
• Packaging: Retail Box

• Datasheet
• Datasheet     » Download




• Manual
• Quick Instruction Guide     » Download
