Powerful, Hi-Speed USB 2.0 performance without compromising SuperSpeed capabilities

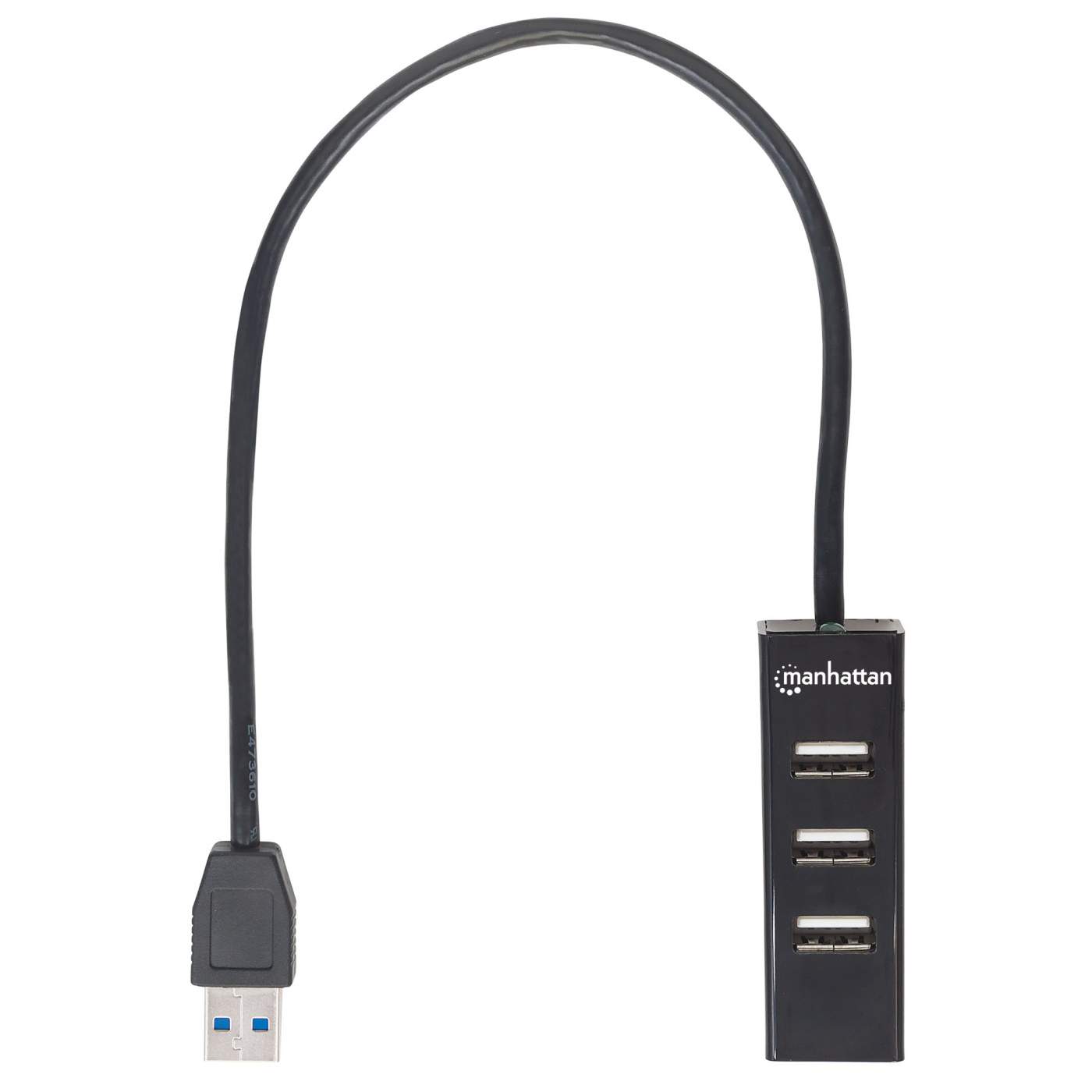

The Manhattan USB 3.0/2.0 Combo Hub easily expands USB access for desktop and mobile users to connect more peripherals and mobile devices. Connect Hi-Speed or Full-Speed peripherals — e.g. mouse, keyboard, etc. — that require as little as 1.5 Mbps / 100 mA without sacrificing the USB SuperSpeed 3.0 port performance. It's backward compatible to previous USB standards, providing versatility for attached devices. Plug and play with hot-swap capabilities, Windows and Mac compatibility and data transfer speeds up to 5 Gbps allow the Manhattan USB 3.0/2.0 Combo Hub consolidate numerous, less-capable hubs into a single USB solution.

• Provides one SuperSpeed USB 3.0 port and three Hi-Speed USB 2.0 ports for additional peripherals
• Connects a mouse, keyboard and/or other Hi-Speed peripheral without losing SuperSpeed capability
• Supports data transfer rates up to 5 Gbps in USB 3.0 port and up to 480 Mbps in the USB 2.0 ports
• Backward compatible with all USB 2.0 and 1.1 devices
• Bus powered with overcurrent protection; capable of fast charging at up to 0.9 A
• Compact size ideal for both desktop and mobile use
• Plug and play; Windows and Mac compatible; no drivers required
• Three-Year Warranty

Standards and Certifications

• USB 3.0/2.0

• FCC

• CE

• RoHS

• REACH

  General

• Transfer speeds:
  –USB 3.0 port, 12/480 Mbps/5 Gbps
  –USB 2.0 ports, 12/480 Mbps

• LED power indicator: green

• Input: 100 - 240 V, 50/60 Hz; 0.9 A, maximum

• Output: Up to 900 mA power

  Ports/Connectors

• One USB 3.0 Type-A female

• Three USB 2.0 Type-A female

• One USB 3.0 Type-A male

  Physical

• Dimensions: 6.5 x 2 x 2.2 cm (2.6 x 0.8 x 0.9 in.)

• Weight: 34 g (1.2 oz.)

• Integrated USB 3.0 Type-A cable: 30 cm (12 in.)

• Housing: plastic

  System Requirements

• USB-enabled Mac or PC system

• Windows XP/Vista/7/8.1/10/11 or Mac OS 8/9/10 or above

  Operating Environment

• Operation Temperature: 32 – 104°F (0 – 40°C)

• Storage Temperature: -4 – 140°F (-20 – 60°C)

• Humidity (noncondensing): 0 – 96%

  Package Contents

• USB 3.0/2.0 Combo Hub

• Quick Instruction Guide

Warning

This product can expose you to chemicals including DEHP, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Amazon ASIN: B0765R8PX4
• EAN: 0766623163828
• UPC: 766623163828



• Physical Specifications

• Product net weight: 0.03 kg
• Product gross weight: 0.06 kg
• Dimensions: 370 (L) x 22 (W) x 22 (H) [mm]

• Datasheet
• Datasheet     » Download


• Declaration of Conformity     » Download




• Manual
• Quick Instruction Guide     » Download
