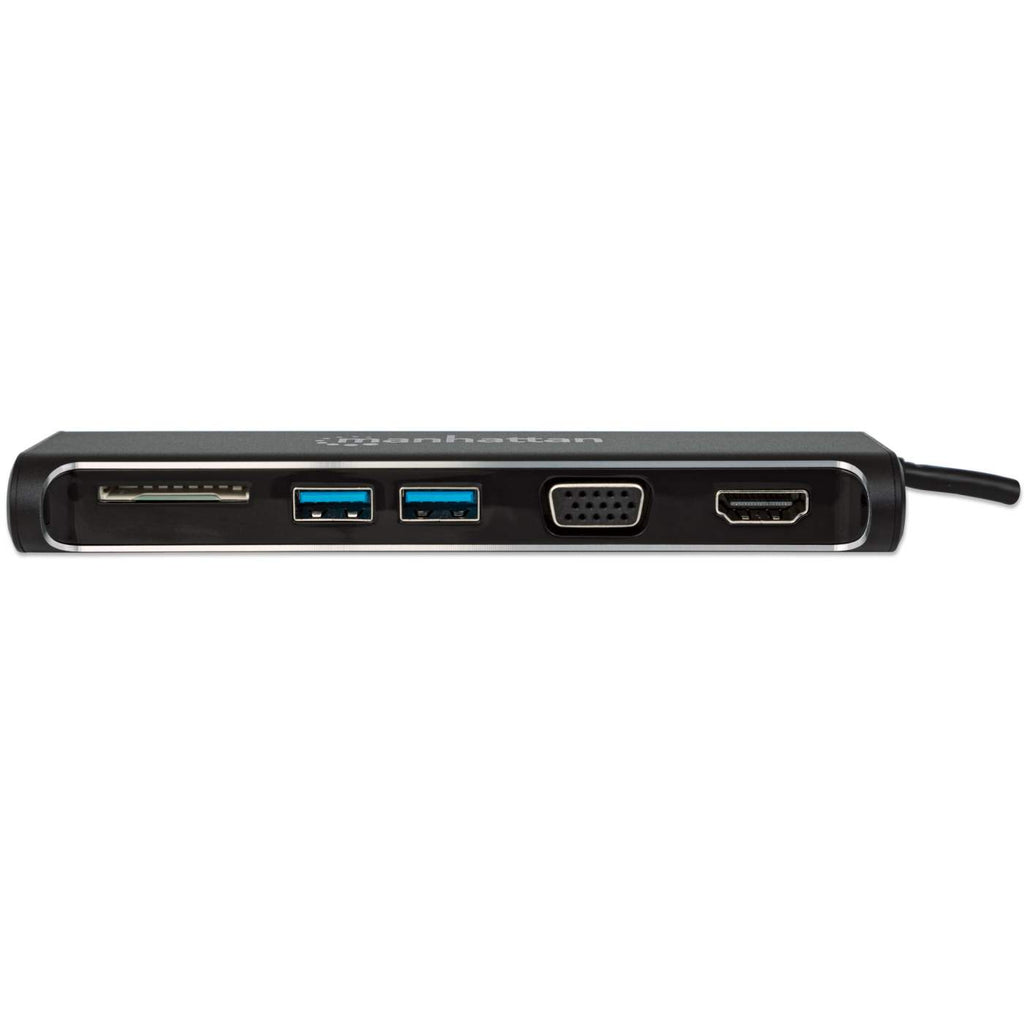

Easily connect a USB Type-C device to an HDMI or VGA display, USB peripherals and SD memory card.
The Manhattan SuperSpeed USB-C to HDMI/VGA 4-in-1 Docking Converter establishes a fast, simple and convenient link between newer USB type-C equipped media sources (computers, tablets, Smartphones, etc.) and existing HDMI/VGA displays (monitors, projectors, etc.), in either mirror- or extended-display mode. Create a mini-workstation by adding any USB 3.0 peripheral such as a mouse, keyboard, hub, external memory device and more with the integrated USB 3.0 ports and SD card slot.
The Manhattan SuperSpeed USB-C to HDMI/VGA 4-in-1 Docking Converter is easy and quick to install. No complicated configuration or setup is required to enhance the functionality of your type-C device. Its all-in-one design achieves a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and work spaces neat and orderly.

• Multi-function docking converter connects a USB Type-C port to an HDMI or VGA display, two-port USB 3.0 hub and SD Card Reader
• Offers Ultra-High-Definition (UHD) 4K@30Hz video and audio with an HDMI connection or HD 1080p video with a VGA connection
• Mirror or Extended display modes support video resolutions up to 1080p@60Hz or 3840x2160 at 30 Hz (4K) Full UHD
• Provides a USB 3.0 two-port hub to connect mice, keyboards or portable memory devices (and more) or to charge and sync a portable electronic device
• USB-A ports support SuperSpeed (5 Gbps) data transmission and charging up to 7.5 W (5 V / 1.5 A); BC1.2 compliant
• Easy access to media and content management with read/write/copy SD slot; supports automatic card detection and data transfer speeds up to 480 Mbps
• USB-C supports 5 Gbps data transmission
• Angled, aluminum housing makes this durable converter the perfect desktop or travel companion
• Compatible with all USB Type-C, DP Alt mode supported desktops, notebooks and tablets including Apple MacBook, Chromebook Pixel and more
• Compliant with DisplayPort 1.2 Alternate Mode (DP Altmode)
• Plug and Play
• Fully shielded to reduce EMI and other interference sources
• Molded PVC boot and strain relief
• Three-Year Warranty

Standards and Certifications

• USB 3.1

• HDMI

• HDCP 1.4

• CE

• FCC

• RoHS2

• WEEE

  General

• Video Resolutions: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200, 3840 x 2160p at 30 Hz, 4K

• USB A ports: 5 Gbps

• Supported flash cards: SD / SDHC / SDXC / EXTREME SD / EXTREME II SD / EXTREME III SD / ULTRA SD / ULTRA II SD / ULTRA II SD P PLUS / SD-ULTRA-X / ULTRA SPEED SD / SD PRO / SD ELITE PRO / HS SD / MMC / MMC 4.0 / HS MMC / HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile

• Transfer speed: up to 480 Mbps

• 24-AWG cable gauge

• Bus powered

• Mylar and aluminum shielding

• Withstanding voltage: 300 VDC

• Insulation resistance: 10 MΩ

• Conductive resistance: 5 Ω

  Connections

• One USB Type-C 24-pin, male

• One HDMI 19-pin, female

• One VGA 15-pin female

• Two USB Type-A 4-pin, female

• One SD memory slot

  Physical

• Dimensions: 145 x 43 x 16 mm (5.7 x 1.7 x 0.6 in.)

• Cable Length: 8 cm (3 in.)

• Weight: 0.06 g (0.13 lbs)

• Housing: Aluminum

  Operating Environment

• Operation Temperature: 32 – 122°F (0 – 50°C)

• Storage Temperature: -22 – 176°F (-30 – 80°C)

• Humidity (noncondensing): 5 – 90%

  System Requirements

• Windows 8.1/10 or Linux or Mac 10.10.5 or above

  Package Contents

• SuperSpeed USB-C to HDMI/VGA 4-in-1 Docking Converter

• Quick Instruction Guide

• Additional SKUs

• Amazon ASIN: B076735K2Q
• EAN: 0766623152631
• UPC: 766623152631



• Physical Specifications

• Product net weight: 0.07 kg
• Product gross weight: 0.12 kg
• Dimensions: 145 (L) x 43 (W) x 16 (H) [mm]
• Packaging: Blister

• Datasheet
• Datasheet     » Download




• Manual
• Quick Instruction Guide     » Download
