Easily connect a USB Type-C device to an HDMI, Mini DP or VGA display, USB peripherals, Network and SD memory card

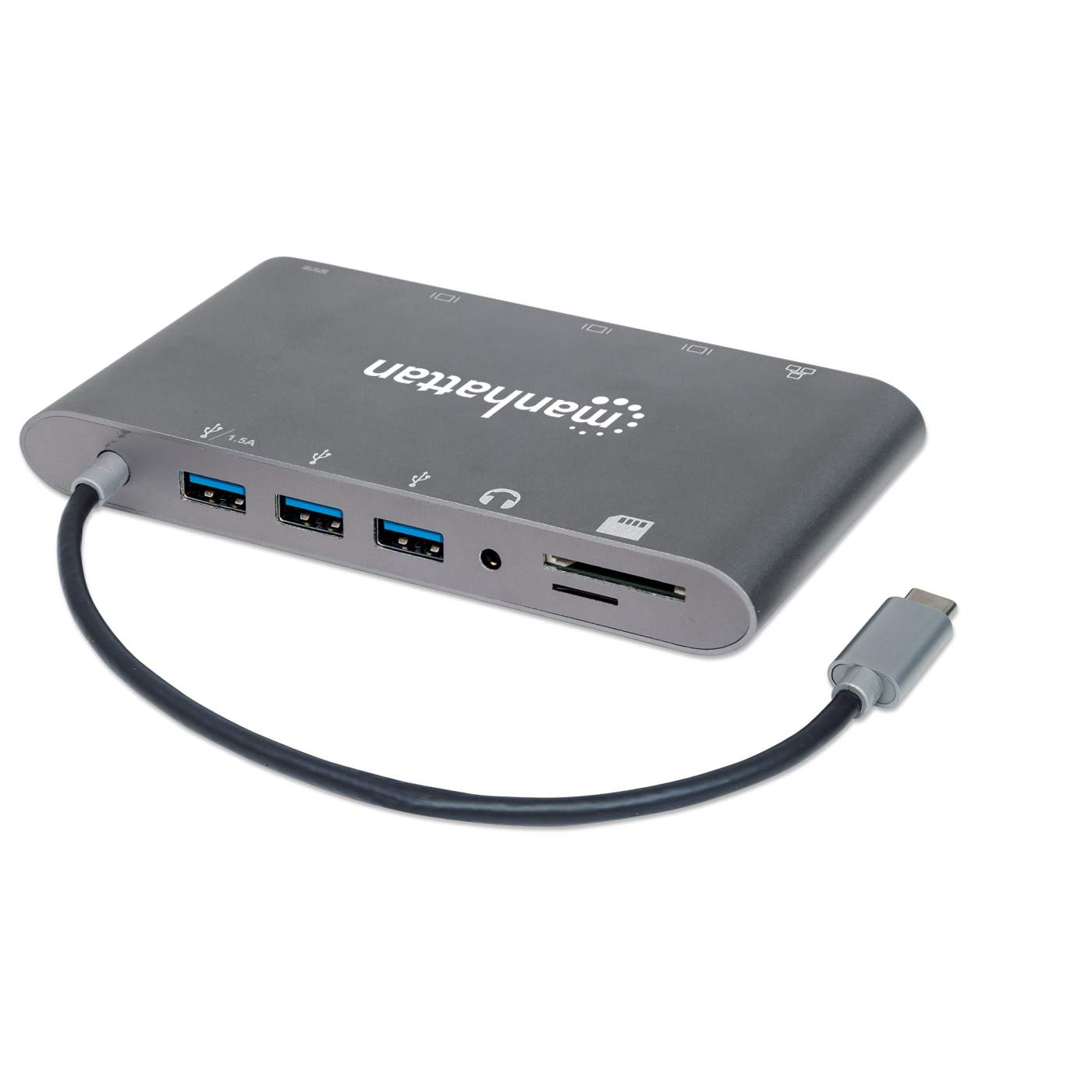

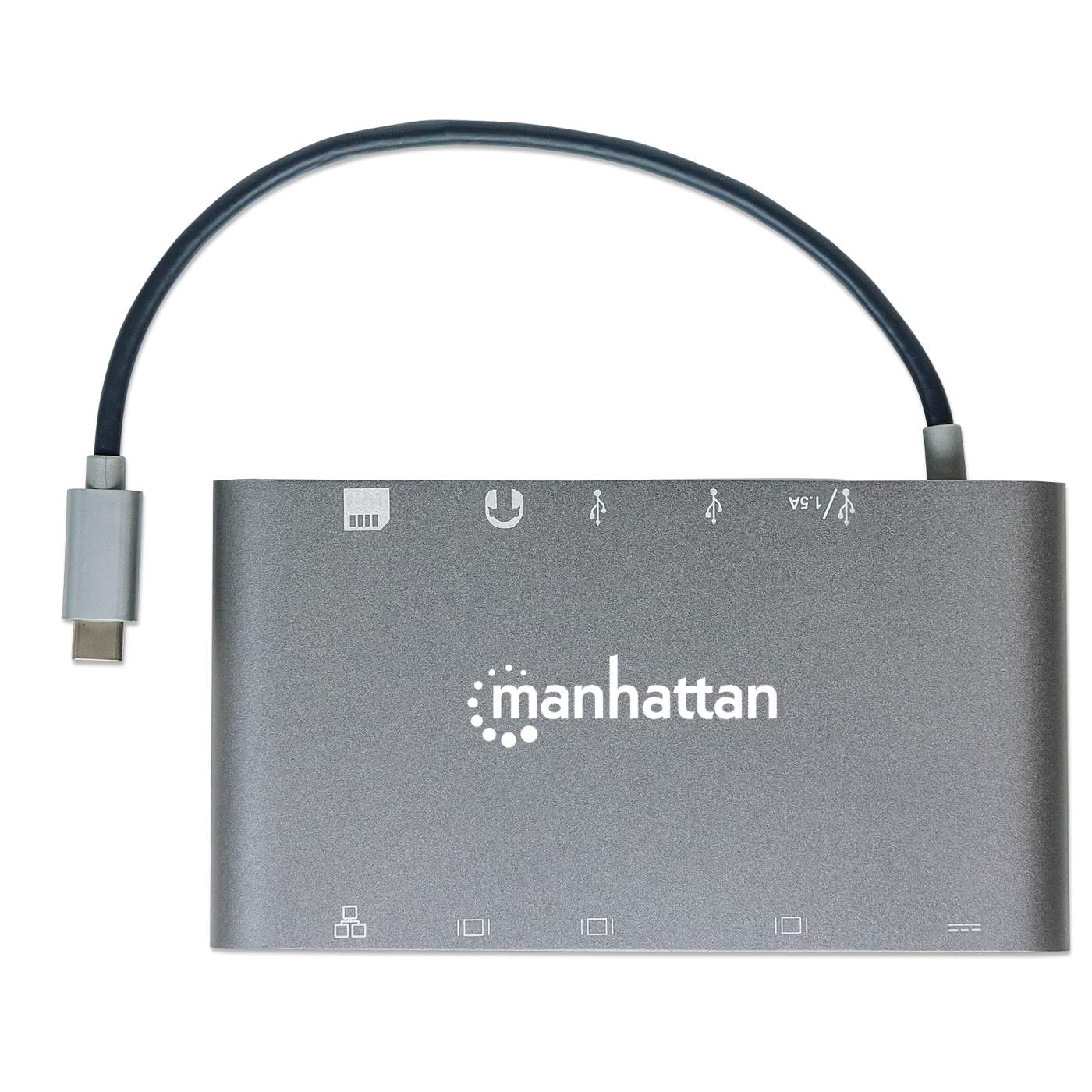

The Manhattan SuperSpeed USB-C Docking Station establishes a fast, simple and convenient link between newer USB Type-C-equipped media sources (computers, tablets, Smartphones, etc.) and an existing HDMI/Mini DP/VGA display (monitors, projectors, etc.), in either mirror- or extended-display mode. Create a mini-workstation by adding any USB 3.0 (and earlier) peripheral, such as a mouse, keyboard, hub, external memory device and more, with the integrated USB-A ports, Gigabit network connection, 3.5 mm Stereo and SD and Micro SD card slot, all while charging your device through the USB-C port.

The Manhattan USB 3.2 Gen 1 USB-C Docking Station is easy and quick to install. No complicated configuration or setup is required to enhance the functionality of your Type-C device. Its all-in-one design achieves a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and work spaces neat and orderly.

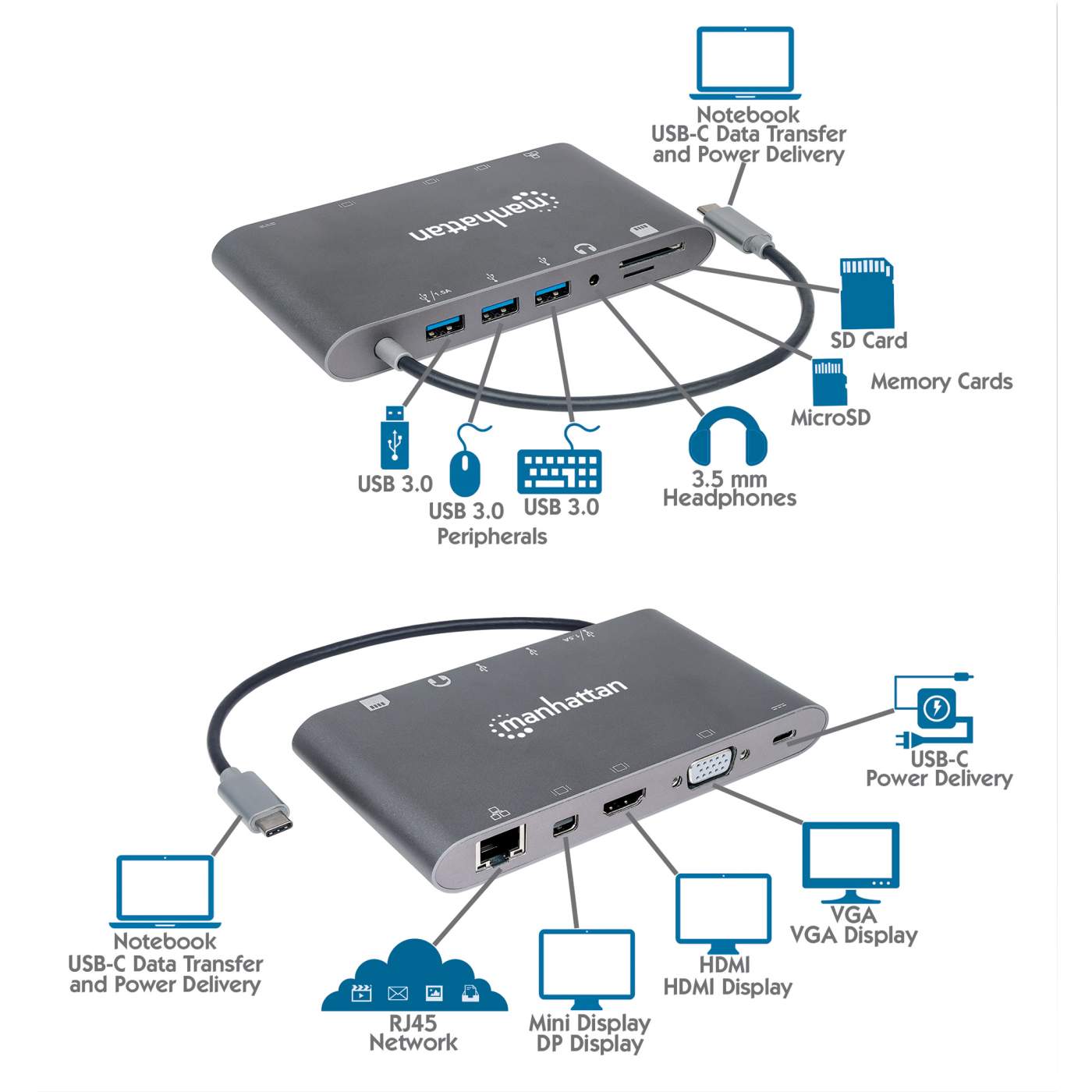

• Multi-function docking station connects a USB Type-C device to an HDMI, Mini DP or VGA display, three USB 3.0 Type-A ports, a 10/100/1000 Mbps port, a 3.5 mm stereo port, a USB-C power port and an SD Card Reader
• Delivers Ultra-High-Definition (UHD) 4K@30Hz video and audio over HDMI or Mini DP connection or HD 1080p video over VGA connection
• Mirror or extended-display modes support video resolutions up to 1080p@60Hz or 3840x2160 at 30 Hz (4K) Full UHD; Mac only supports mirror mode
• One Gigabit Ethernet (10/100/1000) port for faster downloads, media streaming and gaming

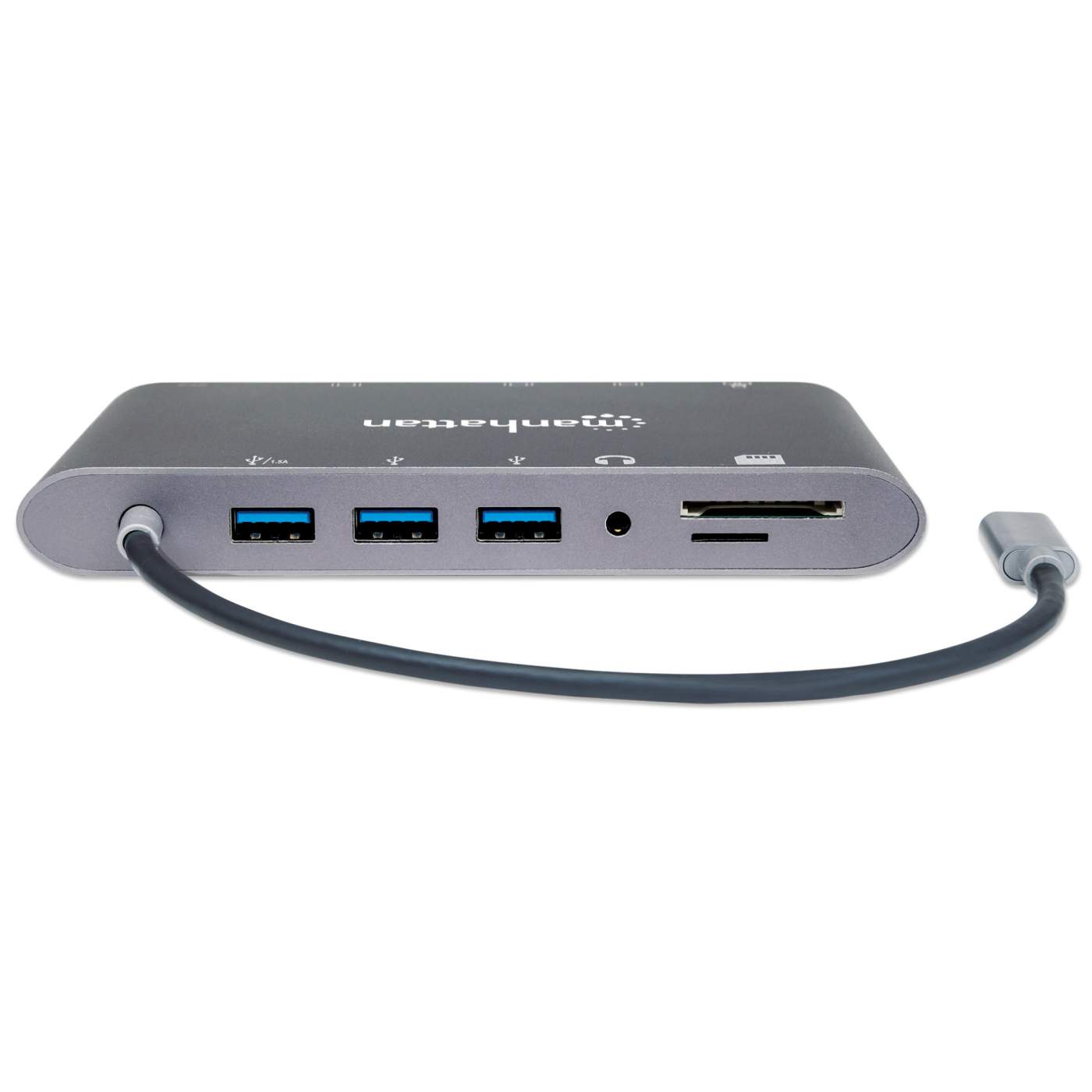

• Three USB 3.0 Type-A ports to connect mice, keyboards or portable memory devices (and more) or to charge and sync a portable electronic device
• USB-A SuperSpeed ports offer 5 Gbps data transmission speeds; BC1.2 port charges up to 7.5 W (5 V / 1.5 A)
• Easy access to media and content management with read/write/copy Micro SD and SD slots; supports automatic card detection and data transfer speeds up to 90 Mbps
• Supports USB Power Delivery (PD) function up to 60 W; requires an external PD charger – available from Manhattan
• USB-C port provides 5 Gbps data transmission
• 3.5 mm jack for high-quality stereo sound; both mic (audio input) and headphone (audio output)
• Aluminum housing makes this durable converter the perfect desktop or travel companion
• Compatible with all USB-C DP-Alt-Mode-supported desktops, notebooks and tablets including Apple MacBook, Chromebook, Pixel and more
• Compliant with DisplayPort 1.2 Alternate Mode (DP Alt Mode)
• Plug and Play
• Fully shielded to reduce EMI and other interference sources
• Molded PVC boot and strain relief
• Three-Year Warranty

Standards and Certifications

• USB 3.2 Gen 1

• HDMI

• HDCP 1.4

• CE

• FCC

• RoHS2

• WEEE

  General

• Video Resolutions: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200, 1080p, 3840 x 2160p at 30 Hz, 4K

• USB-A ports: 5 Gbps

• Supported flash cards: SD / SDHC / SDXC / EXTREME SD / EXTREME II SD / EXTREME III SD / ULTRA SD / ULTRA II SD / ULTRA II SD P PLUS / SD-ULTRA-X / ULTRA SPEED SD / SD PRO / SD ELITE PRO / HS SD / MMC / MMC 4.0 / HS MMC / HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile

• Supported flash cards: SD, SDHC and SDXC; up to 128 GB
  Transfer speed: up to 90 Mbps

• 34-AWG cable gauge

• Bus powered

• USB-C PD Charging Port: 60 W (20 V at 3 A)

• USB-A Charging: 10 W (5 V at 2 A)
  One BC 1.2 port: 7.5 W (5 V at 1.5 A)
  Two ports share: 5 W (5 V at 1 A)

• Mylar and aluminum shielding

• Withstanding voltage: 300 VDC

• Insulation resistance: 10 MΩ

• Conductive resistance: 5 Ω

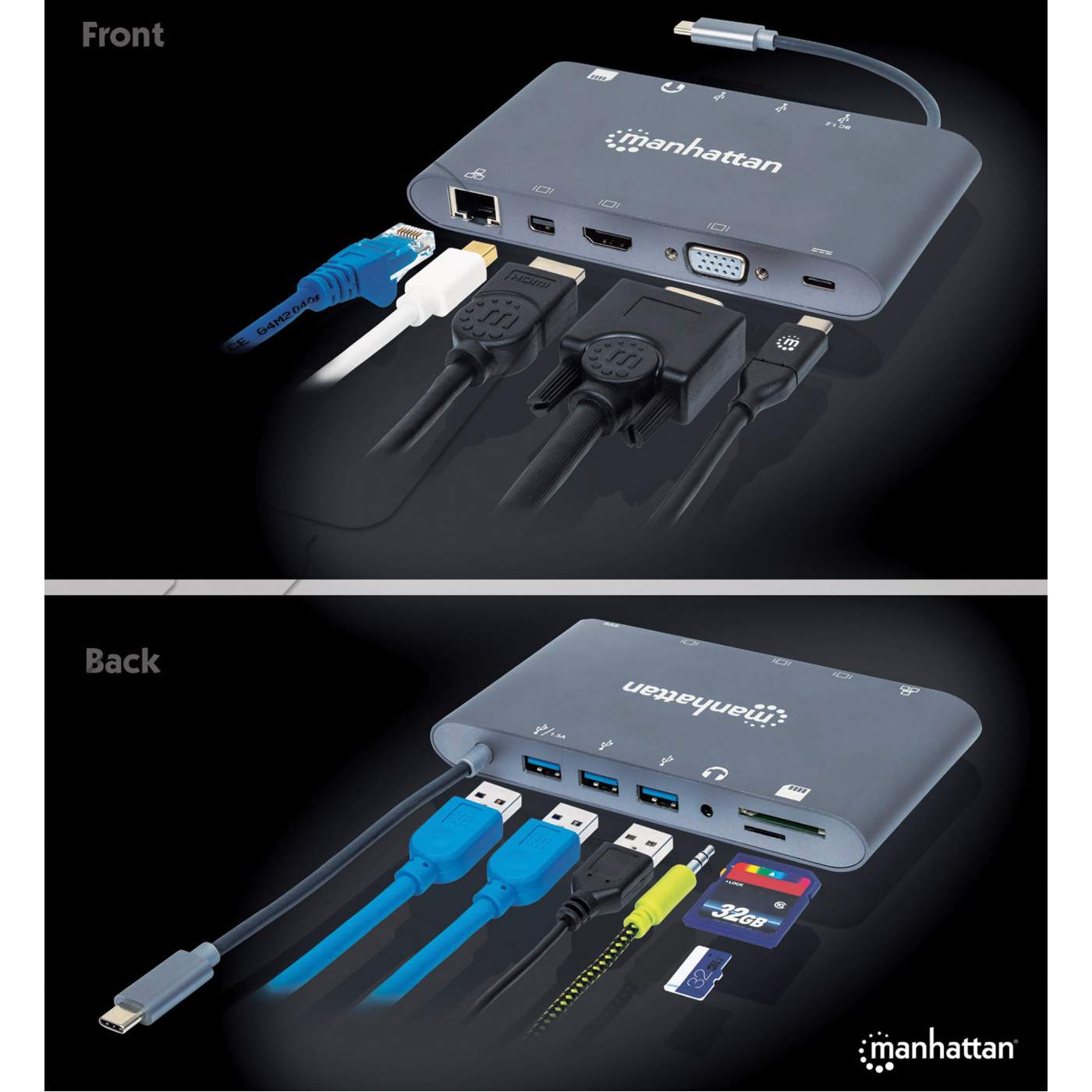

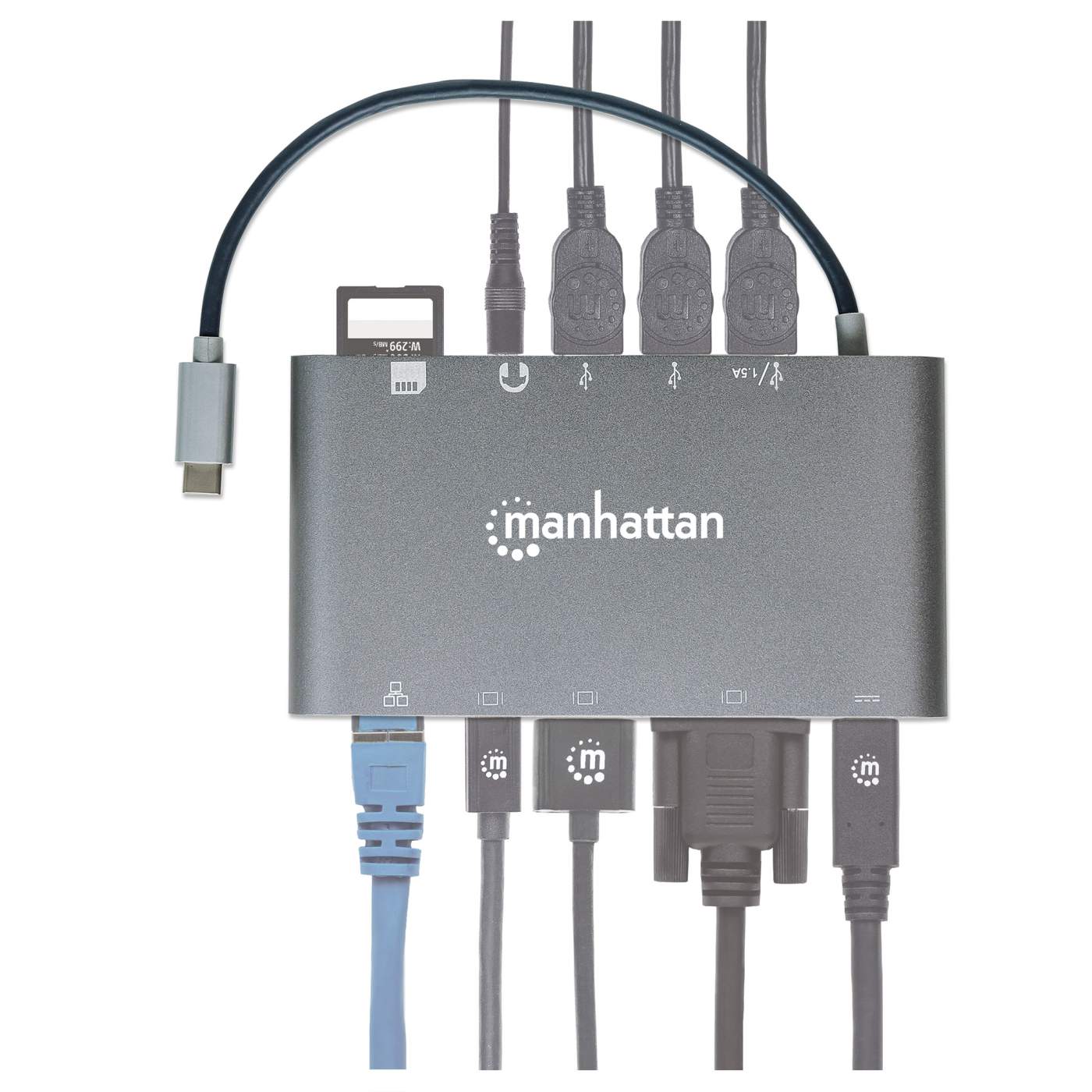

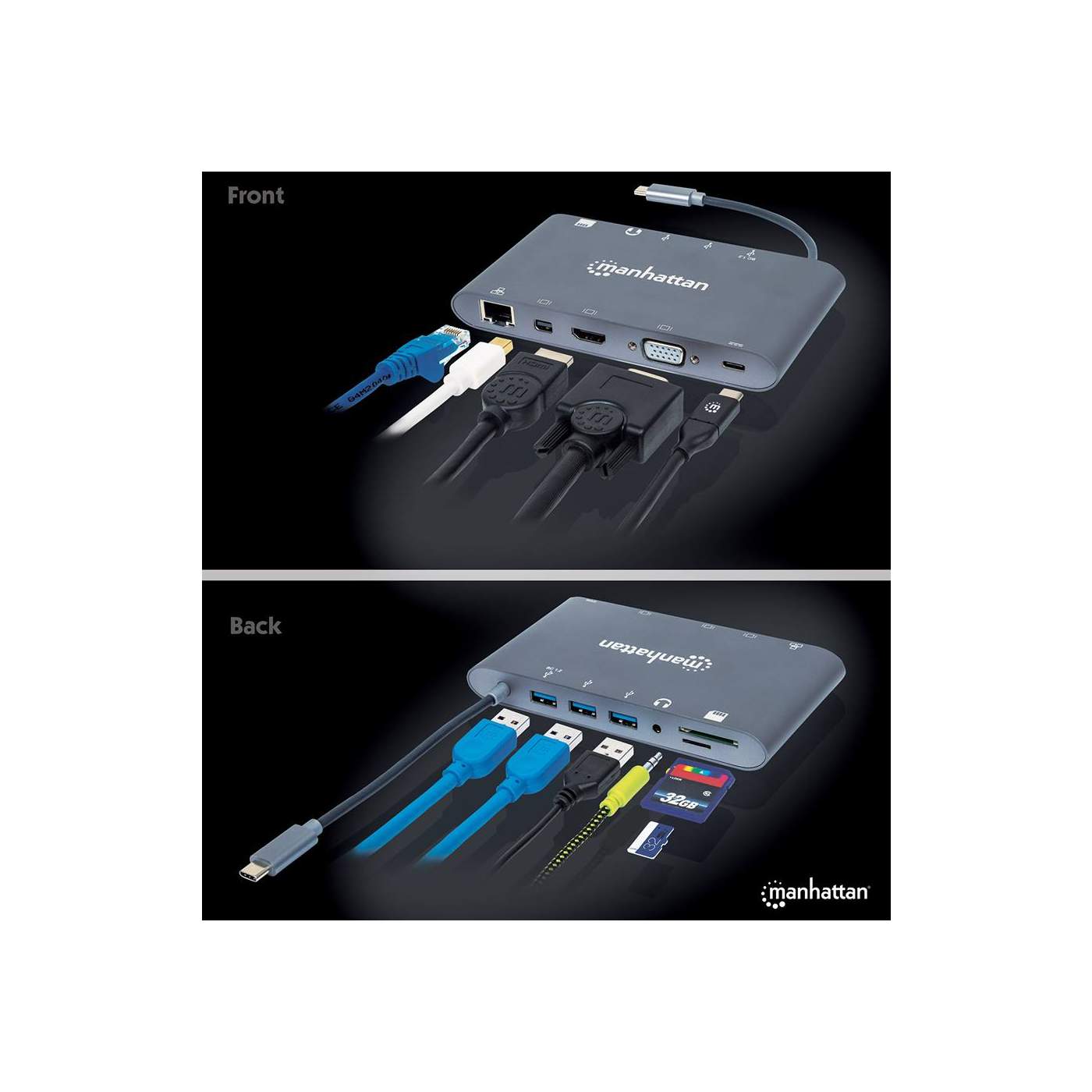

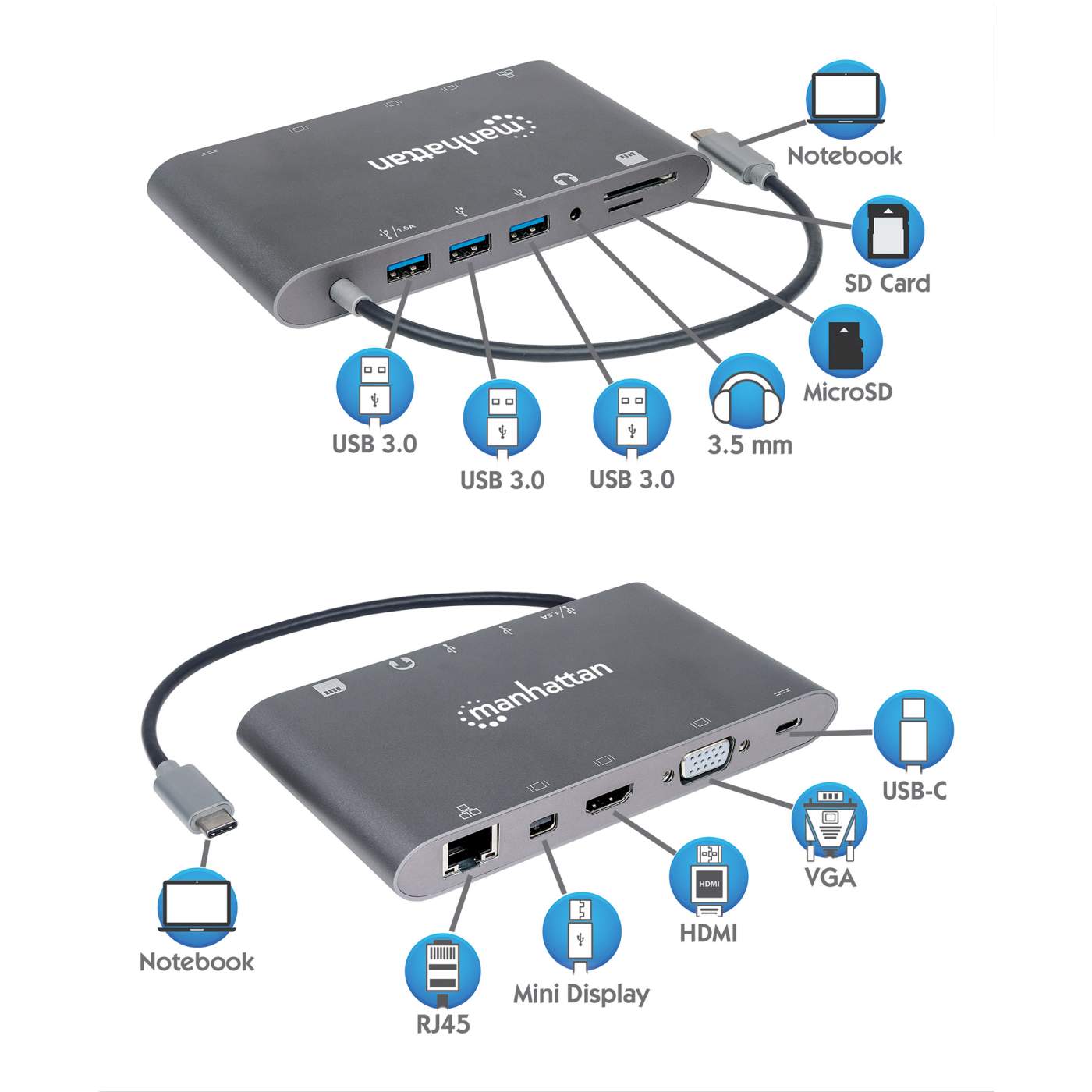

  Connections
  Input:

• One USB Type-C 24-pin, male

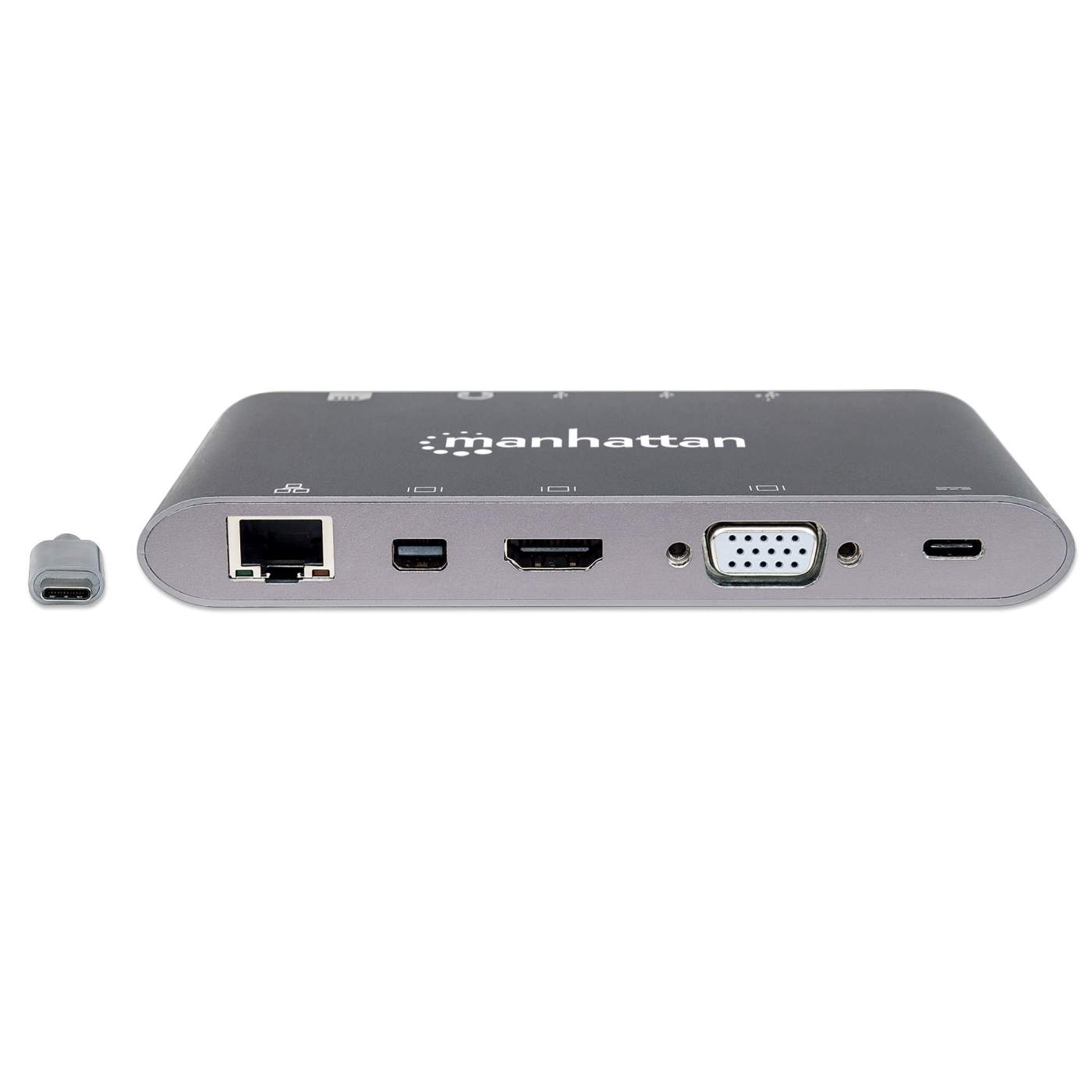

  Outputs:

• One HDMI 19-pin, female

• One Mini DisplayPort 20-pin female

• One VGA 15-pin female

• One 10/100/1000 Mbps RJ45, female

• Three USB Type-A 4-pin, female

• One SD memory slot

• One Micro SD memory slot

• One 3.5mm Stereo, female

• One USB-C 24-pin, Power Delivery, female

  Physical

• Housing: 137 X 75 x 17 mm (5.4 x 3 x 0.7 in.)

• Cable Length: 20 cm (8 in.)

• Weight: 198 g (7 oz.)

• Housing: Aluminum

  Operating Environment

• Operation Temperature: 0 – 45°C (32 – 113°F)

• Storage Temperature: -10 – 70°C (14 – 158°F)

• Humidity (noncondensing): 10 – 90%

  System Requirements

• Windows XP/Vista/7/8.1/10 or Linux or macOS 10.7.1 or above

  Package Contents

• SuperSpeed USB-C to Docking Station

• Quick Instruction Guide

  NOTE: Does not support simultaneous video output - only one video port can be used at a time (HDMI or Mini DisplayPort or VGA)

• Additional SKUs

• Amazon ASIN: B078V4T7QK
• EAN: 0766623152808
• UPC: 766623152808



• Physical Specifications

• Product net weight: 0.2 kg
• Product gross weight: 0.24 kg
• Dimensions: 137 (L) x 75 (W) x 17 (H) [mm]
• Packaging: Retail Box

• Datasheet
• Datasheet     » Download


• Declaration of Conformity     » Download




• Manual
• Quick Instruction Guide     » Download
