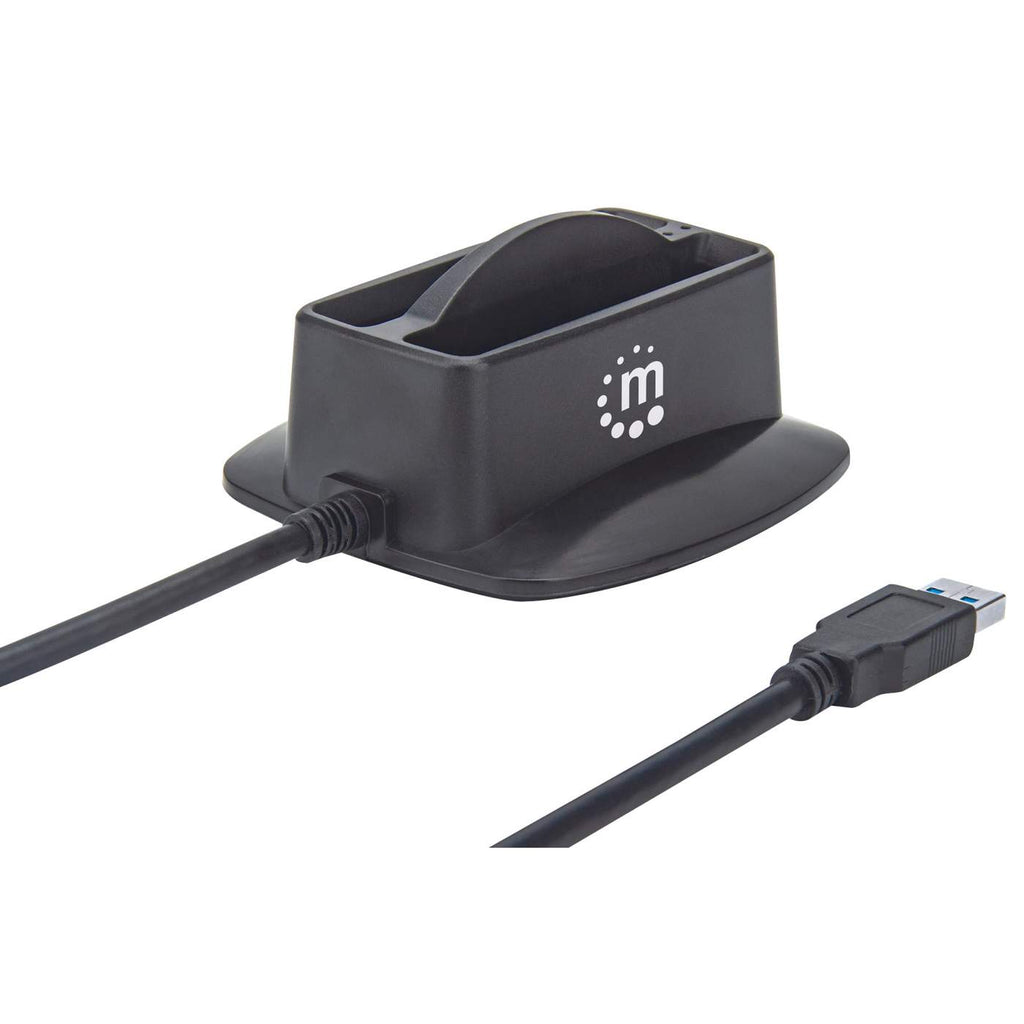

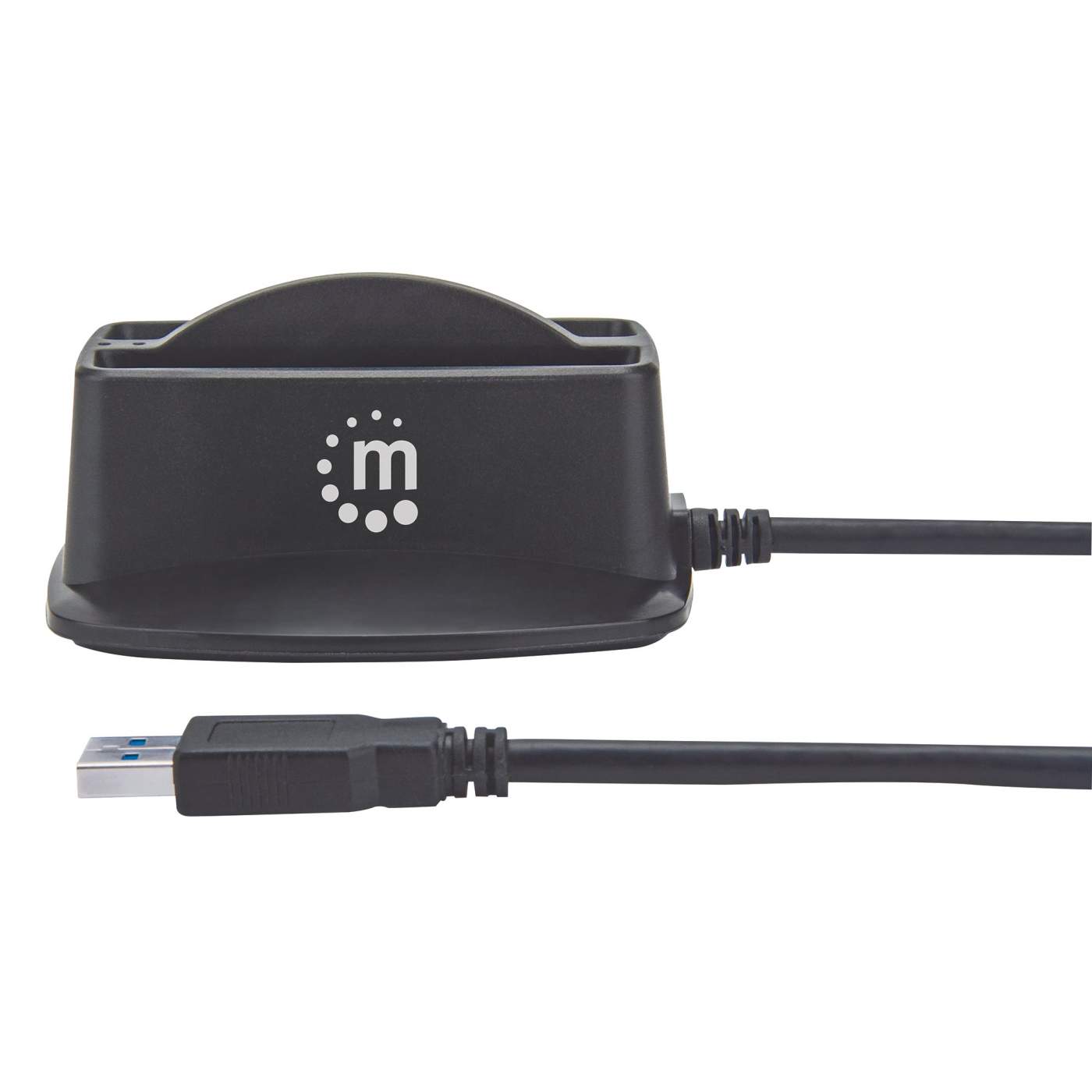

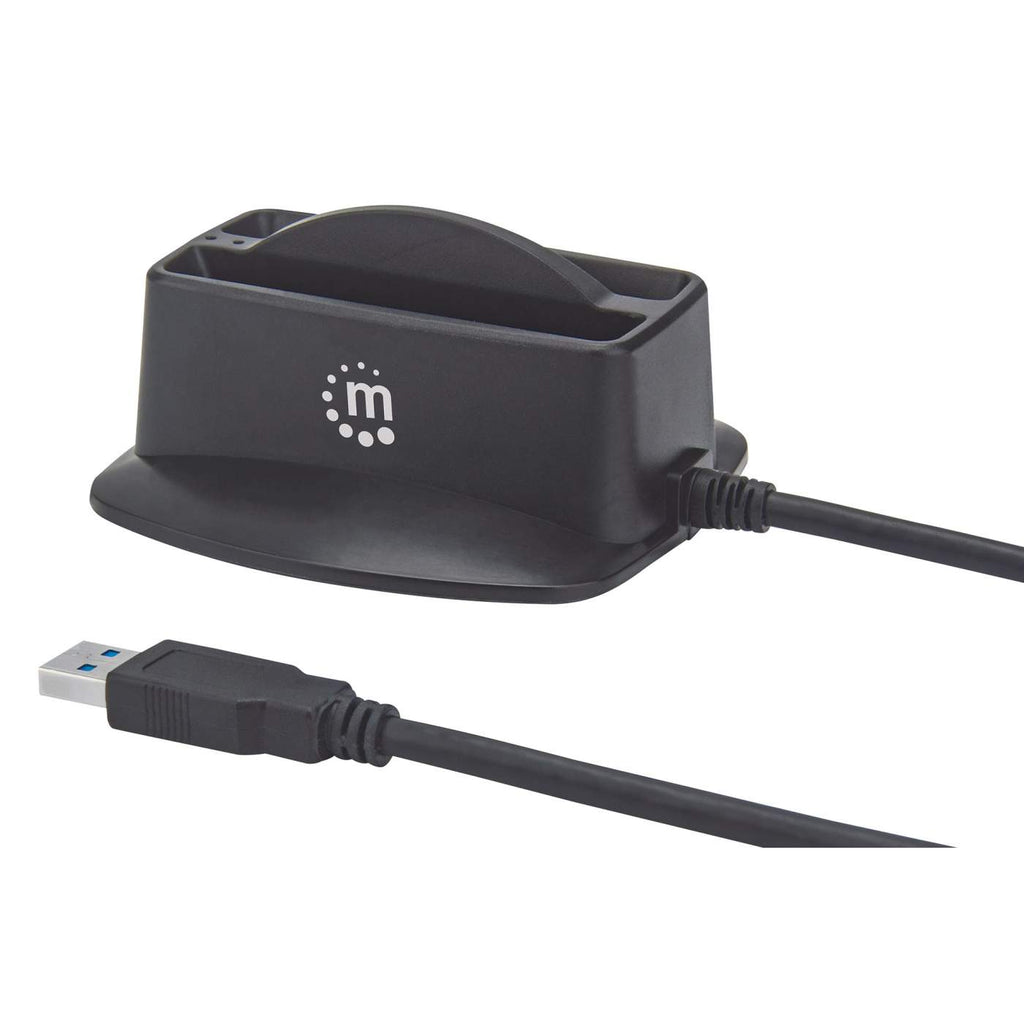

SuperSpeed USB 3.0 Dual 2.5" SATA HDD Dock

Easily transfer all your files from a computer to up to two SATA Hard-disk Drives (HDD) — and vice-versa— with USB SuperSpeed technology.

The Manhattan SuperSpeed USB 3.0 Dual 2.5" SATA HDD Dock features dual insertion slots that accept 2.5" SATA Hard-Disk Drives (HDD) up to 6 TB simultaneously, allowing data to be copied between multiple drives of different sizes for easier data recovery and backup tasks. Ideal for system builders, integrators and computer technicians, this SATA HDD Dock is Windows 2000/2003/XP/Vista/7/8/8.1/10 compatible and supports Mac and Android with SuperSpeed USB and SATA data transfer speeds up to 5 Gbps. Its hot-swap capability allows rapid, multi-HDD exchanges and quick data access without computer restarts, special drivers or complicated configuration.

• Provides fast data access, creates portable storage and simplifies hard-disk drive backups and exchanges
• Dual insertion slots accept 2.5" SATA hard-disk drives up to 6 TB
• Quickly copy/transfer data to and from drives
• Supports RAID 0 (striping) and RAID 1 (mirror) over USB and eSATA
• Data transfer rate up to 500 MB/s
• Compatible with Windows 2000/2003/XP/Vista/7/8/10, Mac OS 10.5 or above, Android OS 4.0 or above
• Bus powered — no external power required
• Plug and Play and hot swappable capabilities
• Three-year warranty

Standards and Certifications

• Compliant with USB 3.0 and SATA Revision 2.6

• CE

• RoHS

• WEEE

• FCC

  General

• Connections: external, USB 3.0 type-A male; internal, (2) SATA data

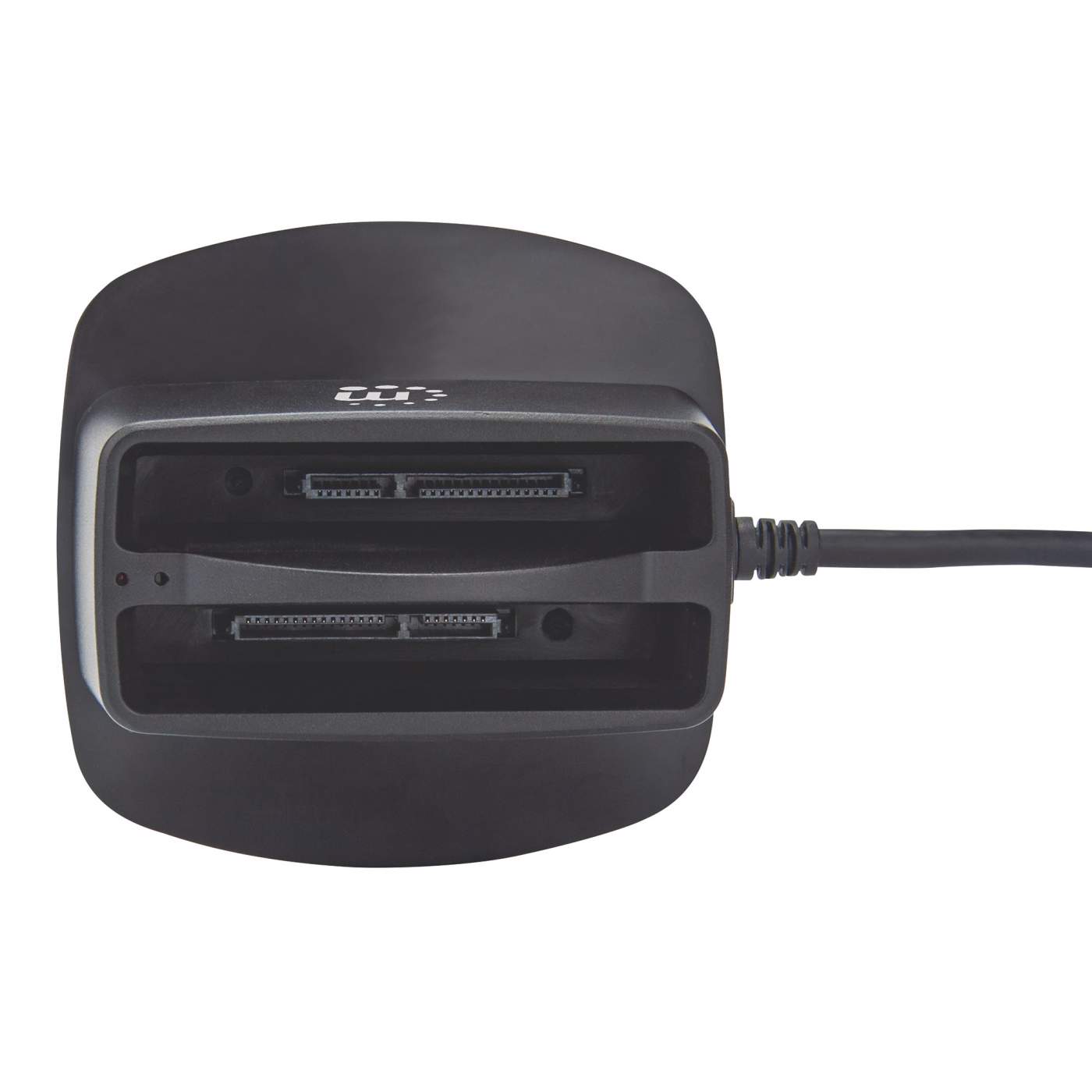

• Dual insertion slots fit 2.5" SATA HDDs

• Power and activity LED indicators

  Transfer Rate

• SuperSpeed USB up to 5 Gbps and SATA up to 480 Mbps

  Physical

• Dimensions: 9.32 x 9.1 x 4.71 cm (3.67 x 3.58 x 1.85 in.)

• Weight: 85 g (0.19 oz.)

  Electrical

• Output: + 12 V / 3 A center post

  System Requirements

• Available USB 3.0 type-A port

• Windows 2000/2003XP/Vista/7/8/8.1/10 compatible

• Mac 10.5 or above

• Android 4.0 or above

  Operating Environment

• Operation Temperature: 0 – 40°C (32 – 104°F)

• Storage Temperature: -20 – 60°C (-4 – 140°F)

• Humidity (noncondensing): 0 – 96%

  Package Contents

• SuperSpeed USB 3.0 Dual 2.5" SATA HDD Dock

• Quick instruction guide

Warning

• Additional SKUs

• Amazon ASIN: B07L3JJ1TY
• EAN: 0766623151955
• UPC: 766623151955



• Physical Specifications

• Weight: 0.01 kg
• Dimensions: 93.2 (L) x 91 (W) x 47.1 (H) [mm]
• Packaging: Retail Box
