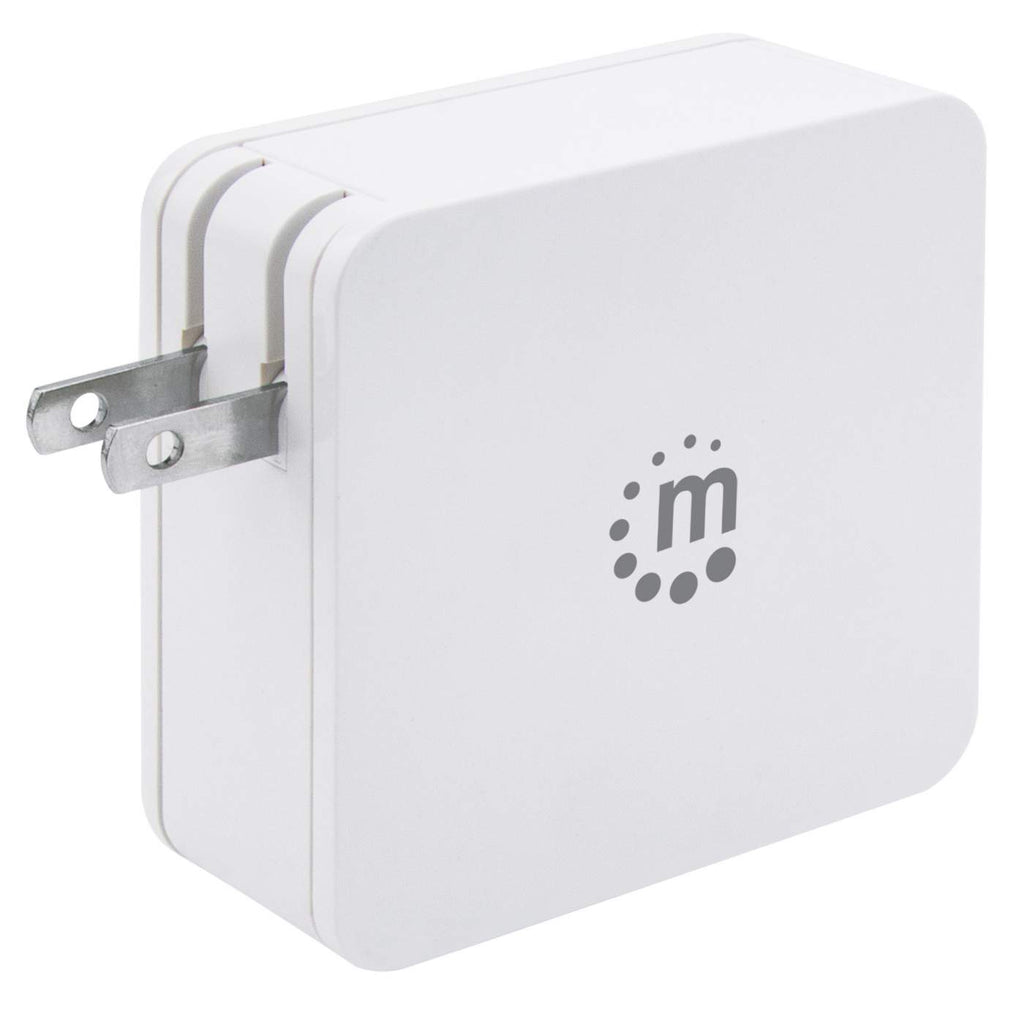

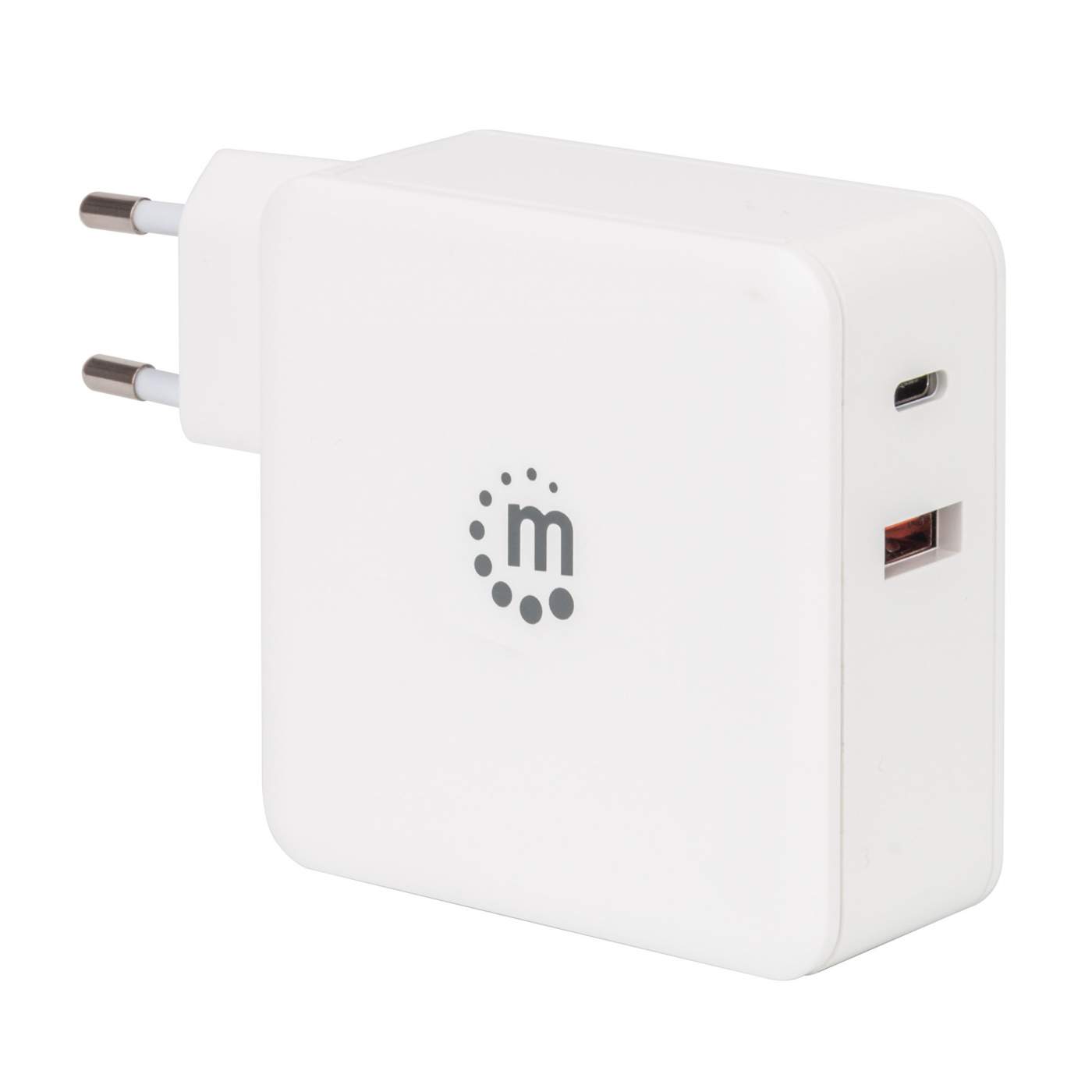

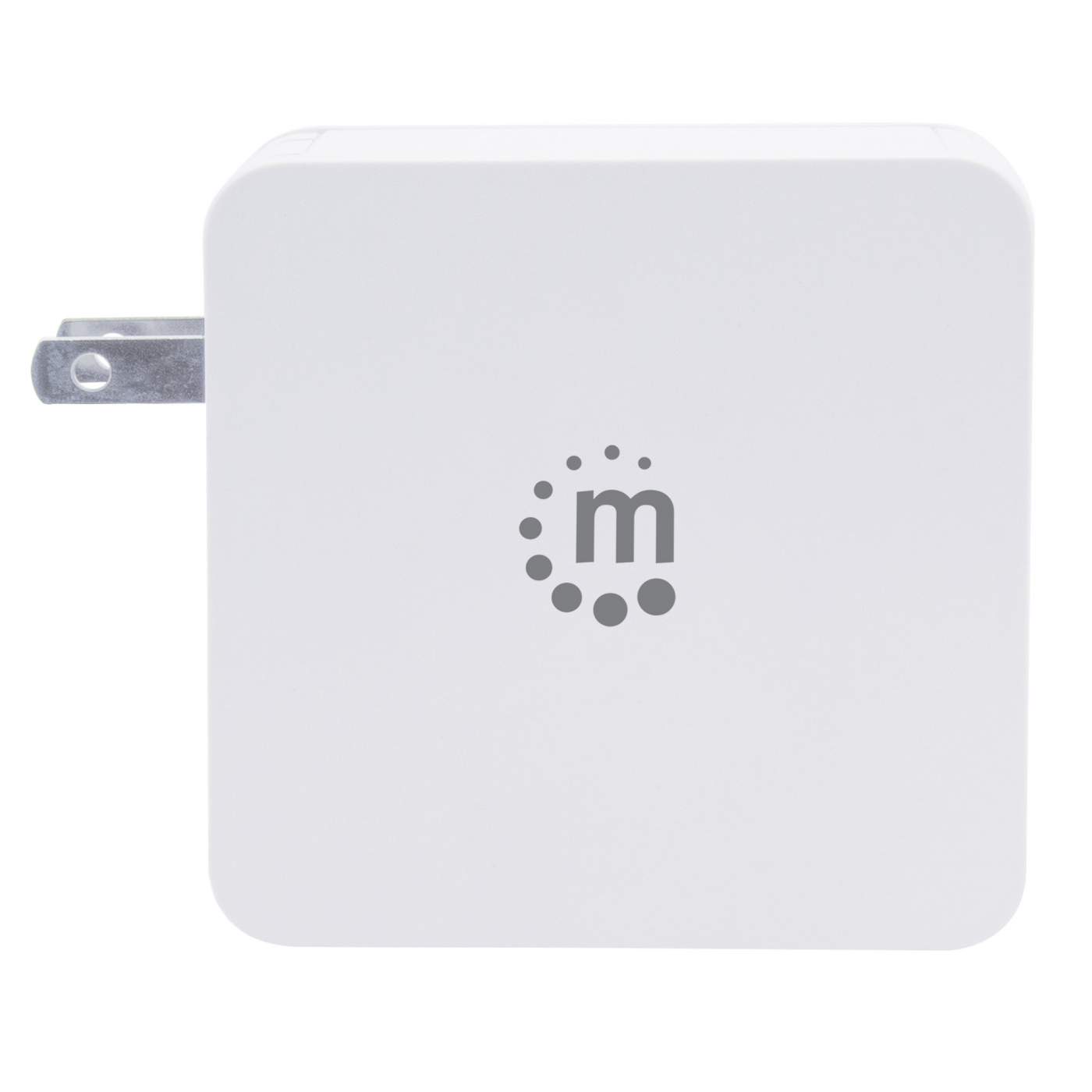

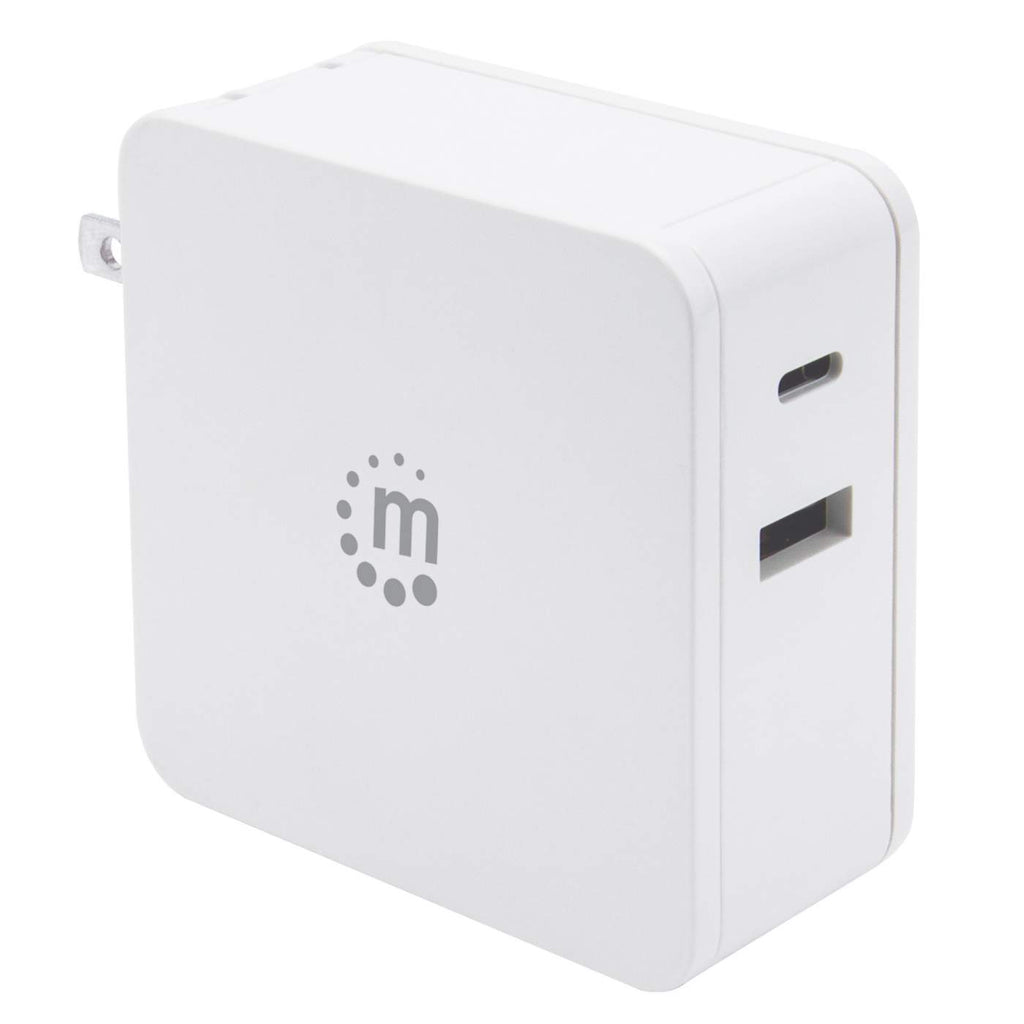

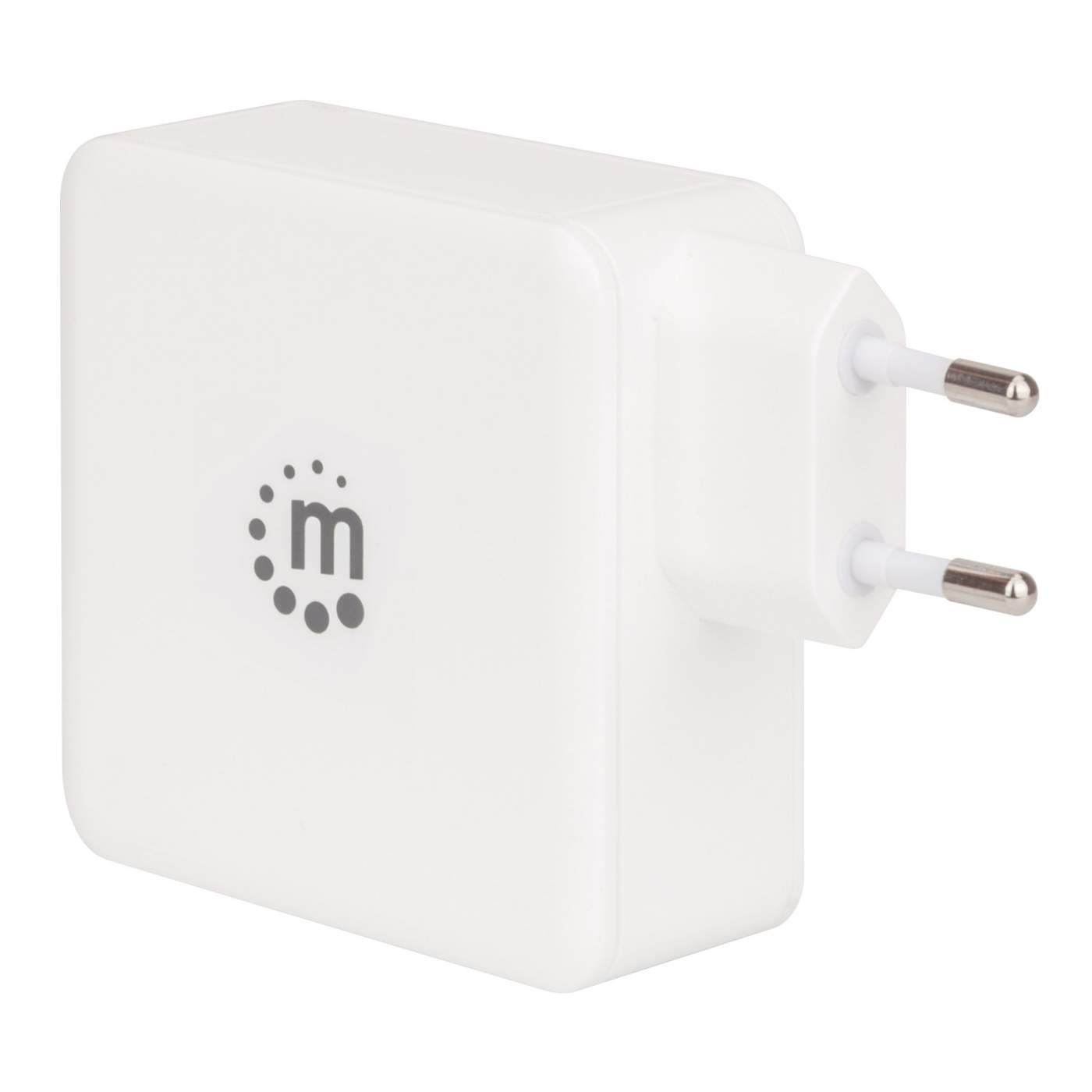

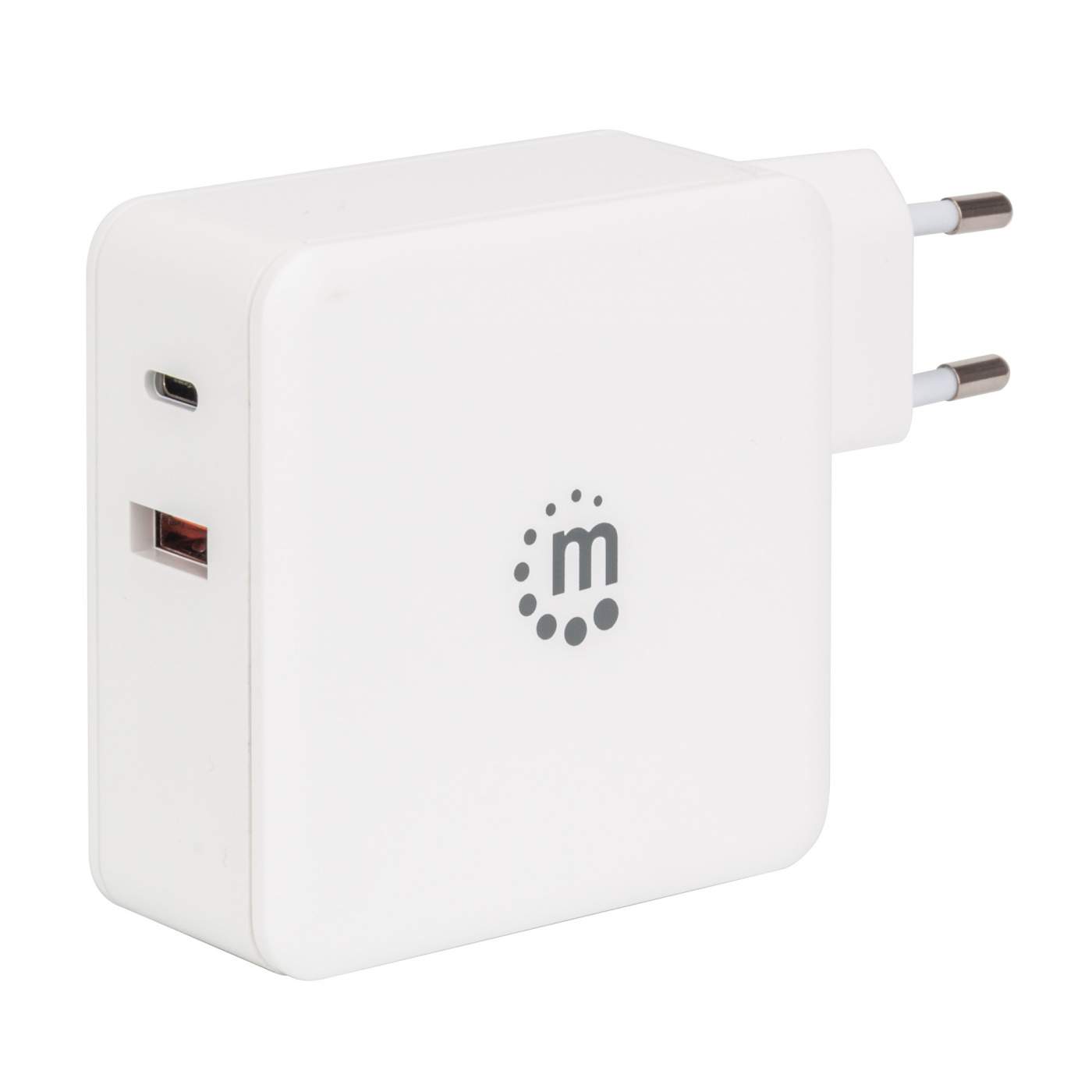

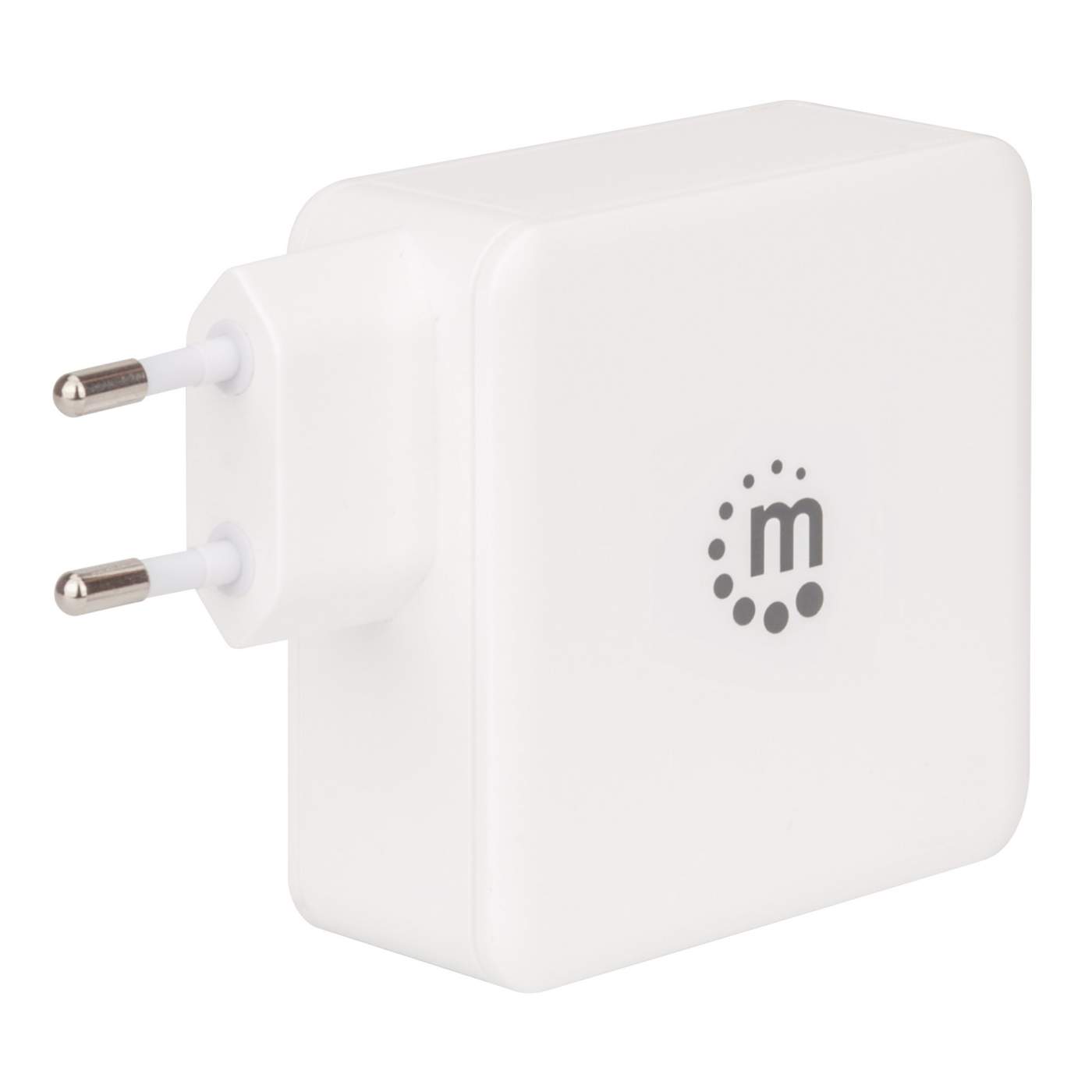

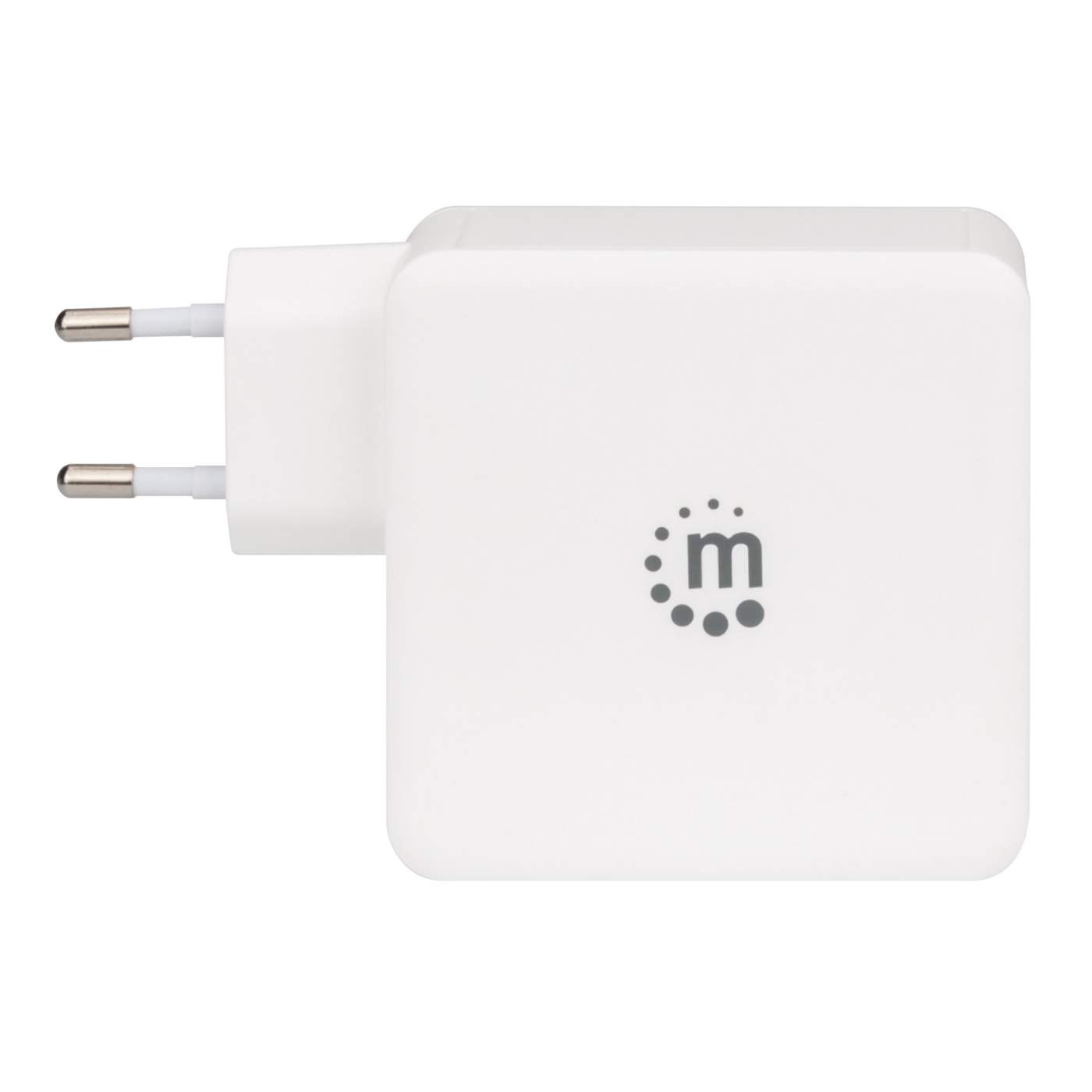

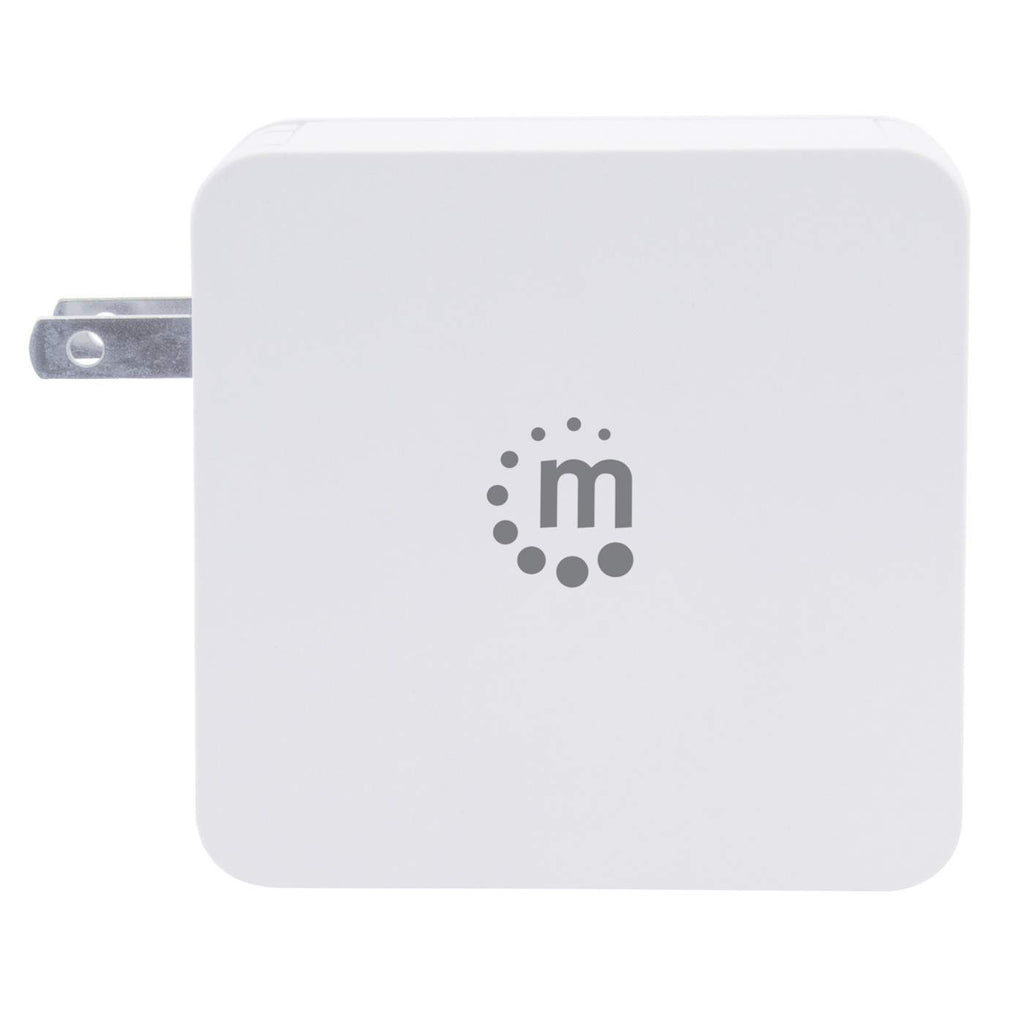

Power Delivery Wall Charger - 60 W

Power up your devices with a portable, powerful Power-Delivery-capable charger.

Enjoy complete charging power with the Manhattan Power Delivery Wall Charger - 60 W. This wall charger uses Power Delivery (PD) technology to power up any device with a USB-C charging port, from laptops to mobile phones, and the additional USB-A port can quickly charge any handheld device or tablet. The perfect companion for travelers with its stylish, compact and ultra-modern design, the Manhattan Power Delivery Wall Charger - 60 W also intelligently protects itself and your devices with its short-circuit-, overvoltage-, overcurrent- and overtemperature-protection functions.

• Two-device charging solution with USB-C Power Delivery (PD 3.0) and USB-A charging ports
• Charges two different devices simultaneously with ideal potential energy
• USB-C PD port delivering up to 60 W to charge a notebook, laptop, Ultrabook, tablet or other USB-C powered device
• USB-A port delivering up to 5 V / 2.4 A to quickly charge a portable device
• Overload, overcurrent and overheat protection
• Compact, portable and stylish design for easy travel
• Three-year warranty

Standards and Certifications

• USB 2.0

• PD 3.0

• FCC

• UL

• CE

• RoHS

• WEEE

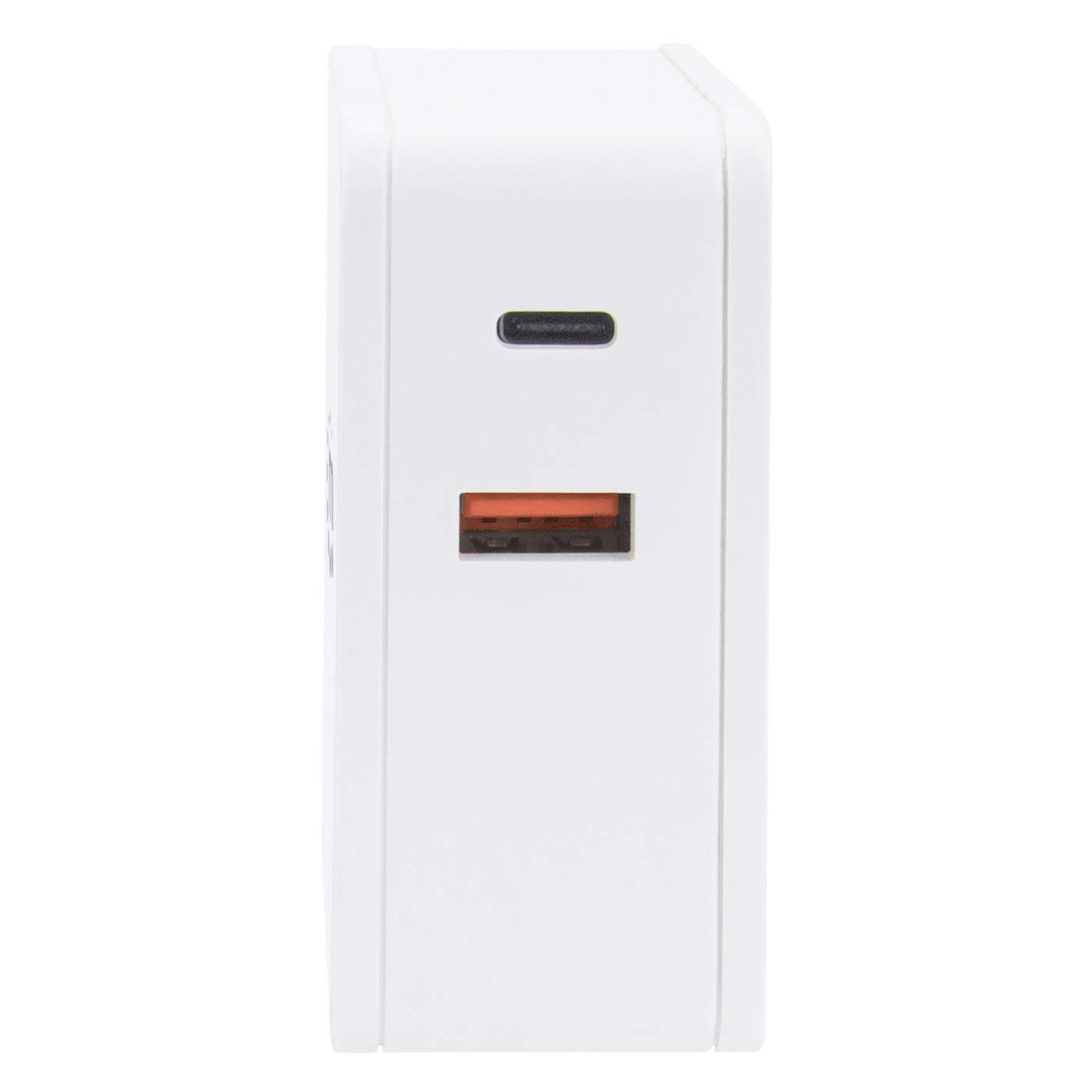

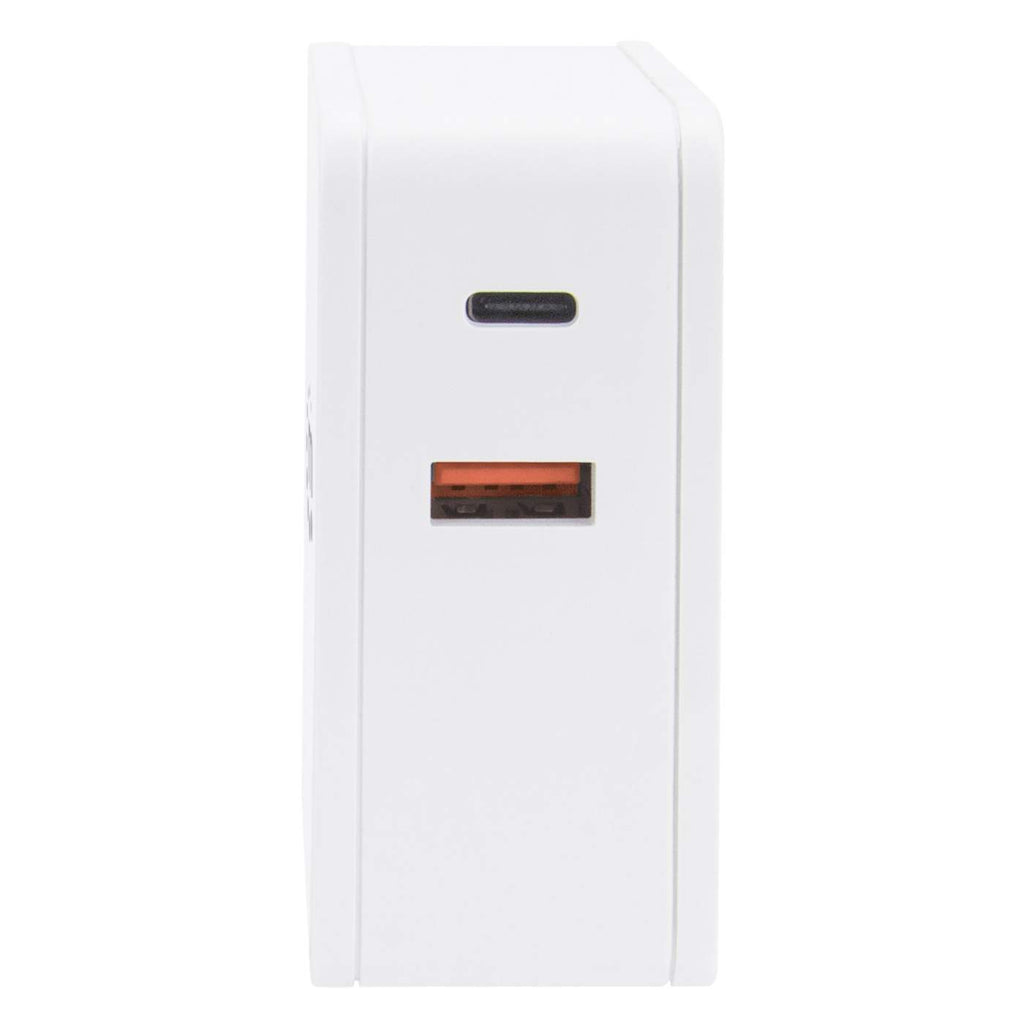

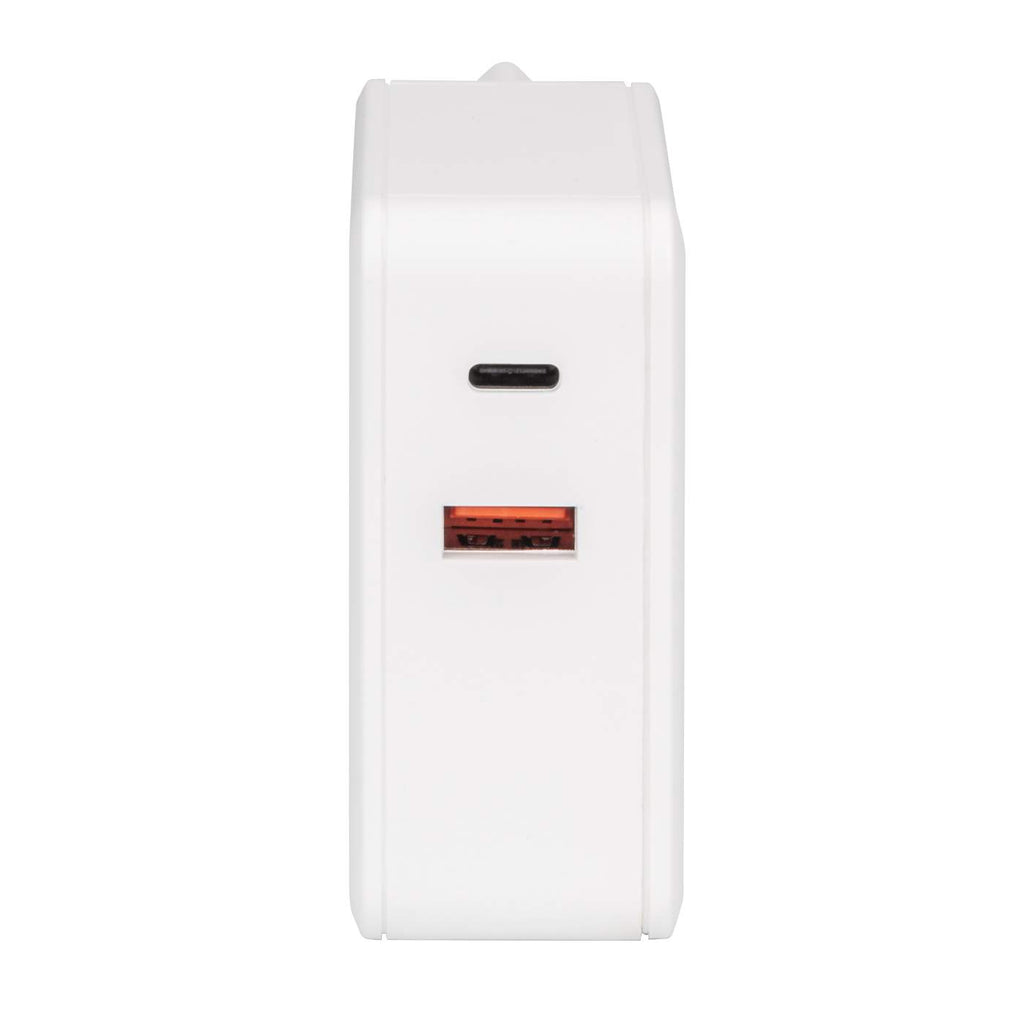

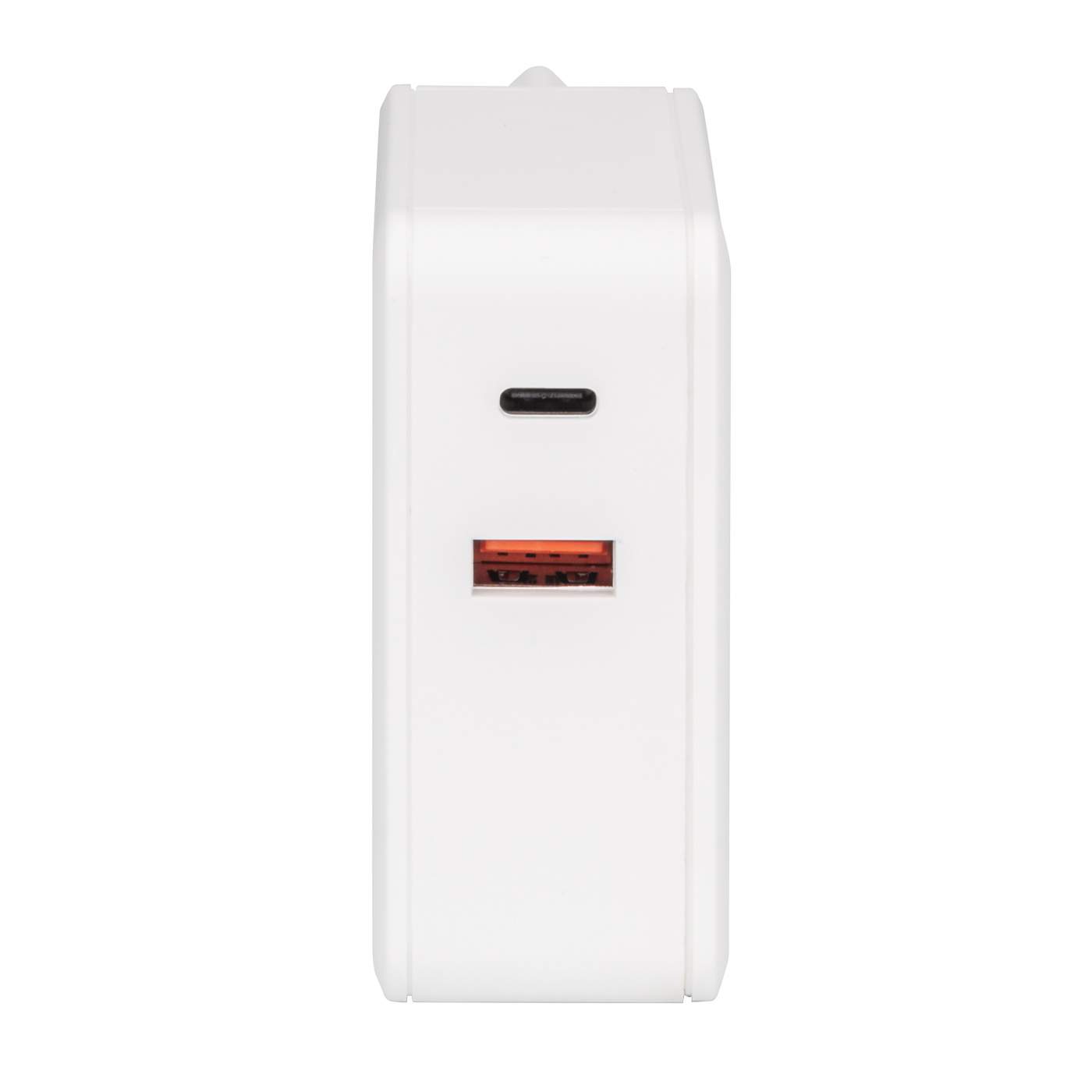

  Ports

• One USB-C with Power Delivery (PD 3.0)

• One USB-A

  General

• AC input: 100 – 240 V; 50 – 60 Hz

• USB-C output: 5 – 20 V; maximum 3 A; 60 W

• Voltage/current settings (maximum):
  - USB-C:
  - 5 V / 3 A
  - 9 V / 3 A
  - 12 V / 3 A
  - 15 V / 3 A
  - 19 V / 3 A
  - 20 V / 3 A
  - USB-A:
  - 5 V / 2.4 A

  Input Characteristics

• AC rated voltage: 100 – 240 V

• Frequency range: 50 – 60 Hz (±1 Hz)

• Current: ≤ 1 A at 100 VAC 60 HZ

  Output Characteristics

• Rated voltage: 5 / 9 / 12 / 15 / 19 / 20 V

• Current: 3 A maximum (at constant voltage mode)

• Rated power: 60 watts maximum

• Overshoot voltage: ≤ 5%

  Protection Characteristics

• Short circuit (SCP) with auto-recovery mode

• Overvoltage (OVP) with auto-recovery mode

• Overcurrent (OCP) — current limit: 150% (max)

• Overtemperature (OTP)

  Physical

• Dimensions: 7 x 7 x 3 cm (2.76 x 2.76 x 1.18 in)

• Weight: 0.16 kg (4.9 oz.)

• Housing: plastic

  Operating Environment

• Operation Temperature: 0 – 30°C (32 – 86°F)

• Storage Temperature: -20 – 65°C (-4 – 149°F)

• Humidity (noncondensing): 10 – 90%

  Package Contents

• Power Delivery Wall Charger - 60 W

• Quick Instruction Guide

Warning

• Additional SKUs

• Amazon ASIN: B07KTNTZYV
• EAN: 0766623180221
• UPC: 766623180221



• Physical Specifications

• Weight: 0.18 kg
• Dimensions: 70 (L) x 70 (W) x 30 (H) [mm]
• Packaging: Retail Box

• Datasheet

• Datasheet     » Download


• Declaration of Conformity     » Download

• Manual

• Quick Instruction Guide     » Download
