Easily connect a DisplayPort source with an HDMI or VGA display

The Manhattan 2-in-1 4K DisplayPort Adapter establishes a fast, simple and convenient link between DisplayPort-equipped sources and existing HDMI and VGA displays. The adapter is easy and quick to install and requires no complicated configuration or setup. It offers a passive, compact and integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and workspaces neat and orderly.

• 2-in-1 adapter converts a DisplayPort signal to a 4K-HDMI or 1080p-VGA signal
• Delivers a high-quality digital video signal — ideal for using a DP source with an HDMI or VGA display
• Supports Deep Color, high-bandwidth 3 Gbps applications and resolutions at 1080p (1920 x 1200p ) for VGA or 4K (3840 × 2160) for HDMI
• Allows monitor, TV or display to be configured in Extended or Mirrored modes
• HDMI configuration supports ultra-high definition video resolution up to 4K@30Hz (3840 x 2160 p) and uncompressed digital 5.1 audio
• VGA configuration supports high-definition video resolution up to 1080p (1920 x 1200 p); VGA does not support audio
• Integrated design simplifies connections and eliminates cable tangles and clutter
• Lifetime Warranty

Standards and Certifications

• UL 20276

• DisplayPort v1.2

• FCC

• CE

  Connections

• DisplayPort 20-pin male (latching)

• HDMI 19-pin female

• VGA/HD15 15-pin female

• Nickel-plated contacts

• Molded PVC and ABS Shell

  General

• 8-bit and 10-bit Deep Color support

• 3 Gbps bandwidth

• Maximum single link resolution:
  3840 x 2160 (4K@30Hz) for HDMI
  1920 x 1200 (1080p) for VGA

• One-lane, one-direction, four-line connection support

• Passive

  Video Resolutions

• VGA: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200

• DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz

  Physical

• Cable length: 16 cm (6 inches)

• Housing: 7.5 x 4 x 1.8 cm (2.95 x 1.8 x 0.7 in.)

• Weight: 48 g (01.7 oz.)

• Housing: plastic

  Operating Environment

• Operation Temperature: 0 - 40°C (32 - 104°F)

• Storage Temperature: -20 - 60°C (-4 - 140°F)

• Humidity (noncondensing): 0 - 80%

  System Requirements

• Windows XP/Vista/7/8.1/10, Linux or Mac 9.x/10.x or above

  Package Contents

• 2-in-1 4K DisplayPort Adapter

• Quick Instruction Guide

• Additional SKUs

• Amazon ASIN: B076XZRF4F
• EAN: 0766623152587
• UPC: 766623152587



• Physical Specifications

• Weight: 0.05 kg
• Dimensions: 250 (L) x 75 (W) x 20 (H) [mm]

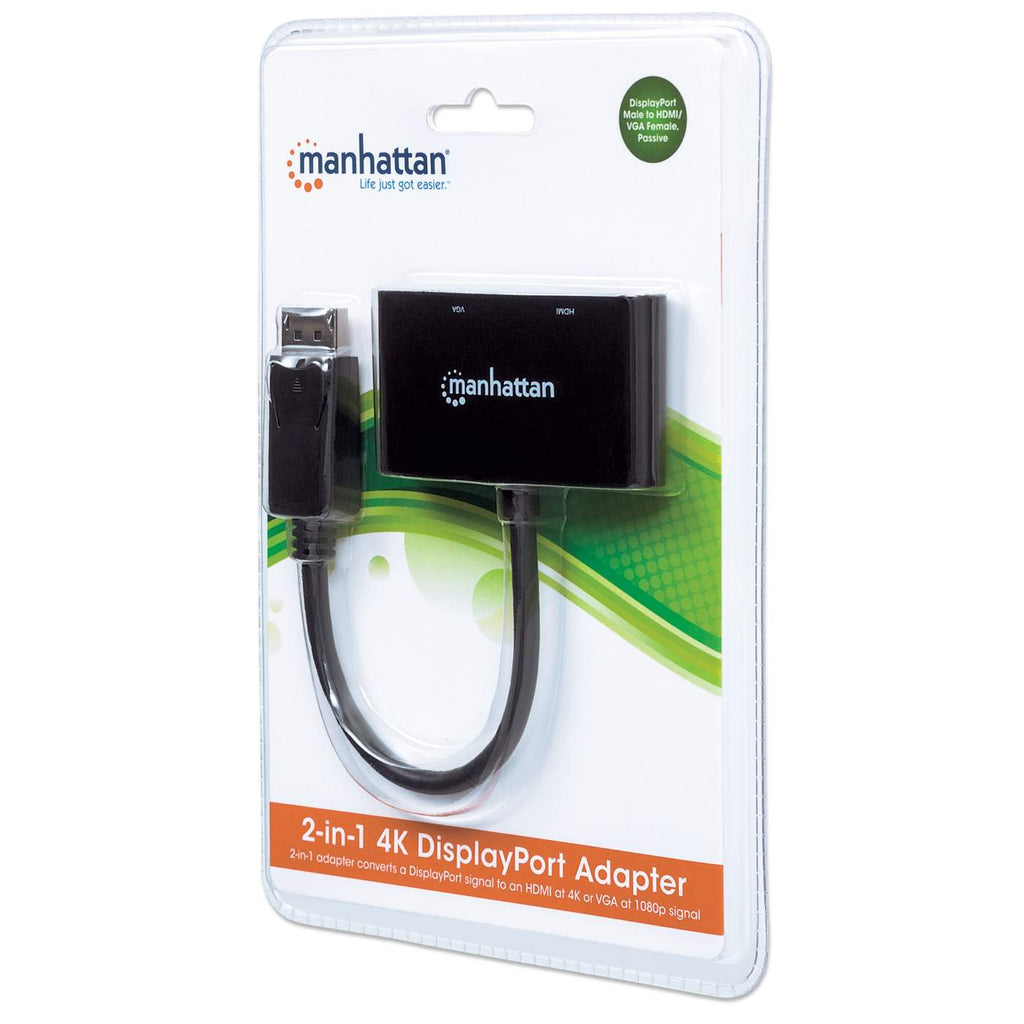

• Packaging: Blister

• Datasheet

• Datasheet     » Download





• Manual

• Quick Instruction Guide     » Download
