No mess, no fuss high-definition multimedia interface.
No more messy cables, no fussing with unsightly HDMI cables behind your TV, and no need to run long lengths of cable when connecting rooms. A Manhattan One-Port HDMI Wallplate screws easily into single-gang surface boxes, brackets and in-wall boxes. It requires no punching or installation other than connecting the HDMI cables (for in-wall installation CL2 cables or where other in-wall-rated cables are needed). Clean up your theater room or connect adjoining rooms easily. Enjoy full HD resolution up to 4K without the unsightly cables.

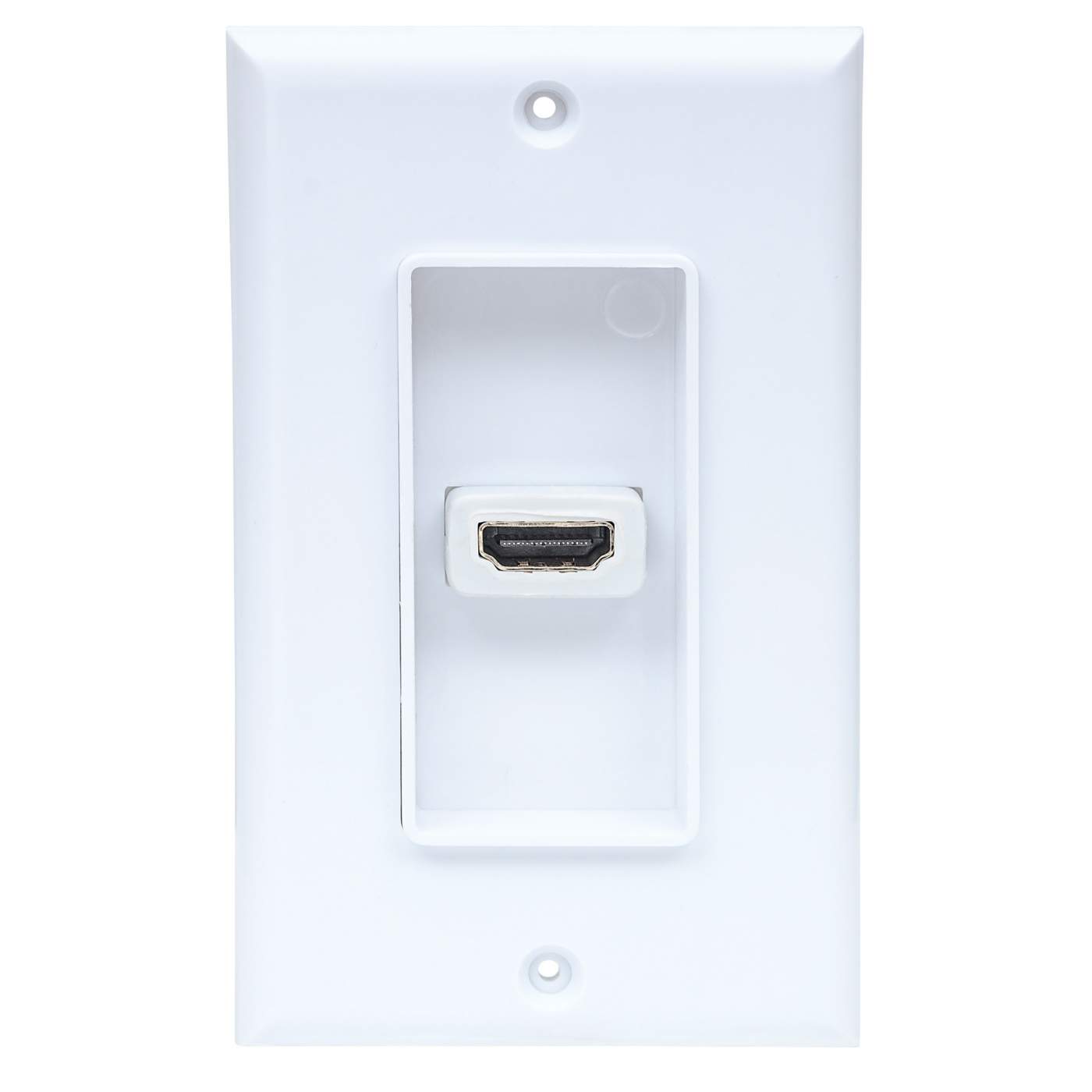

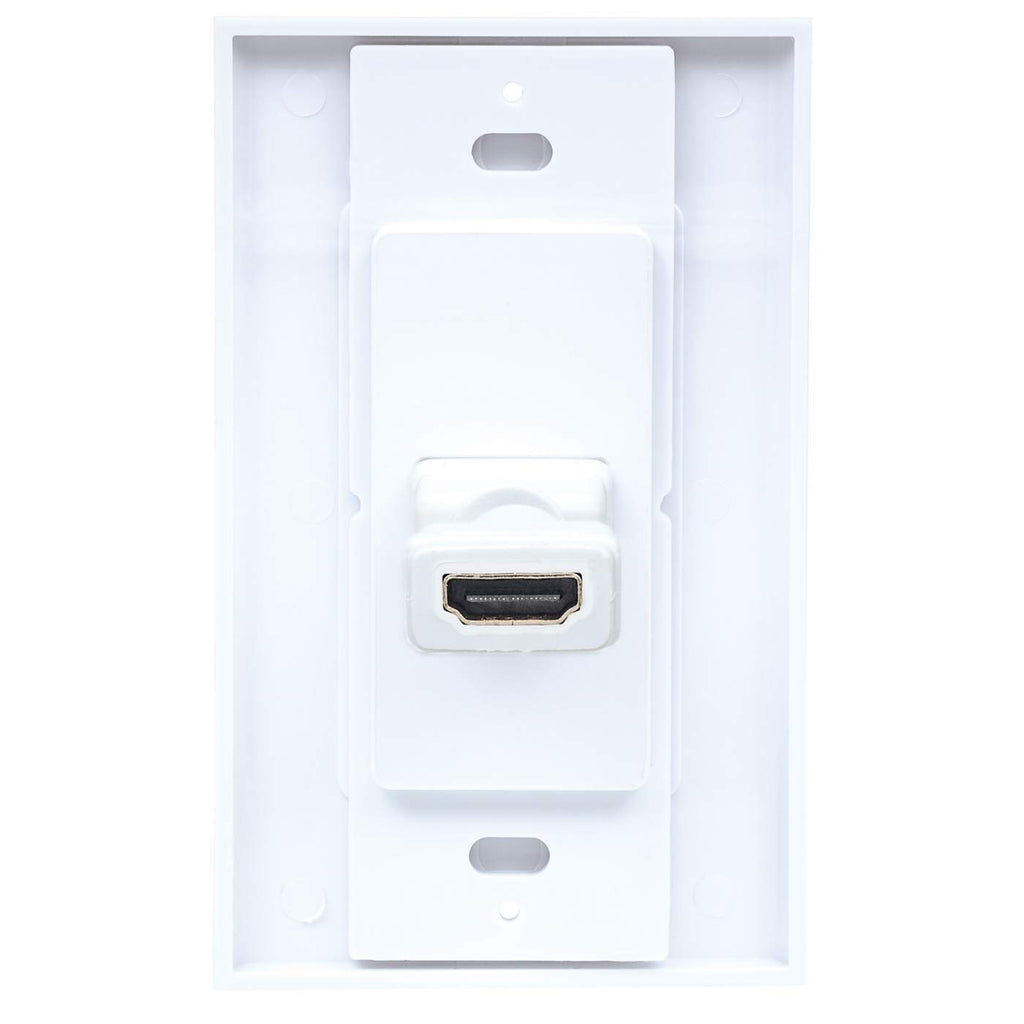

• HDMI coupler-type wallplate, HDMI female to HDMI female, one port
• Screw-in installation, for in-wall installation with CL2 or other in-wall-rated HDMI cables
• Compatible with single-gang surface mount boxes, brackets and in-wall mounted boxes
• Supports high-definition resolution; up to 4K
• Ideal for adding a professional, clutter-free finish to home theaters, home offices and other installations
• Gold-plated contacts
• Lifetime Warranty

Standards and Certifications

• HDMI

• ISO 9002

• RoHS2

• UL VW-1

  General

• Single-gang mounting

• Supports 4K resolution

• Bandwidth: 18 Gbps, 340 MHz

• Connects two HDMI cables

• Intended for use with Manhattan HDMI Cables

• Coupler type, passive, connection

• Meets or exceeds existing HDMI standards

  Connections

• Two HDMI female, 19-pin gold-plated

  Physical

• 28-AWG cable gauge

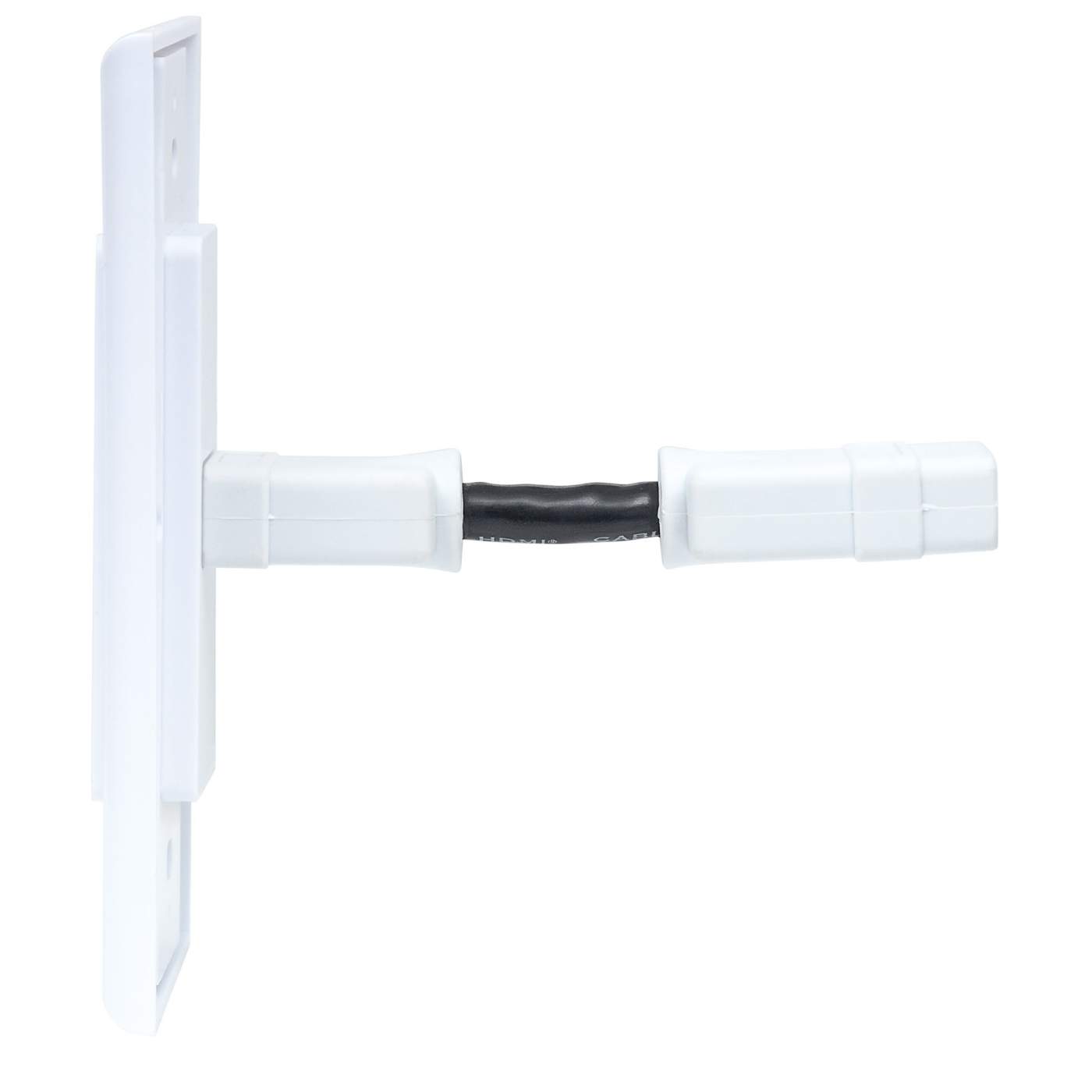

• Cable Length: 10.5 cm (4 in.)

• Faceplate Dimensions: 115 x 70 x 6 mm (4.5 x 2.76 x 0.2 in.)

• Housing: ABS plastic

• Weight: 54 g (1.9 oz.)

• Shielded

• Molded PVC

  Electrical

• Current rating: 0.5 ADC

• Withstanding voltage: 300 VDC

• Insulation resistance: 10 MΩ

• Conductive resistance: 5 Ω

  Operating Environment

• Operation Temperature: 32 - 104°F (0 - 40°C)

• Storage Temperature: 14 - 140°F (-10 - 60°C)

• Humidity (noncondensing): 5 - 90%

  Package Contents

• One-Port HDMI Wallplate

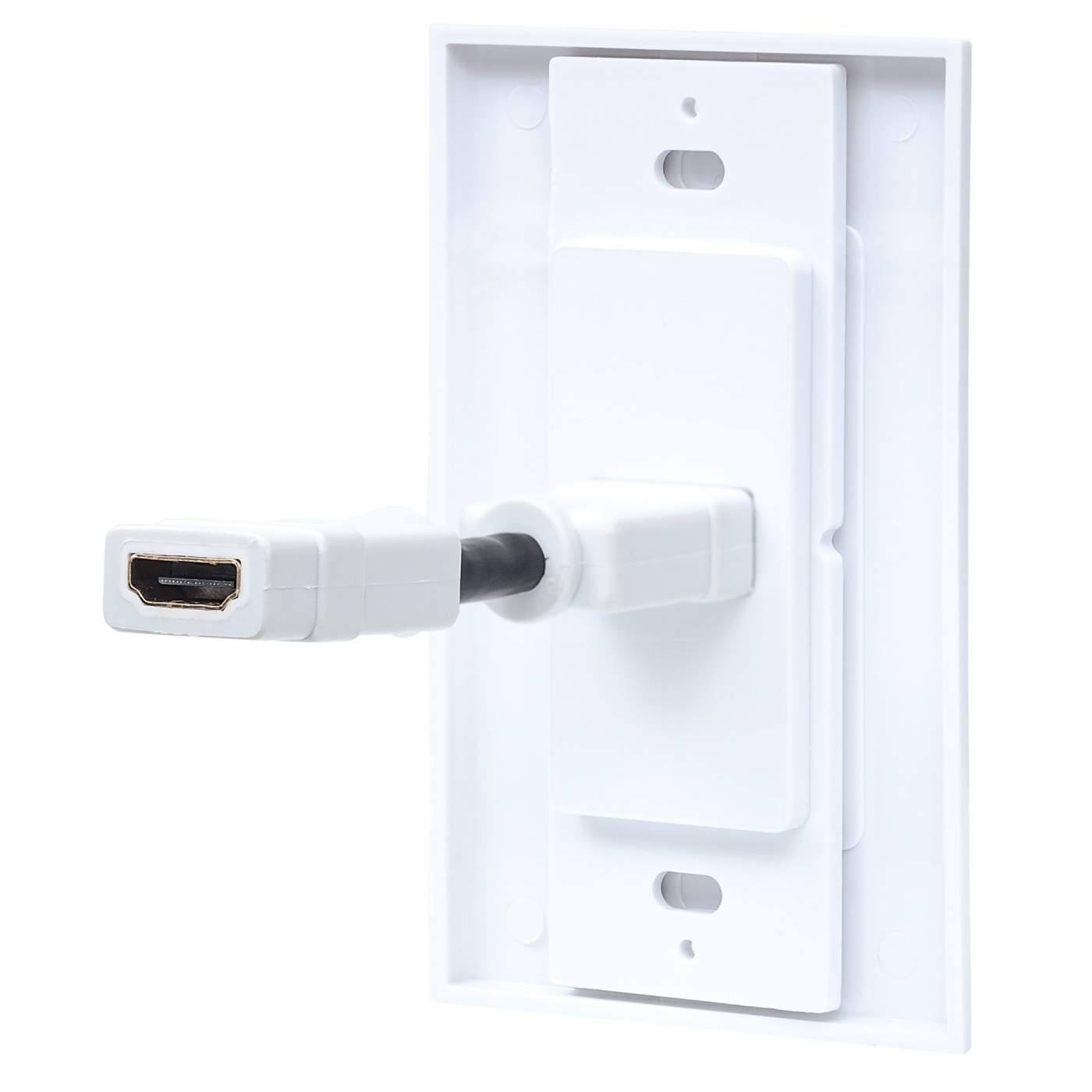

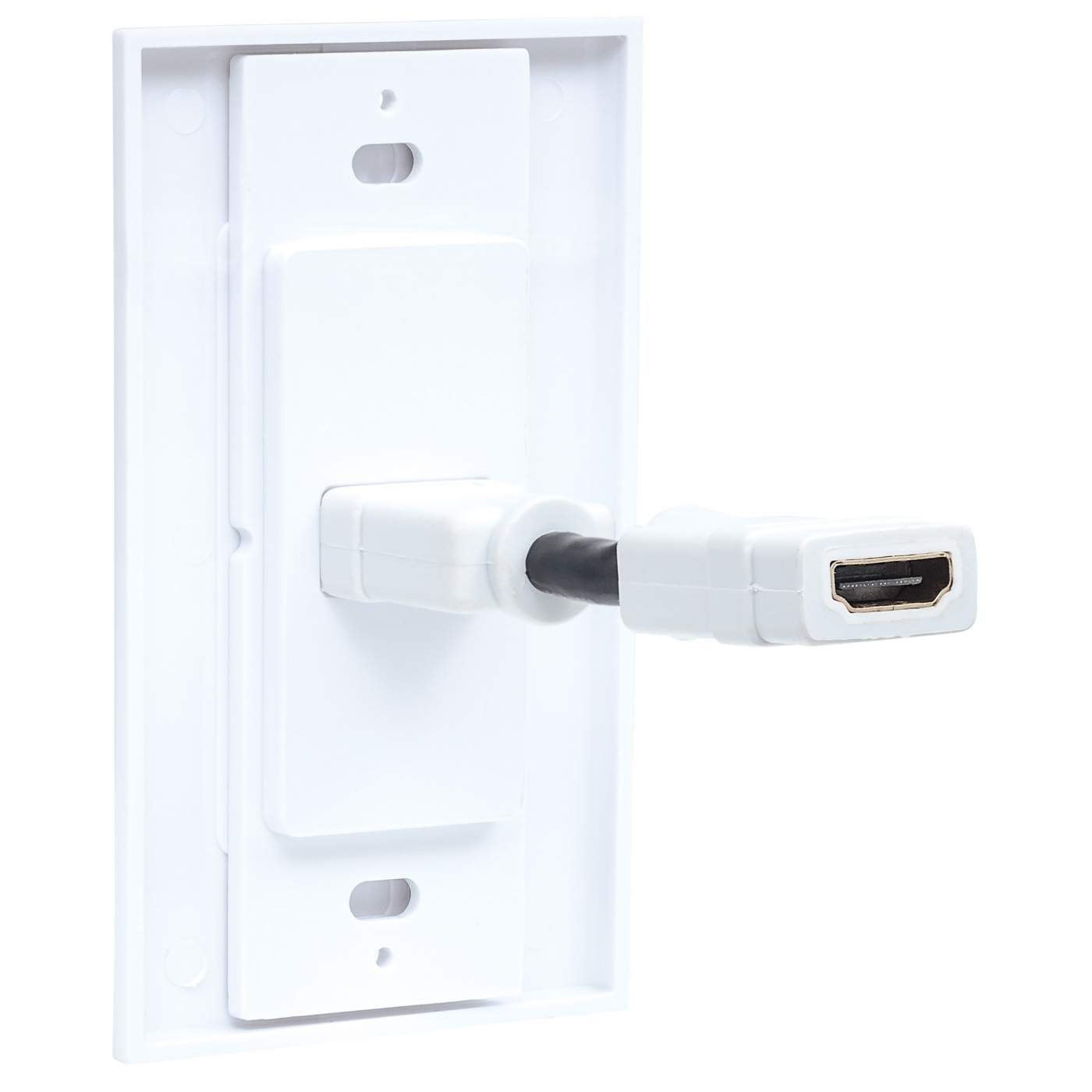

  (Trim, one port insert, one HDMI coupler, two color-matching screws)

• Additional SKUs

• Amazon ASIN: B07FDM1WW3
• EAN: 0766623771719
• UPC: 766623771719



• Physical Specifications

• Product net weight: 0.04 kg
• Product gross weight: 0.07 kg
• Dimensions: 115 (L) x 70 (W) x 105 (H) [mm]
• Packaging: Bag
