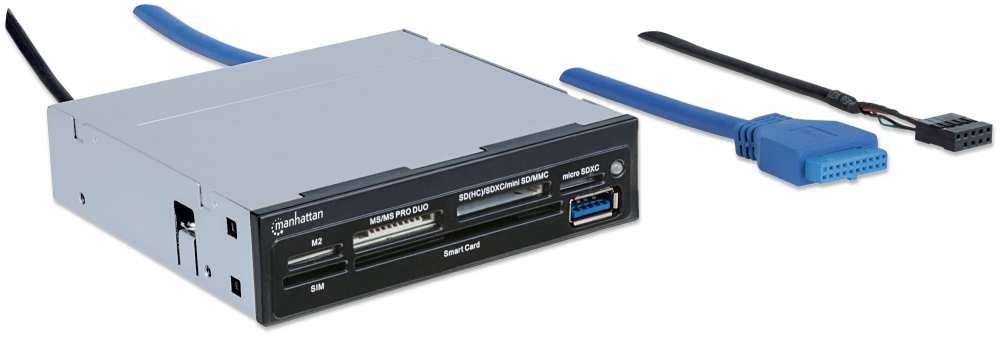

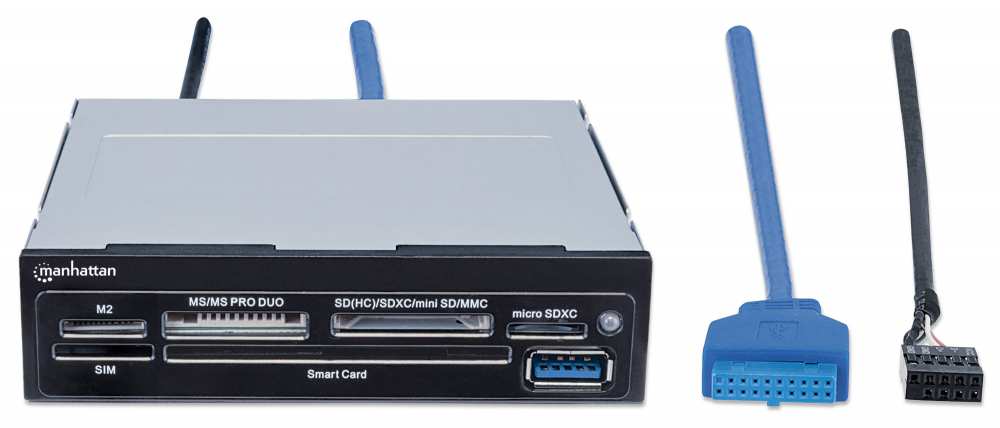

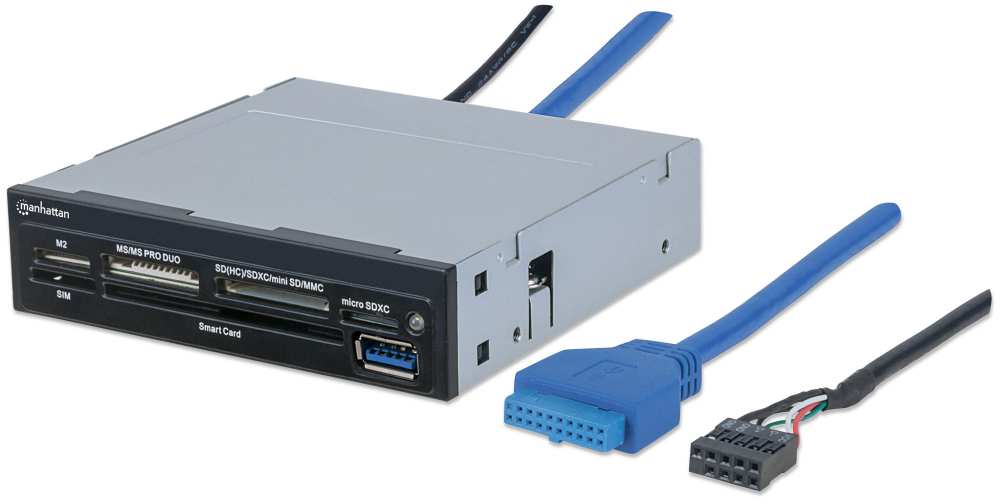

Multi-Card Reader/Writer

SuperSpeed USB 3.0, 3.5" Bay Mount, 34-in-1, SIM/Smart Card

SKU: 101974

Highlights

  • Convenient front-mount USB port and Card Reader/Writer ports
  • Supports Automatic Card Detection; Compatible with Memory Stick, MagicGate, SecureDigital, Multimedia, SD, SDHC and MMC
  • Supports SIM and Smart Card capabilities for reading/writing mobile phone cards, CAC, DoD, credit, banking cards and more
  • $22.99
    Unit price per
Shipping calculated at checkout.




Converts an empty, unused PC bay into a digital content management center.The Manhattan Multi-Card Reader/Writer supports most card formats to easily download and transfer digital images and files from many of today’s popular flash memory cards. Compatible with up to 34 types of Memory Stick, MagicGate, SecureDigital, Multimedia, SD, SDHC and more, the Manhattan Multi-Card Reader/Writer installs quickly, bringing your legacy 3.5" bay back to life. Convenience without the Media DeviceAccess digital content without directly connecting the camera or other media devices to the computer. This convenient connection helps conserve battery power by eliminating the need to directly install a digital device to a desktop computer. A front-mount USB port expands power availability to recharge USB devices.

  • Convenient front-mount USB port and Card Reader/Writer ports
  • Supports Automatic Card Detection; Compatible with Memory Stick, MagicGate, SecureDigital, Multimedia, SD, SDHC and MMC
  • Supports SIM and Smart Card capabilities for reading/writing mobile phone cards, CAC, DoD, credit, banking cards and more
  • SuperSpeed USB 3.0 compliant port, with support for data transfer rates up to 5 Gbps and power up to 900 mA
  • Sturdy, fully enclosed metal housing gives maximum durability and ensures long-term use.
  • Plug and play; hot-swappable — Windows and Mac compatible; no drivers required
  • Three-Year Warranty
    Standards and Certifications
  • USB 3.0
  • USB 2.0
  • CE
  • FCC
  • WEEE
  • RoHS
  • ISO/IEC 7816
  • CCID
  • EMV

    Supports
  • SD, SDHC, SDXC, EXTREME SD, EXTREME II SD, EXTREME III SD, ULTRA SD, ULTRA II SD, ULTRA II SD P PLUS, SD-ULTRA-X, ULTRA SPEED SD, SD PRO, SD ELITE PRO, HS SD, MMC, MMC 4.0, HS MMC, HS RS MMC, RS MMC, RS MMC 4.0, MMC Mobile, MINI SD*, HS MINI SD*, MSHG, MS Pro duo, MS MG Pro, MS MG Pro duo, HS MS MG Pro Duo, HS MS Pro duo, Micro SD, Micro SDHC, Micro SDXC, M2
  • Smart Card
  • SIM

    General
  • LED power/activity indicator

    Ports
  • USB 3.0 Standard-A (1)
    Transfer speeds: 12 / 480 Mbps / 5 Gbps
    Output power: Up to 900 mA
  • Card Reader/Writer (6)
    Transfer speeds: 12 / 480 Mbps

    Physical
  • Dimensions: 10 x 10 x 2.5 cm (4 x 4 x 1 in.); 0.2 kg (7 oz.)

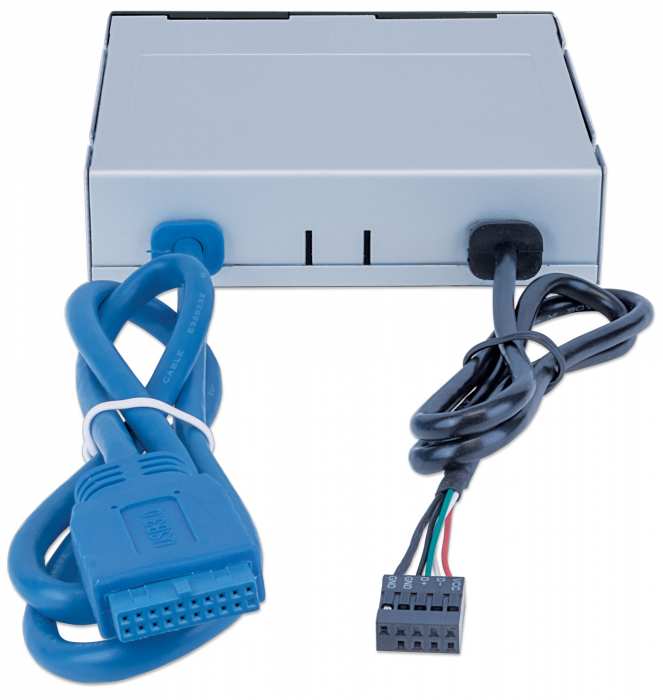

  • Integrated 20-pin connector cable, 62 cm (24 in.)
  • Integrated 9-pin connector cable, 52 cm (20 in.)
  • Material: metal housing, plastic faceplate

    Environmental
  • Operating temperature: 0 – 70˚C (32 – 158˚F)
  • Storage temperature: -40 – 70˚C (-40 – 158˚F)
  • Operating humidity: 50% non-condensing
  • Storage humidity: 95% non-condensing

    System Requirements
  • 3.5" front mount bay
  • Internal 9-pin USB 2.0 header expansion connection
  • Internal 20-pin USB 3.0 header expansion connection
  • Windows XP/Vista/7/8.1/10 and Mac OS 10.5 or higher

    Package Contents
  • Multi-Card Reader/Writer with (4) mounting screws
  • CD
  • QIG

    *Adapter required (not included)
  • Additional SKUs

    • Amazon ASIN: B01M4QSYWG
    • EAN: 0766623101974
    • UPC: 766623101974

  • Physical Specifications

    • Weight: 0.19 kg
    • Dimensions: 101 (L) x 101 (W) x 25 (H) [mm]
    • Packaging: Retail Box
