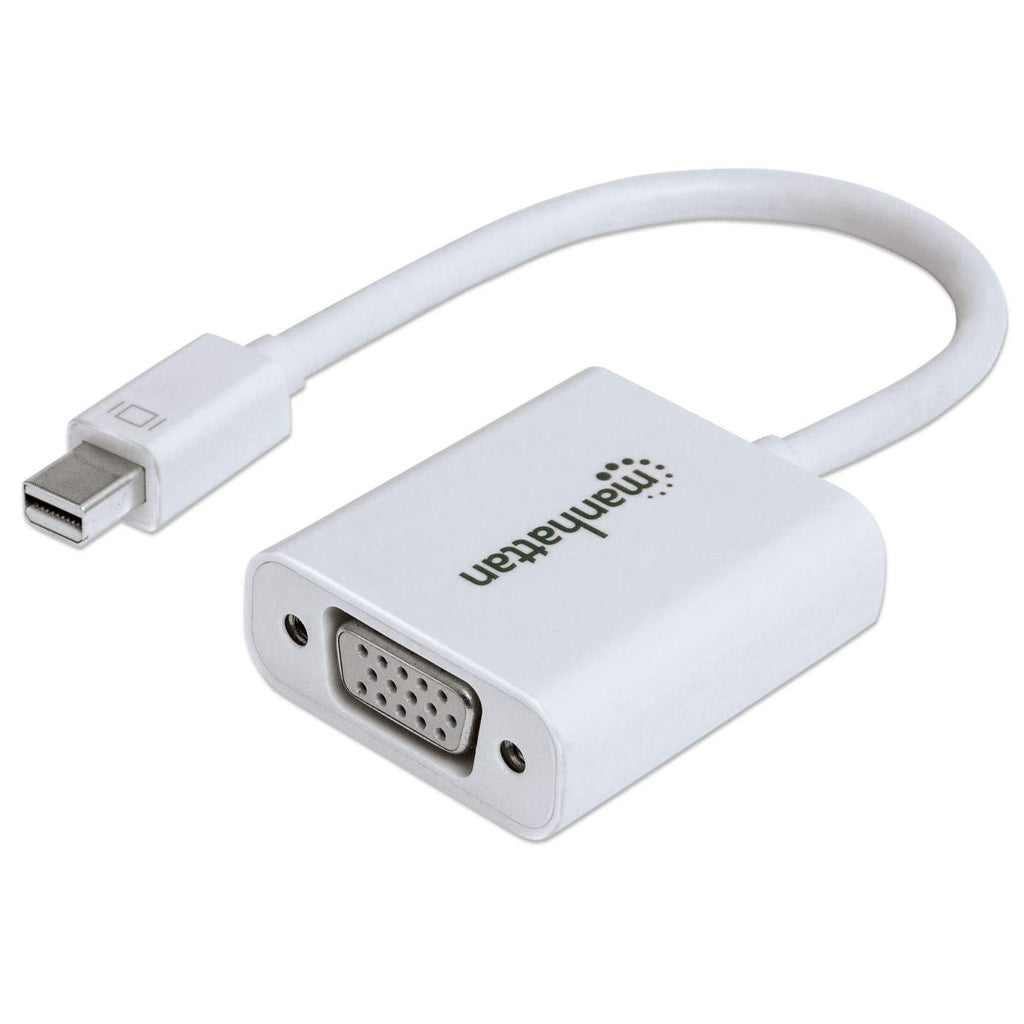

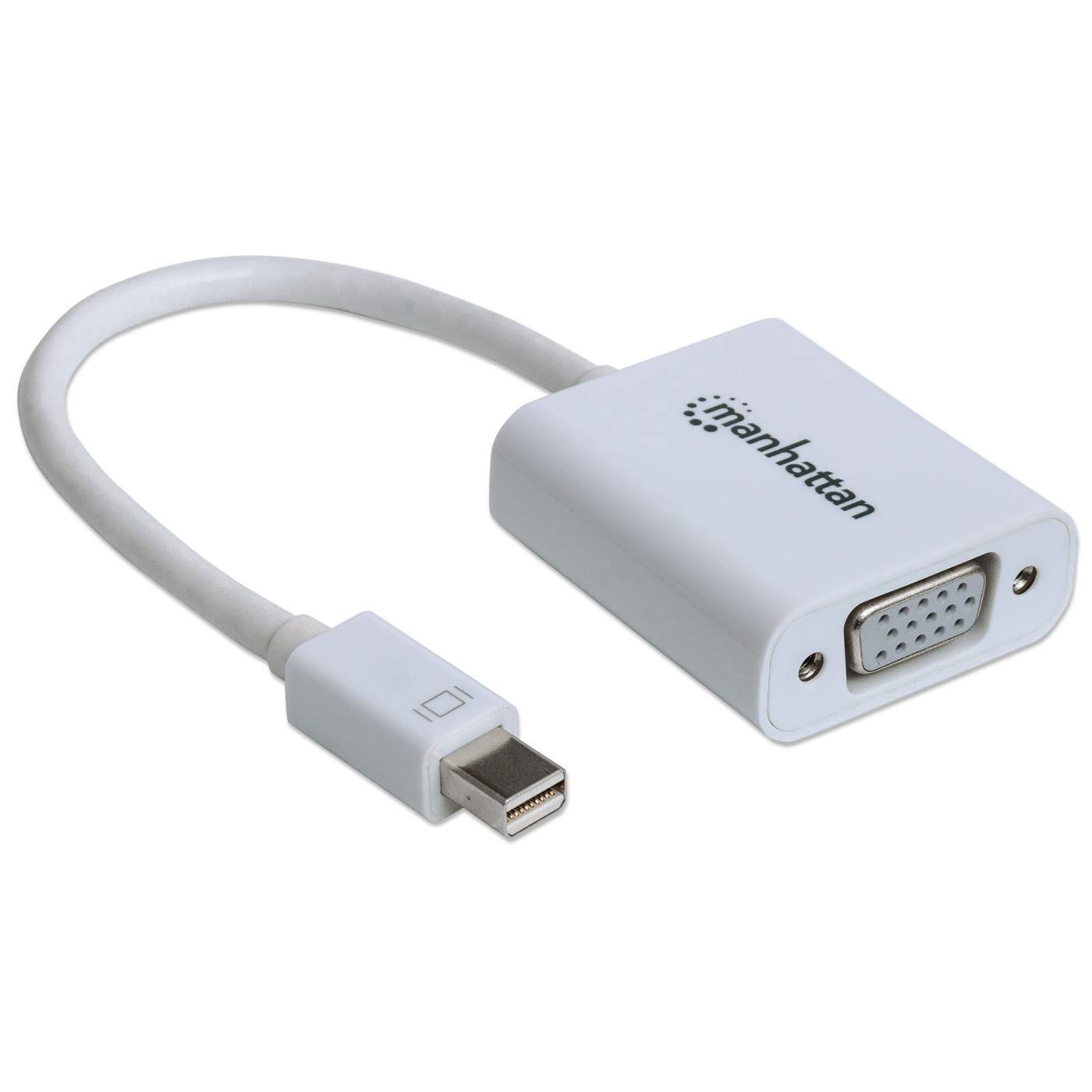

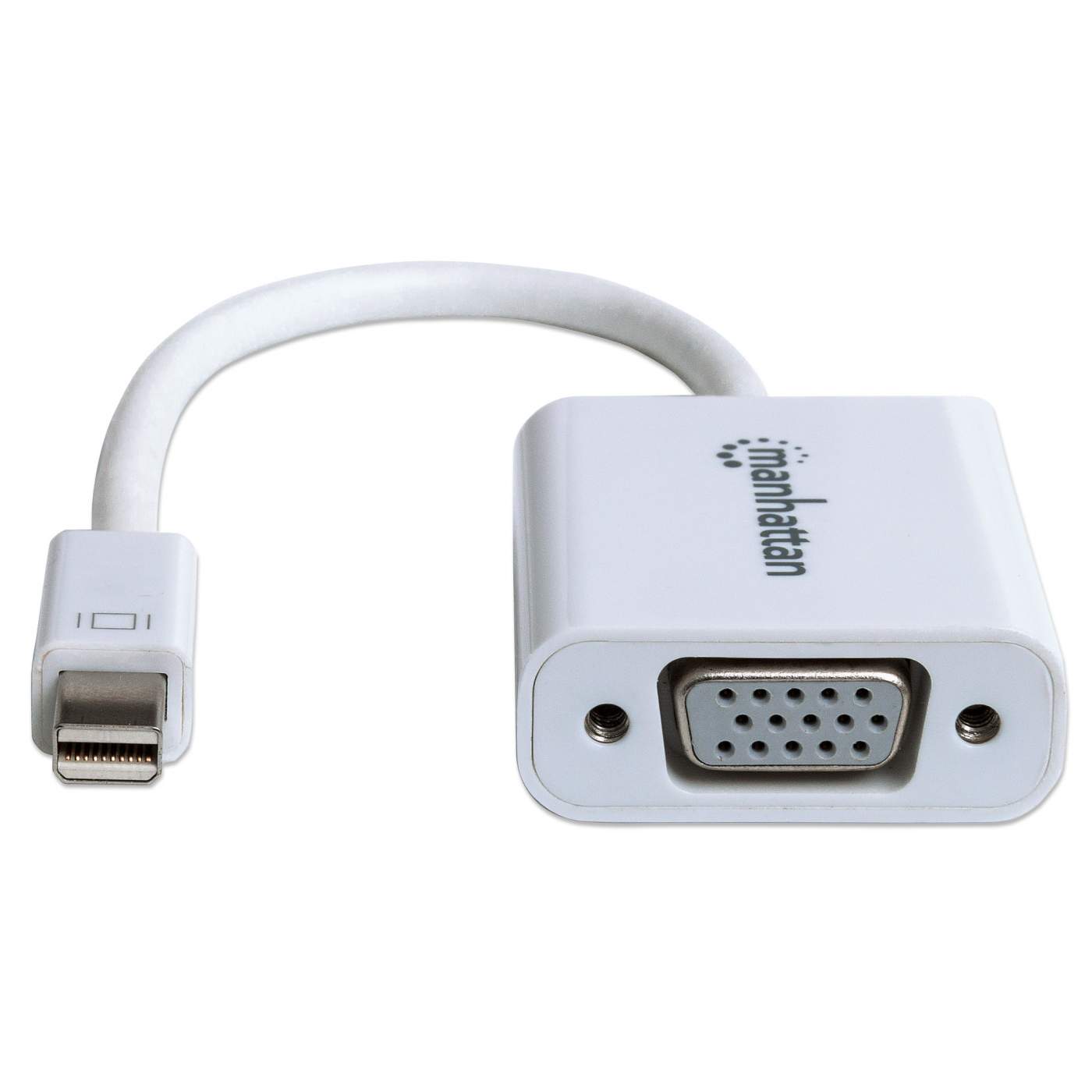

Mini DisplayPort to VGA Adapter

Easily connects a mini-DisplayPort source with VGA cable.
Manhattan Mini DisplayPort to VGA Adapters help establish a fast and convenient connection between a media source equipped with a mini-DisplayPort and a VGA display cable. Ideal for presentations, retail displays and other uses, this single-cable solution keeps installations and workplaces neat and organized without an external power supply or complicated configuration. Nickel-plated contacts and full shielding help Manhattan Mini DisplayPort Adapters provide clear and stable video transmissions in home and office multimedia applications. Durable white PVC jackets and molded boots with strain relief complement Macintosh systems and help ensure connections remain uninterrupted and steady.

• Connects a Mini DisplayPort source with a VGA display cable
• Supports 1080p resolution
• Delivers a single, high-quality signal to VGA display — ideal for Mac computers
• Integrated DAC for analog VGA signal output
• Fully shielded to reduce EMI and other interference sources
• Molded PVC boot and strain relief
• Lifetime Warranty

Standards and Certifications

• UL

• DisplayPort 1.2

  Connectors

• Mini DisplayPort 20-pin male

• VGA 15-pin female

• Nickel plated

• ABS housing

• Active

  Cable

• 32 AWG connectors

• Shielding: Mylar and aluminum

• Withstanding voltage: 300 VDC

• Insulation resistance: 5 MΩ

• Conductive resistance: 10 Ω

• Thermal plastic casing

  Dimensions

• Length: 17 cm (6.7 in.)

  Package Contents

• Mini DisplayPort to VGA Adapter

Warning

• Additional SKUs

• Amazon ASIN: B00S63TAG8
• EAN: 0766623151382
• UPC: 766623151382



• Physical Specifications

• Weight: 0.03 kg
• Dimensions: 17 cm

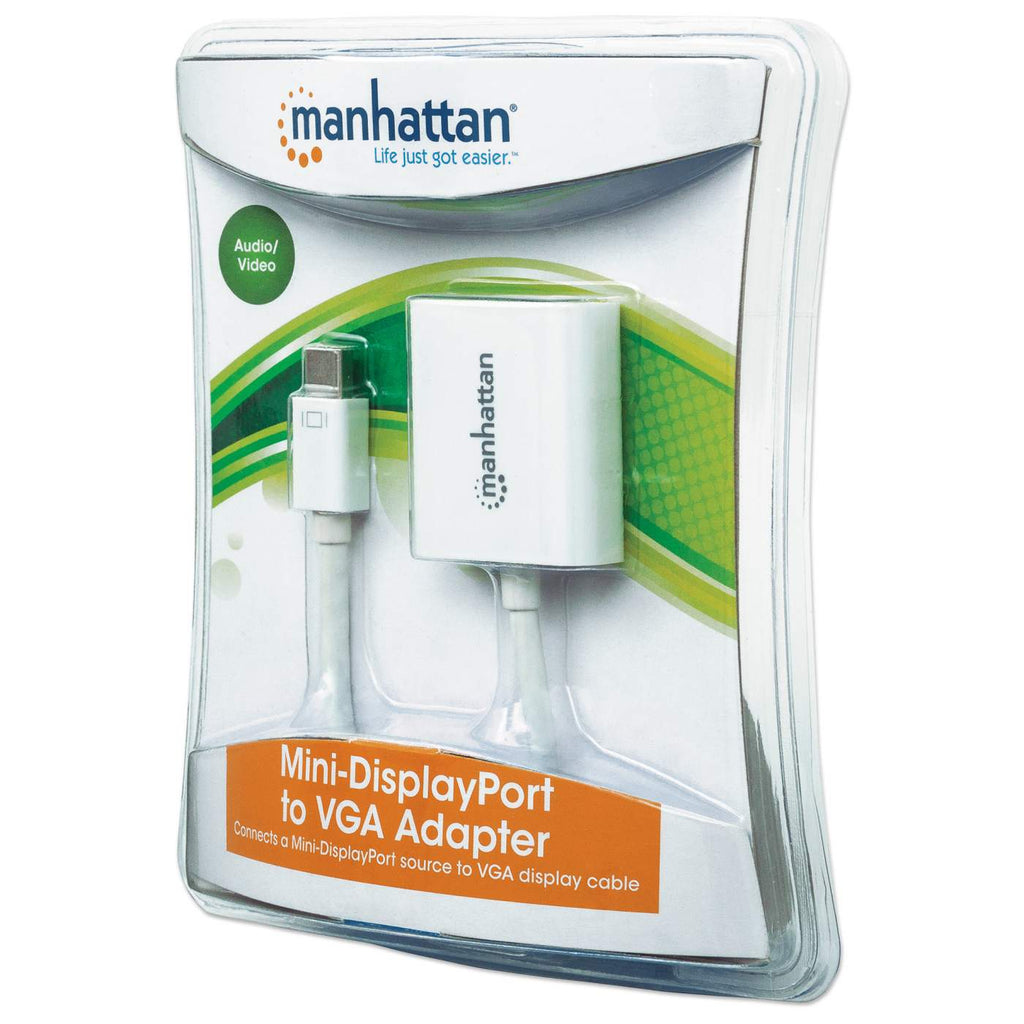

• Packaging: Blister

• Datasheet

• Datasheet     » Download

• Manual

• RoHS2 Compliance     » Download


• Declaration of Conformity     » Download
