Better utilize work space, improve ergonomics and share views

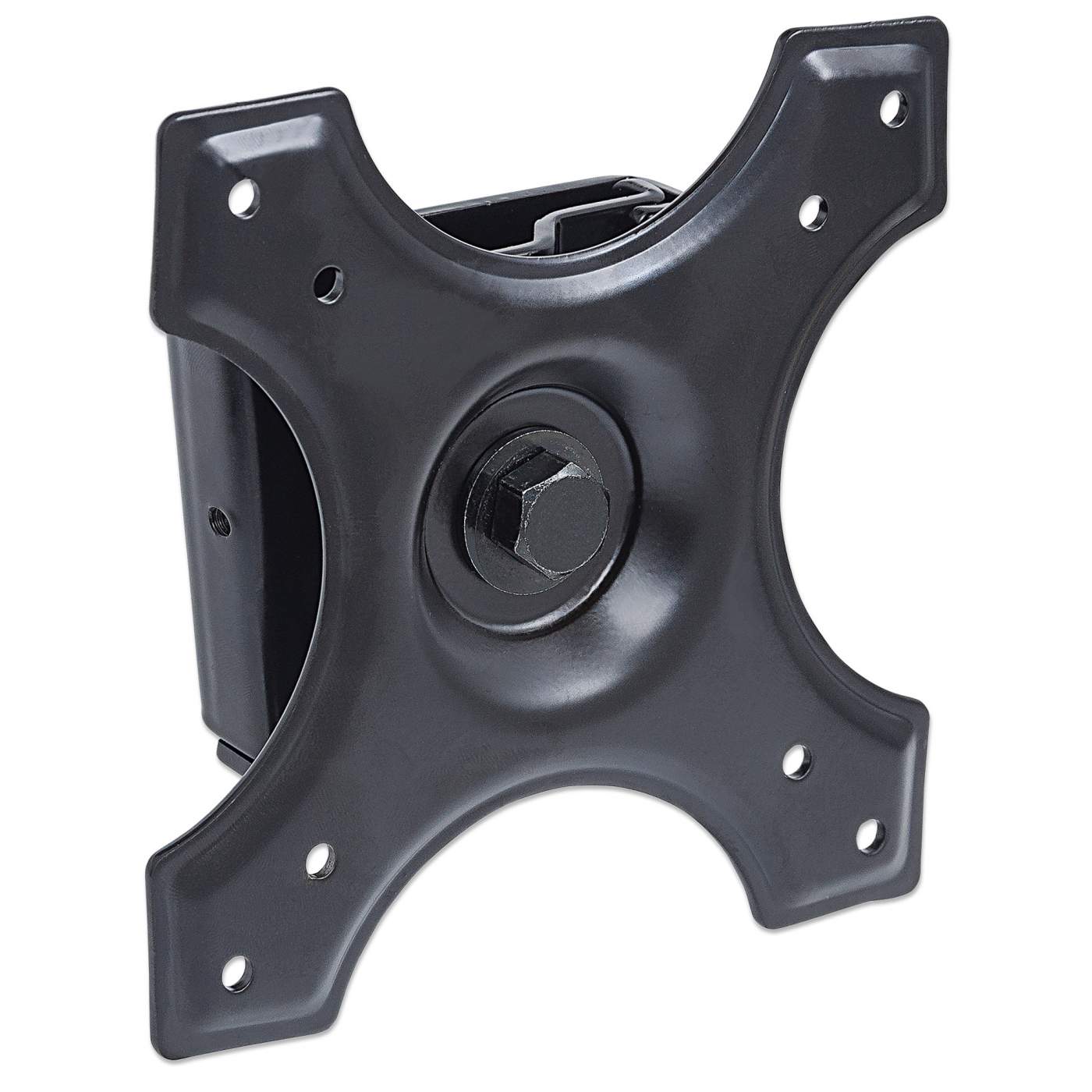

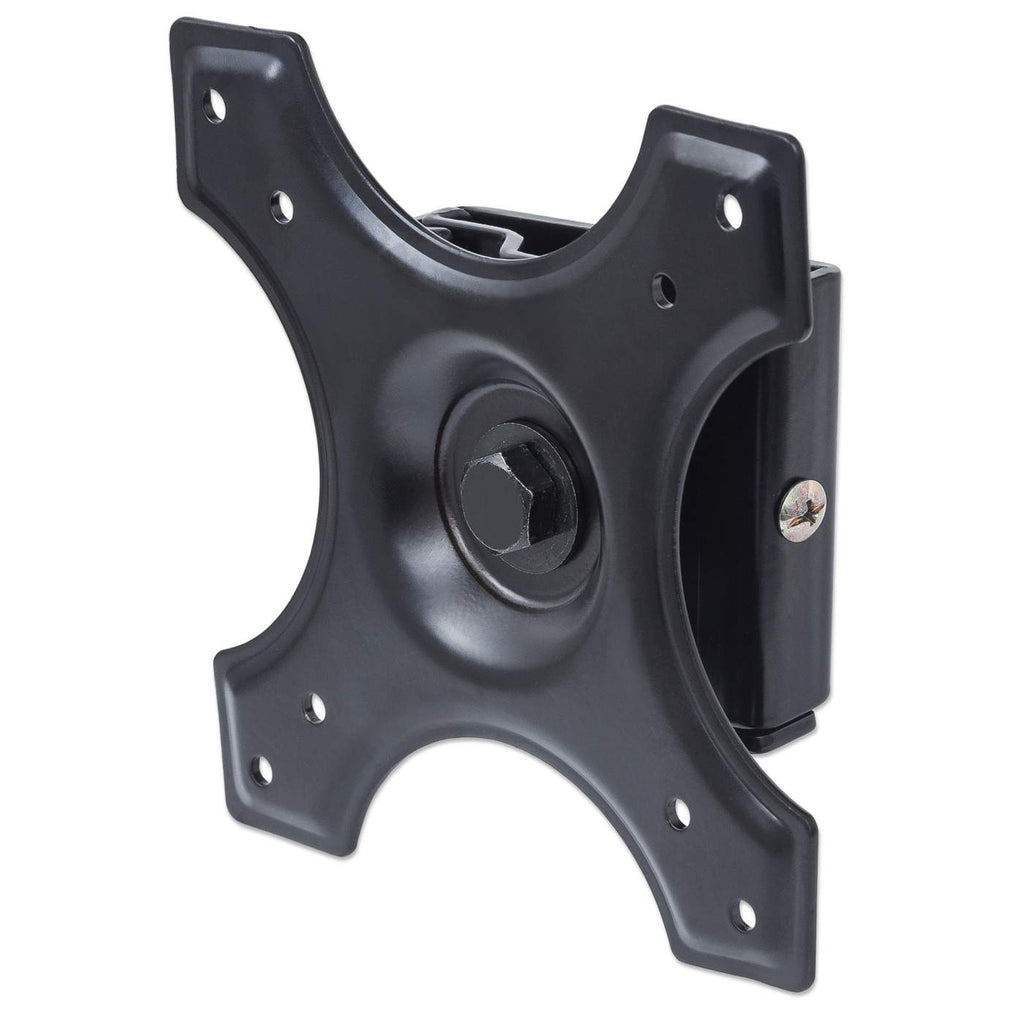

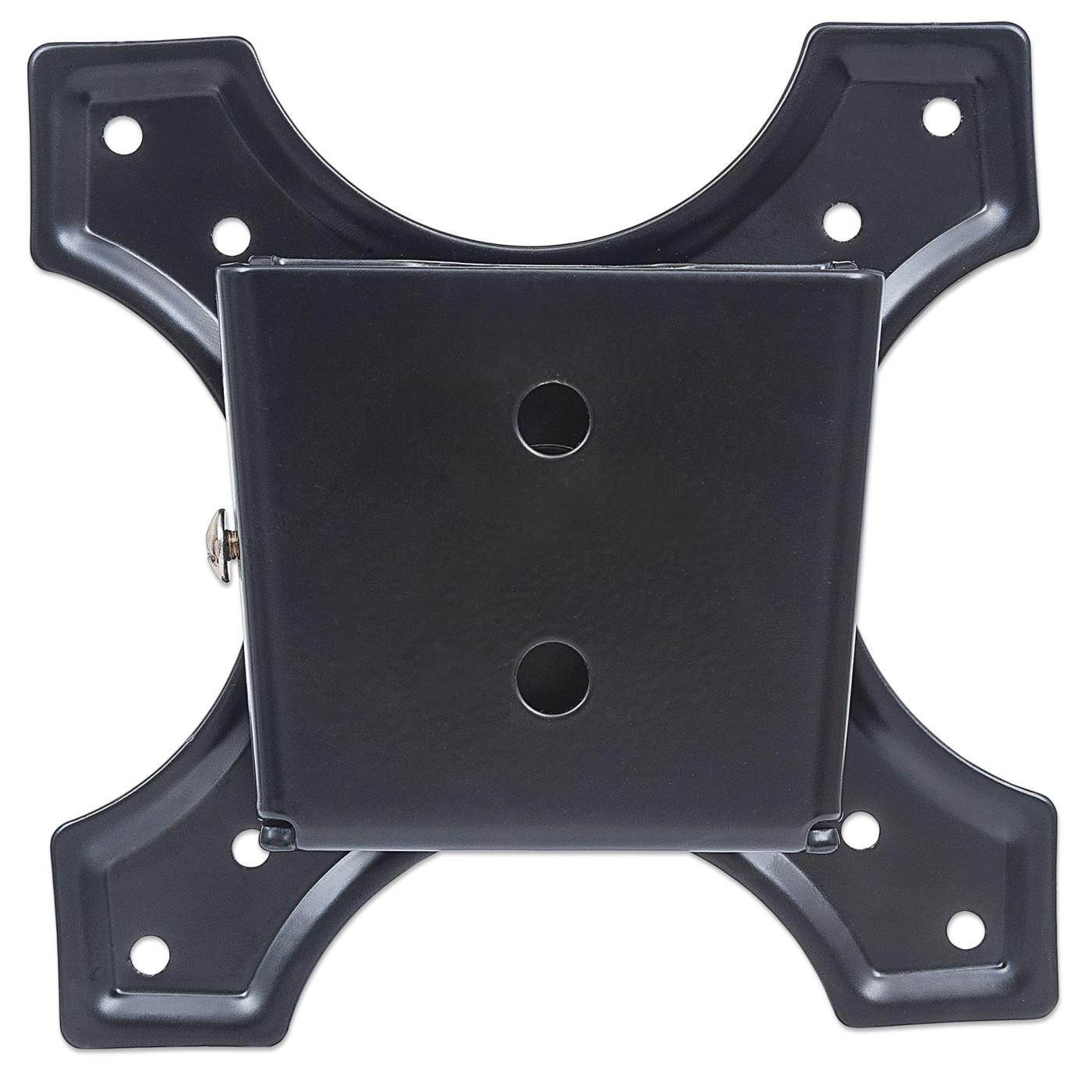

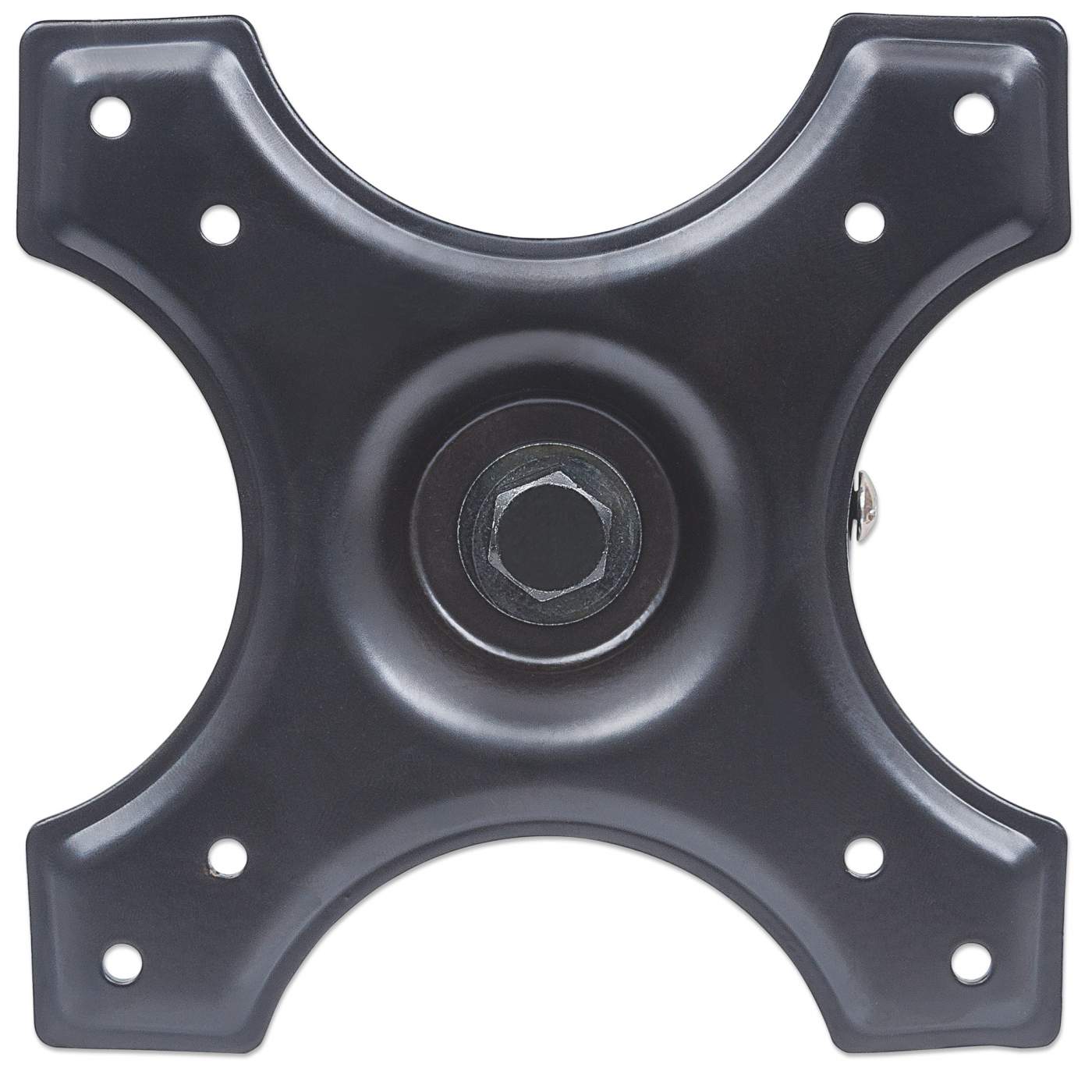

The Manhattan LCD Wall Mount provides a secure and elevated position for a single flat-panel display to help keep valuable desk and work space free and uncluttered. Die-cast in black coating construction and two-piece bracket provide a quick, easy and secure mount to most vertical surfaces. VESA compliant and ready to install with included hardware.

• Securely holds one LCD monitor on wall to improve views, increase work space and minimize clutter

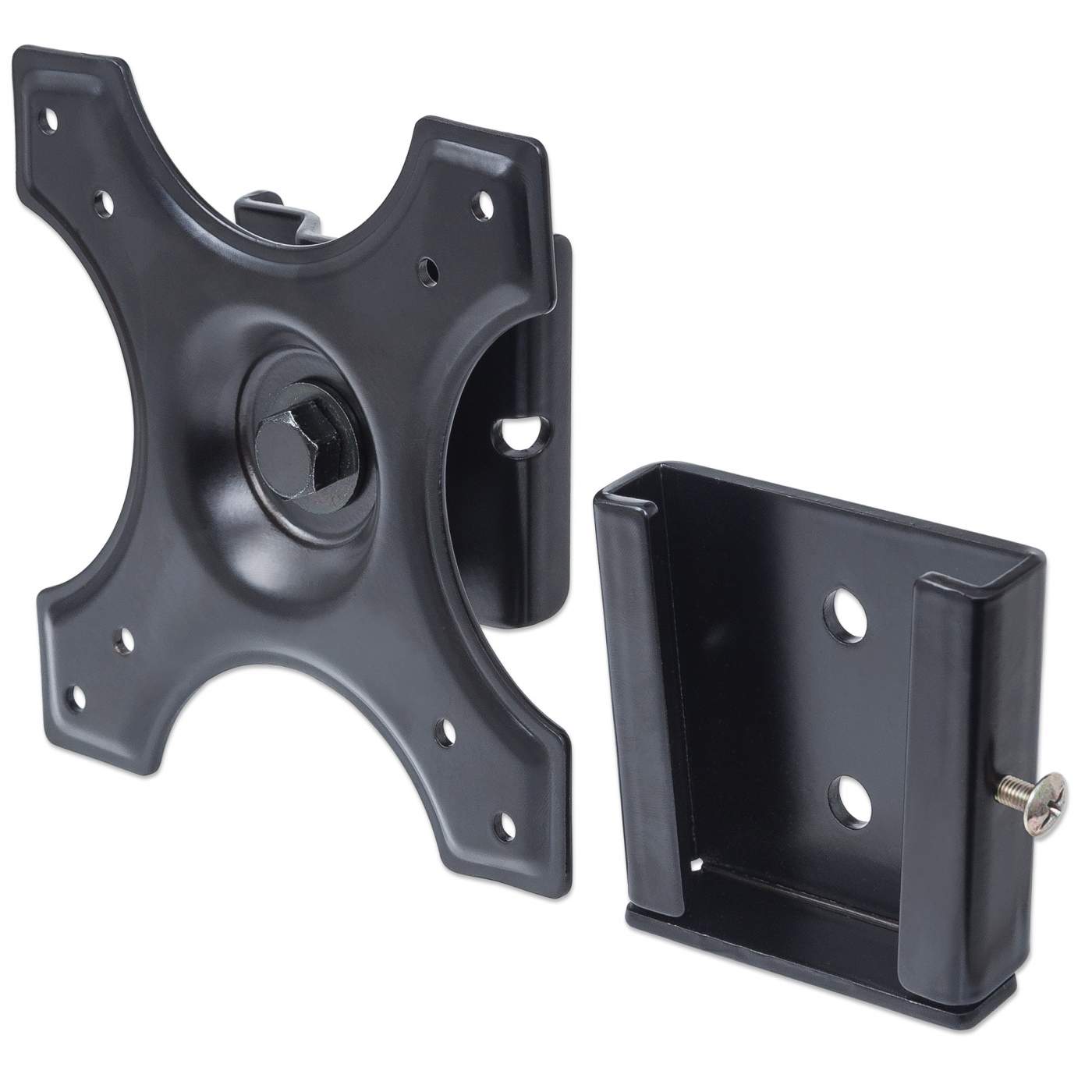

• Two-piece bracket with heavy-duty, steel construction easily mounts to most vertical surfaces
• Low-profile installation ideal for home, office and commercial applications
• Meets VESA standards — fits monitors from 13" to 32" and up to 15 kg (33 lbs.)
• Lifetime Warranty

General

• Fits 75 x 75 mm / 100 x 100 mm VESA-compliant monitors up to 32"

• Monitor weight capacity: up to 15 kg (33 lbs.)

• Installs approximately 2.5 cm (1 in.) from most vertical surfaces

  Dimensions

• Product dimensions: 35.7 (L) x 120 (W) x 120 (H) [mm] 1.41 (L) x 4.72 (W) x 4.72 (H) [in]

• Mount clearance, 35.7mm (1.4 in.)

• Weight: 470 g (1.05 lbs.)

  Package Contents

• LCD Wall Mount

• Installation hardware with instructions

Warning

This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Amazon ASIN: B0033YSHUK
• EAN: 0766623422840
• UPC: 766623422840



• Physical Specifications

• Product net weight: 0.47 kg
• Product gross weight: 0.53 kg
• Dimensions: 35.7 (L) x 120 (W) x 120 (H) [mm]
• Packaging: Retail Box

• Datasheet
• Datasheet     » Download


• Technical Drawing     » Download




• Manual
• Quick Install Guide (multilanguage)
  English, Deutsch, Español, Polski, Italiano, Français     » Download


• Multilanguage Instructions
  English, Deutsch, espanol, francais, Polski, Italiano     » Download
