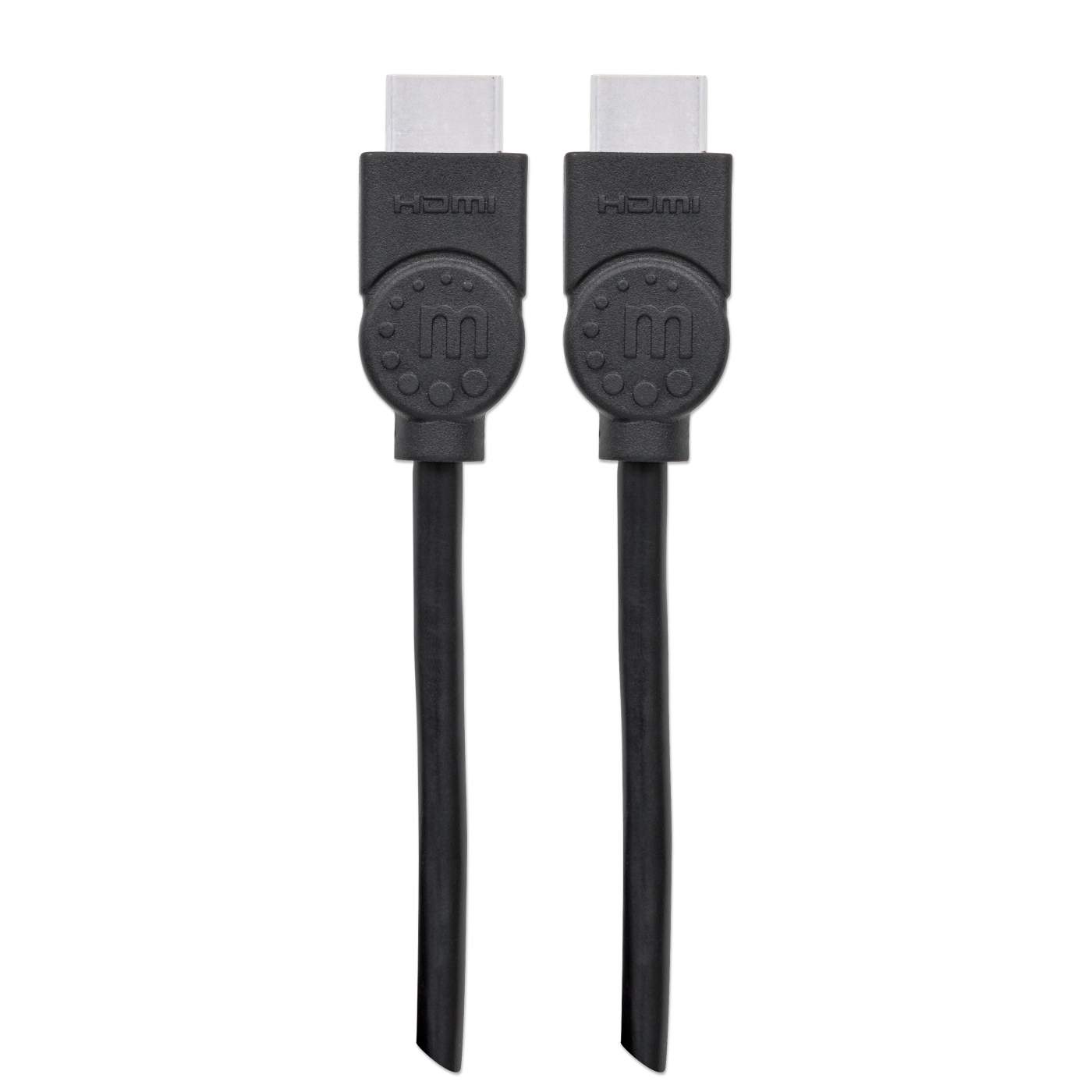

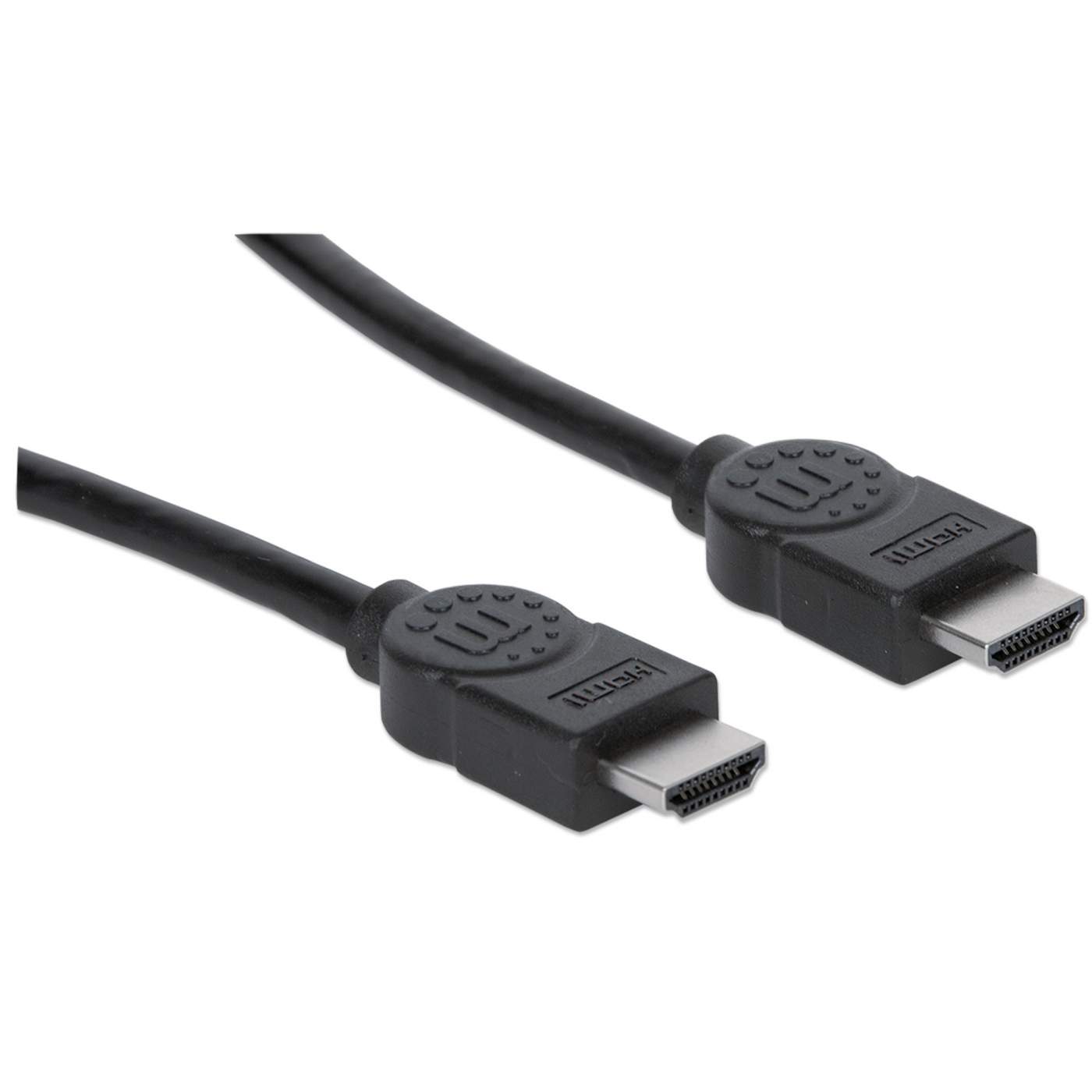

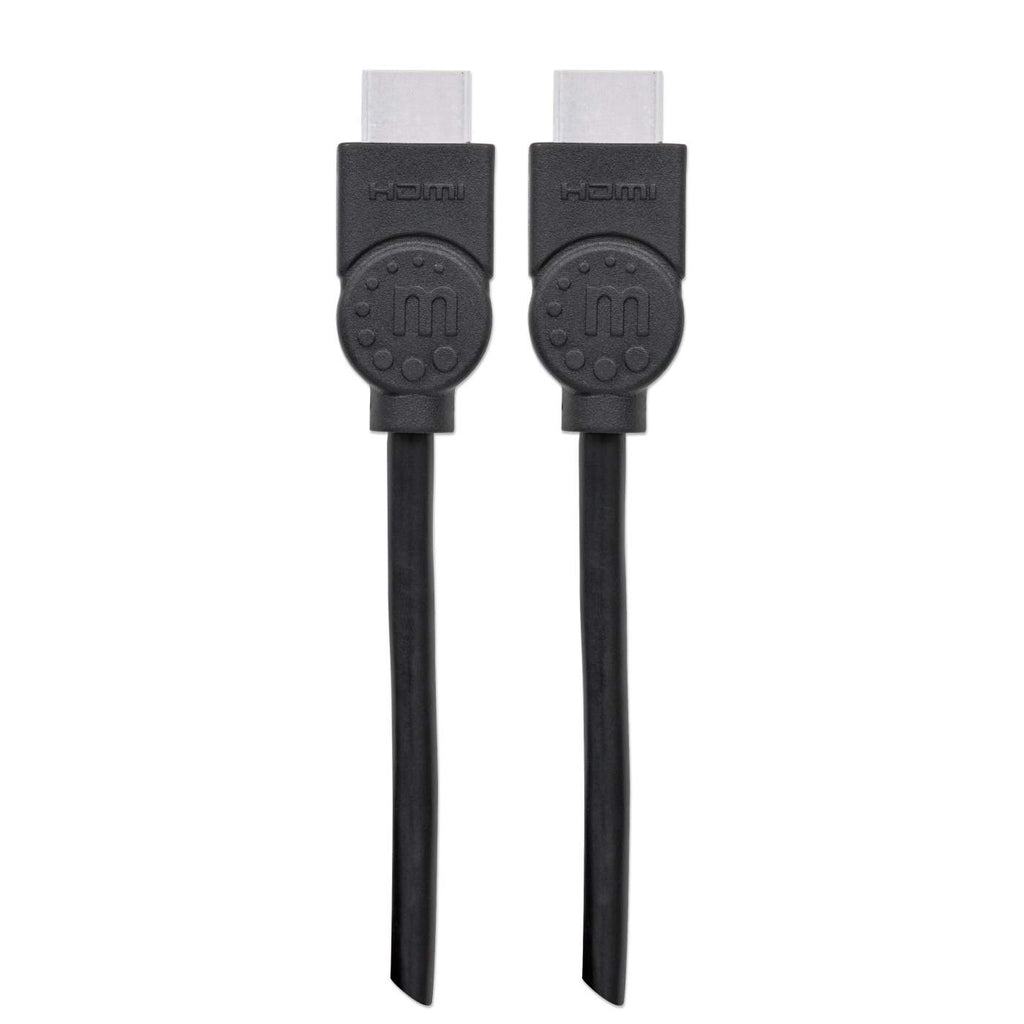

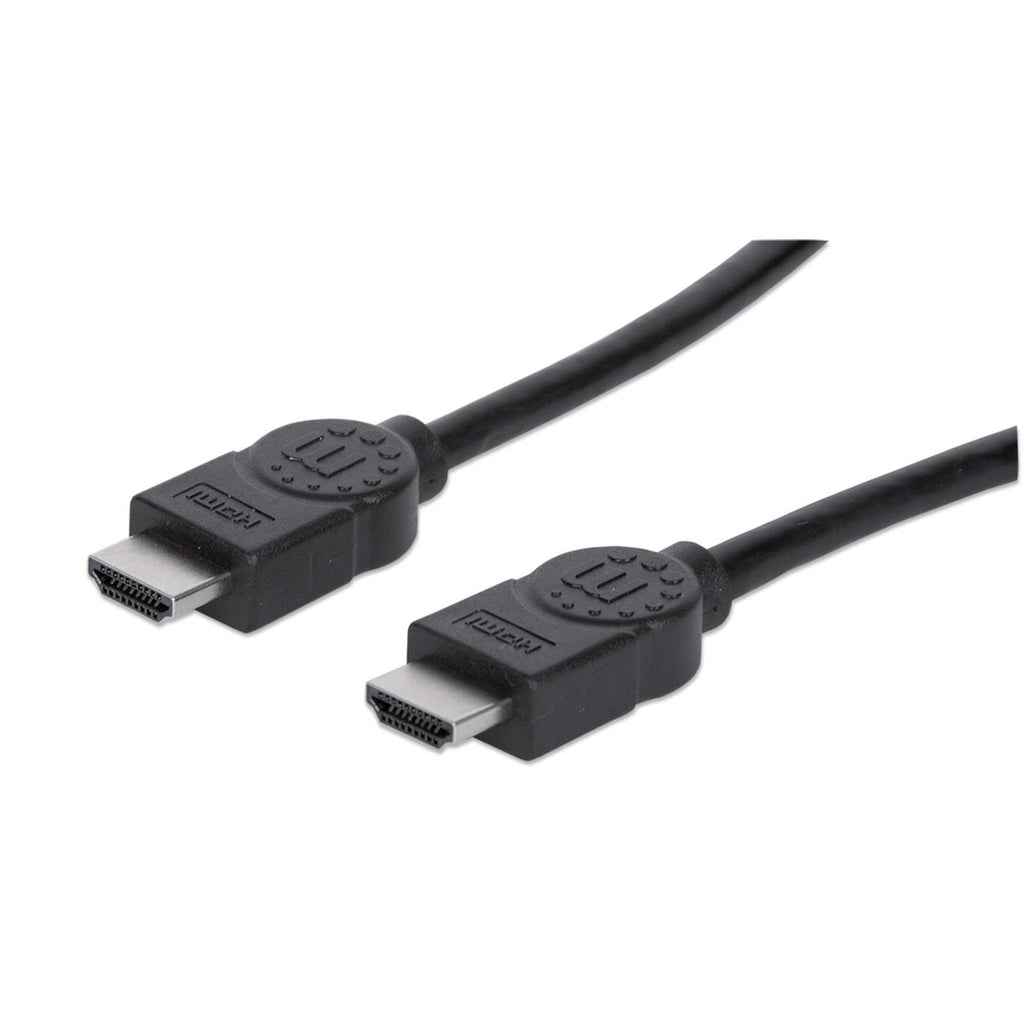

High Speed HDMI Cable with Ethernet

High Speed Cables deliver high-definition performance.
HDMI has become the standard digital connection, delivering the highest-quality audio and video signal over a single cable. Manhattan High Speed HDMI Cables are designed and carefully constructed to meet the evolving needs of the high-definition marketplace. Manhattan High Speed HDMI Cables provide the highest resolution possible at 4K x 2K, an audio return channel and a bandwidth of 10.2 Gbps at 340 MHz. These high-quality cables provide high-definition video and multichannel, digital audio with increased performance characteristics, greater accuracy and expanded features, including Internet connectivity for home entertainment devices using a single HDMI connection.

• Supports HDMI Ethernet Channel, Audio Return Channel, 3D Video, 4K Display and Deep Color
• High-speed Ethernet, bi-directional networking at up to 100 Mbps
• ARC-allows HDMI TV to communicate with home audio systems; no need for additional audio cable
• 4K@30Hz resolution supports video resolution beyond 1080p; up to 1080p resolution in 3D and Deep Color
• Compatible with any HDMI device, such as Blu-ray, game consoles, stereos and PCs
• Compliant with High Speed HDMI specifications
• Up to 10.2 Gbps at 340 MHz bandwidth
• Double shielded to reduce EMI and other interference sources
• Molded PVC boot
• Lifetime Warranty

Standards and Certifications:

• UL 20276

• ISO 9002

  General:

• Bandwidth: 10.2 Gbps at 340 MHz

• HEC support

• Meets or exceeds existing HDMI standards

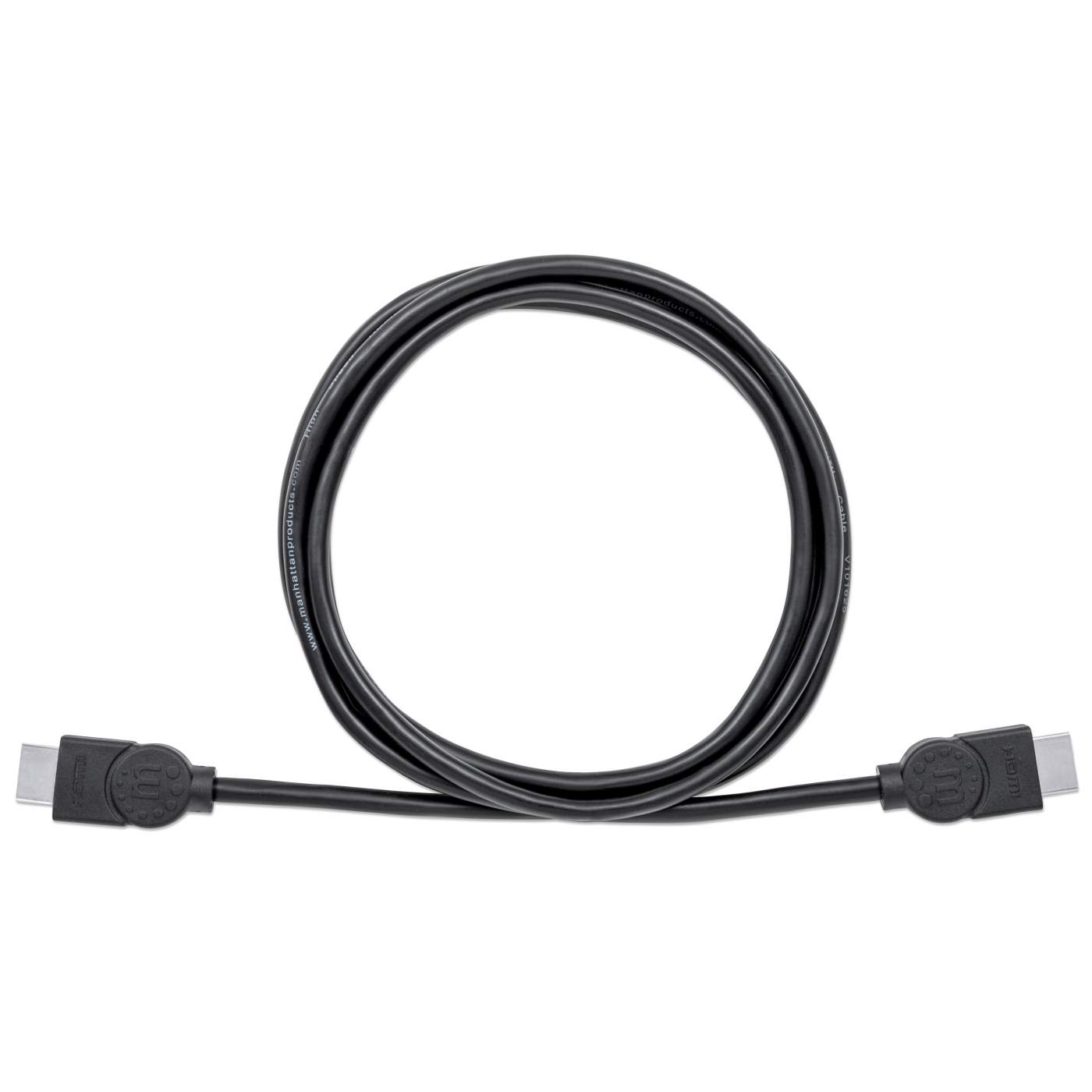

• Length: 2 m (6.6 ft.)

  Contacts:

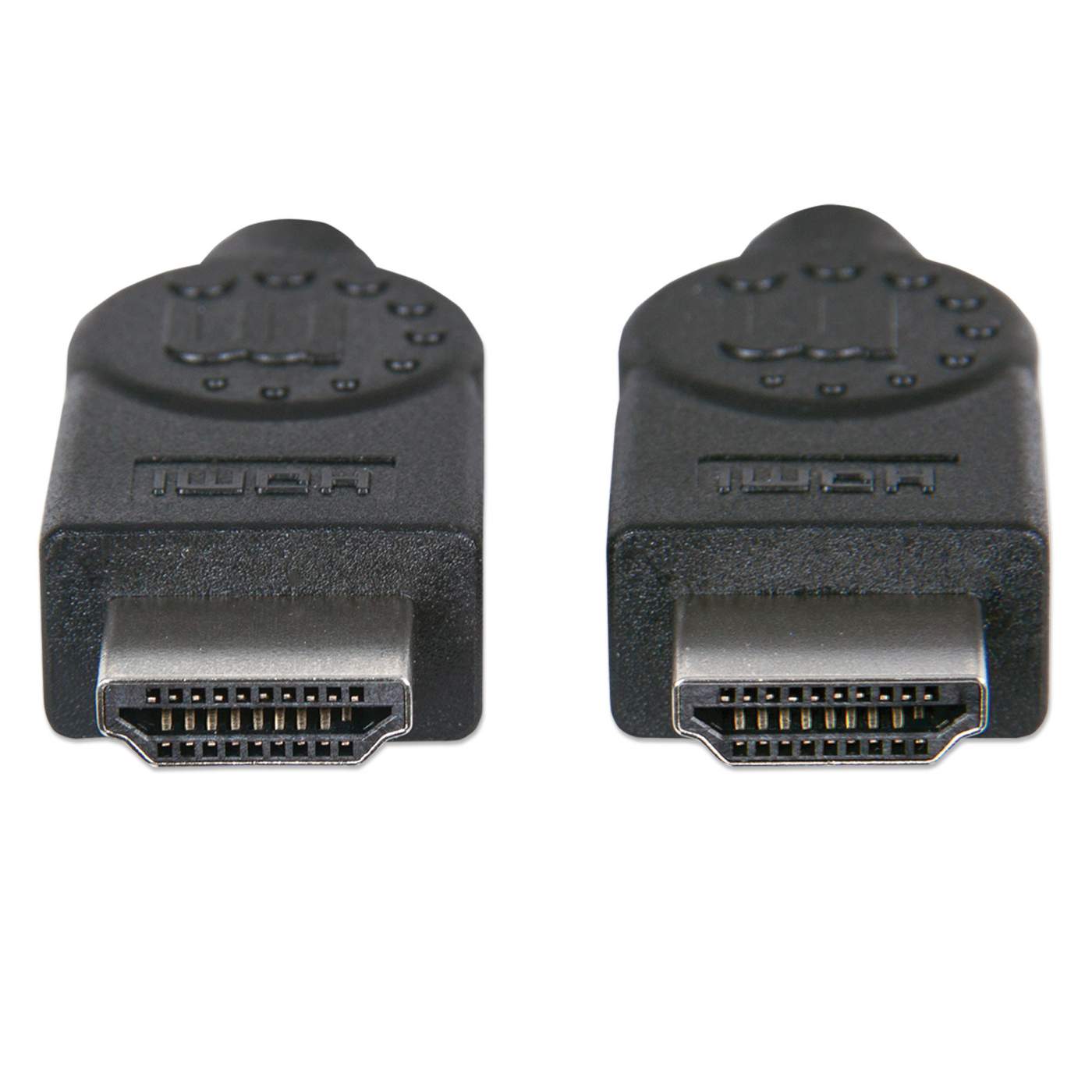

• (2) HDMI 19-pin male

• Nickel-plated contacts

• Molded PVC boot

• Double shielded

• 30 AWG cable

  Electrical:

• Current rating: 0.5 A DC

• Withstanding voltage: 300 V DC

• Insulation resistance: 5 MOhms

• Conductive resistance: 5 Ohms

• Thermal plastic casing

  Package Contents:

• High Speed HDMI Cable with Ethernet Channel

• Additional SKUs

• Amazon ASIN: B00ENWEUX4
• EAN: 0766623393751
• UPC: 766623393751



• Physical Specifications

• Weight: 0.18 kg
• Dimensions: 2 m

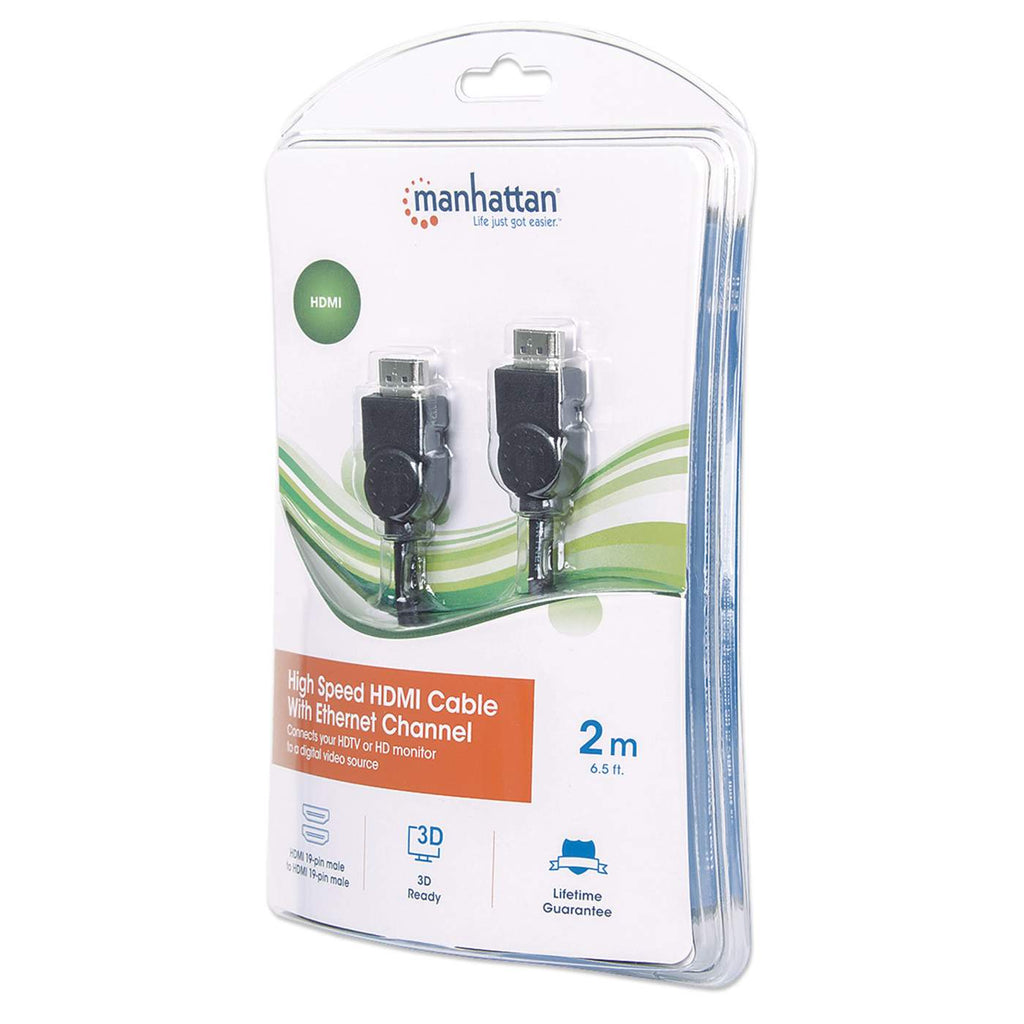

• Packaging: Blister

• Datasheet

• Datasheet     » Download

• Manual

• RoHS2 Compliance     » Download
