A high-speed cable to deliver high-definition performance

HDMI has become the standard digital connection, delivering the highest-quality audio and video signal over a single cable. The Manhattan High Speed HDMI Cable is designed and carefully constructed to meet the evolving needs of the high-definition marketplace. This shielded cable provides the highest resolution possible at 4K x 2K, an audio return channel and a bandwidth of 10.2 Gigabits per second at 600 MHz. A high-quality HDMI cable, it provides high-definition video and multi-channel, digital audio with increased performance characteristics, greater accuracy and expanded features.

• 4K@30Hz Ultra-High-Definition (UHD) resolution supports video resolution beyond 1080p; up to 1080p resolution in 3D and Deep Color
• Compatible with any HDMI device, such as Blu-ray, game consoles, stereos, PCs and more
• Audio Return Channel (ARC) transmits TV audio through your sound system; no need for additional cable
• Fully shielded to reduce EMI and other interference sources
• Tangle-resistant design allows for easier handling and management; resists cuts and nicks
• Ensures the integrity of the signal between HDMI devices
• Compliant with High Speed HDMI specifications
• Up to 10.2 Gbps at 340 MHz bandwidth
• Lifetime Warranty

Standards and certifications

• ISO9001

  General

• Bandwidth: 10.2 Gbps at 340 MHz

• Meets or exceeds existing HDMI standards

• Length: 1 m (3 ft.)

  Connectors

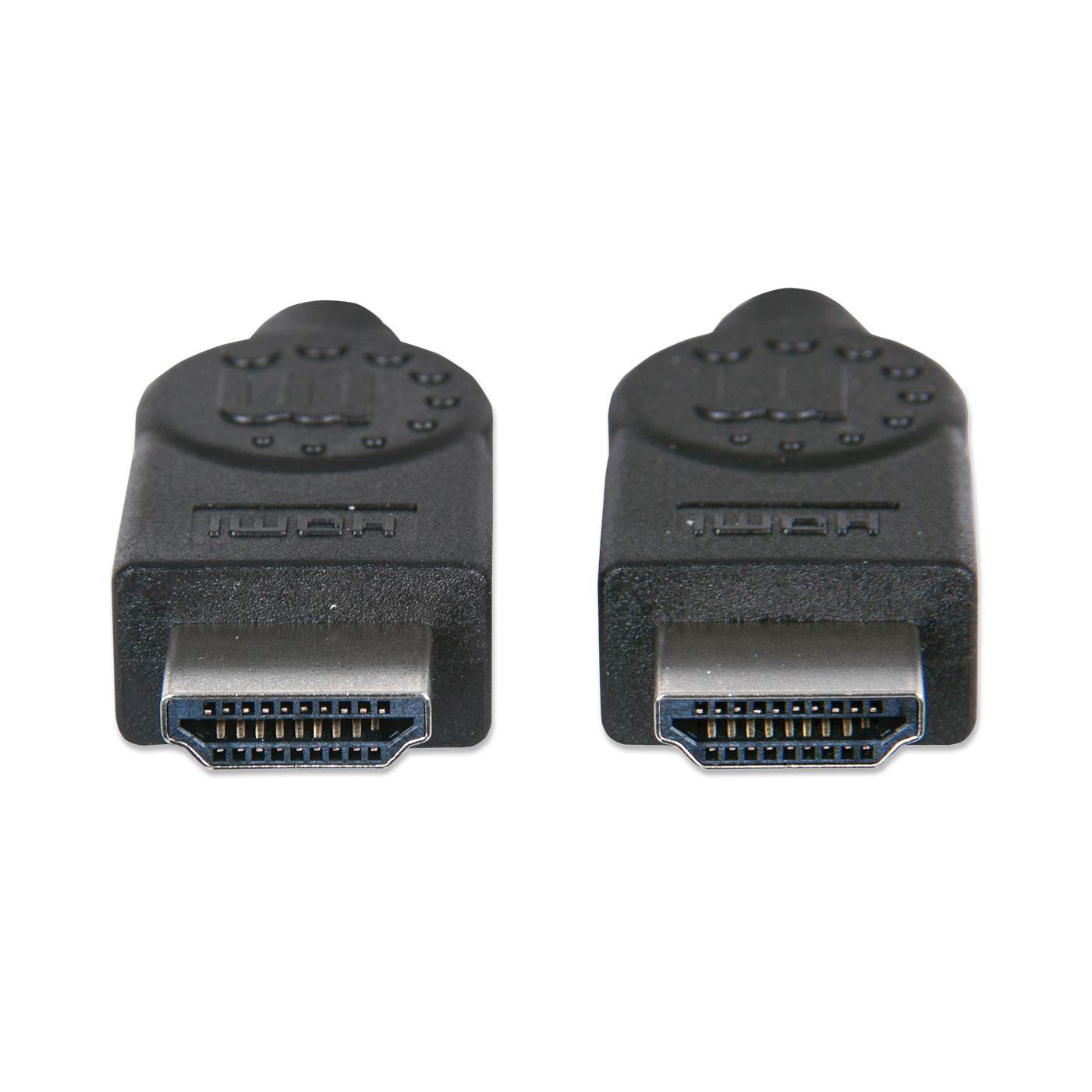

• Two HDMI 19-pin male

• Gold-plated contacts

• Molded PVC boot

• Built-in strain relief

  Cable

• 30 AWG cable

• Double shielded

• Current rating: 0.5 A DC

• Withstanding voltage: 300 V DC

• Insulation resistance: 5 MOhms

• Conductive resistance: 1 Ohms

• Thermal plastic casing

  Operating Environment

• Operation Temperature: 32 – 104°F (0 – 40°C)

• Storage Temperature: -4 – 140°F (-20 – 60°C)

• Humidity (noncondensing): 0 – 96%

  Package Contents:

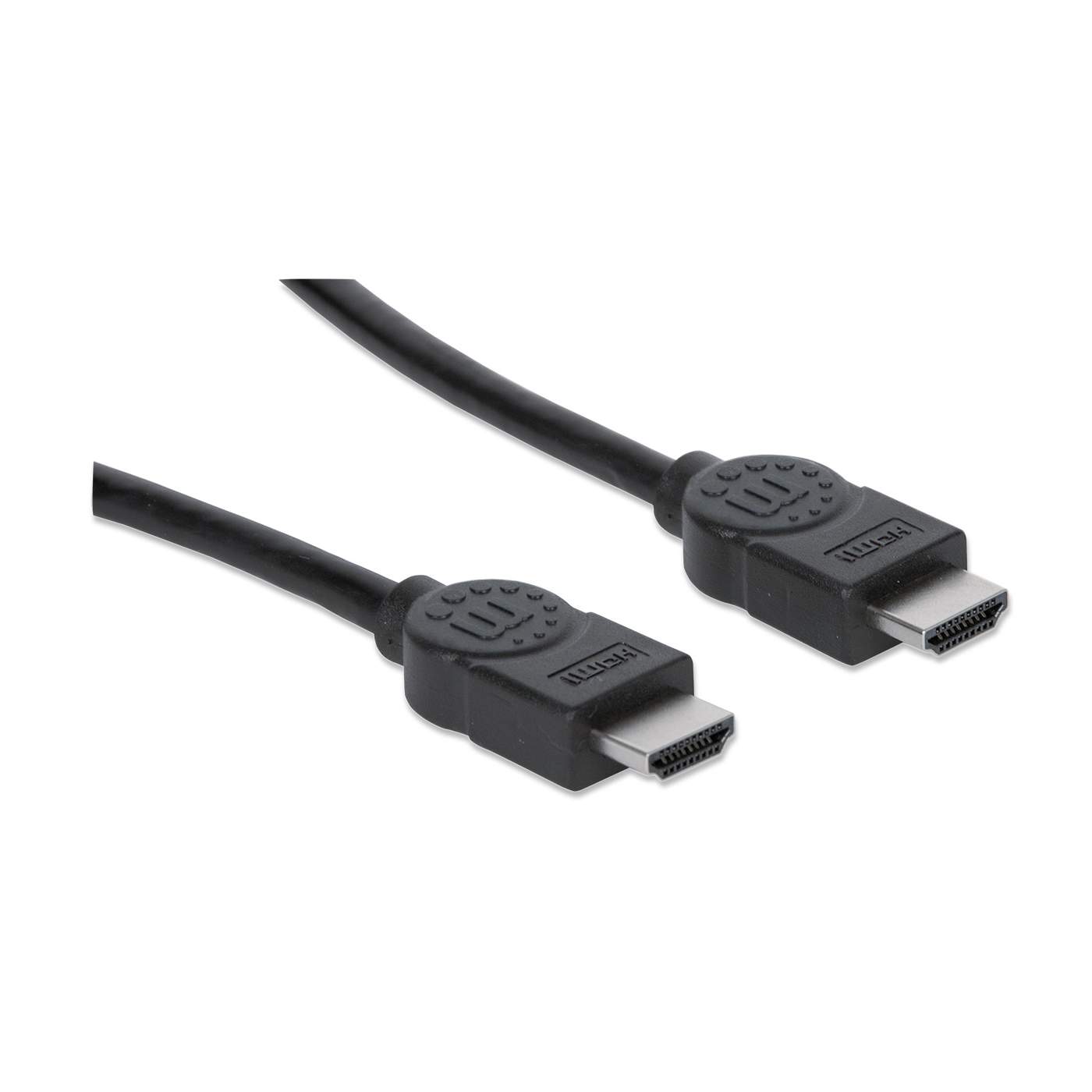

• High Speed HDMI Cable

• Additional SKUs

• Amazon ASIN: B0062A142U
• EAN: 0766623308816
• UPC: 766623308816



• Physical Specifications

• Product net weight: 0.06 kg
• Product gross weight: 0.06 kg
• Dimensions: 1 (L) x 0.019 (W) x 0.01 (H) [m]
• Packaging: Bag

• Datasheet
• Datasheet     » Download


• Declaration of Conformity     » Download
