Heavy-Duty Pull-Down Full-motion TV Wall Mount — a better, more flexible viewing experience for TVs up to 70 inch screen size

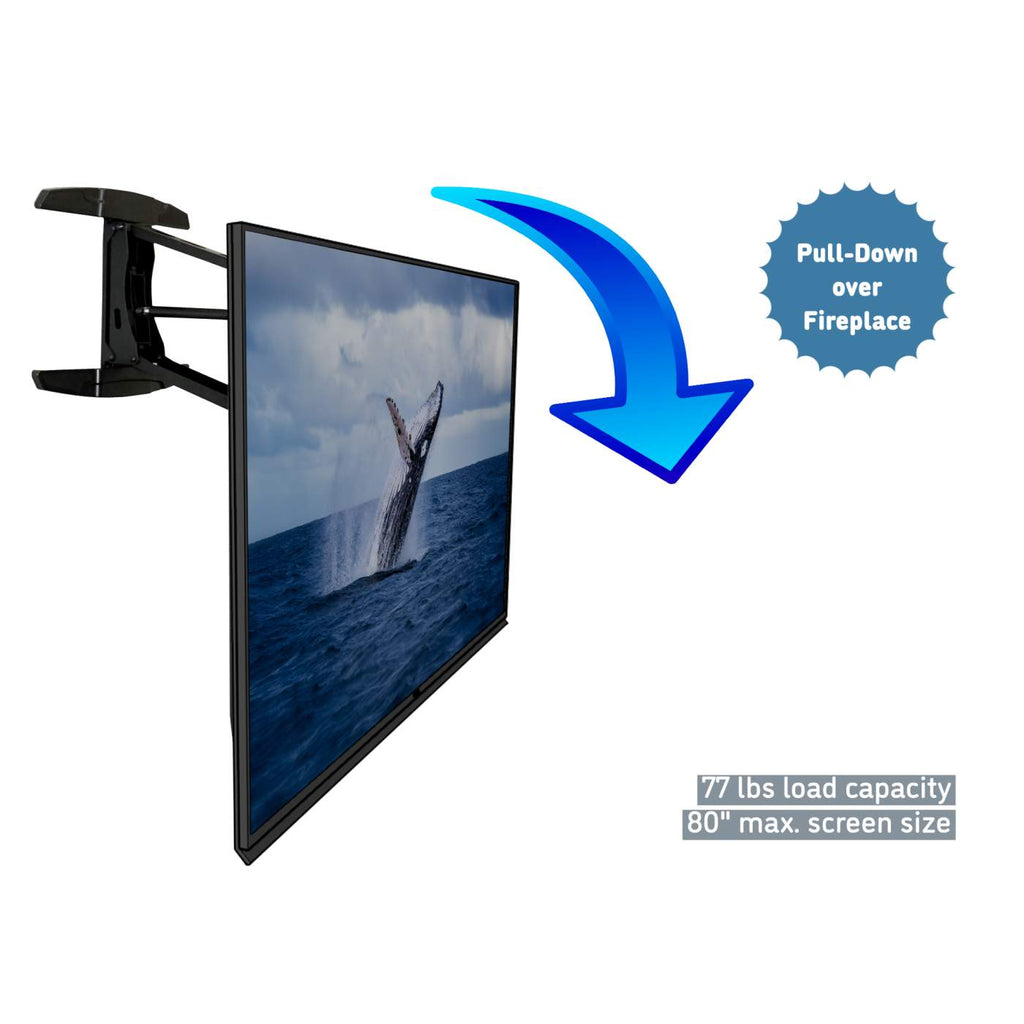

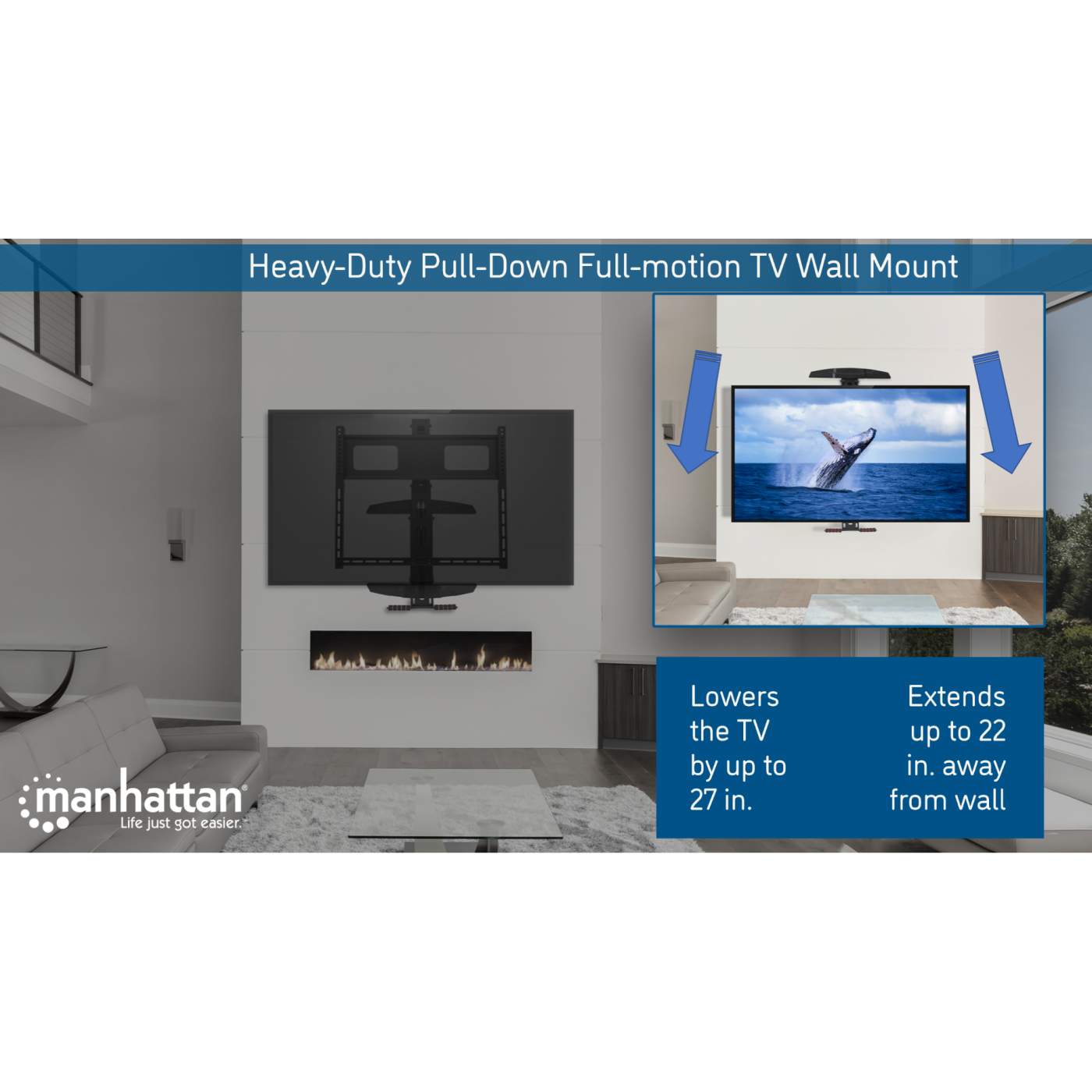

The Manhattan Above-Fireplace TV Wall Mount lets you install your TV above the mantel of your fireplace and lower it for a better view when you want. The 27" height adjustment means you can always find the right position to watch TV, and the mount's gas spring lets you raise and lower the mount with a light touch. The included T-shape hex key lets you adjust the tension for your heavier or lighter TV.

This mount also offers tilt (+5 to -15 degrees) and swivel (18 degrees left and right) adjustments to perfectly align it with your line of sight. Adhering to VESA standards, offering bolt locations at a maximum of 24" wide and 16" high, and able to hold up to 35 kg (77 lbs.), this Fireplace TV Pull-Down Mount ensures the hearth of your home is, even more, the vital center of your life.

• 27 inch height adjustment allows TV to be pulled down to a more comfortable viewing height
• Reduce neck strain, pull down the TV to your eye level
• Securely holds one flat-panel television
• Supports one 40" to 70" TV up to 77 lbs.
• Height adjustment to 27 in.
• Optimized views with +5° to -15° tilt , up to +/- 45° swivel and +/- 5° rotation
• Extends TV up to 22 in. from wall
• Heavy-duty steel construction
• Easy installation ideal for home applications
• Fits TVs with screen size of 42, 47, 50, 55, 58, 60, 65, 70, 80 inches in size, depending on VESA pattern
• Height adjustable TV wall mount designed ideal for fireplace mantel use

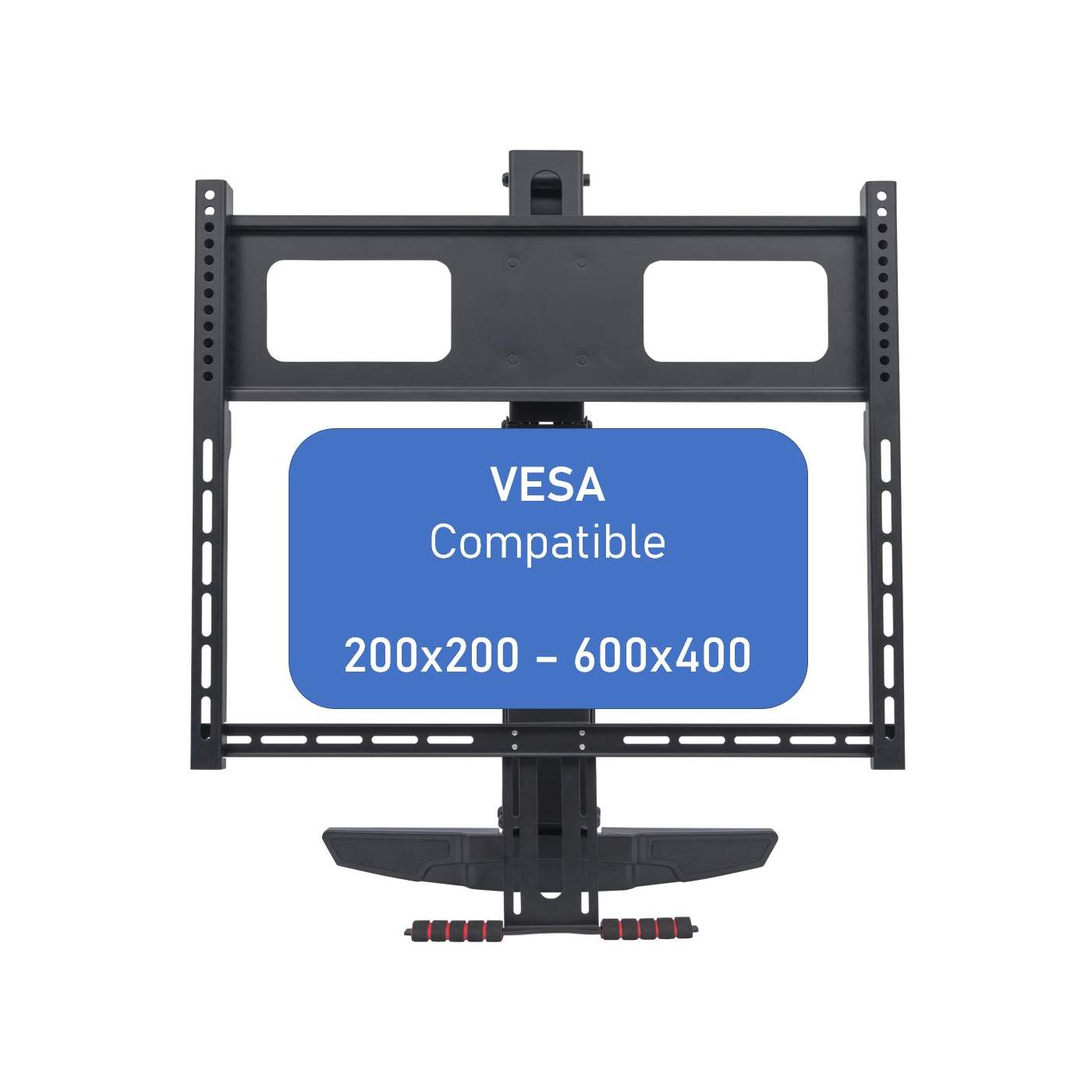

• Meets VESA standards: 200x200, 300x300, 400x200, 400x300, 400x400, 600x400
• Cushioned insulated handles
• Lifetime Warranty

General

• Meets VESA standards: 200x200, 300x300, 400x200, 400x300, 400x400, 600x400

• Supports one 40" to 70" display

• Rated load: 35 kg (77 lbs.)

• Tilt: +5° to -15°

• Swivel:

• Retracted: +/- 18°

• Extended: +/- 45°

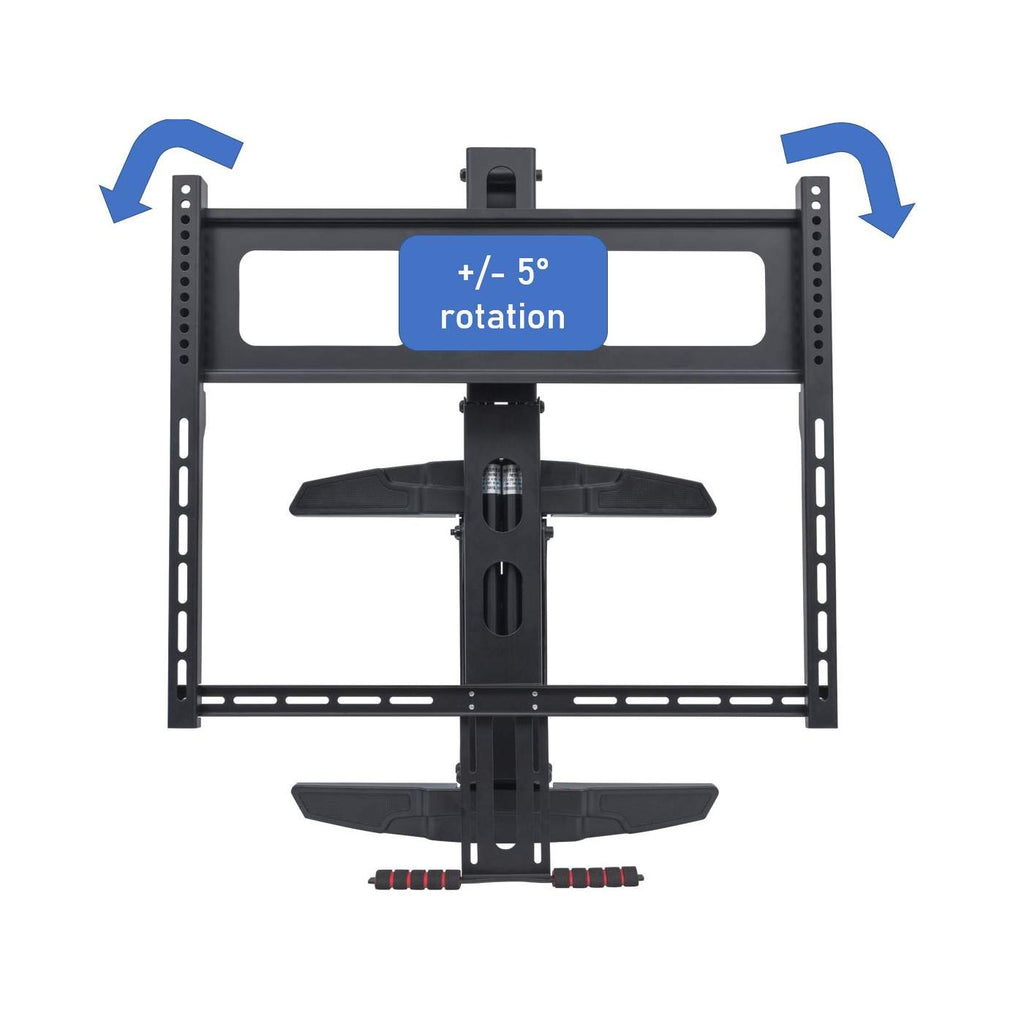

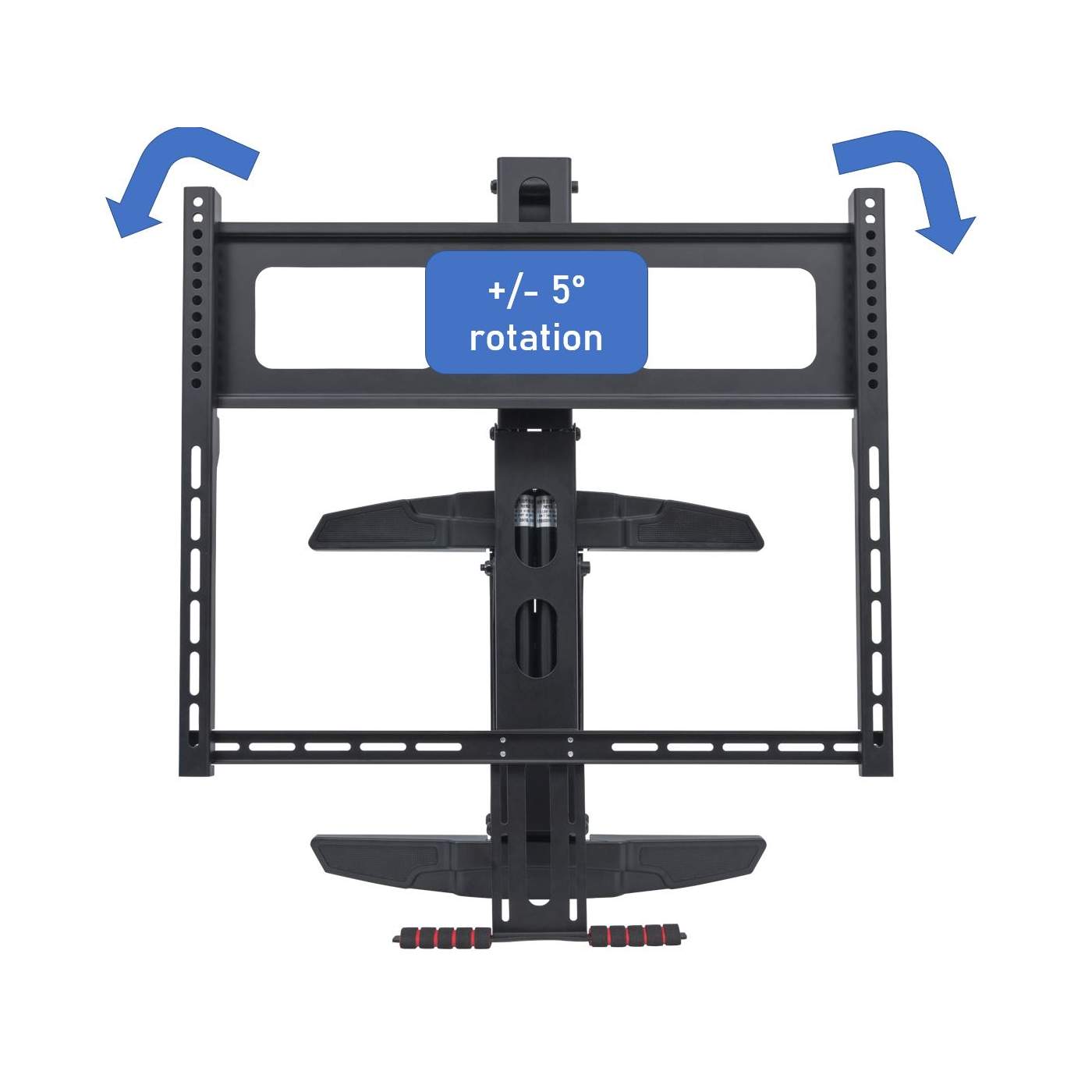

• Rotation: +/- 5°

• Profile: 170 – 560 mm (6.69 – 22 in.)

• Dimensions: 640 x 130 x 720 mm (25.2 x 5.12 x 28.35 in.)

• Weight: 11.06 kg (24.38 lbs.)

• Material: steel

  Package Contents

• Pull-Down Full Motion TV Wall Mount

• Installation hardware with instructions

• Additional SKUs

• EAN: 0766623461276
• UPC: 766623461276



• Physical Specifications

• Weight: 10.35 kg
• Dimensions: 640 (L) x 130 (W) x 720 (H) [mm]
• Packaging: Brown Box

• Datasheet
• Datasheet     » Download




• Manual
• Quick Instruction Guide     » Download


• Hardware Installation (English)
  Revision 1.c. / 2023     » Download
