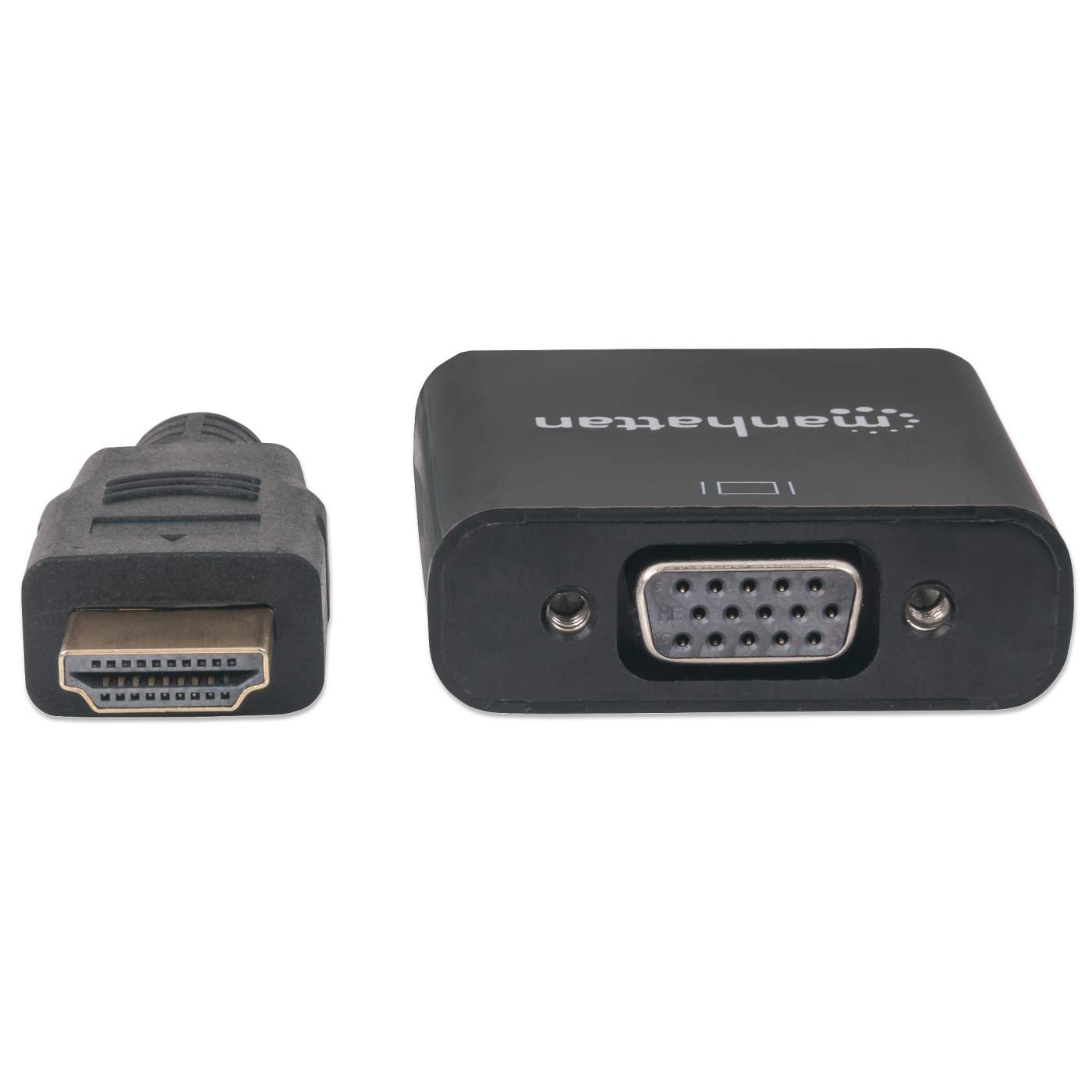

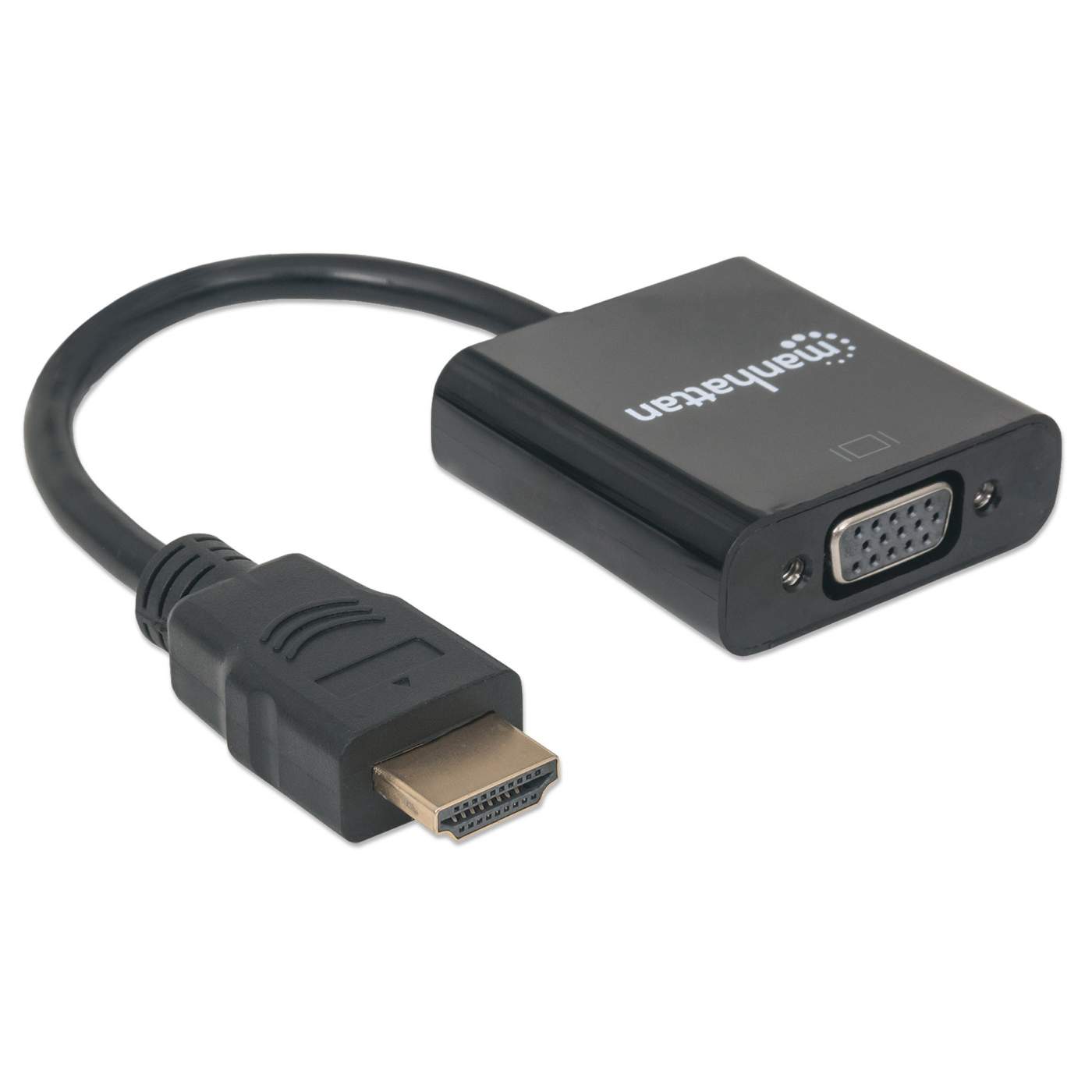

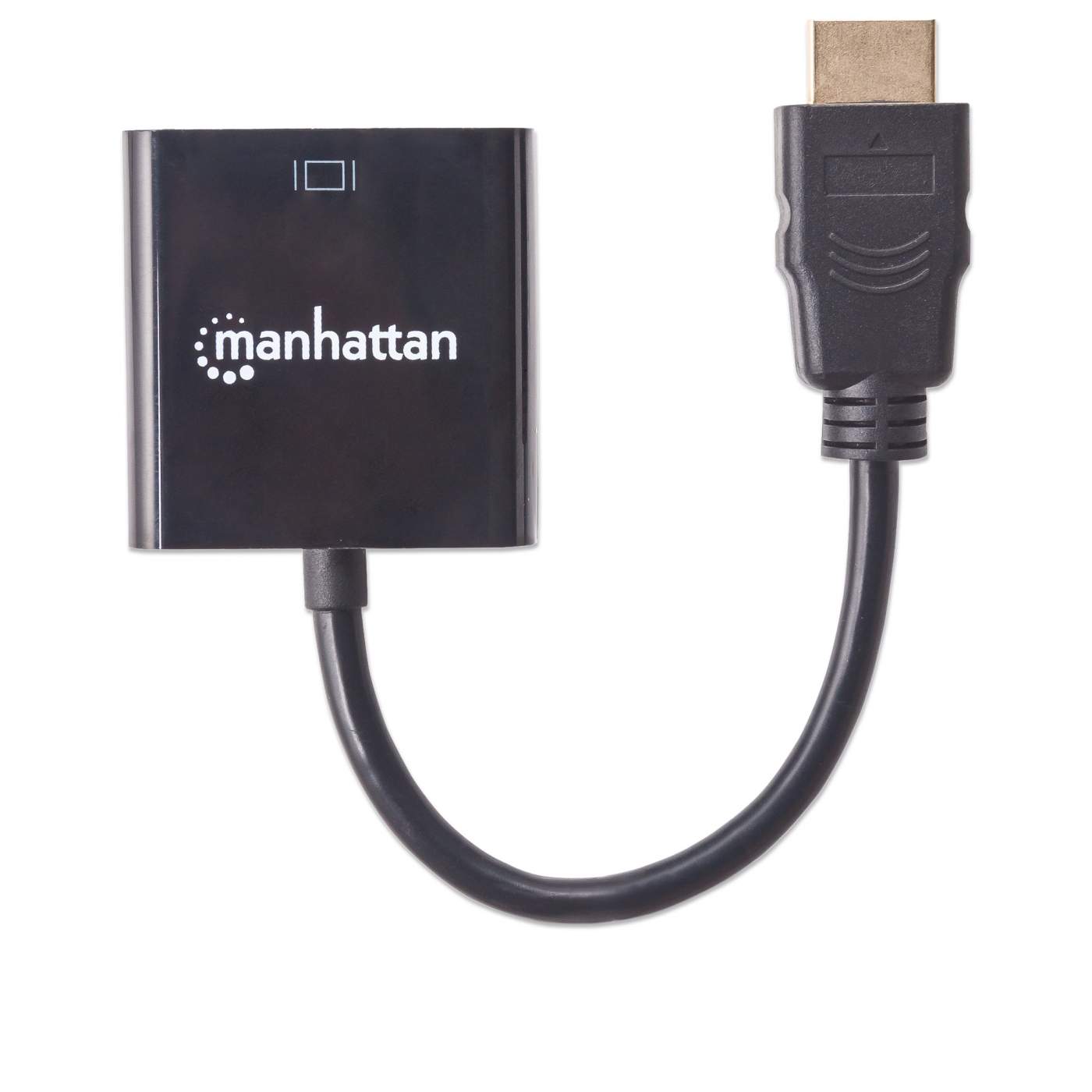

HDMI to VGA Adapter - Easily connect an HDMI source to a VGA display

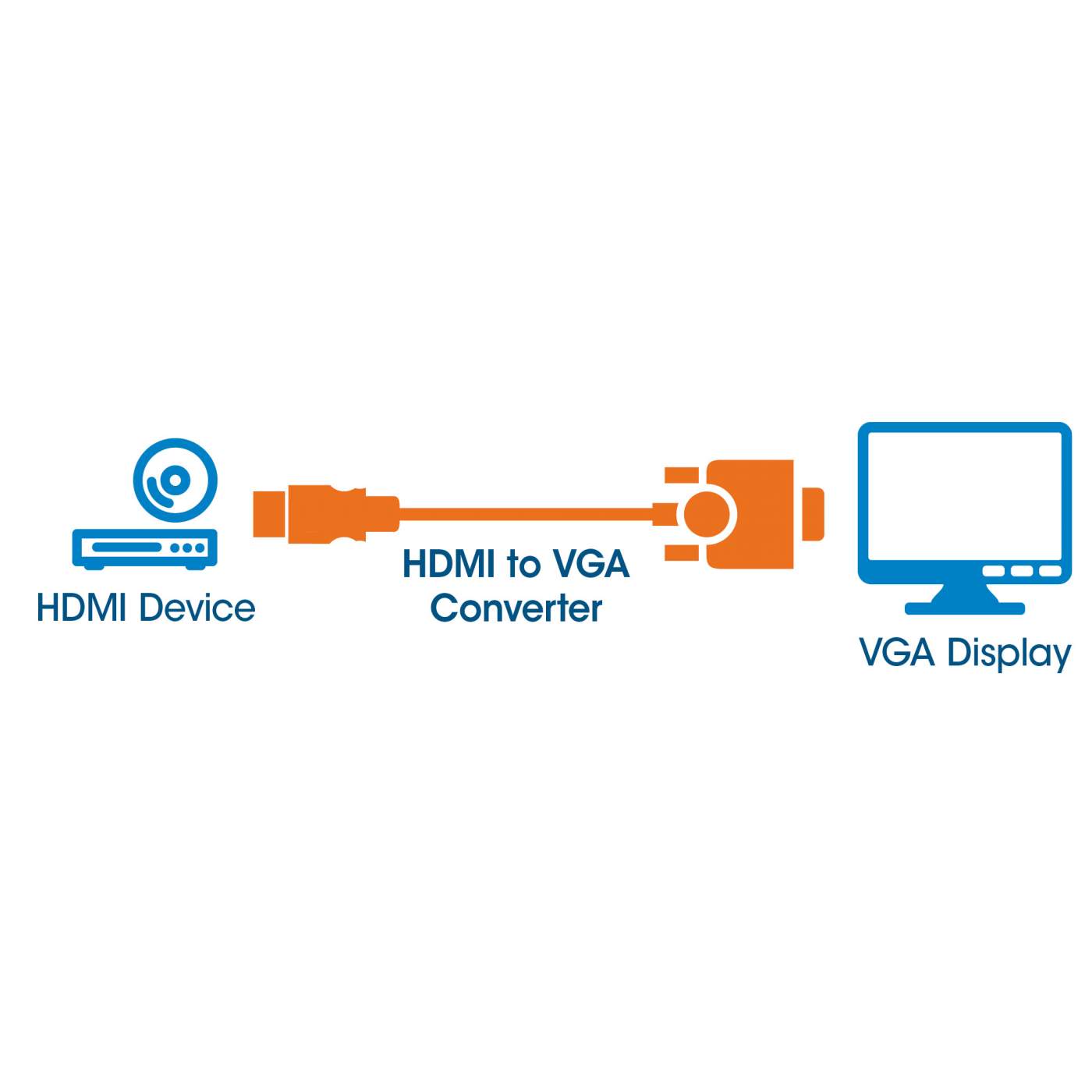

The Manhattan HDMI to VGA Converter helps establish a fast, simple and convenient link between a newer HDMI-equipped desktop computer or other media source and an existing VGA monitor, projector or other display device. The Manhattan HDMI to VGA Converter is easy and quick to install, with no complicated configuration or setup. Connections are complete when you plug the built-in HDMI connector into your computer and connect the VGA cable from your screen to the VGA adapter. This HDMI to VGA adapter is a smart, affordable choice that helps you get the most out of your VGA displays, projectors and other equipment. You'll find it to be a reliable connection as you transition to HDMI bandwidths, resolutions, Deep Color and more without the expense of upgrading to newer and costly monitors and projectors. The integrated, all-in-one design of this HDMI to VGA adapter converter helps achieve a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and work spaces neat and orderly. Its Micro-USB port allows for additional power if required.

• HDMI to VGA Adapter that converts an HDMI digital signal to a VGA analog video
• Enjoy high-definition images on a VGA monitor, projector or other display device; supports 1080p analog video output
• Fully shielded to reduce EMI and other interference sources
• Gold-plated contacts for best performance
• Molded PVC boot and strain relief
• Micro-USB port if additional power is required
• Three-Year Warranty

Standards and Certifications

• UL20276

• HDMI 1.3

  Contacts

• HDMI 19-pin male

• VGA 15-pin female

• Micro-USB female

• Molded PVC boot

• Shielded

  Cable

• 32-AWG connectors

• Aluminum shielding

• Withstanding voltage: 300 VDC

• Insulation resistance: 10 MΩ

• Conductive resistance: 5 Ω

• Thermal plastic casing

• Length: 30 cm (12 in.)

• Weight: 34 g (1.2 oz.)

  Package Contents

• HDMI to VGA Cable, HDMI Male to VGA Female

Warning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Amazon ASIN: B00KRXSCQY
• EAN: 0766623151467
• UPC: 766623151467



• Physical Specifications

• Product net weight: 0.04 kg
• Product gross weight: 0.05 kg
• Dimensions: 300 (L) x 45 (W) x 15 (H) [mm]
• Packaging: Bag
