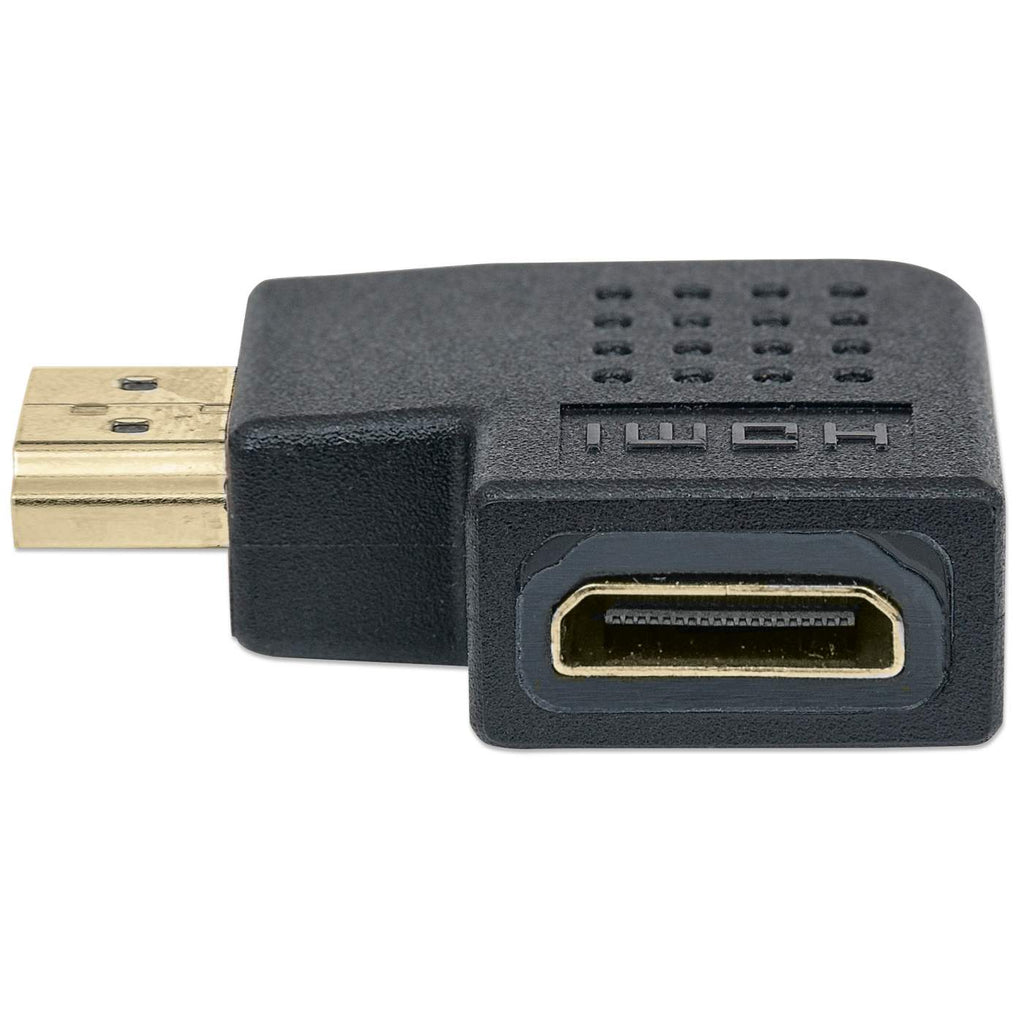

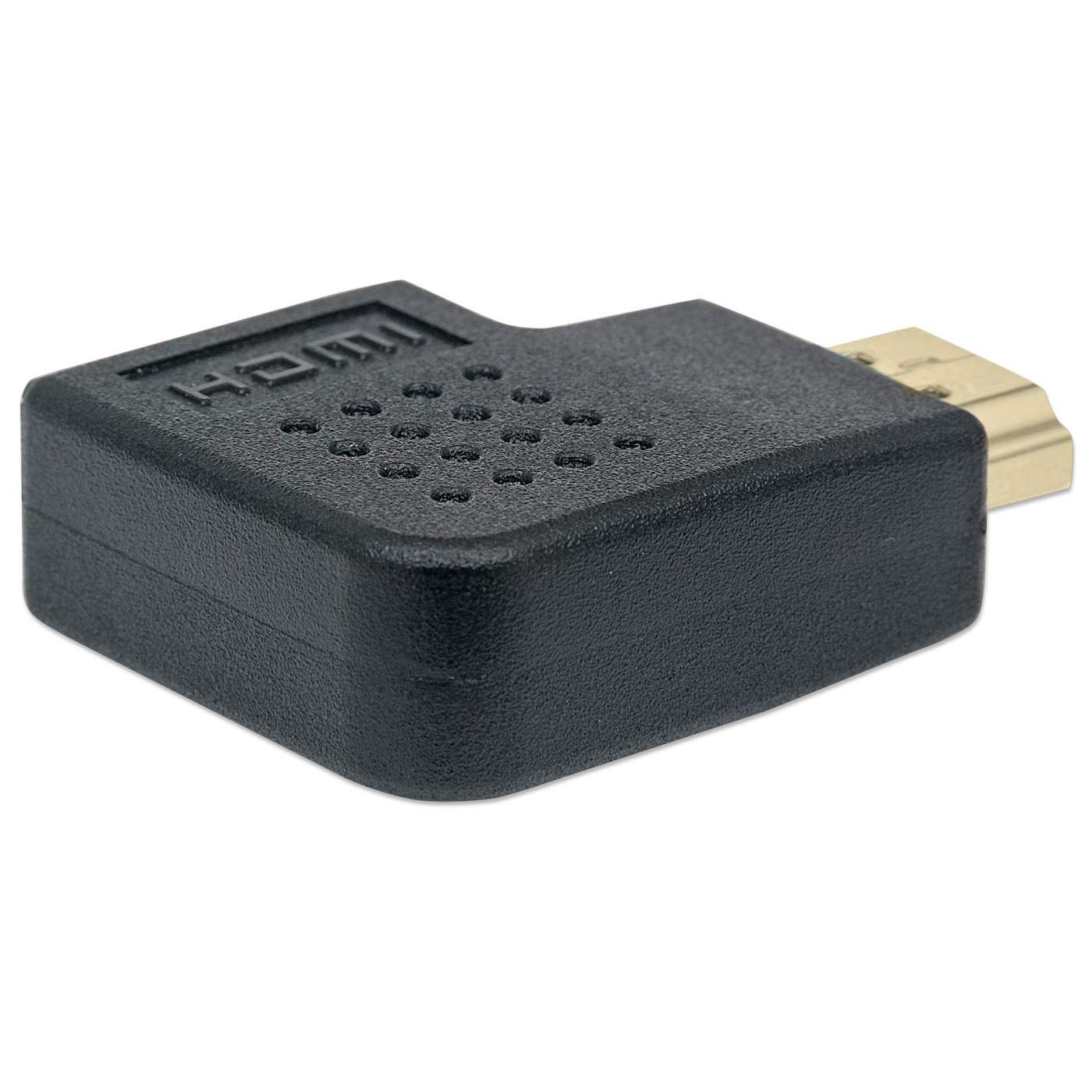

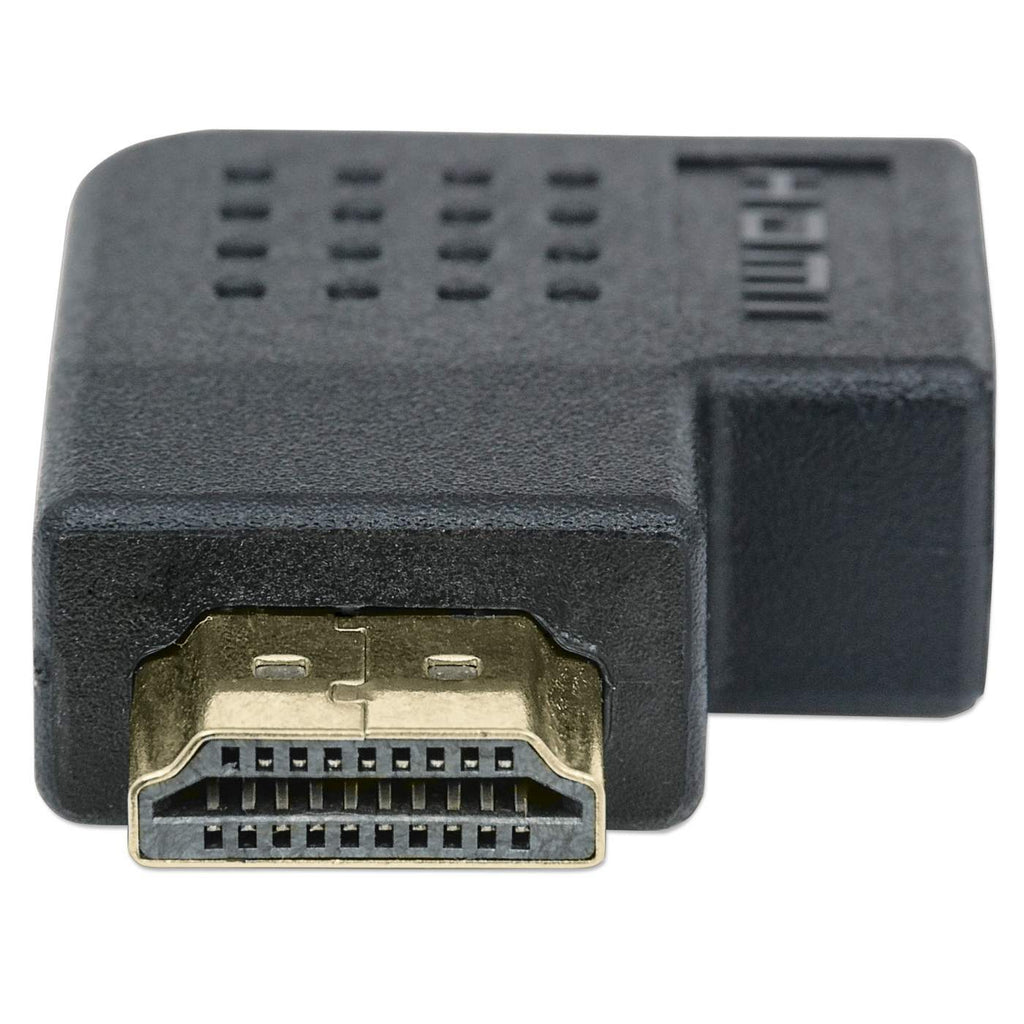

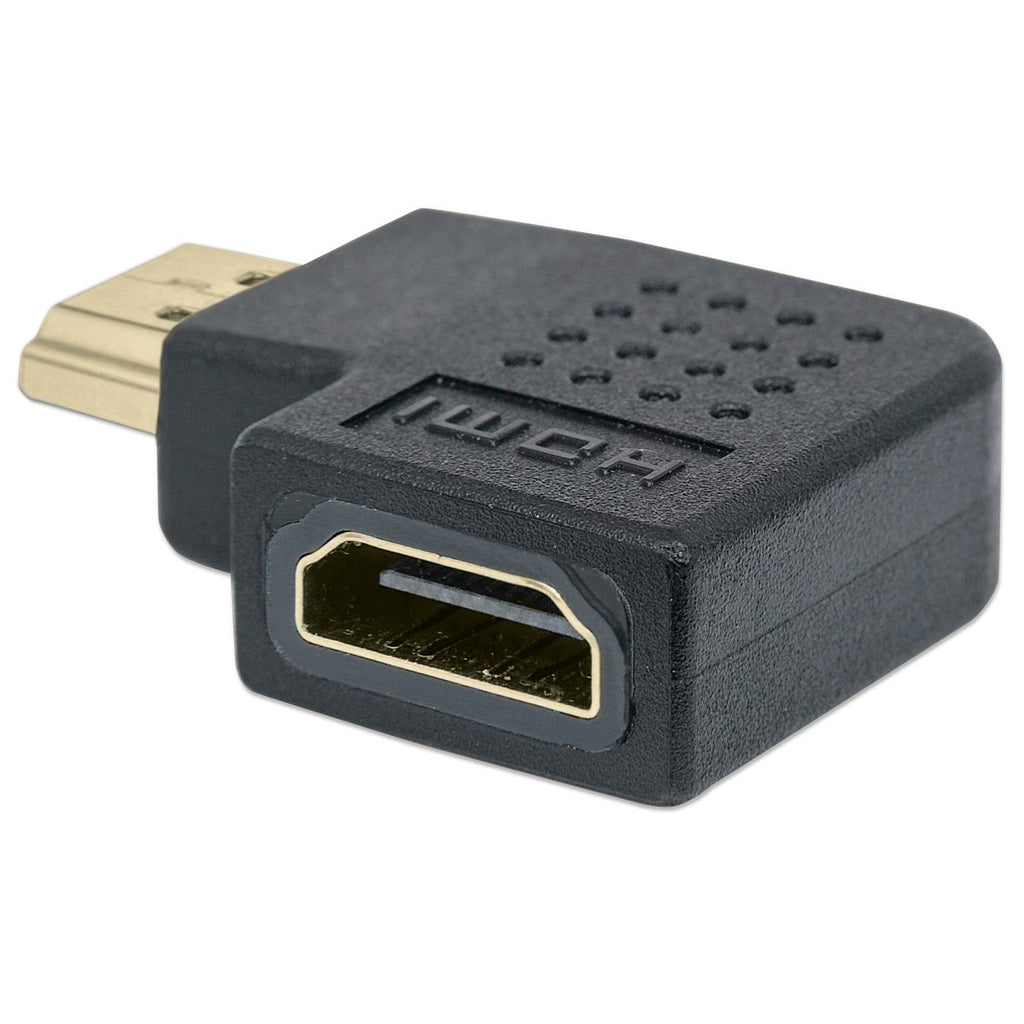

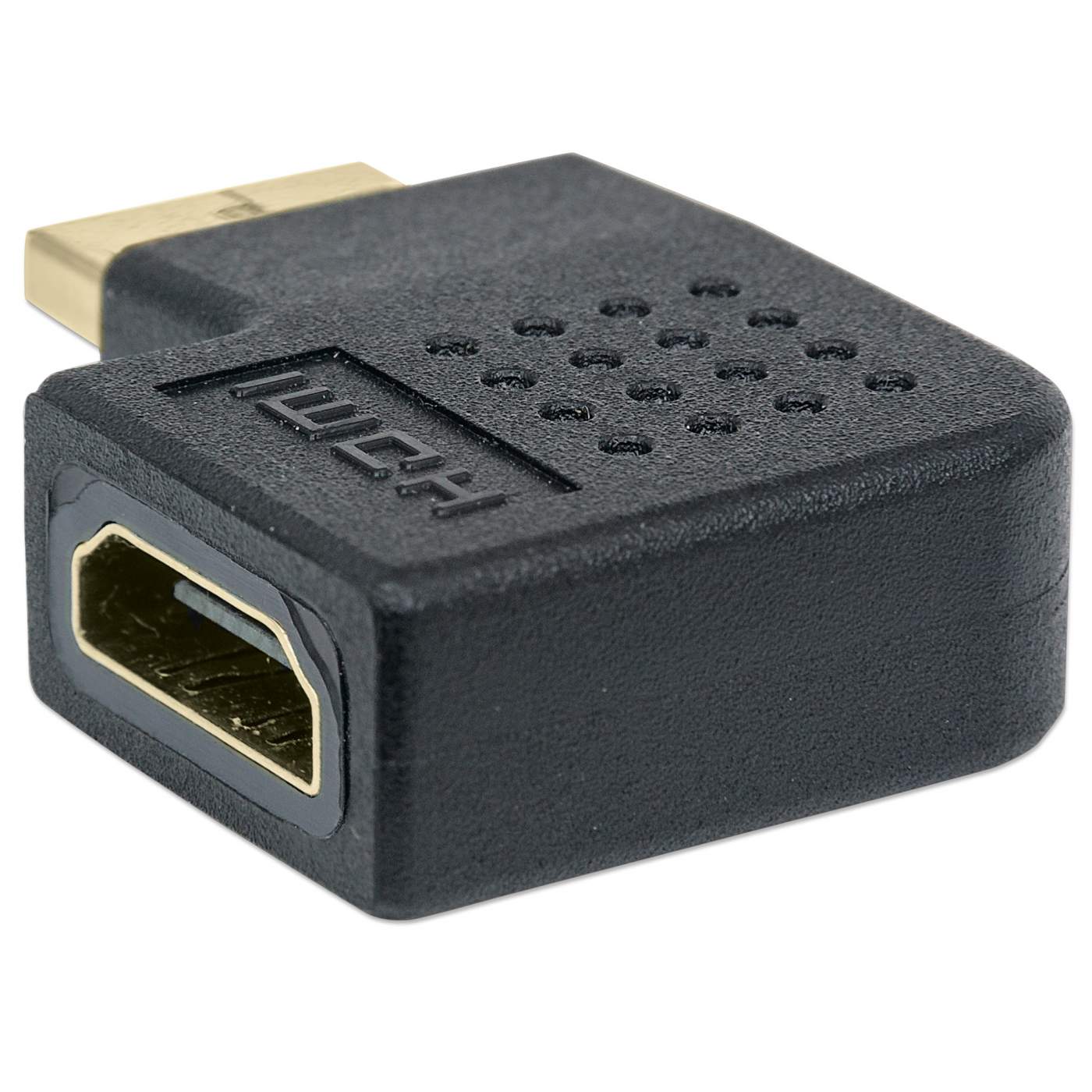

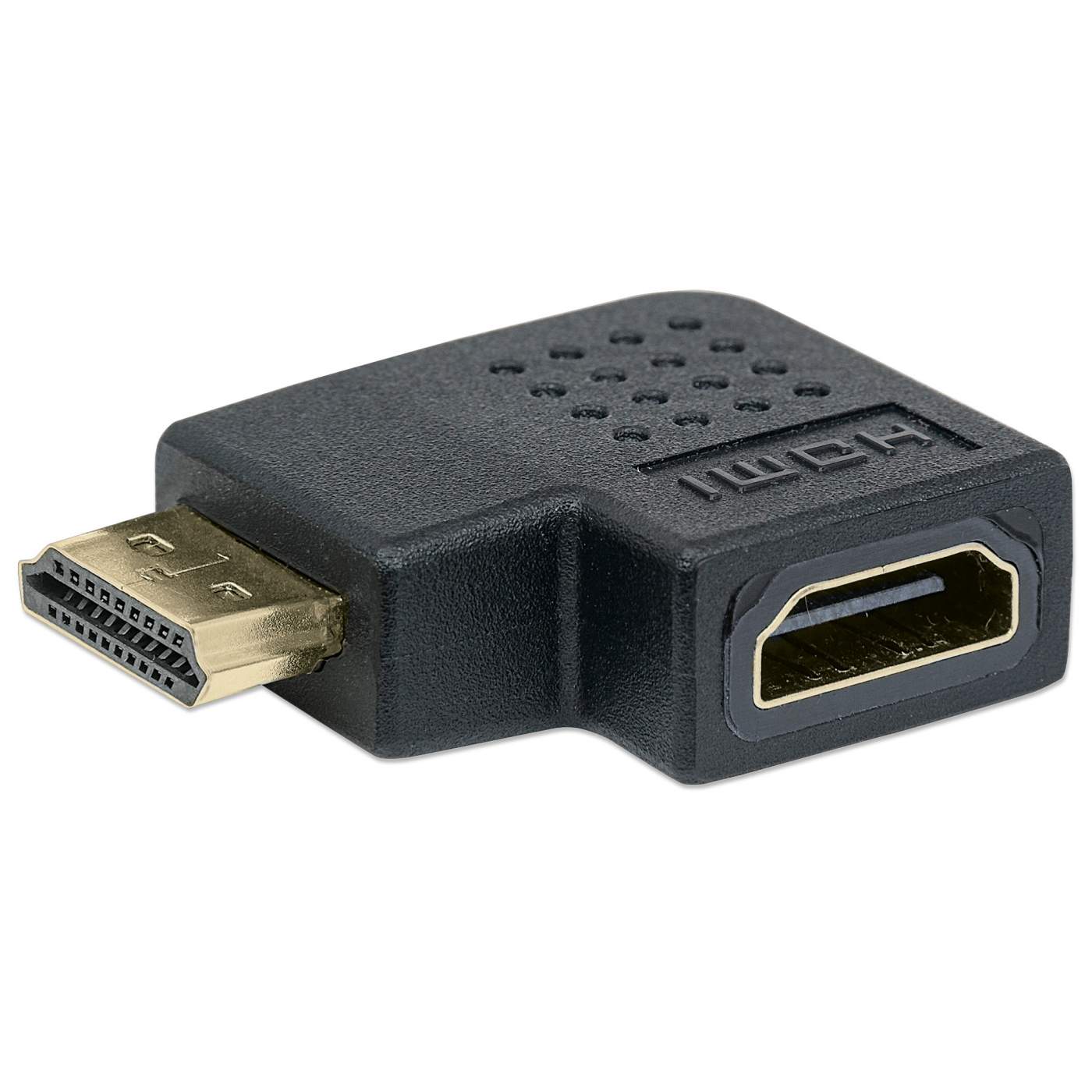

HDMI Adapter

HDMI A Female to A Male, right 90° Angle

SKU: 353496

Highlights

  • Connects an HDMI cable to another HDMI cable or display
  • Supports 4K resolution
  • Convenient 90° right angle allows for easy connection in the most inconvenient places; e.g., tight corners, difficult ports
  • $4.99
    Unit price per
Shipping calculated at checkout.




Easily connect cables around difficult corners or to poorly placed ports.
The Manhattan HDMI Adapter is ideal for navigating around difficult corners or connecting to the most inaccessible device ports. This HDMI Adapter allows 4K resolution and a bandwidth of 10.2 Gbps at 340 MHz.

  • Connects an HDMI cable to another HDMI cable or display
  • Supports 4K resolution
  • Convenient 90° right angle allows for easy connection in the most inconvenient places; e.g., tight corners, difficult ports
  • Gold-plated contacts for best performance
  • Intended for use with Manhattan HDMI cables
  • Lifetime Warranty
    Standards and Certifications
  • RoHS2
  • ISO 9002

    General:
  • Bandwidth: 10.2 Gbps
  • 340 MHz
  • Meets or exceeds existing HDMI standards
  • Length: 4 cm (1.6 in.)

    Connectors
  • HDMI A female, 19-pin gold-plated contacts
  • HDMI A male, 19-pin gold-plated contacts

    Electrical
  • Current rating: 0.5 ADC
  • Withstanding voltage: 300 VDC
  • Insulation resistance: 5 MΩ
  • Conductive resistance: 2 Ω

    General
  • Length (overall): 42 x 29 x 12 mm (1.7 x 1.1 x 0.5 in.)
  • Weight: 10 g (0.35 oz.)
  • Molded PVC

    Package Contents
  • HDMI Adapter, A to A
  • Additional SKUs

    • Amazon ASIN: B012HLLDPA
    • EAN: 0766623353496
    • UPC: 766623353496

  • Physical Specifications

    • Weight: 0.01 kg
    • Dimensions: 42 (L) x 29 (W) x 12 (H) [mm]

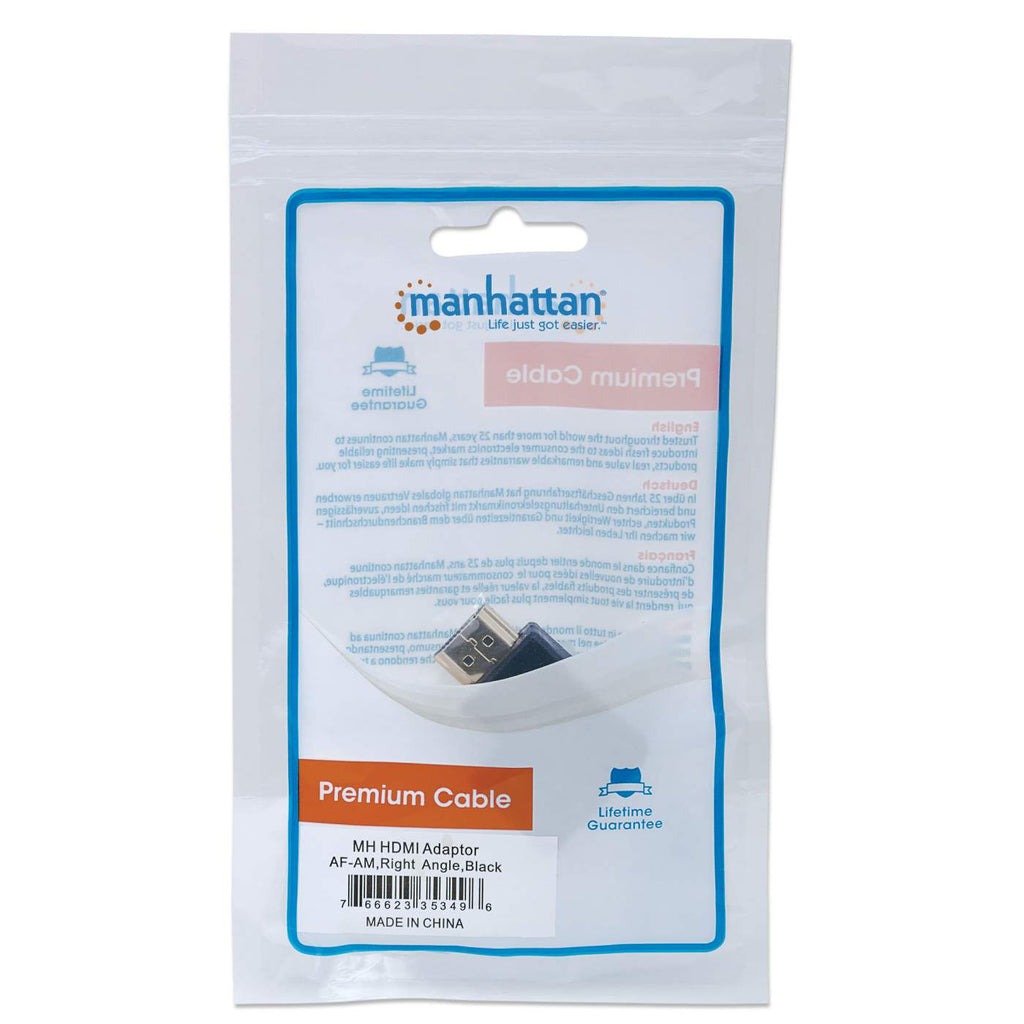

    • Packaging: Bag
  • Datasheet

    • Datasheet     » Download

    • Declaration of Conformity     » Download
