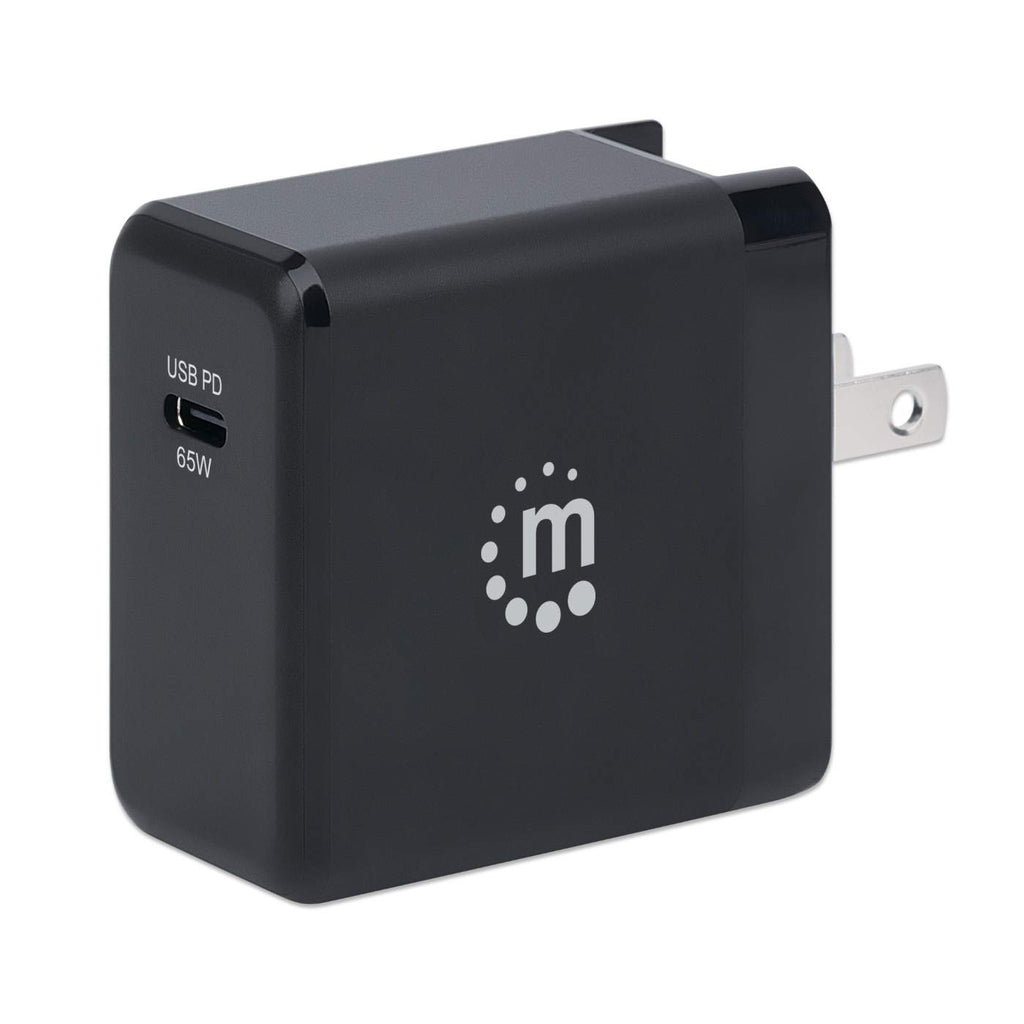

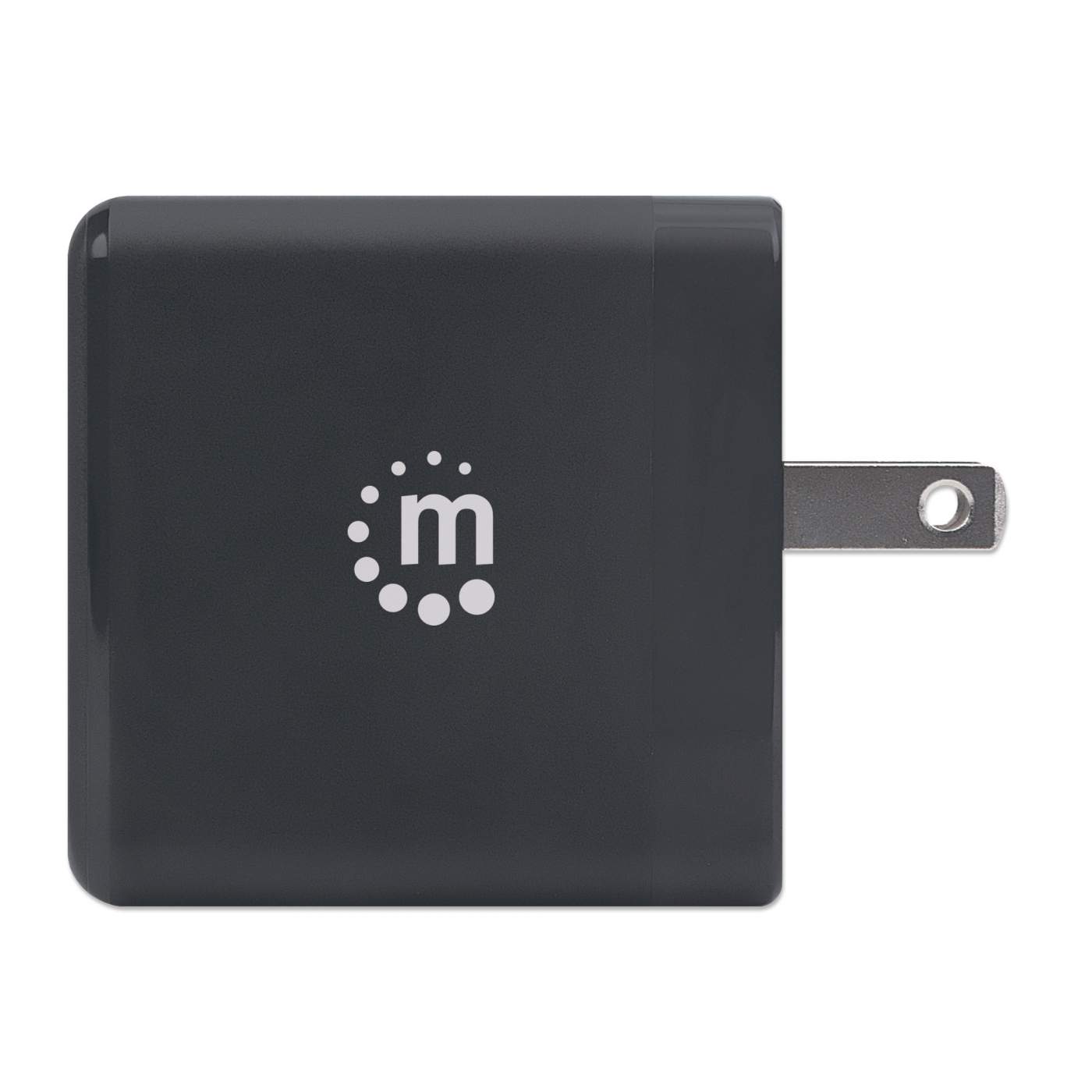

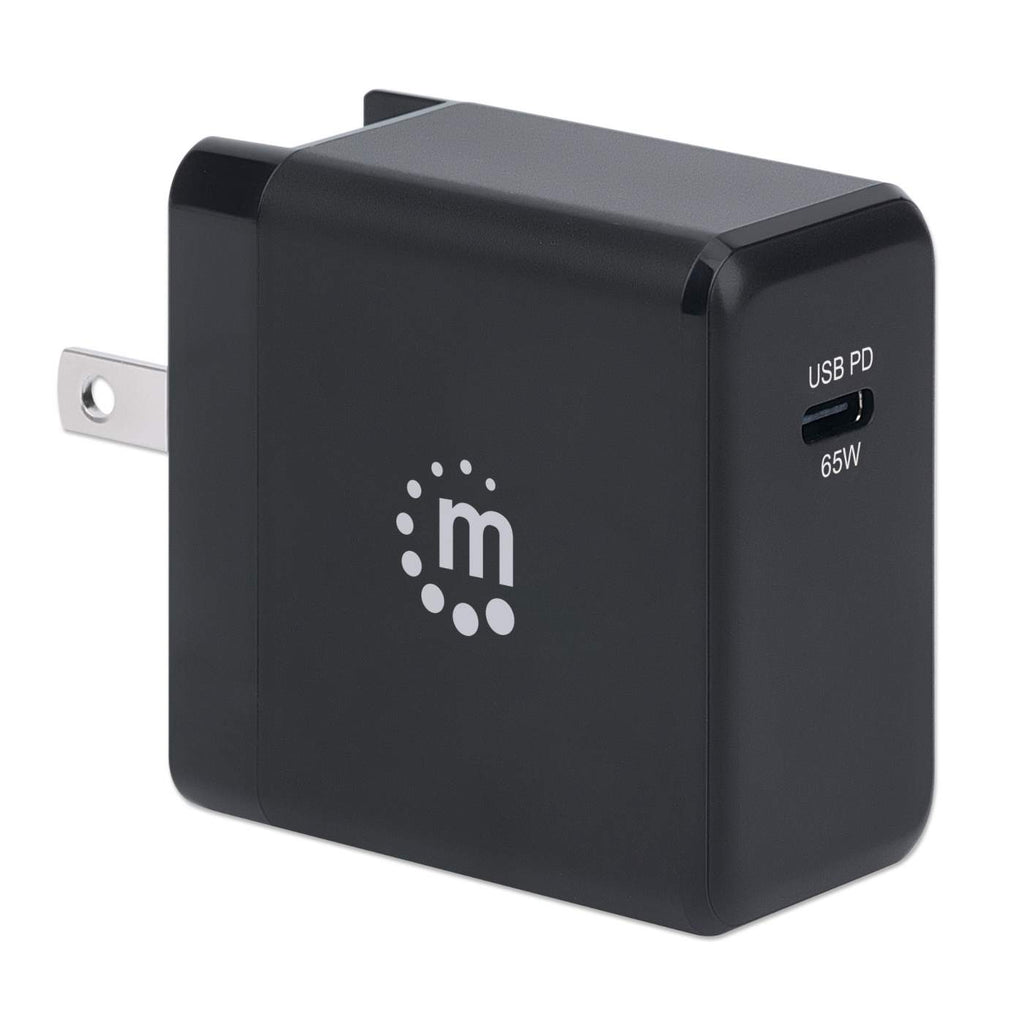

GaN Tech Power Delivery Wall Charger - 65 W — Power up your devices with a portable, powerful charger.

Enjoy complete charging power with the Manhattan GaN Tech Power Delivery Wall Charger - 65 W. The charger's built-in gallium nitride (GaN) circuitry is more efficient than traditional silicon circuitry. Its components are smaller, lighter, and emit less heat for a more

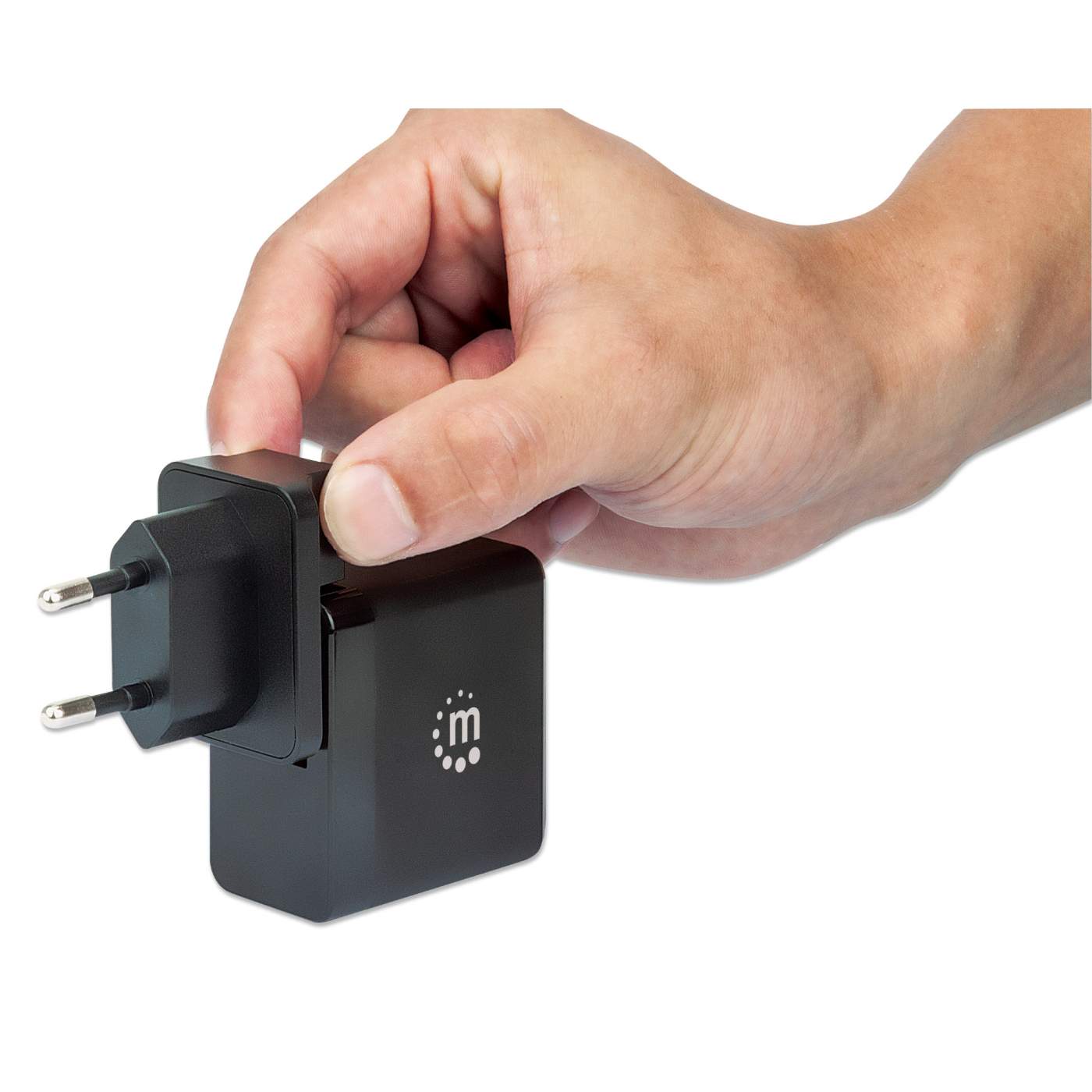

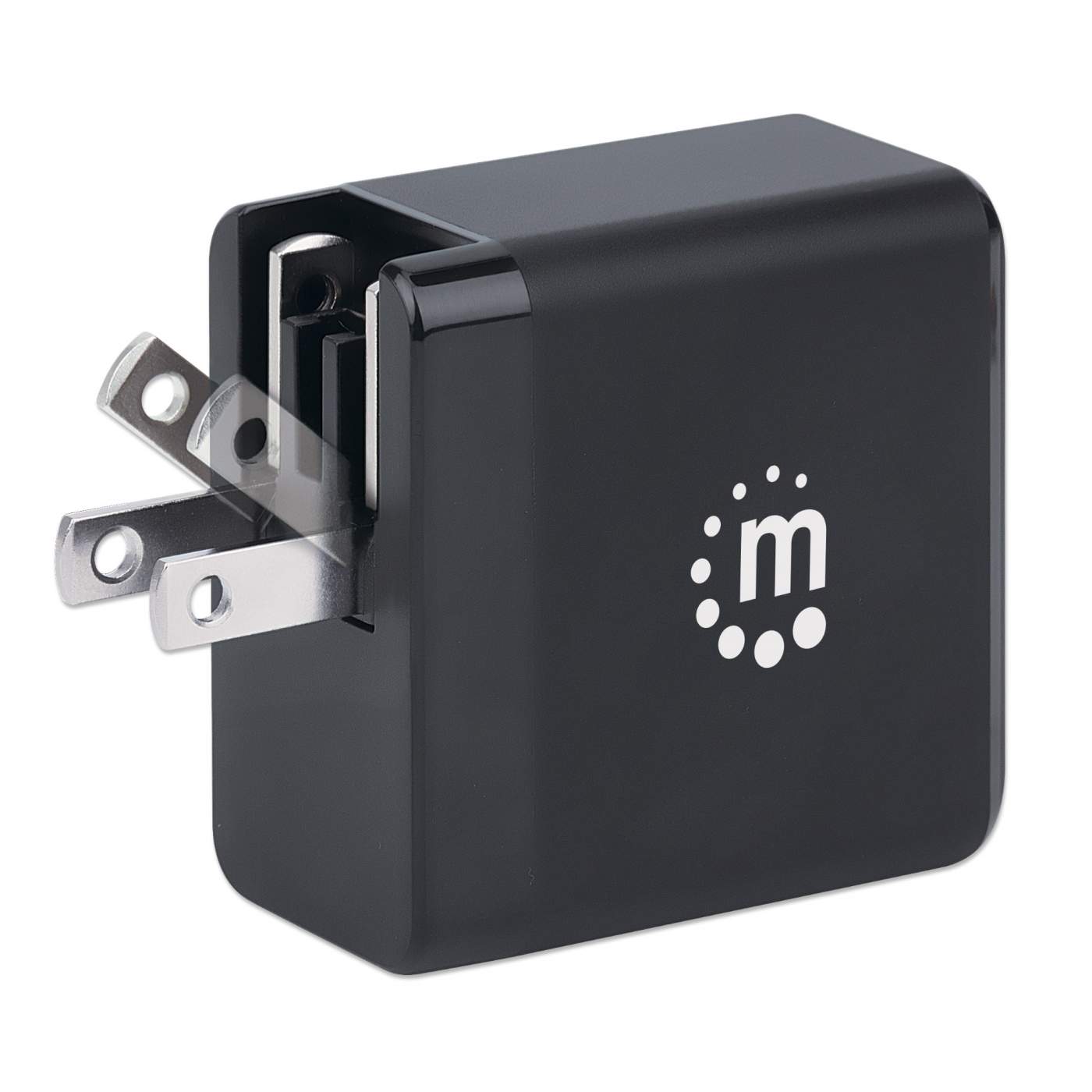

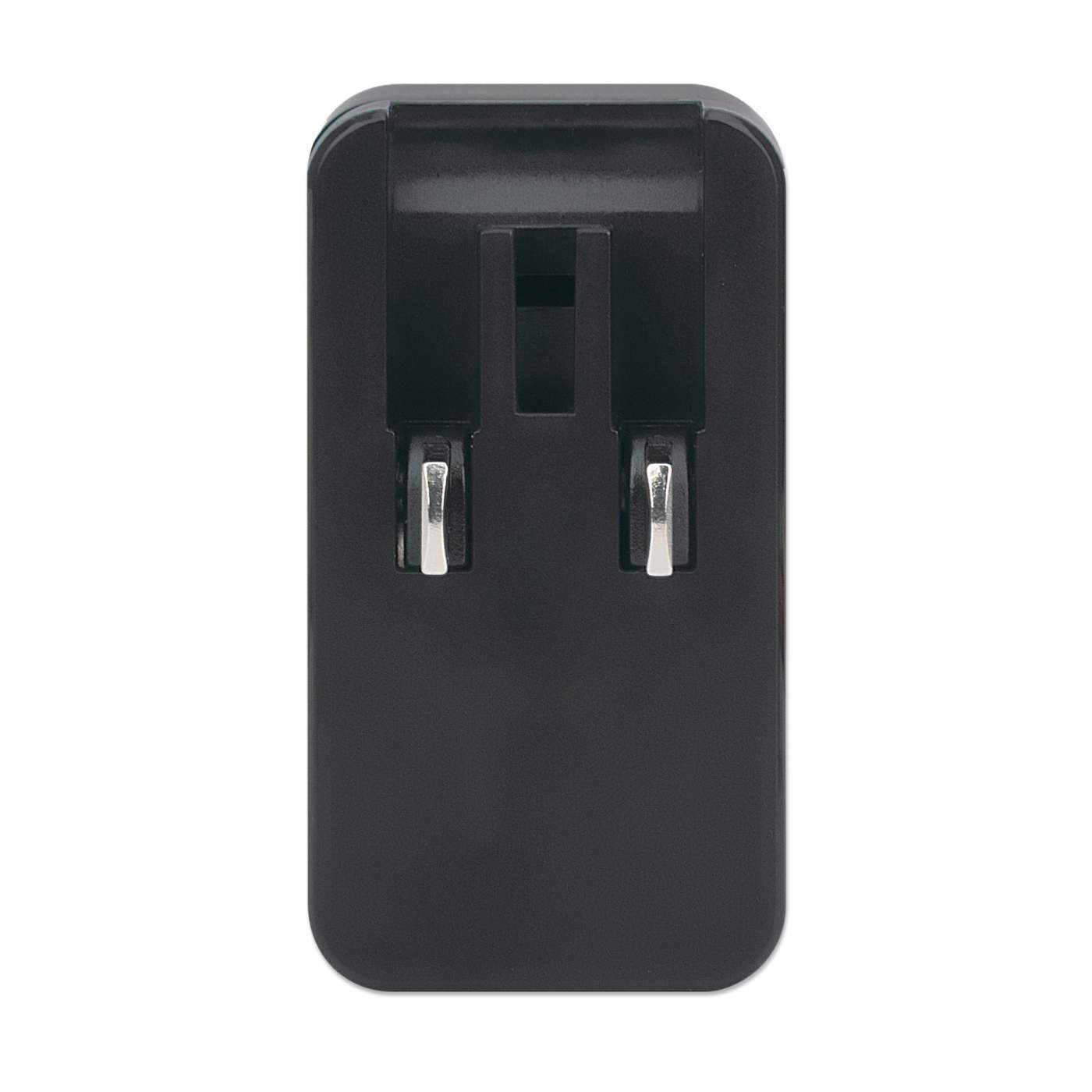

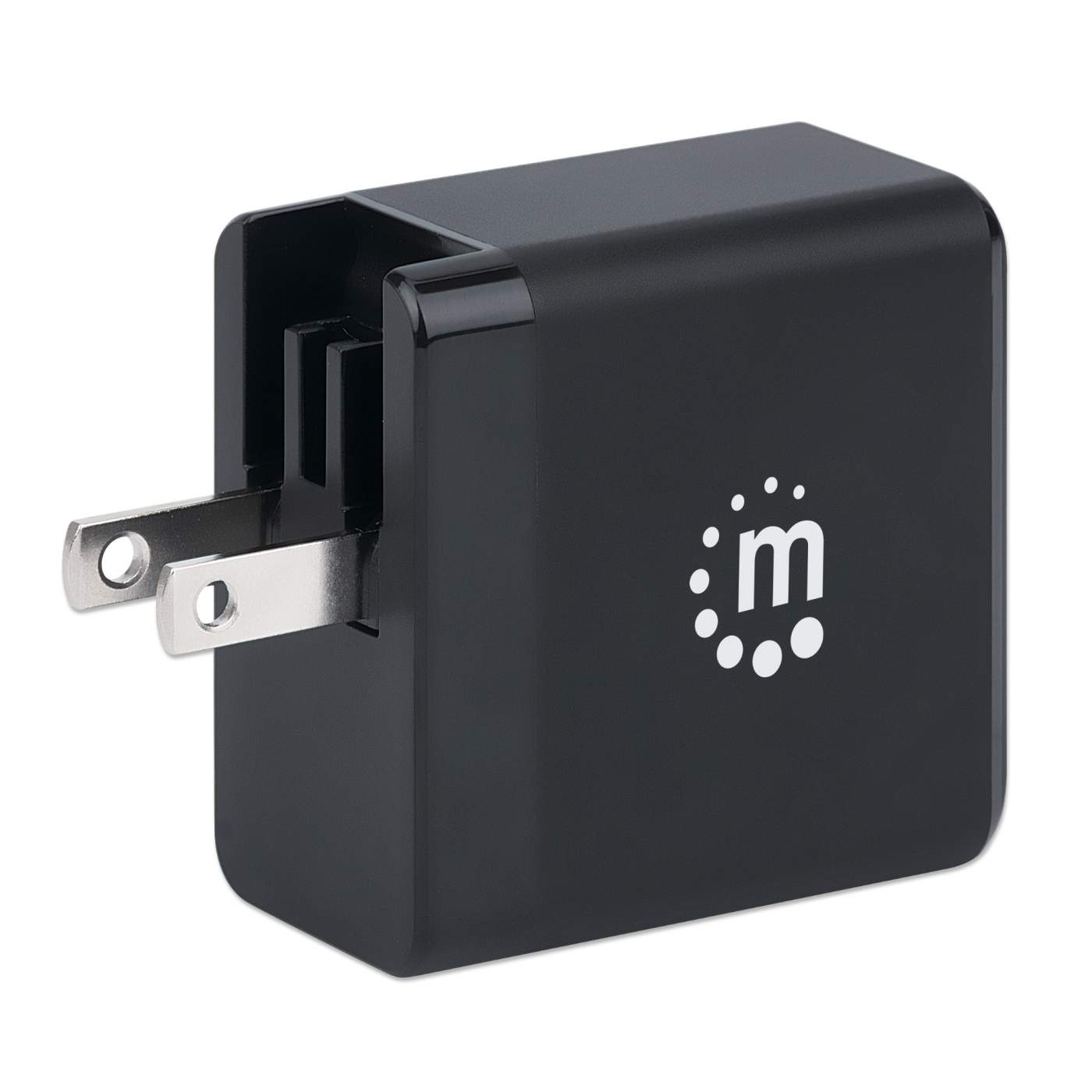

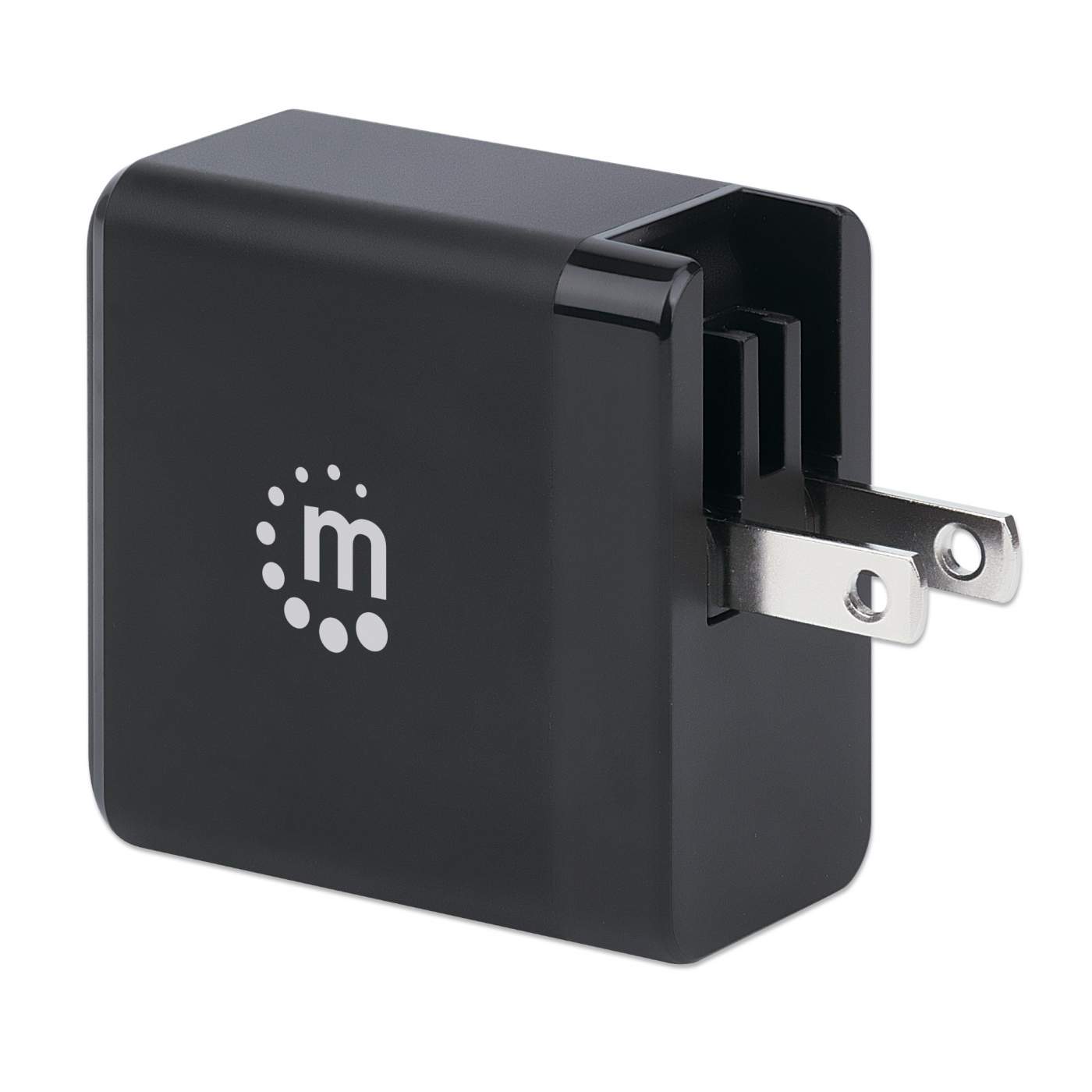

compact, cooler, and safer charger. Power Delivery (PD) technology allows you to power up any device with a USB-C charging port, from laptops to mobile phones. With a foldable plug for charging in the US and swappable plugs for charging in the EU and UK, it's the perfect companion for travelers, offering a stylish, compact and ultra-modern design. It also smartly protects itself and your devices from short-circuits, over-voltage, over-current and overheating.

• GaN tech & PI chipset for maximum charging efficiency to over 93%

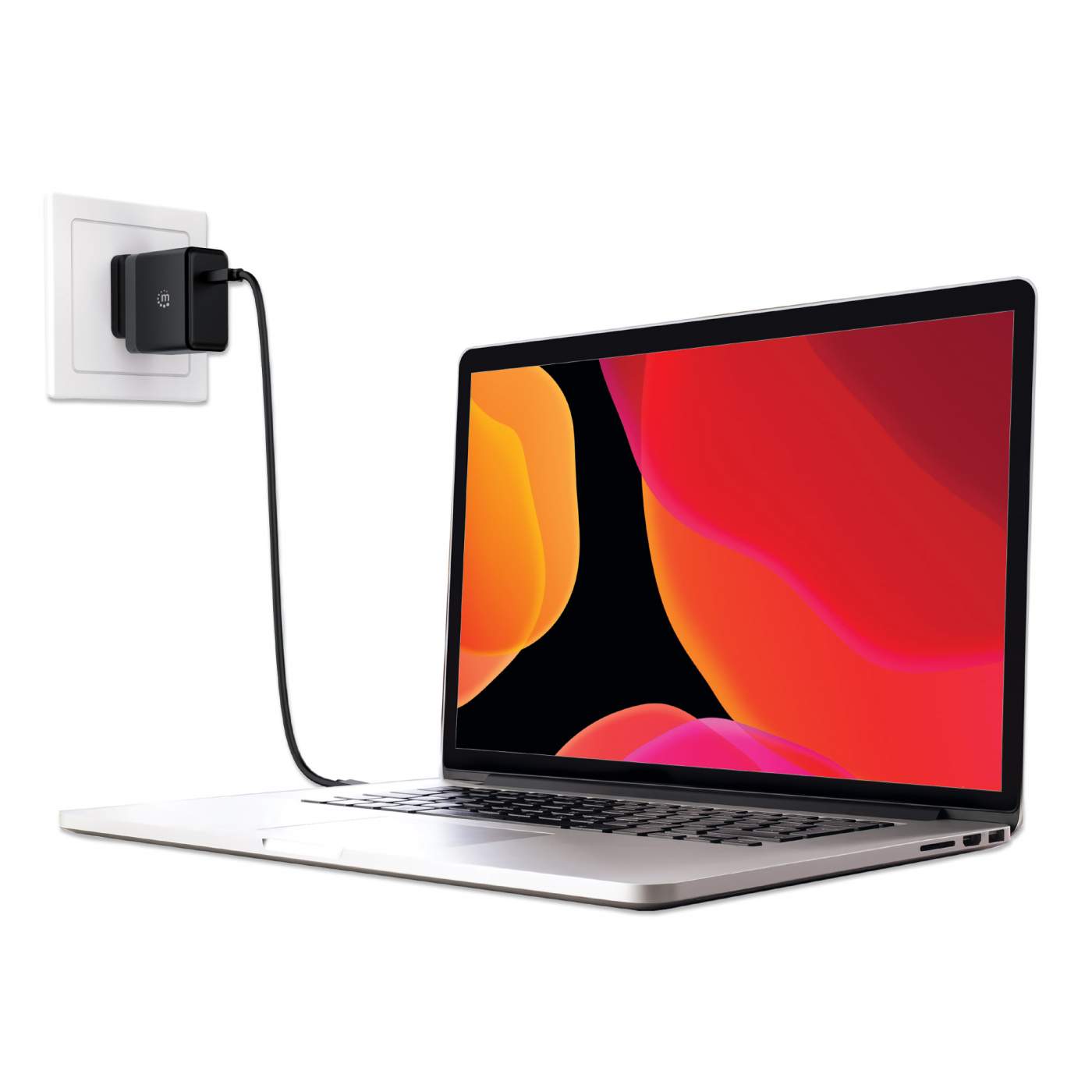

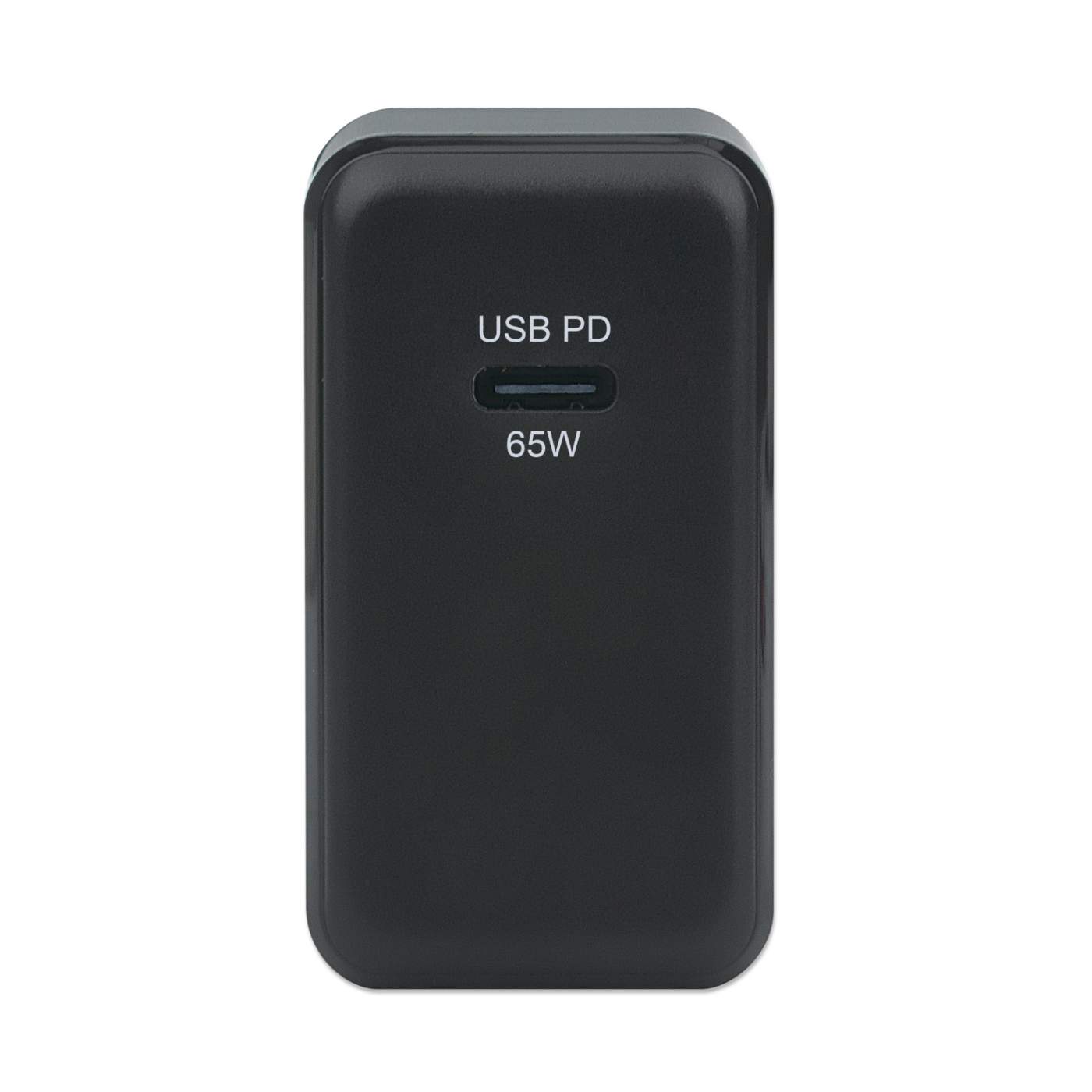

• USB-C Power Delivery (PD) port delivering up to 65 W to charge a notebook, laptop, Ultrabook™, tablet or other USB-C powered device

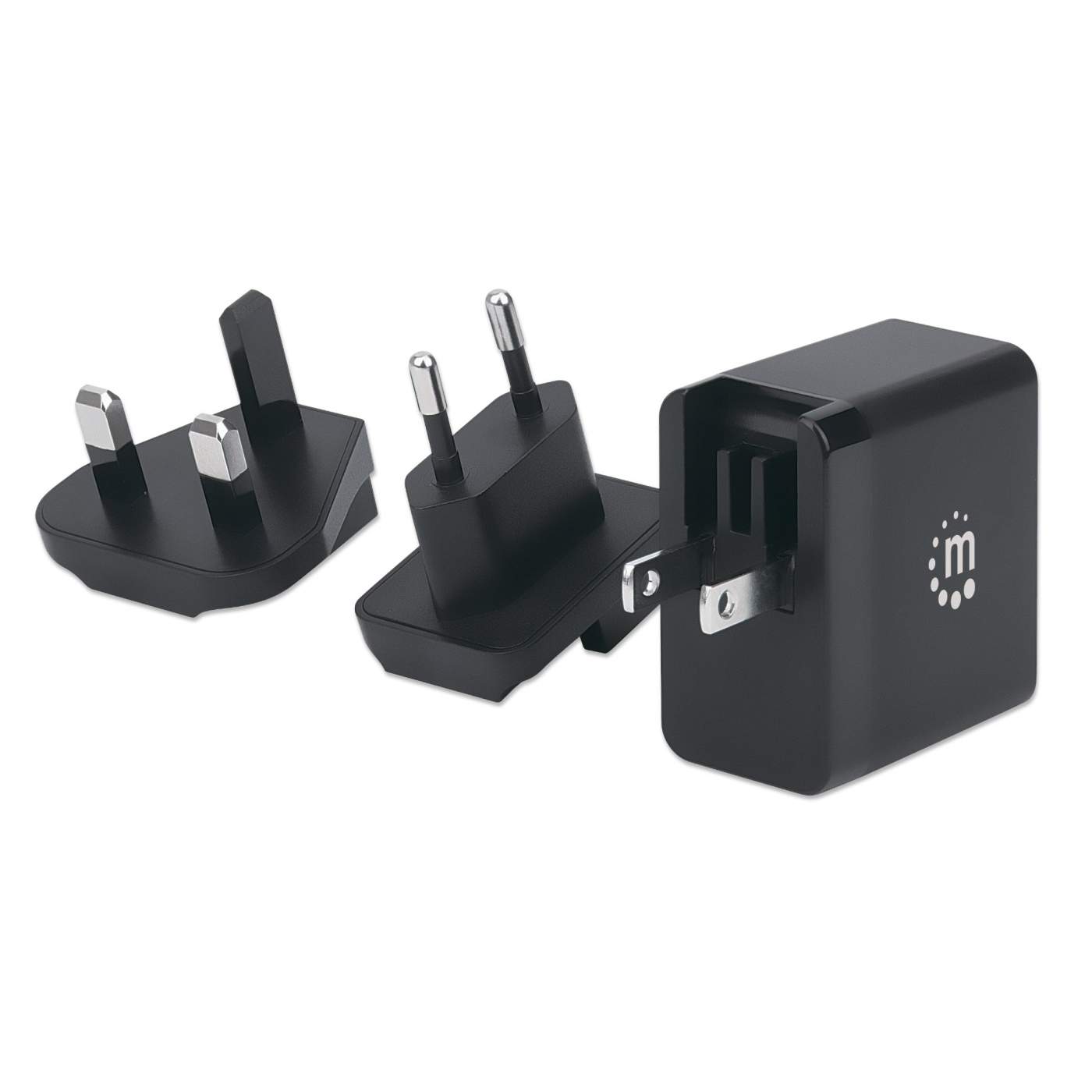

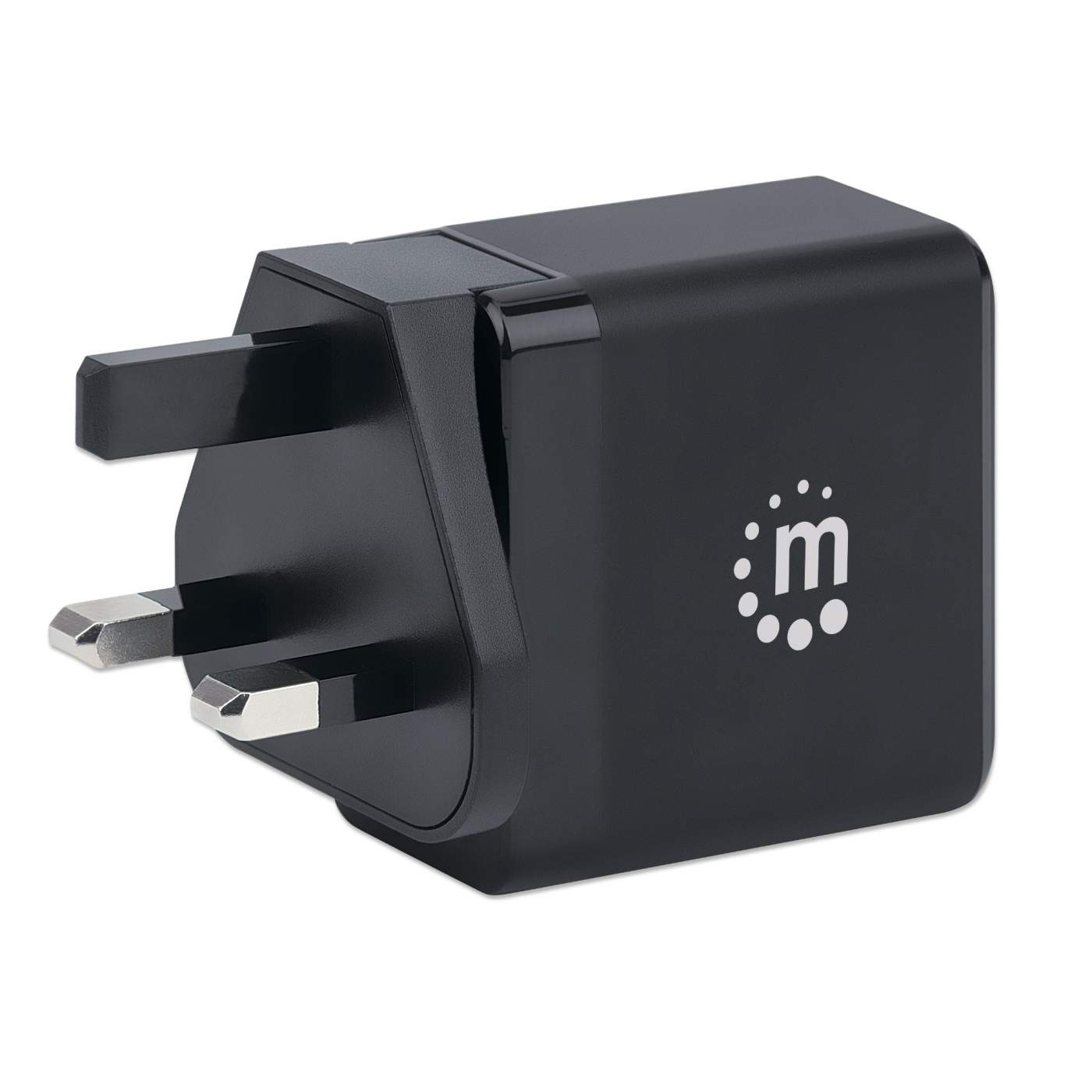

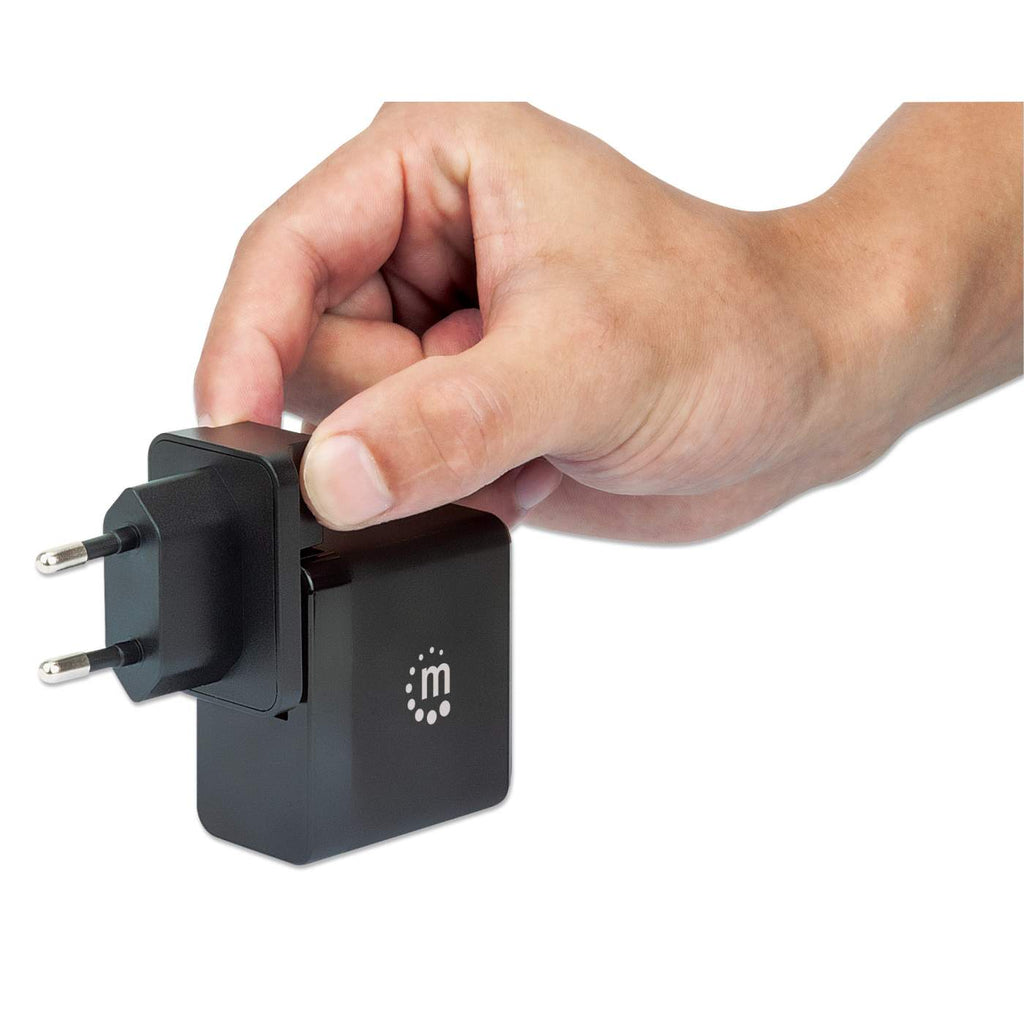

• Supplied with interchangeable US, EU and UK plugs
• Overload, over-current and overheat protection
• Ultra-compact, portable and stylish design for easy travel
• Three-year warranty

Standards and Certifications

• USB 2.0

• PD 3.0

• FCC

• ETL

• CE

• RoHS

• WEEE

  General

• Galium Nitride (GaN tech)

• AC input: 100 – 240 V; 50 – 60 Hz

• USB-C output: 5 – 20 V; maximum 3 A; 65 W

• Voltage/current settings (maximum):
  - USB-C:
  - 5 V / 3 A
  - 9 V / 3 A
  - 12 V / 3 A
  - 15 V / 3 A
  - 20 V / 3.25 A

  Input Characteristics

• AC rated voltage: 100 – 240 V

• Frequency range: 50 – 60 Hz (±1 Hz)

• Current: ≤ 1 A at 100 VAC 60 Hz

  Output Characteristics

• Rated voltage: 5 / 9 / 12 / 15 / 19 / 20 V

• Current: 3 A maximum (at constant voltage mode)

• Rated power: 65 watts maximum

• Overshoot voltage: ≤ 5%

  Protection Characteristics

• Short-circuit (SCP) with auto-recovery mode

• Over-voltage (OVP) with auto-recovery mode

• Over-current (OCP) — current limit: 150% (max)

• Over-temperature (OTP)

  Physical

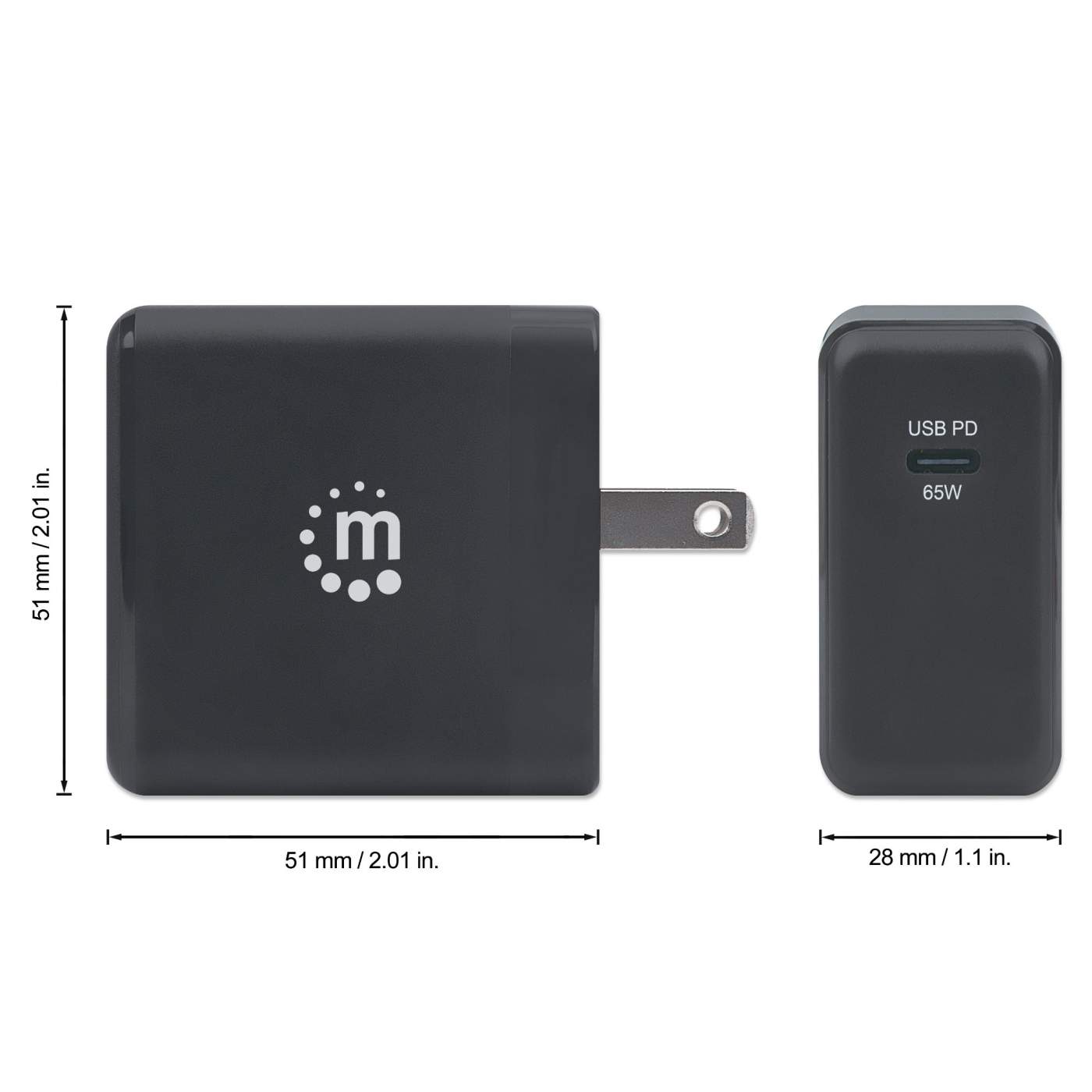

• Dimensions: 51 x 51 x 28 mm (2.01 x 2.01 x 1.1 in.)

• Weight: 0.16 kg (4.9 oz.)

• Housing: plastic

  Operating Environment

• Operation Temperature: 0 – 30°C (32 – 86°F)

• Storage Temperature: -20 – 65°C (-4 – 149°F)

• Humidity (noncondensing): 10 – 90%

  Package Contents

• GaN Tech Power Delivery Wall Charger - 65 W

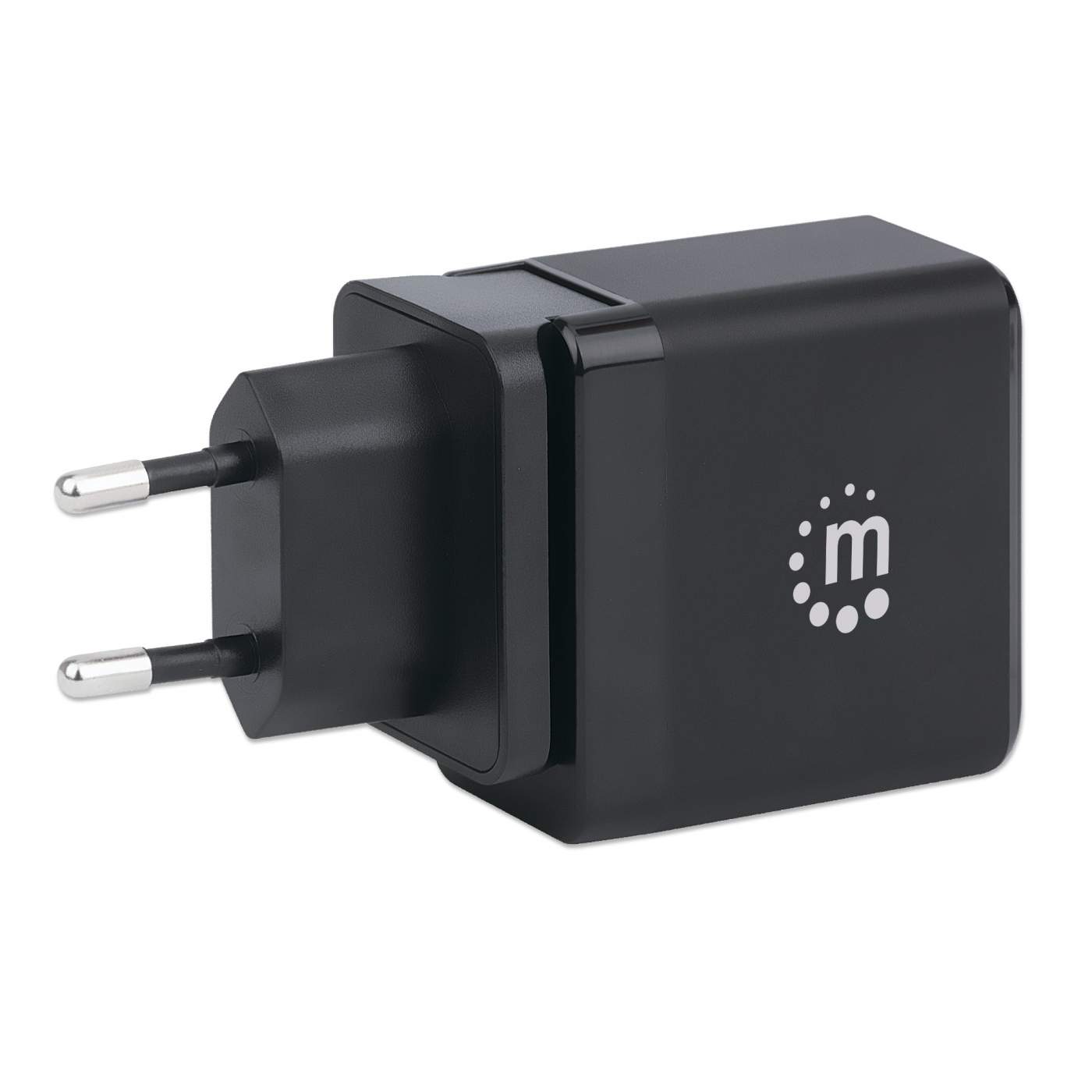

• Interchangeable EU and UK plugs (US built-in)

• Instructions

Warning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Amazon ASIN: B07ZQJ5T3T
• EAN: 0766623102278
• UPC: 766623102278



• Physical Specifications

• Product net weight: 0.15 kg
• Product gross weight: 0.2 kg
• Dimensions: 51 (L) x 51 (W) x 28 (H) [mm]
• Packaging: Retail Box
