Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays

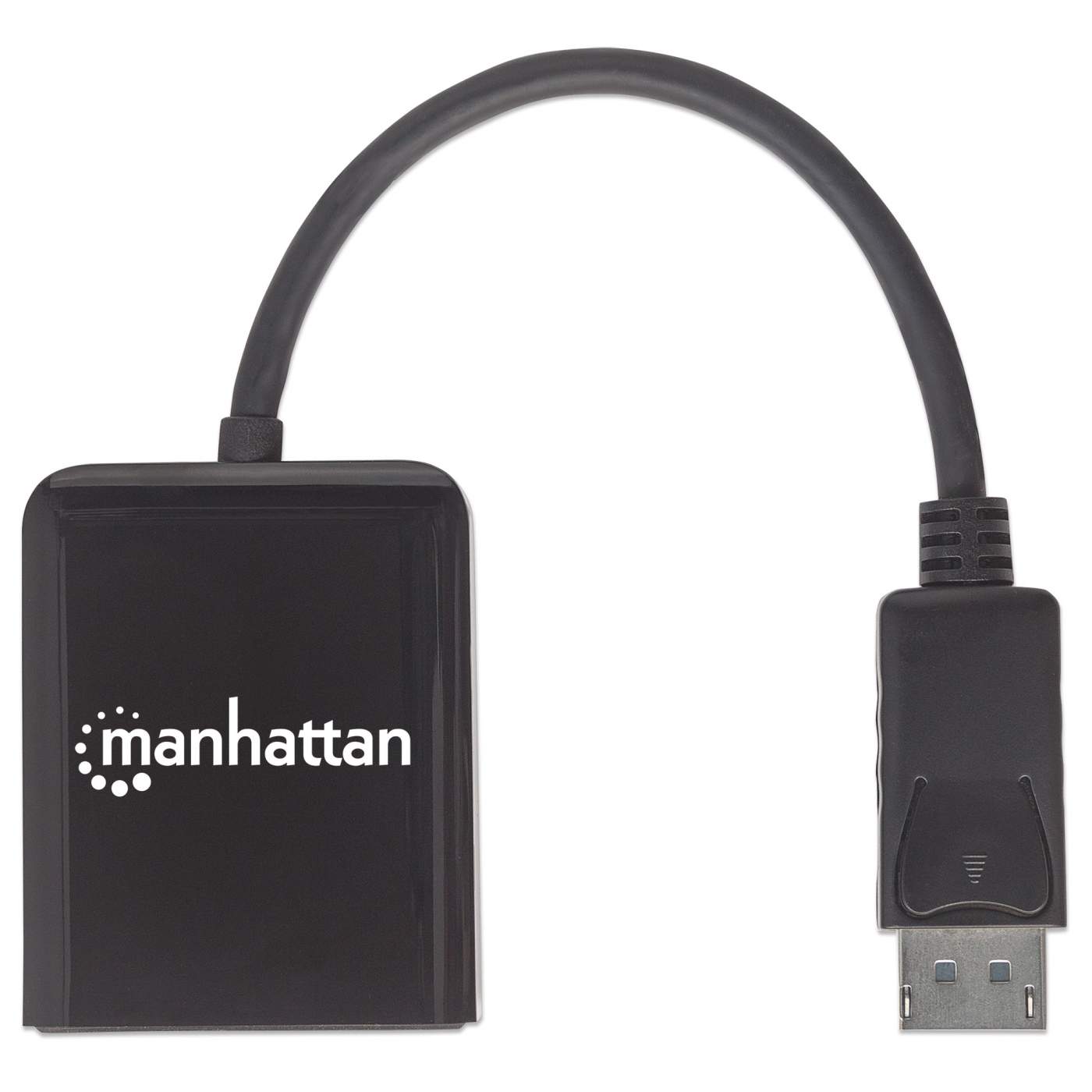

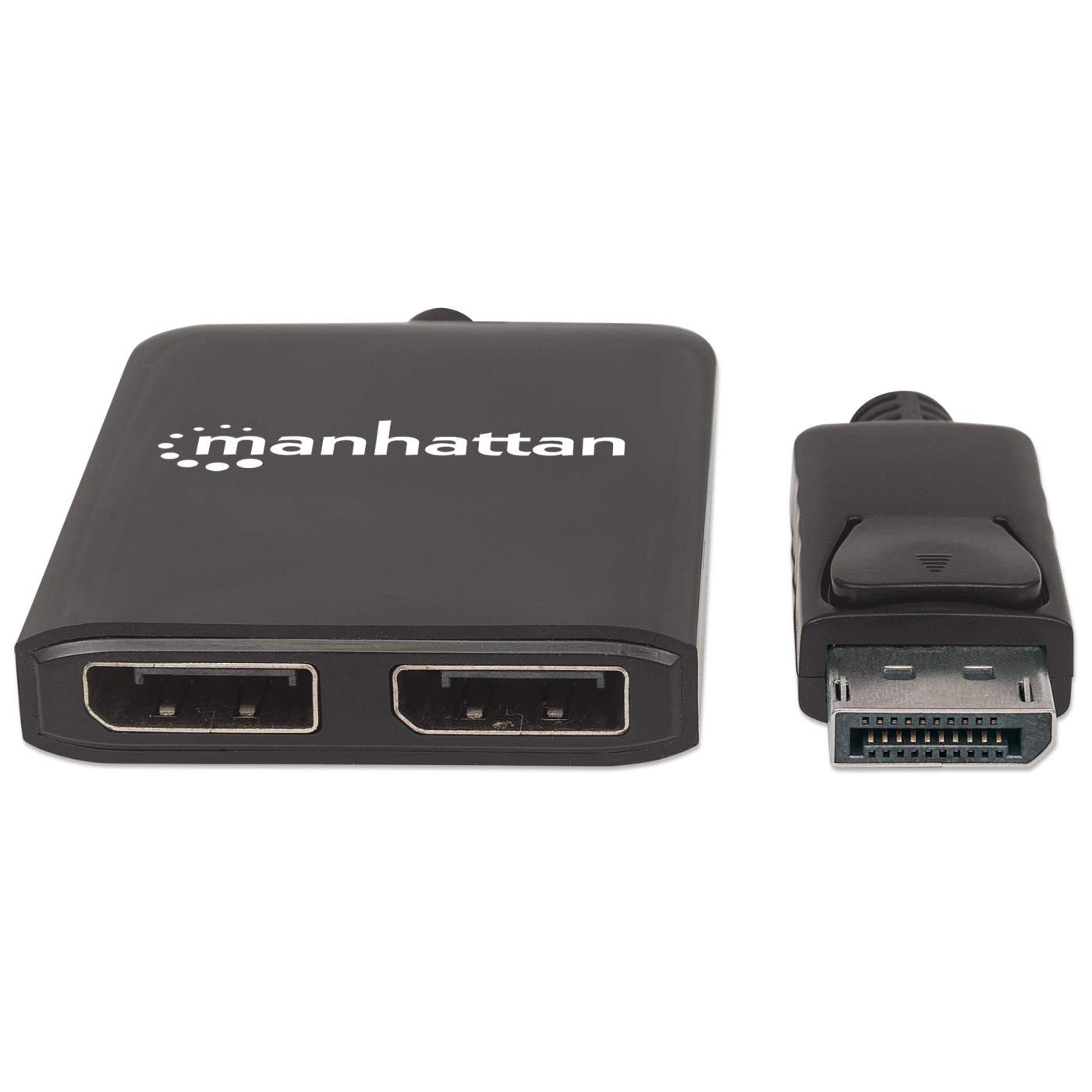

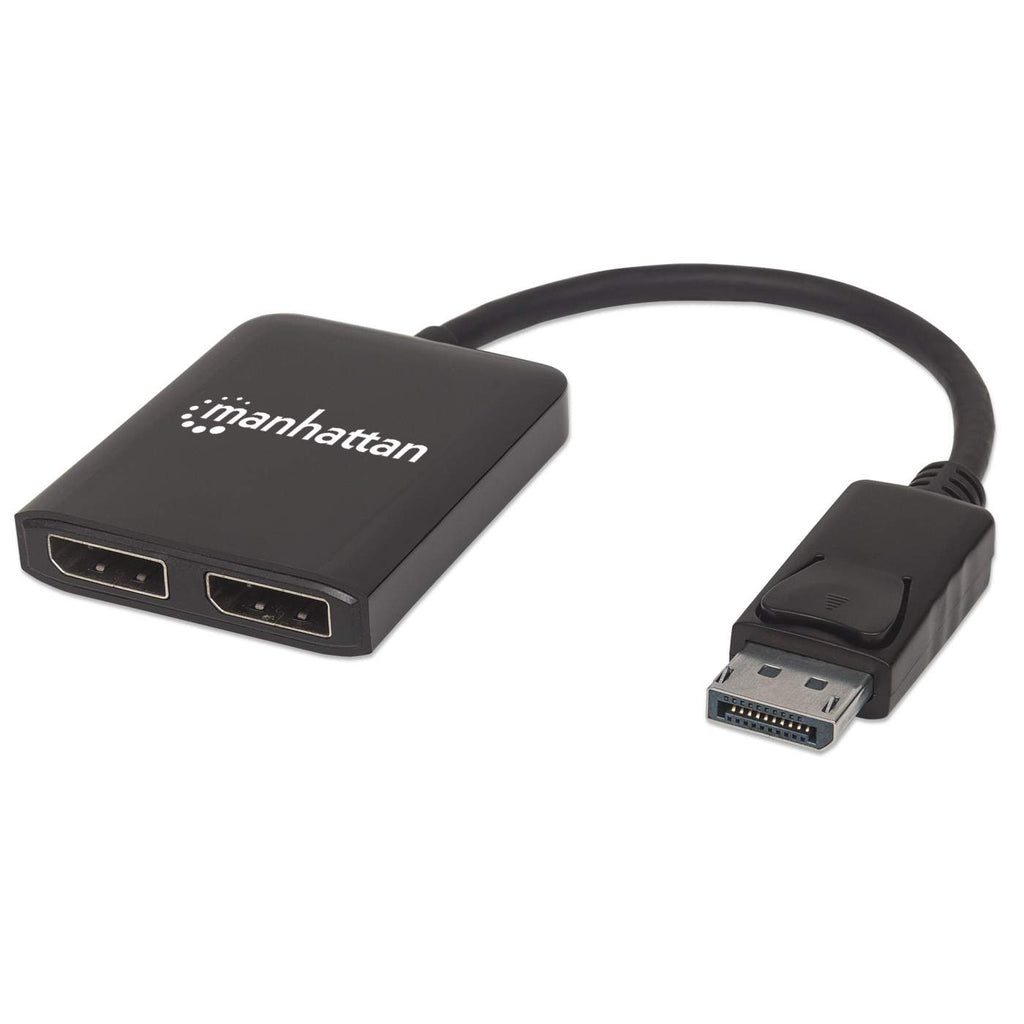

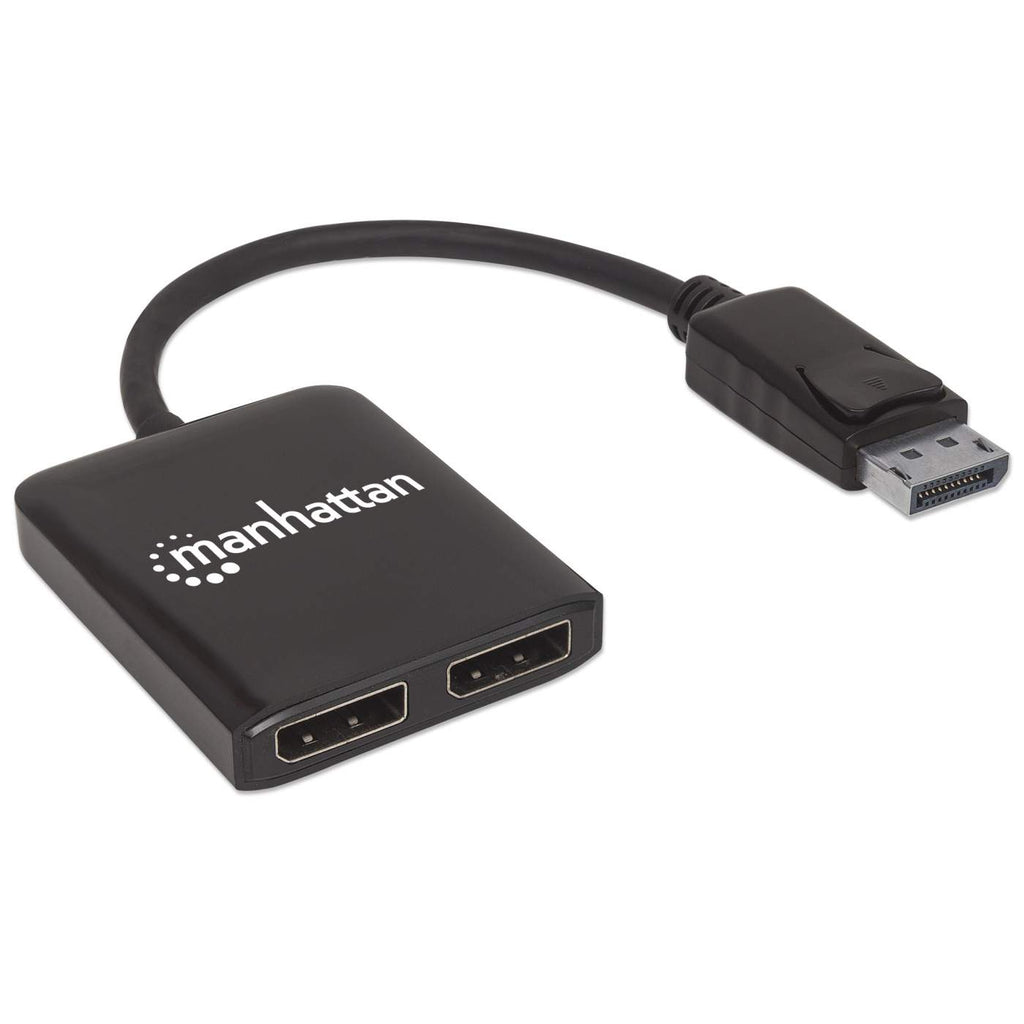

The Manhattan DisplayPort to Dual DisplayPort - MST Hub streams a 4K DisplayPort (DP) signal from a single UHD source to up to two UHD displays.

Flexible Solution for Many A/V Applications

Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan DisplayPort to Dual DisplayPort - MST Hub features a built-in booster for added signal strength. It’s a great choice for splitting and distributing a synchronous signal, in either mirrored or extended modes, to multiple 4K DP displays. MST mode creates a video wall from two displays giving the user a more immersive experience while gaming, in a conference setting or in a home office.

Quality Construction and Easy Installation

Full compliance with DisplayPort, HDCP 1.3 and DVI 1.2 ensures that the Manhattan DisplayPort to Dual DisplayPort - MST Hub can provide long service and reliable performance. Quickly connect DP cables (not included) and the included USB power cable, and this affordable, Ultra-High-Definition 4K DisplayPort solution is complete — no software/hardware configuration or complicated settings required.

• Duplicates an Ultra-High-Definition (UHD) DisplayPort signal for up to two UHD DisplayPort displays
• 4K@30Hz resolution, full 3D video and Deep Color
• Supports compressed DTS Master Audio, as well as 7.1 surround sound audio up to 192 kHz
• Supports Mirror, Extended and Mutli-Stream Transport (MST) modes to maximize work or gaming capabilities
• Mirror mode duplicates the computer screen onto two displays with resolutions up to 4K@30Hz
• Extended mode expands the desktop workspace to up to two additional screens with resolutions up to 4K@30Hz
• Multi-Stream Transport (MST) mode creates a video wall for a more immersive experience, using two screens — with resolutions up to 3840x2160 at 30Hz — as one; requires a graphics card that supports video-wall function
• USB powered with Plug and Play installation; no special setup or remote required
• Integrated DisplayPort cable
• Ideal for enhancing display capabilities or creating a video wall in schools, churches, conference rooms, trade shows and retail outlets; perfect for digital signage and AMD Eyefinity Technology in gaming
• HDCP 1.3 compliant
• Gold-plated contacts for corrosion-free connections
• Three-Year Warranty

• Additional SKUs

• Amazon ASIN: B077SQP8KF
• EAN: 0766623207768
• UPC: 766623207768



• Physical Specifications

• Product net weight: 0.06 kg
• Product gross weight: 0.13 kg
• Dimensions: 250 (L) x 50 (W) x 11 (H) [mm]
• Packaging: Retail Box
