Premium High Speed Cables deliver ultra-high-definition performance with no tangles.
HDMI has become the standard digital connection, delivering the highest-quality audio and video signal over a single cable. With a braided, tangle-resistant design, gold-plated contacts and a sturdy yet slim Nylon sleeve and PVC jacket, Manhattan Braided High Speed HDMI Cable with Ethernet are carefully constructed to meet the evolving needs of the ultra high-definition marketplace. Manhattan Braided Premium High Speed HDMI Cables with Ethernet provide the highest resolution possible at 4K x 2K, an audio return channel and a bandwidth of 18 Gbps at 600 MHz. These high-quality cables provide ultra high-definition video and multichannel, digital audio with increased performance characteristics and greater accuracy. Expanded features include Internet connectivity for home entertainment devices using a single HDMI connection. Plus, this cable's unique design makes it easy to handle and shape without worrying about snags and tangles, while resisting cuts and nicks.

Standards and Certifications

• ISO 9002

  General

• Bandwidth: 18 Gbps at 600 MHz

• HEC support

• Meets or exceeds existing HDMI standards

• Length: 1 m (3 ft.)

  Connectors

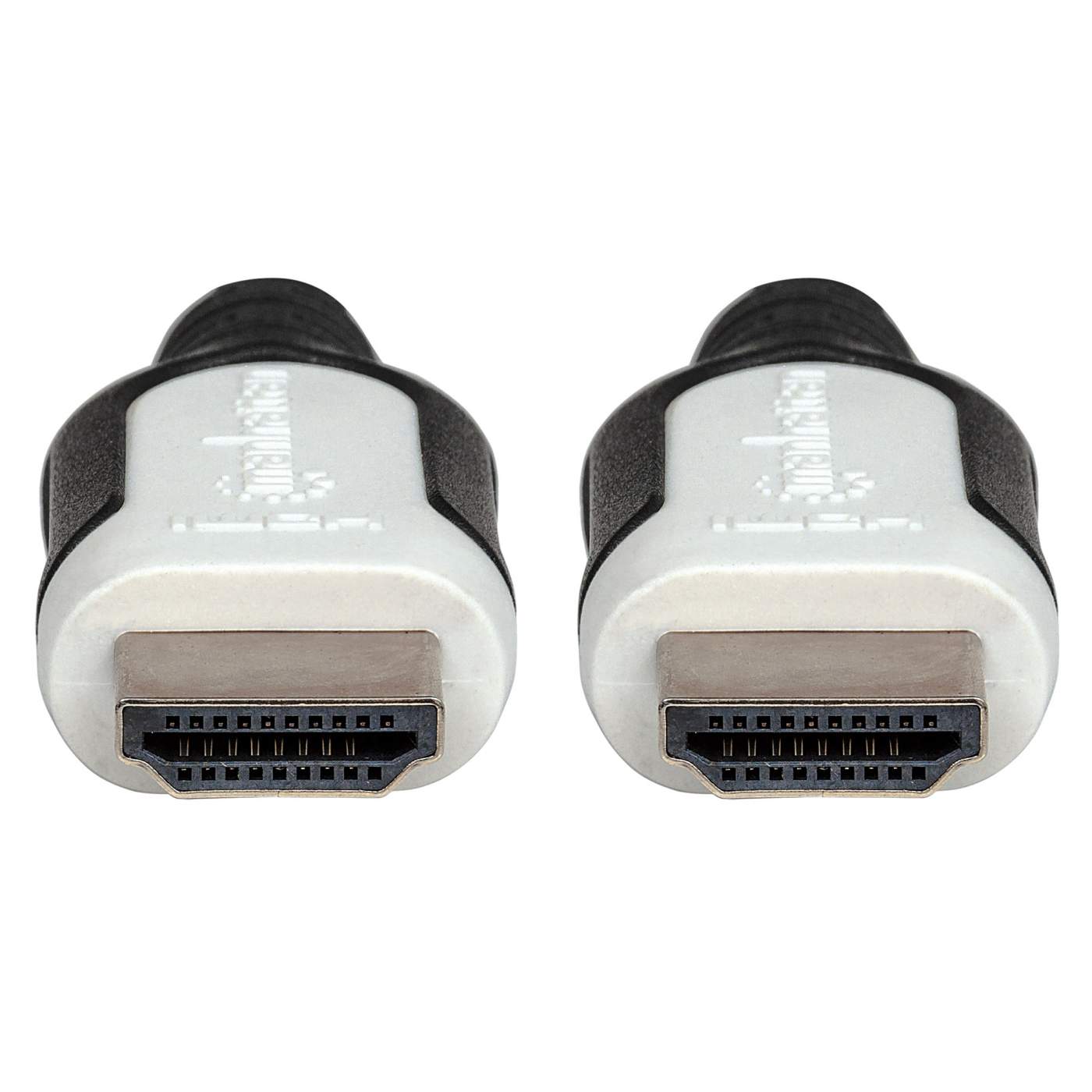

• Two HDMI 19-pin male

• Gold-plated contacts

• Molded PVC boot

• Built-in strain relief

  Cable

• 30 AWG cable

• Double shielded

• Current rating: 0.5 A DC

• Withstanding voltage: 300 V DC

• Insulation resistance: 5 MOhms

• Conductive resistance: 5 Ohms

• Thermal plastic casing

  Operating Environment

• Operation Temperature: 32 – 104°F (0 – 40°C)

• Storage Temperature: -4 – 140°F (-20 – 60°C)

• Humidity (noncondensing): 0 – 96%

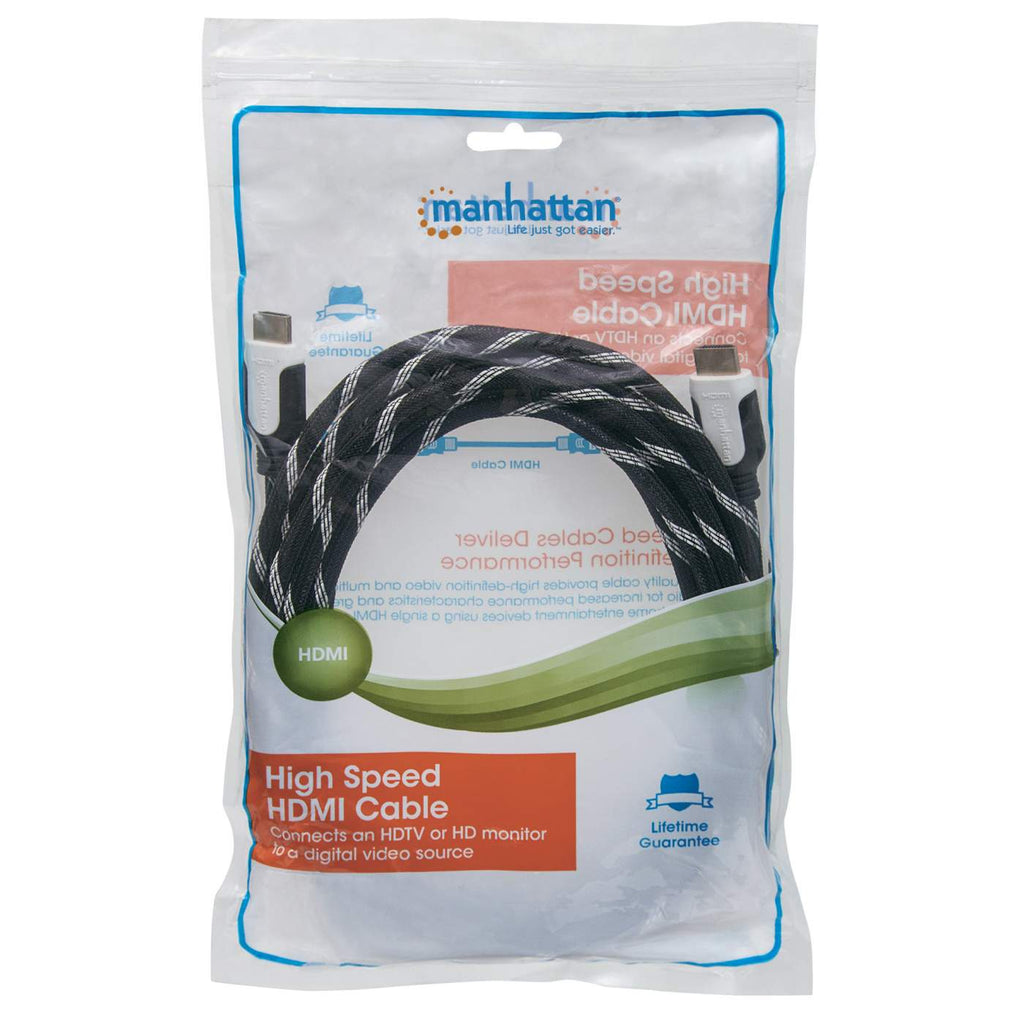

  Package Contents:

• Braided High Speed HDMI Cable with Ethernet

• Additional SKUs

• Amazon ASIN: B0744PB1KB
• EAN: 0766623354752
• UPC: 766623354752



• Physical Specifications

• Product net weight: 0.07 kg
• Dimensions: 1000 (L) x 20 (W) x 10 (H) [mm]
• Packaging: Bag

• Datasheet

• Datasheet     » Download
