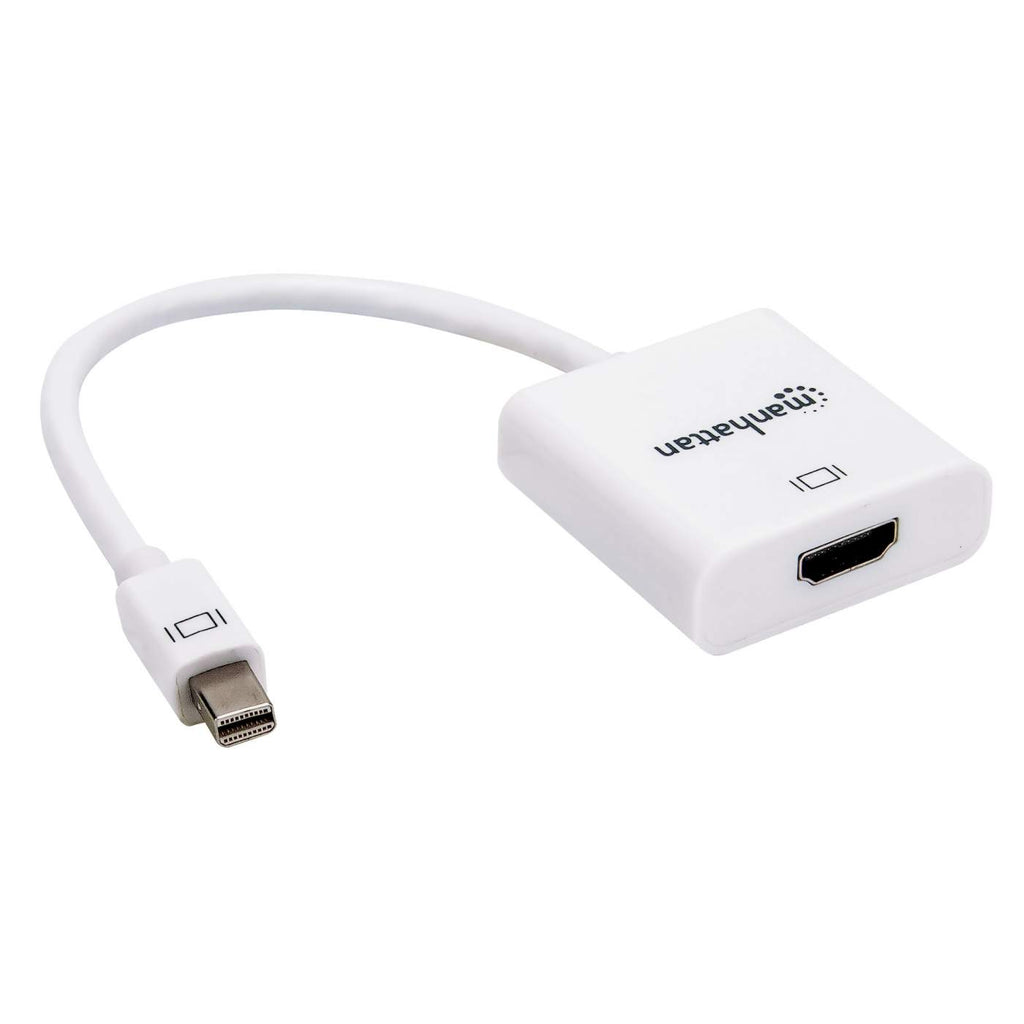

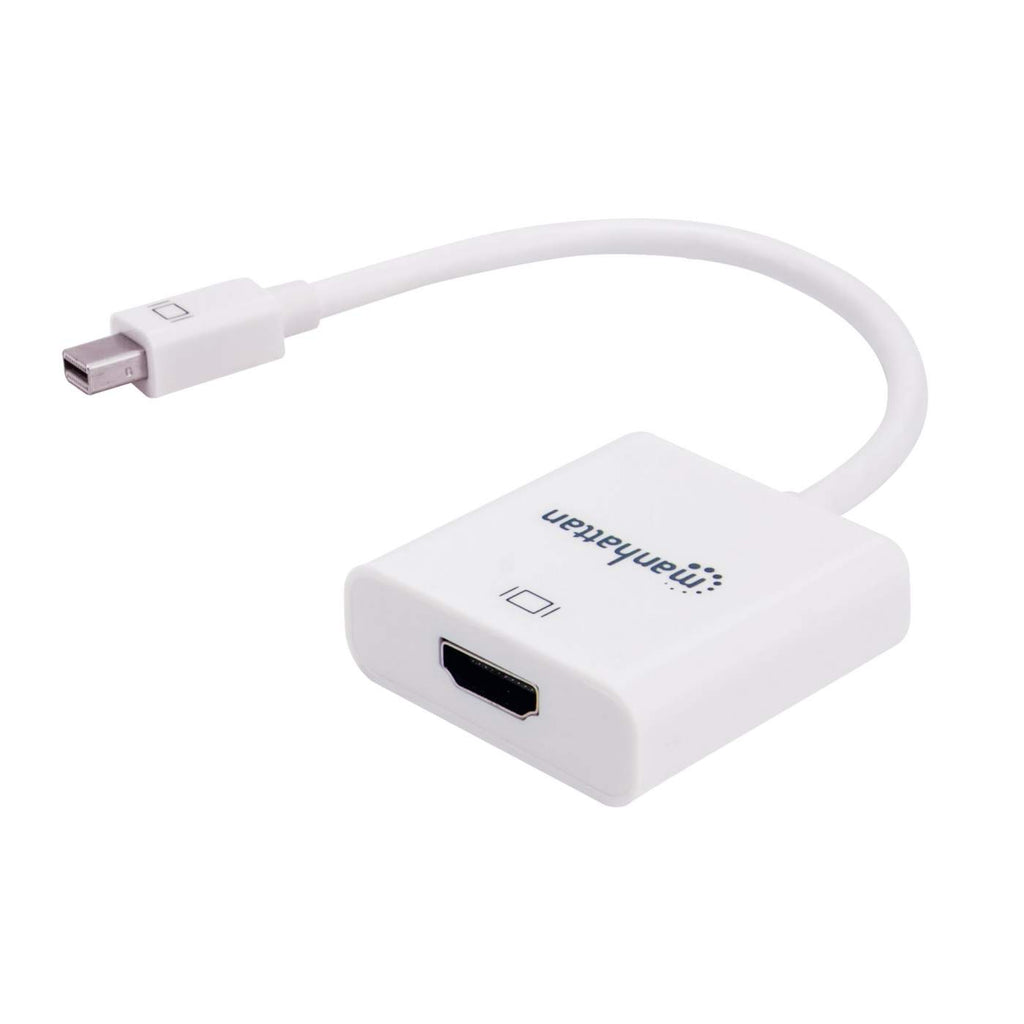

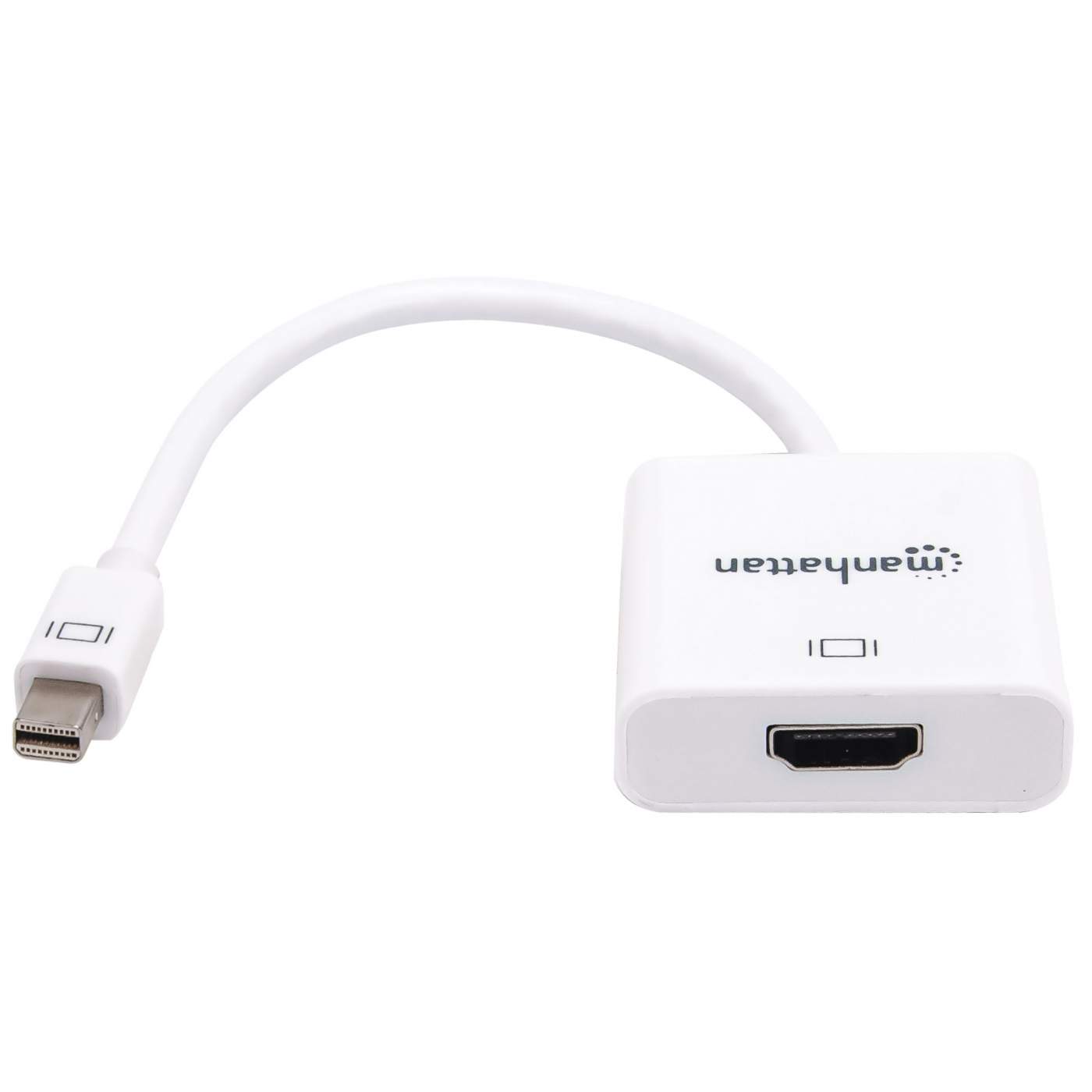

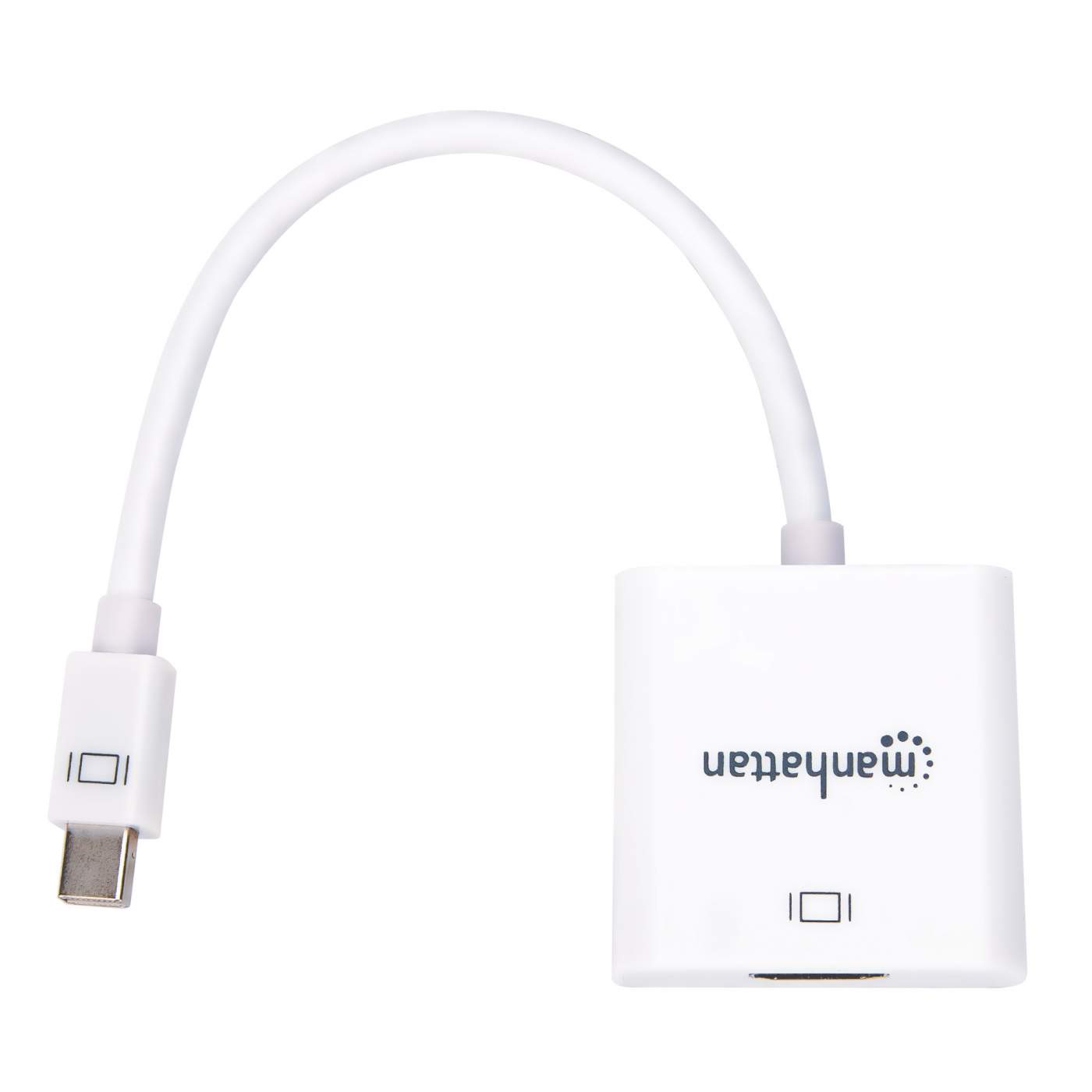

Active Mini DisplayPort to HDMI Adapter

Mini DisplayPort Male to HDMI Female, 4K@60Hz, White

SKU: 151474

Highlights

  • Connects a Mini DisplayPort source to an HDMI display cable
  • Delivers a single, high-quality, active signal to an HDMI display — ideal for multiple-screen and Single Large Surface (SLS) applications
  • Active adapter (signal regeneration) overcomes non-DP++ (dual-mode) video/graphics card limitations and ensures the best connection to an Ultra-High-Definition (UHD) monitor, projector and more
  • $29.99
    Unit price per
Free shipping within the US and Canada




Easily connect a single-mode Mini DisplayPort source with an HDMI cable.

The Manhattan Active Mini DisplayPort to HDMI Adapter establishes a fast and convenient connection between a Mini DisplayPort media source and an HDMI display cable. Because it is active, this adapter overcomes the non-DP++ (dual-mode) video/graphics card's limitations and retains beautiful, high-definition 4K as it converts from DisplayPort to HDMI. It is ideal for multi-screen gaming, digital signage in retail displays, financial market and other applications. Nickel-plated contacts and full shielding help the Manhattan Active Mini DisplayPort to HDMI Adapter provide clear and stable video transmission in Ultra-High-Definition home and office multimedia applications. A durable PVC jacket and molded boots with strain relief help ensure that connections remain uninterrupted and steady.

  • Connects a Mini DisplayPort source to an HDMI display cable
  • Delivers a single, high-quality, active signal to an HDMI display — ideal for multiple-screen and Single Large Surface (SLS) applications
  • Active adapter (signal regeneration) overcomes non-DP++ (dual-mode) video/graphics card limitations and ensures the best connection to an Ultra-High-Definition (UHD) monitor, projector and more
  • Ideal for gaming, digital signage, financial and other markets; supports AMD Eyefinity, Nvidia and other multi-display systems
  • Supports resolutions up to 3840x2160 (4K@60Hz), DisplayPort 1.62 and 2.7 Gbps over one, two and four lanes, and uncompressed digital 7.1 surround sound
  • Fully shielded to reduce EMI and other interference sources
  • Molded PVC boot and strain relief
  • Three-year warranty
    Standards and Certifications
  • FCC
  • CE
  • RoHS2
  • UL 20276
  • DisplayPort v1.2a
  • HDCP 2.2

    General
  • Active Mini DisplayPort conversion
  • Maximum single-link range: 3840x2160 (4K@60Hz) resolution
  • 32 AWG connectors
  • Withstanding voltage: 300 V DC
  • Insulation resistance: 5 MOhms
  • Conductive resistance: 10 Ohms

    Connectors
  • One Mini DisplayPort 20-pin male
  • One HDMI 19-pin female
  • Nickel plated
  • Molded PVC boot
  • Shielded

    Physical
  • Dimensions adapter: 45 x 45 x 15 mm (1.77 x 1.77 x 0.59 in.)
  • Cable length: 180 mm (7.09 in.)
  • Weight: 34 g (1.2 oz.)
  • Housing: plastic

    Operating Environment
  • Operation Temperature: 0 – 40°C (32 – 104°F)
  • Storage Temperature: -20 – 60°C (-4 – 140°F)
  • Humidity (noncondensing): 0 – 96%

    System Requirements
  • Windows XP/Vista/7/8/10 or Mac OS 9 or above or Linux

    Package Contents
  • Active Mini DisplayPort to HDMI Adapter
  • Additional SKUs

    • Amazon ASIN: B07GJKQRF4
    • EAN: 0766623151474
    • UPC: 766623151474

  • Physical Specifications

    • Weight: 0.02 kg
    • Dimensions: 220 (L) x 45 (W) x 15 (H) [mm]
    • Packaging: Bag
  • Datasheet
