Easily connect and extend up to four HDMI displays to a single source.

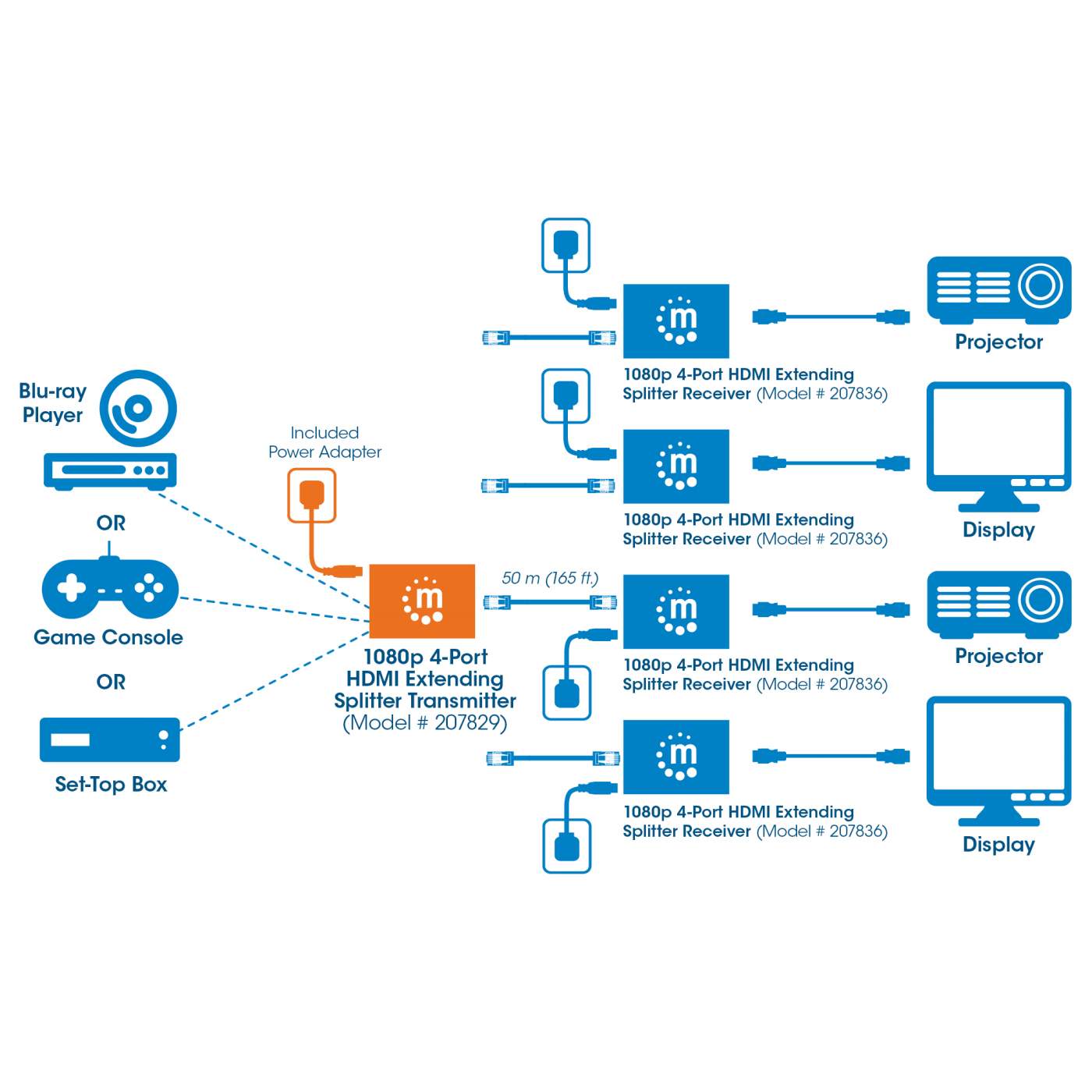

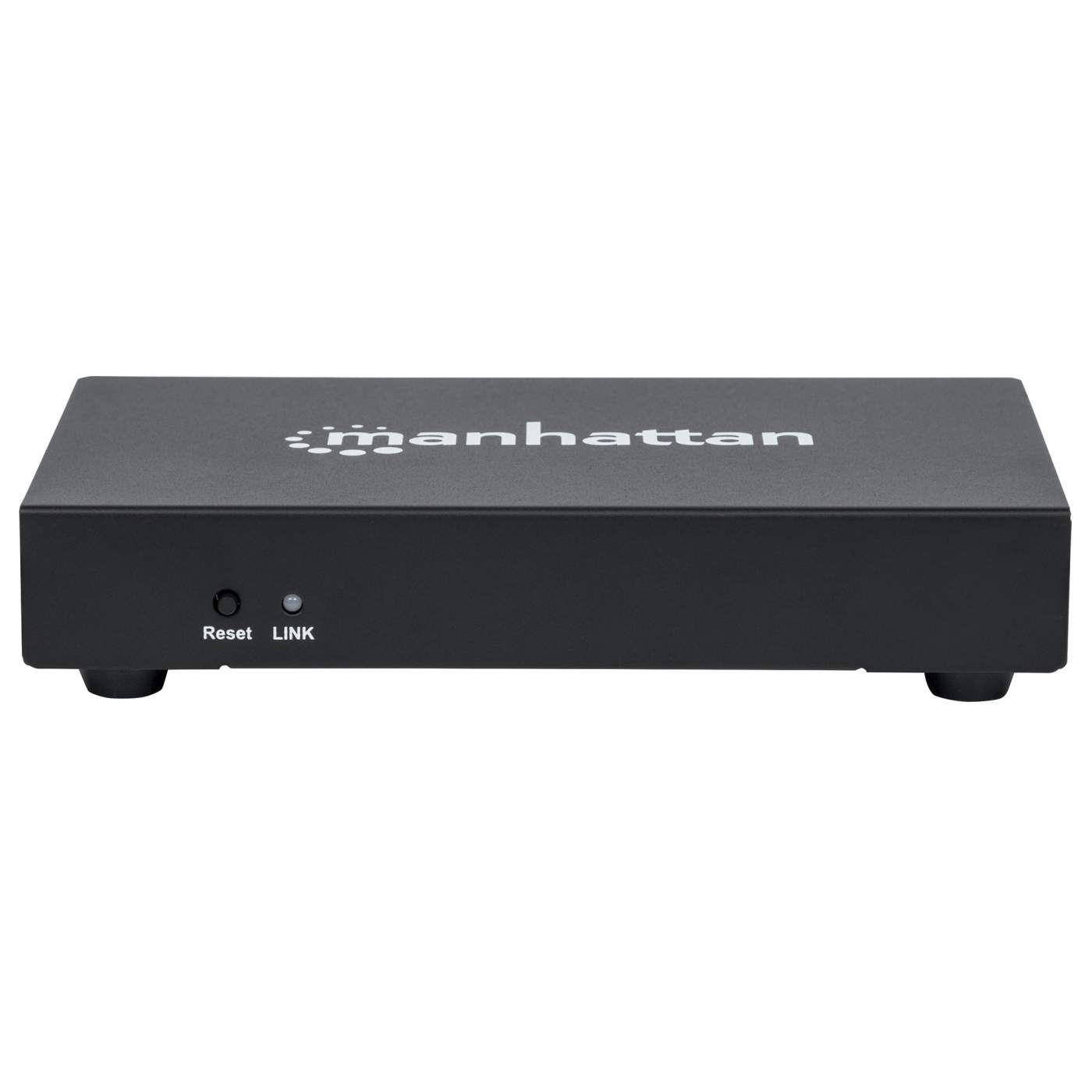

The Manhattan 1080p 4-Port HDMI Extending Splitter Transmitter provides the option of connecting and extending as many as four HDMI displays to one High-Definition (1080p, HD) or high-definition 3D source at up to 50 m (165 ft.) distances. This powered HDMI Extending Splitter provides a reliable 1080p resolution video and multichannel audio transmission over longer distances than is possible with HDMI cables.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, home theater, conference rooms, business office and retail applications, the Manhattan 1080p 4-Port HDMI Extending Splitter Transmitter boosts and extends a 1080p signal up to 50 m (165 ft.) for convenient display or projector placement. Cat6 Ethernet cabling — UTP, SSTP or SFTP (cables not included) — is less expensive and easier to install than HDMI cabling and in-line signal repeaters.
Best Possible Image Quality
The Manhattan 1080p 4-Port HDMI Extending Splitter Transmitter is HDMI and HDCP 1.4a compliant and delivers a stunningly clean, crisp and vivid picture at up to 1080p resolution on four displays thanks to an integrated video bandwidth amplifier. Additionally, it supports HD-quality 3D video, as well as LPCM, DTS and Dolby TrueHD audio.

Standards and Certifications

• HDCP 1.4a

• CE

• FCC

• RoHS2

  General

• Source-to-splitter (TX) range: up to 15 m (49 ft.)

• Cat6 cable 1080p at 50 m (165 ft.)

• Cat6 cable 720p at 60 m (200 ft.)

• Cat6 cable 480p at 80 m (264 ft.)

• Receiver (RX)-to-display range: up to 15 m (49 ft.)

• Power: 12 VDC @ 1 A ; AC power adapter, 0.9 m (2.9 ft.)

• LED power/status indicator

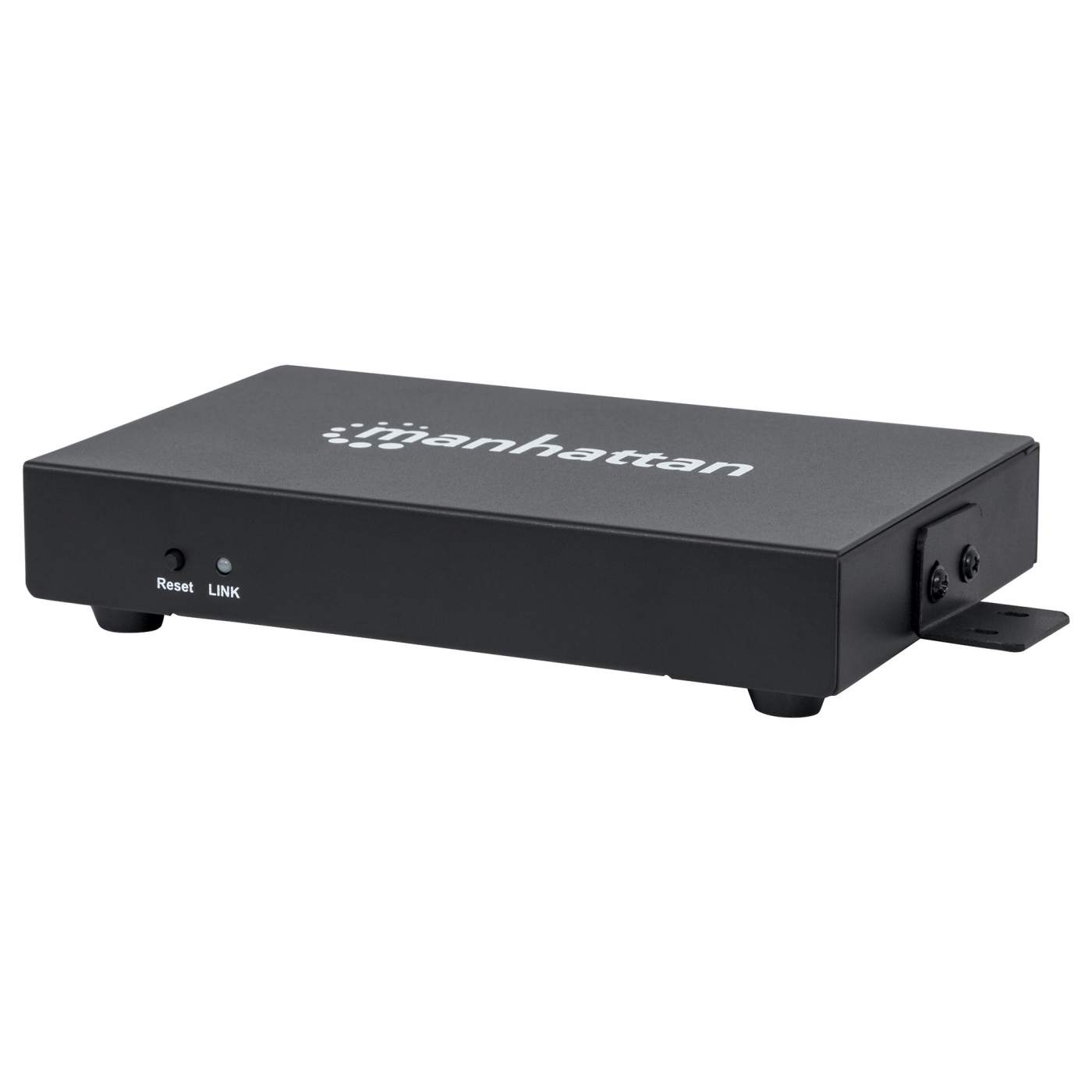

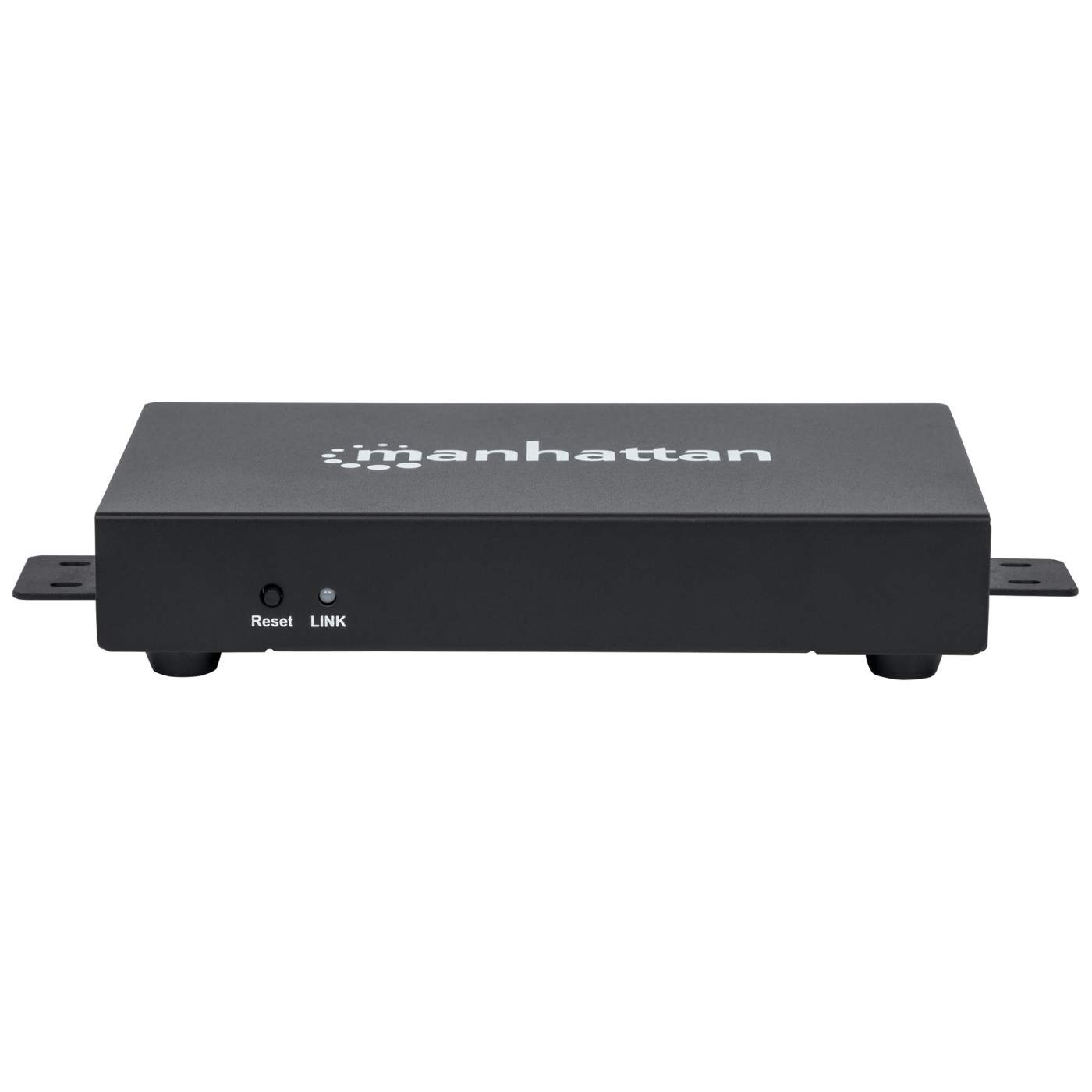

• Wallmountable

• Power: 12 VDC

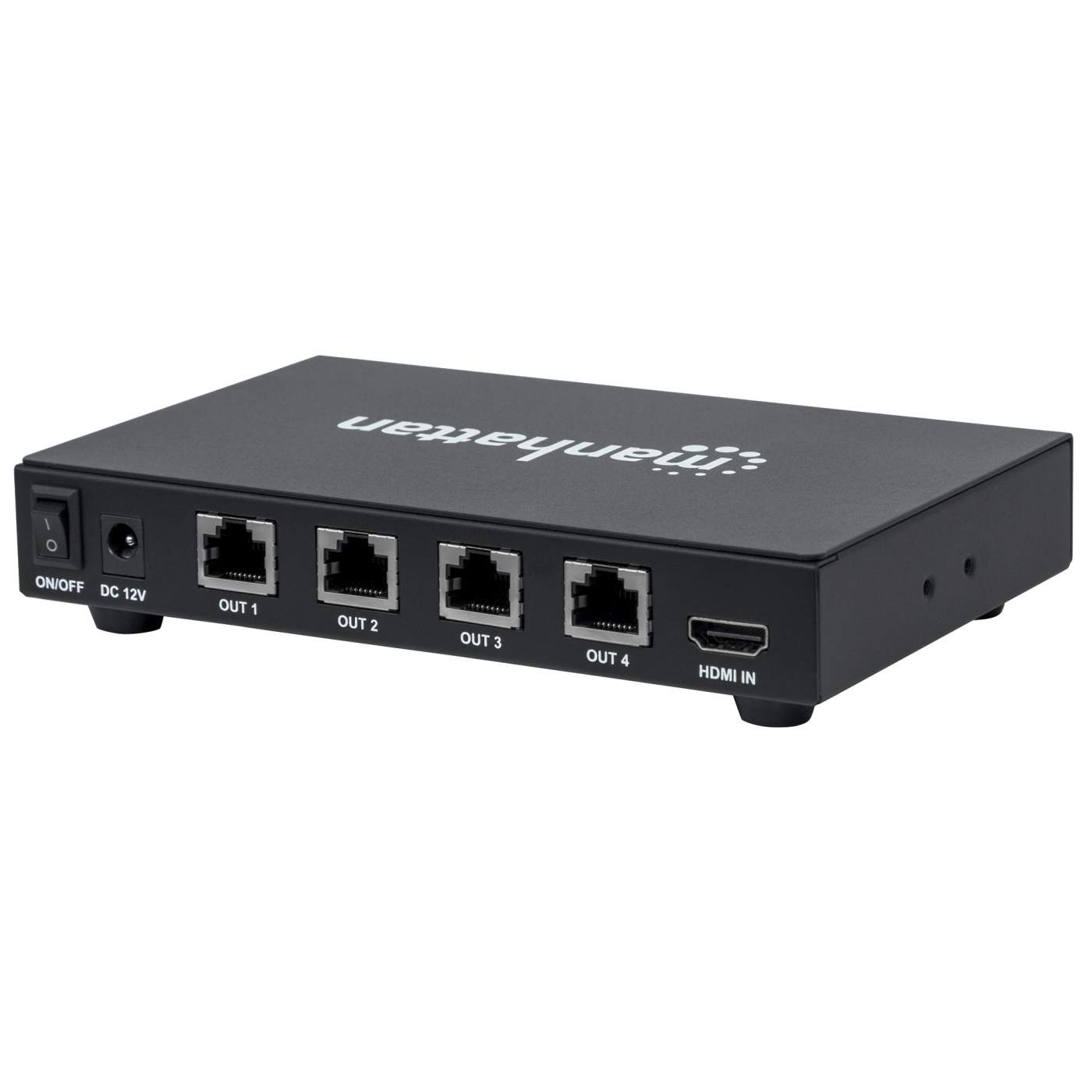

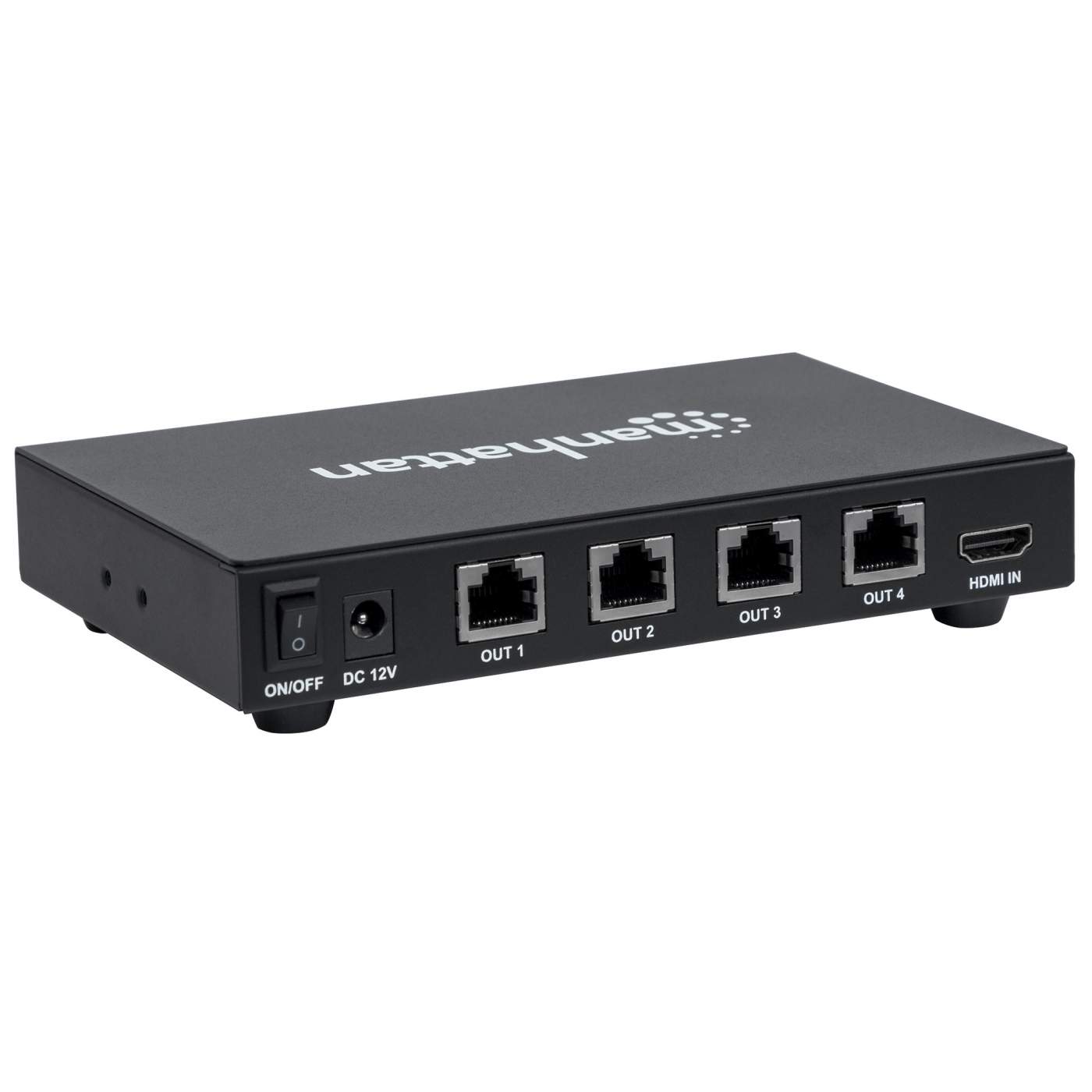

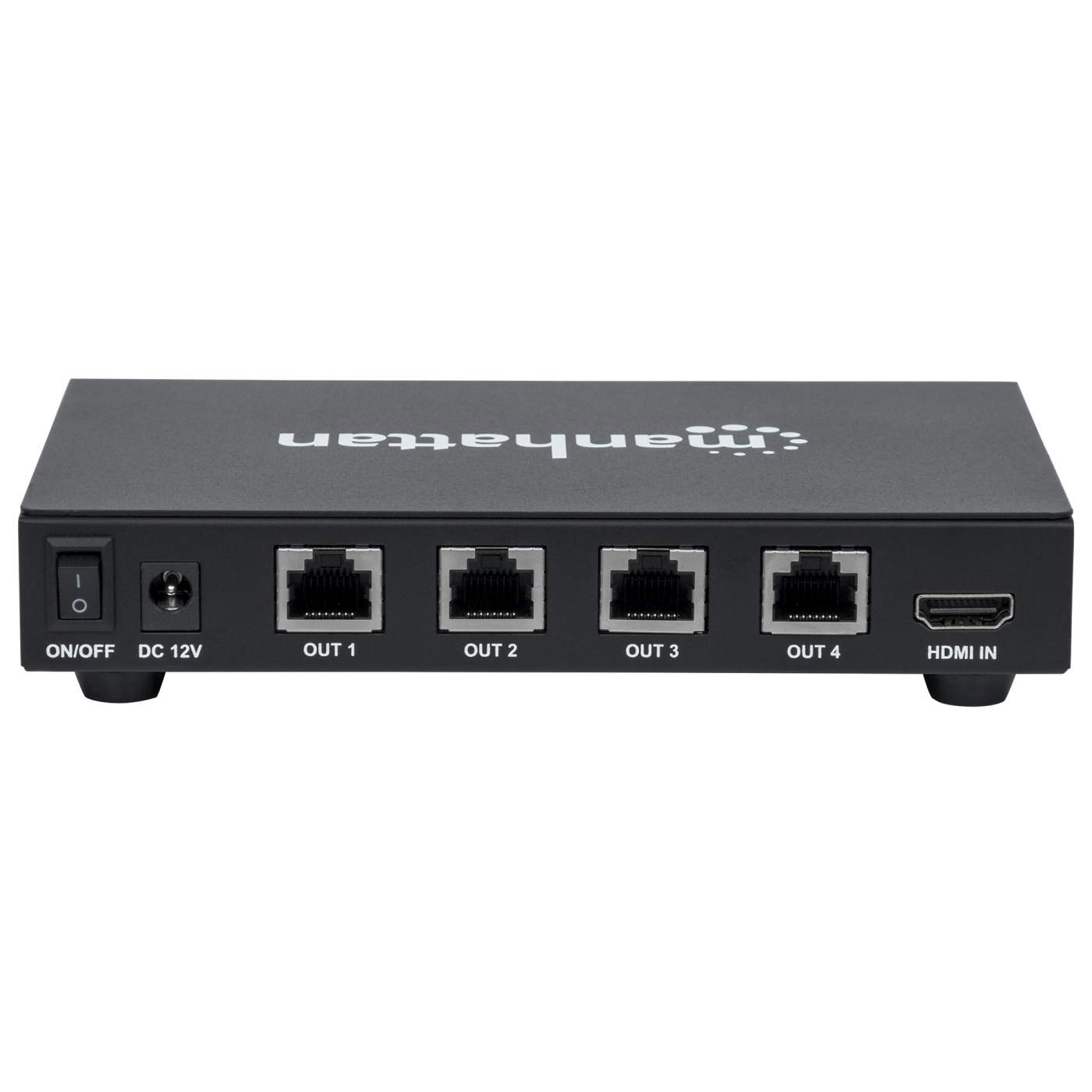

  Connections
  Transmitter

• One HDMI female, 19-pin (input)

• Four Ethernet female, RJ45 (output)

• One 5 VDC female, power (input)
  Receiver (sold seperately)

• One HDMI female, 19-pin (output)

• One Ethernet female, RJ45 (input)

• One 5 VDC female, power (input)

  Signal Input/Output

• Input video signal: 400 – 600 mV

• Input DDC signal: 5 V p-p (TTL)

• Maximum single-link range: 1.65 Gbps and 1080p resolution

• Output video: HDMI 1.3, HDCP 1.4a

• Frequency: 1.65 Gbps / 165 MHz

  Video Resolutions

• DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p

  Physical

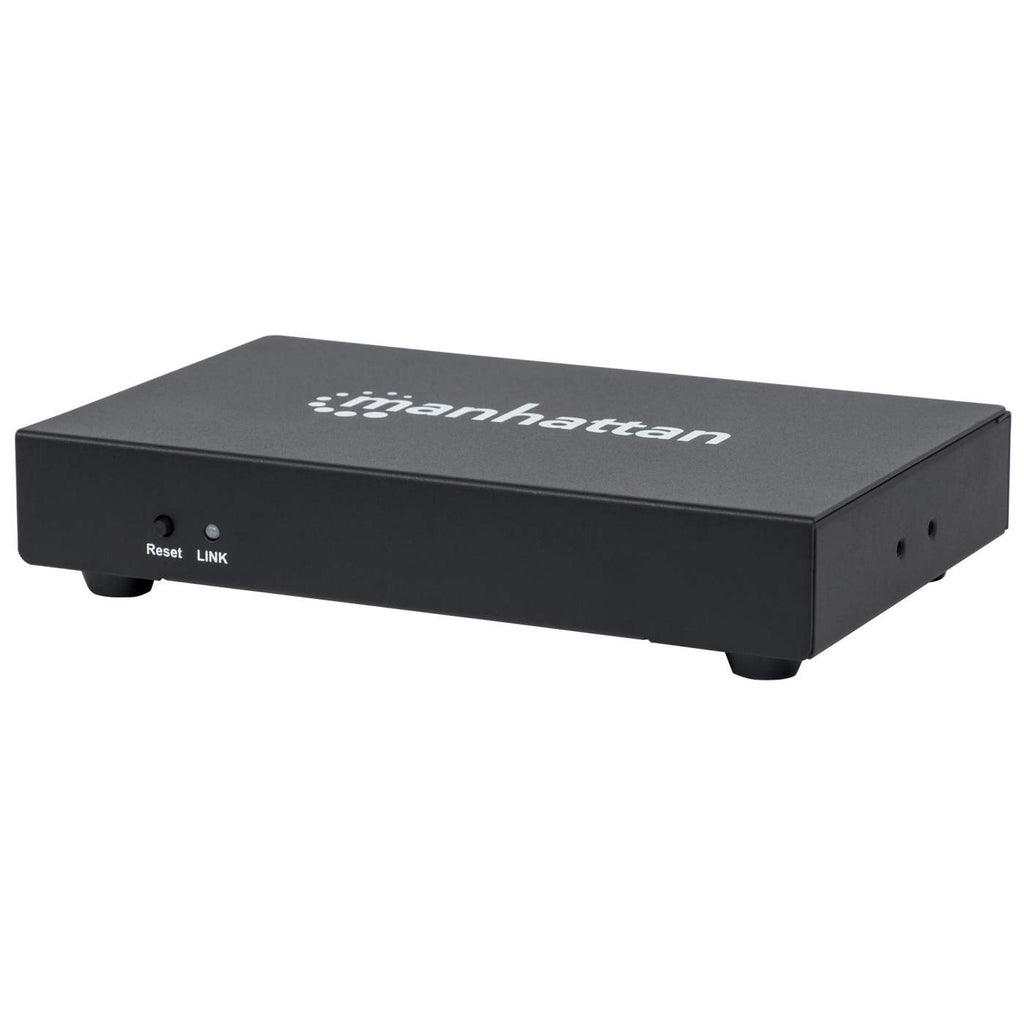

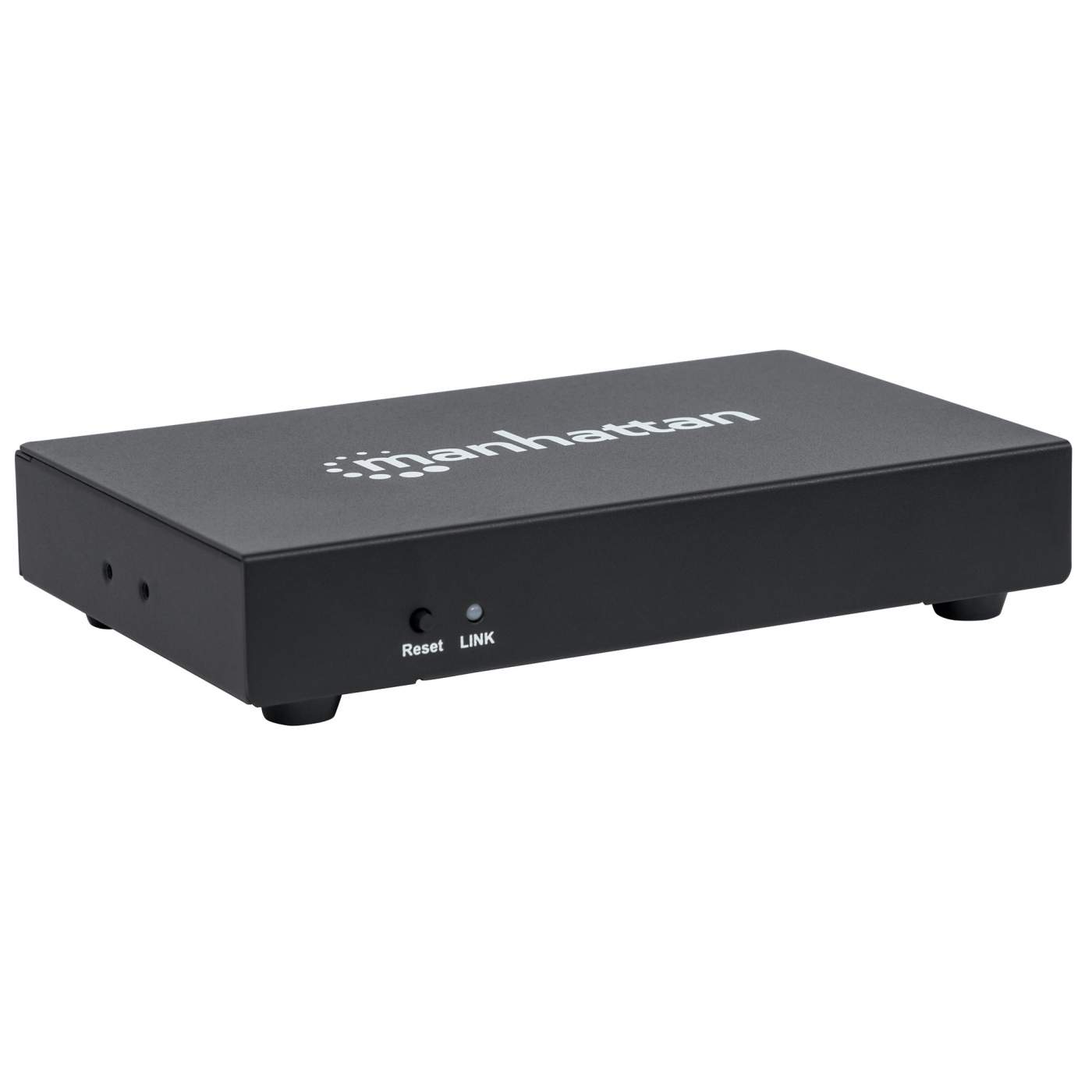

• LED indicators: power and port connection

• Power adapter: 12 VDC / 1 A; 0.9 m (2.9 ft.)

• Power switch

• Dimensions: 162 x 100 x 25 mm (6.4 x 3.9 x 1 in.)

• Weight: 0.43 kg (0.95 lbs.)

• Housing: metal

  Operating Environment

• Operation Temperature: 0 – 40°C (32 – 104°F)

• Storage Temperature: -20 – 60°C (-4 – 140°F)

• Humidity (noncondensing): 0 – 96%

  Package Contents

• 1080p 4-Port HDMI Extending Splitter Transmitter

• Power adapter

• Wallmounting brackets

• Quick Instruction Guide

• Additional SKUs

• Amazon ASIN: B07DHW4CWY
• EAN: 0766623207829
• UPC: 766623207829



• Physical Specifications

• Product net weight: 0.43 kg
• Dimensions: 162 (L) x 100 (W) x 25 (H) [mm]
• Packaging: Retail Box
