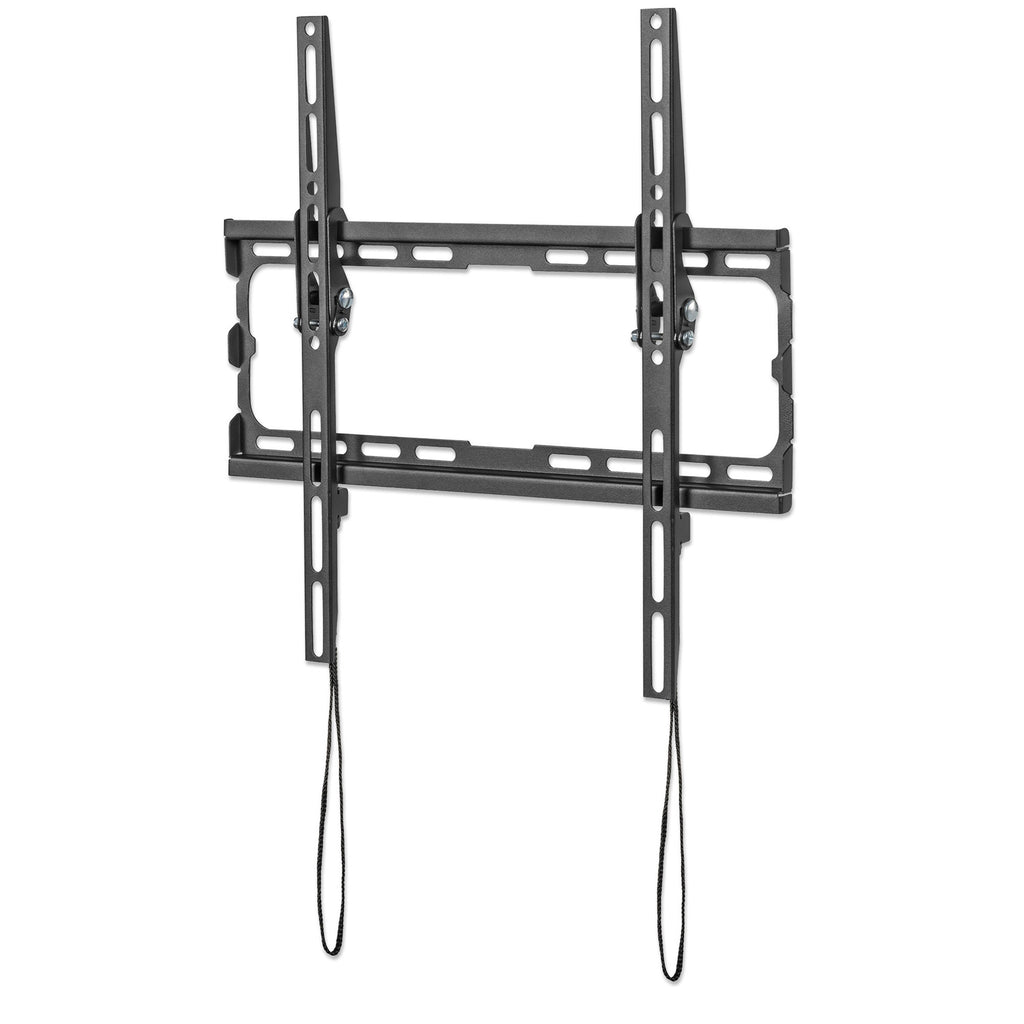

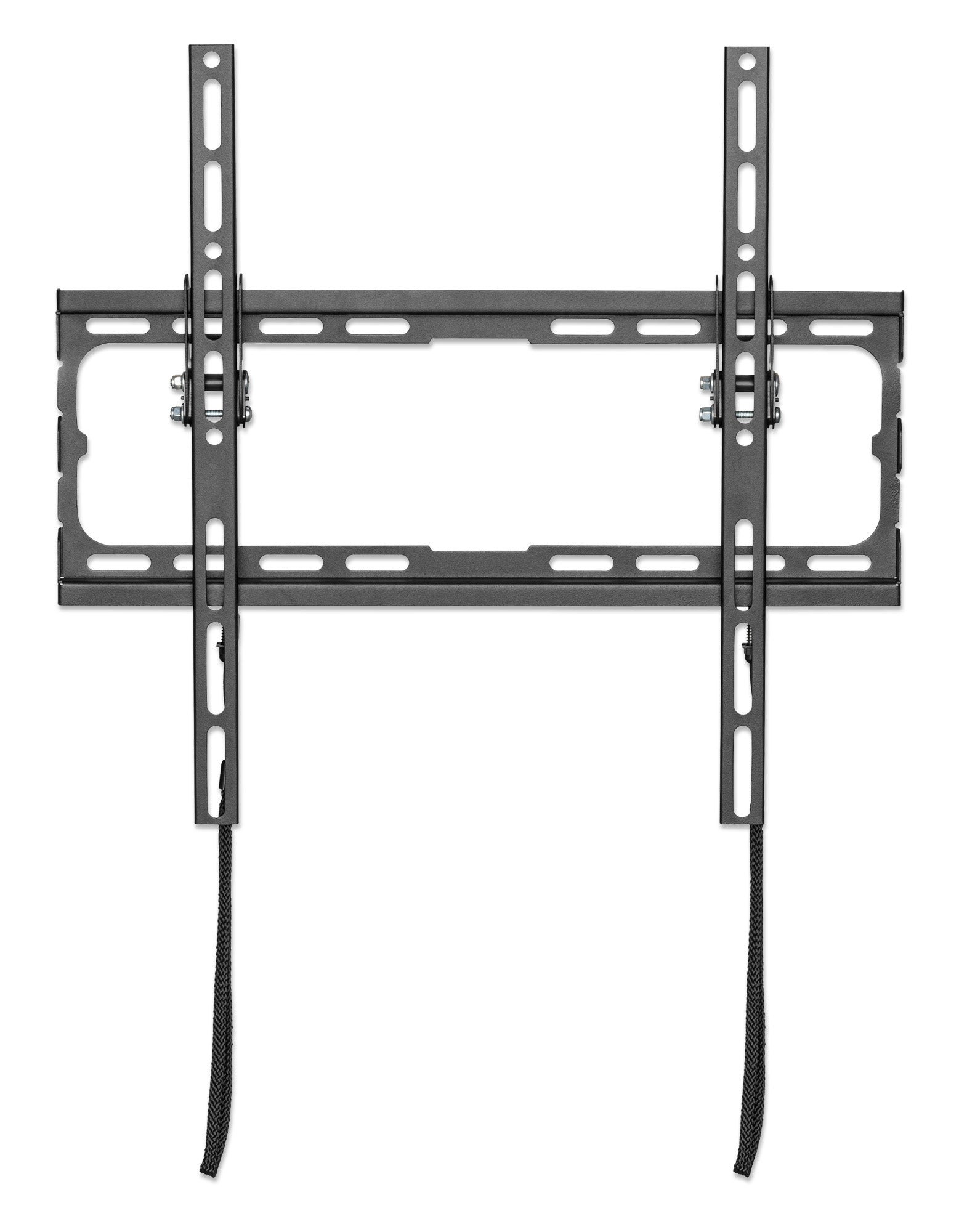

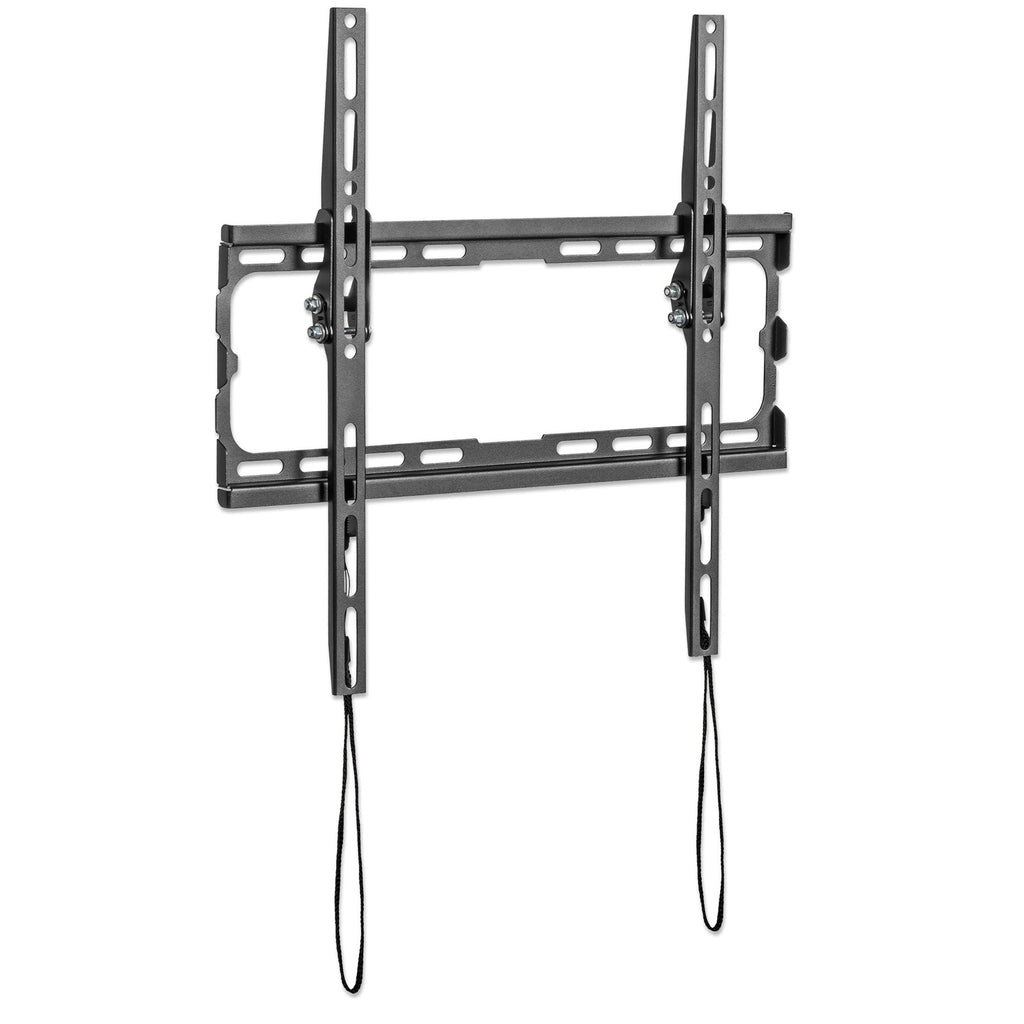

Slim and strong Tilting TV Wall Bracket - adjustable mounting bracket that puts displays in the right perspective and avoids annoying glare

This tilting TV Wall Mount from Manhattan safely holds your TV and offers a toolless 0 to -8° tilt adjustment for optimized views. It fits flat LCD, OLED or plasma TVs up to 70" and weighing up to 45 kg (100 lbs.) with VESA compliance up to 400x400. You're all set for a confident above-the-floor installation with intuitive snap-in spring locks with release cords that let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.

• Securely holds one flat-panel television from 32" to 70" and up to 45 kg (100 lbs.)

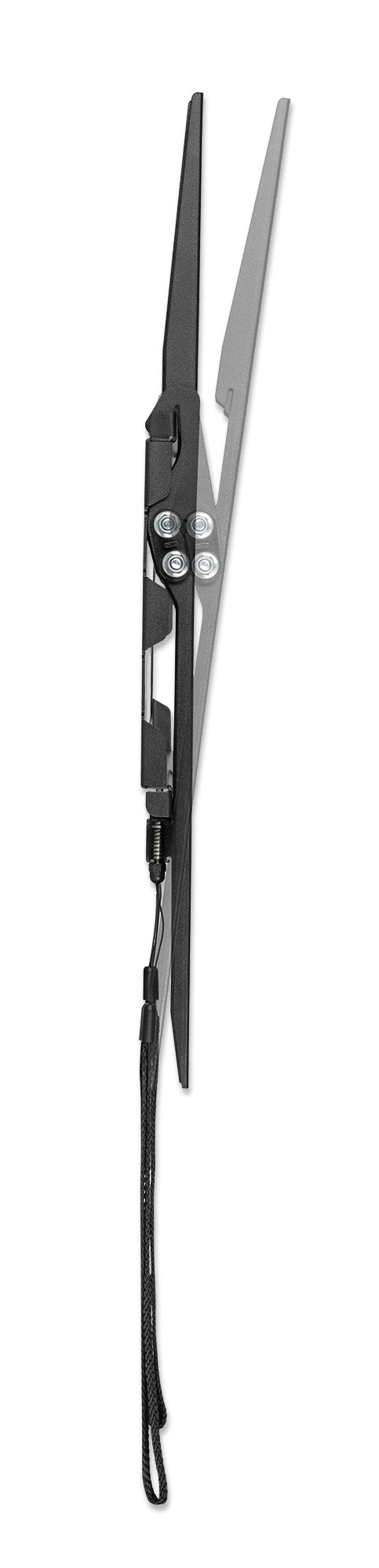

• Optimized views with 0° to -8° tilt adjustment
• Holds TV only 20 mm (0.8 in.) from wall for a nearly flush, close-to-the-wall installation that enhances the thin, modern TV silhouette
• Heavy-duty steel construction with powder coating
• Includes attachable bubble level
• Easy installation ideal for home, office and commercial applications
• Snap-in spring locks with release cords for easy installation or removal and additional safety
• Meets VESA standards 200x200 to 400x400 e.g. 200x200, 400x200, 300x300, 400x400
• Lifetime warranty

General

• Designed for most 32" to 70" flat screens

• Weight capacity: up to 45 kg (100 lbs.)

• Tilt: 0/-8°

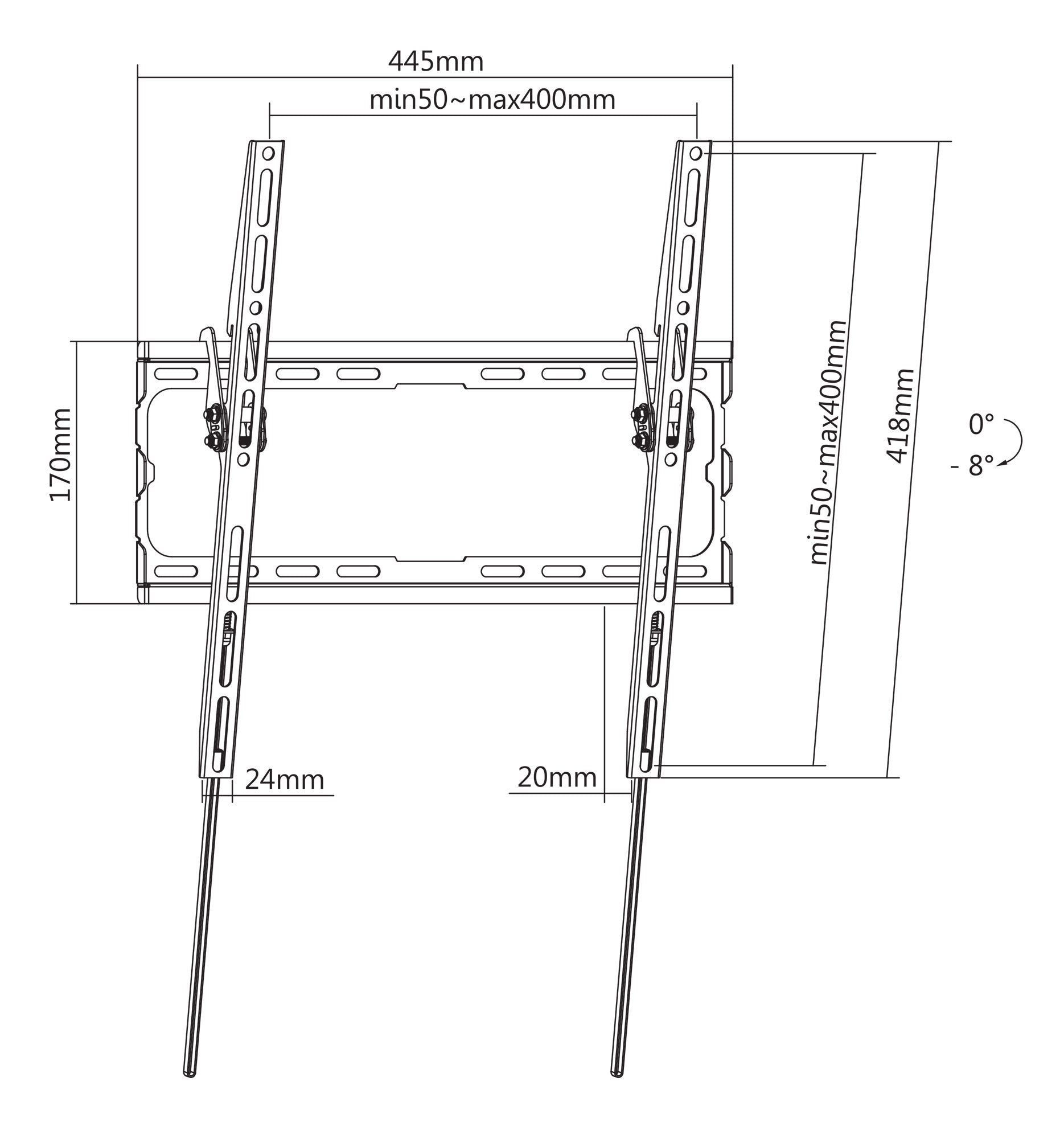

• Dimensions (L x W x H): 418 x 440 x 20 mm (16.46 x 17.32 x 0.79 in.)

• Wall profile: 20 mm (0.8 in.)

• Net weight: 700 g (1.54 lbs.)

• Gross weight: 1.00 kg (2.2 lbs.)

• Material: steel

• VESA standards: VESA standards: 75x75, 100x100, 100x150, 100x200, 150x100, 150x150, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400

  Package Contents

• Low-Profile Tilting 70" TV Wall Mount
• Installation hardware with instructions

• Additional SKUs

• EAN: 0766623460941
• UPC: 766623460941



• Physical Specifications

• Product net weight: 0.7 kg
• Product gross weight: 1.05 kg
• Dimensions: 435 (L) x 479 (W) x 25 (H) [mm]
• Packaging: Retail Box

• Datasheet
• Datasheet     » Download
