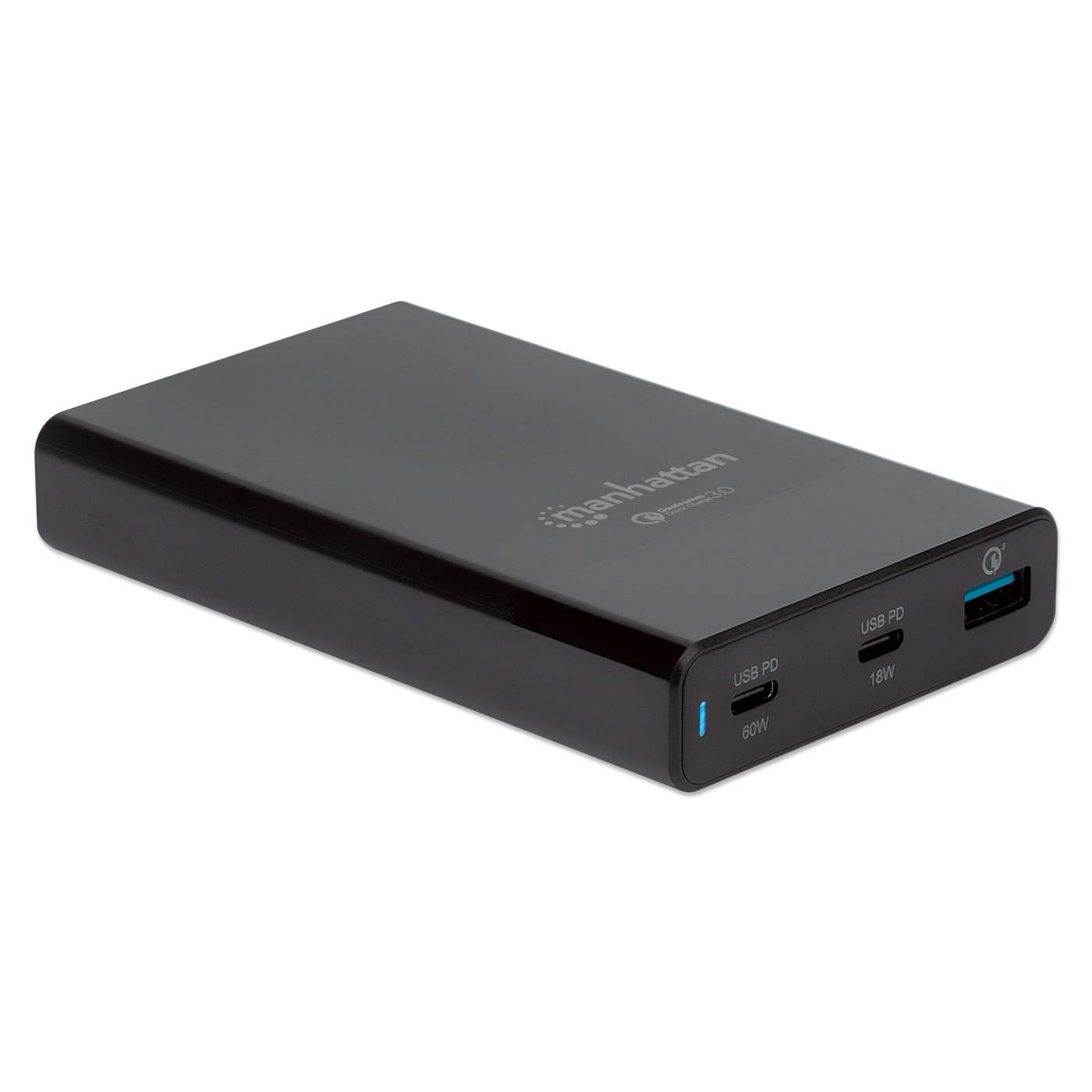

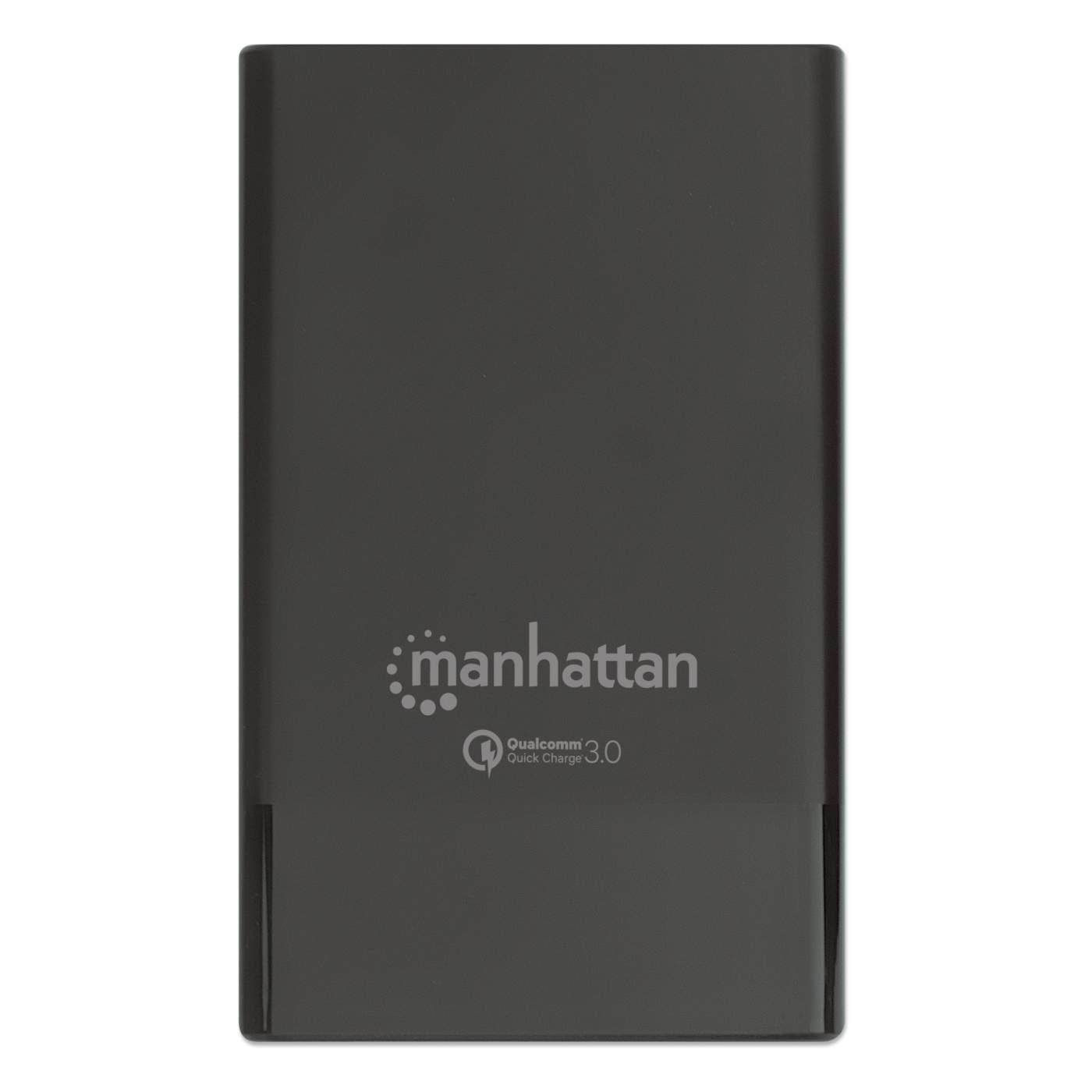

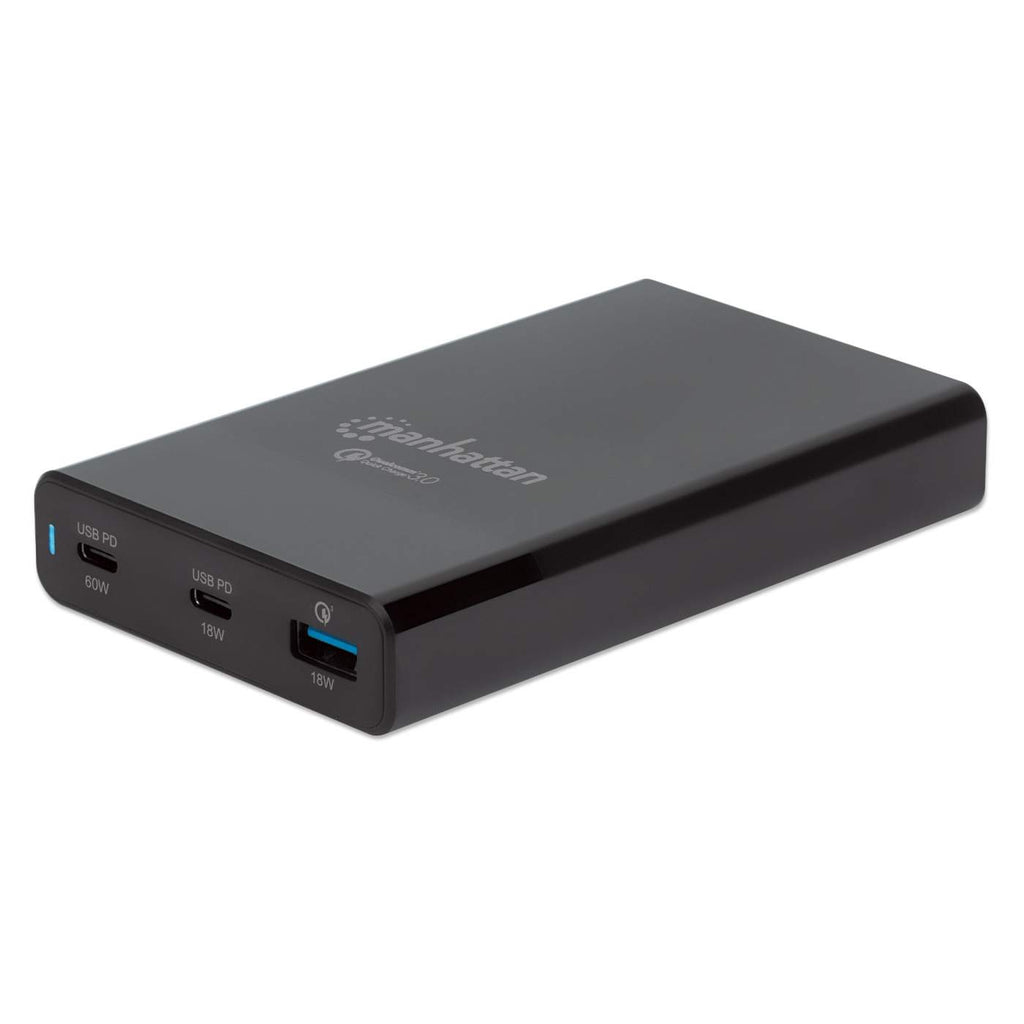

Power Delivery Charging Station - 65 W

One USB-C Power Delivery Port up to 60 W, One USB-C Power Delivery Port up to 18 W, One Quick Charge™ Power Port up to 18 W, Black

SKU: 102223

Highlights

  • Charging station solution with two USB-C Power Delivery (PD 3.0) and one Quick Charge™ USB-A charging ports
  • Charges different devices simultaneously with optimized power allocation
  • Total power output supported: 65 W
  • $59.99
    Unit price per
Free shipping within the US and Canada
Request access to dealer pricing here.



Power Delivery Charging Station - 65 W — Impressive device power

Enjoy complete charging power with the Manhattan Power Delivery Charging Station - 65 W. Its USB-C ports use PD technology to deliver the right amount of power to your laptop, smartphone, tablet or other compatible device at the fastest, safest rate. The additional USB-A port supports Qualcomm® Quick Charge™ technology to delivery up to 18 W of power to a compatible device. The perfect power companion with its stylish, compact and ultra-modern design, the Manhattan Power Delivery Charging Station - 65 W also smartly protects itself and your devices from short-circuits, overvoltage, overcurrent and overheating.

  • Charging station solution with two USB-C Power Delivery (PD 3.0) and one Quick Charge™ USB-A charging ports
  • Charges different devices simultaneously with optimized power allocation
  • Total power output supported: 65 W
  • One USB-C Power Delivery port delivering up to 60 W to charge a notebook, laptop, Ultrabook™, tablet or other USB-C powered device
  • One USB-C Power Delivery port delivering up to 18 W to charge a tablet, smartphone, game console or other USB-C powered device
  • One USB-A Quick Charge port delivering up to 18 W to charge any portable device
  • LED status indicator
  • Overload, overcurrent and overheating protection
  • Compact, portable and stylish design for easy travel
  • Three-year warranty

    Standards and Certifications
  • USB
  • Power Delivery 3.0
  • Qualcomm® Quick Charge™ 3.0
  • CE
  • FCC
  • RoHS
  • WEEE
  • ETL

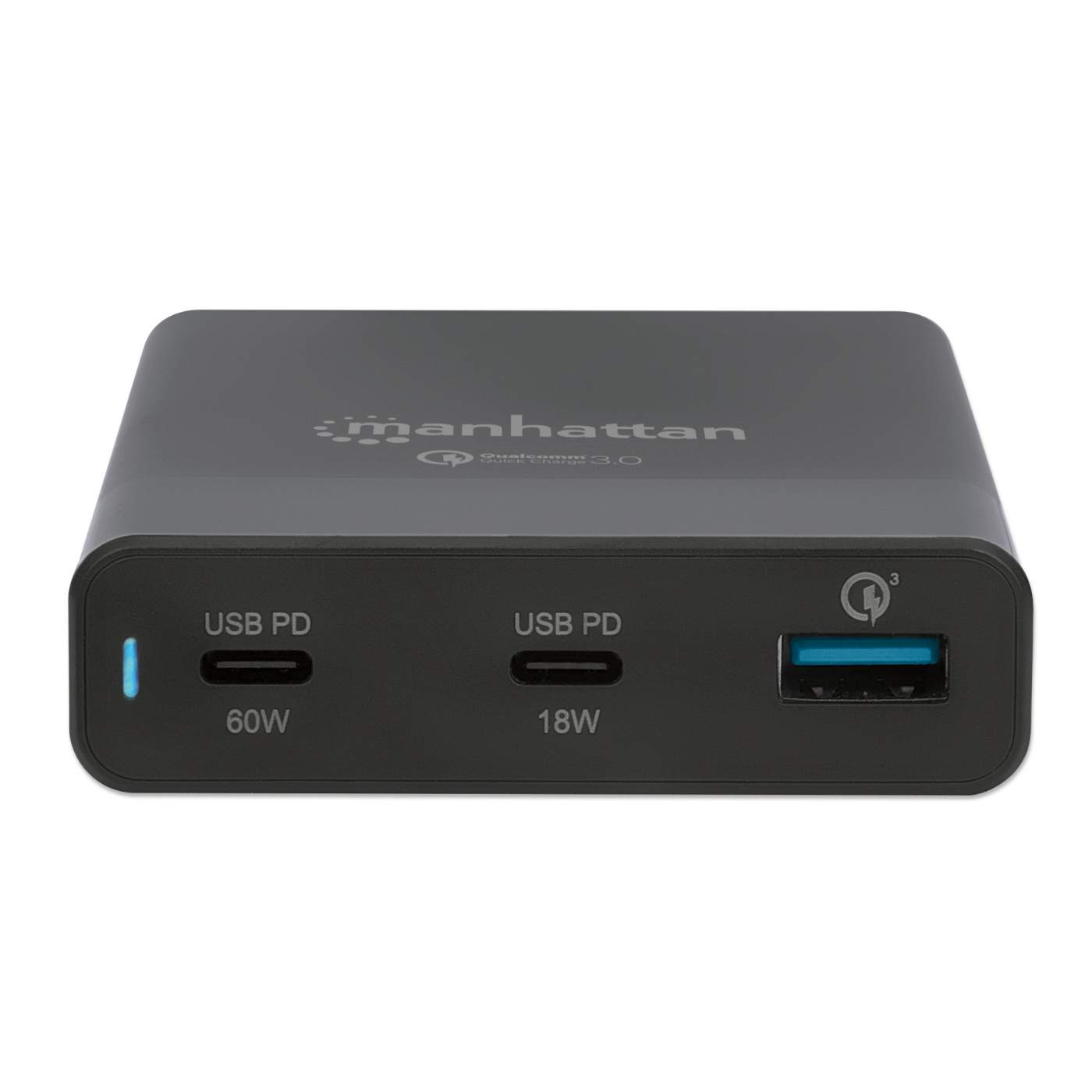

    Ports
  • Two USB-C Power Delivery (PD 3.0)
  • One USB-A Quick Charge 3.0

    General

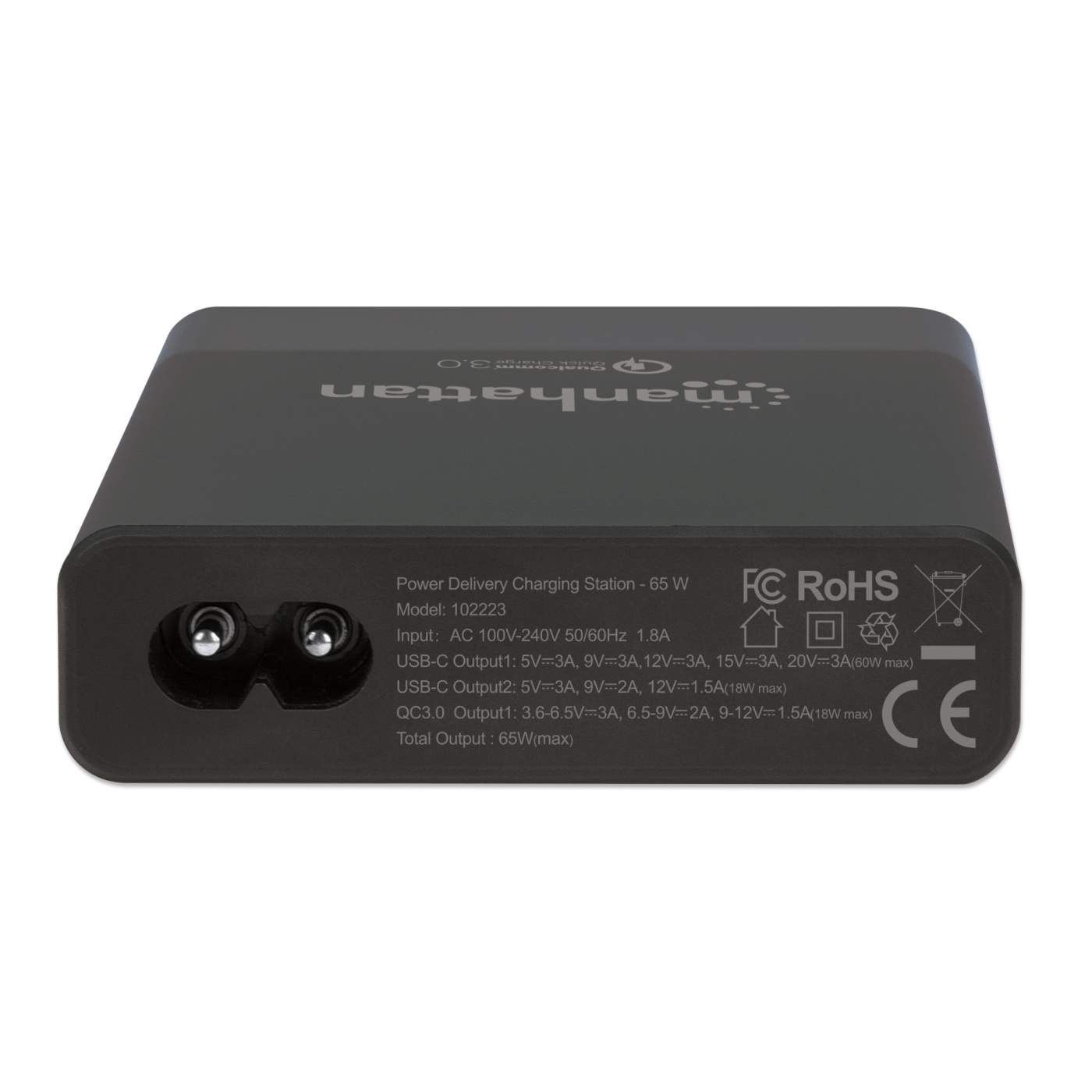

  • AC input: 100 – 240 V; 50 – 60 Hz
  • USB-C outputs: 5 – 20 V; maximum 3 A; 60 W
  • Voltage/current settings (maximum):
    - USB-C PD 60 W:
    - 5 V / 3 A
    - 9 V / 3 A
    - 12 V / 3 A
    - 15 V / 3 A
    - 20 V / 3 A
    - USB-C PD 18 W:
    - 5 V / 3 A
    - 9 V / 2 A
    - 12 V / 1.5 A
    - USB-A QC 3.0 18 W:
    - 3.6 – 6.5 V / 3 A
    - 6.5 – 9 V / 2 A
    - 9 – 12 V / 1.5 A

    Input Characteristics
  • AC rated voltage: 100 – 240 V
  • Frequency range: 50 – 60 Hz (±1 Hz)
  • Current: ≤ 1 A at 100 VAC 60 HZ

    Output Characteristics
  • Rated voltage: 5 / 9 / 12 / 15 / 20 V
  • Current: 3 A maximum (at constant voltage mode)
  • Rated power: 72 watts maximum
  • Overshoot voltage: ≤ 5%

    Protection Characteristics
  • Short-circuit (SCP) with auto-recovery mode
  • Overvoltage (OVP) with auto-recovery mode
  • Overcurrent (OCP) — current limit: 150% (max)
  • Over-temperature (OTP)

    Physical

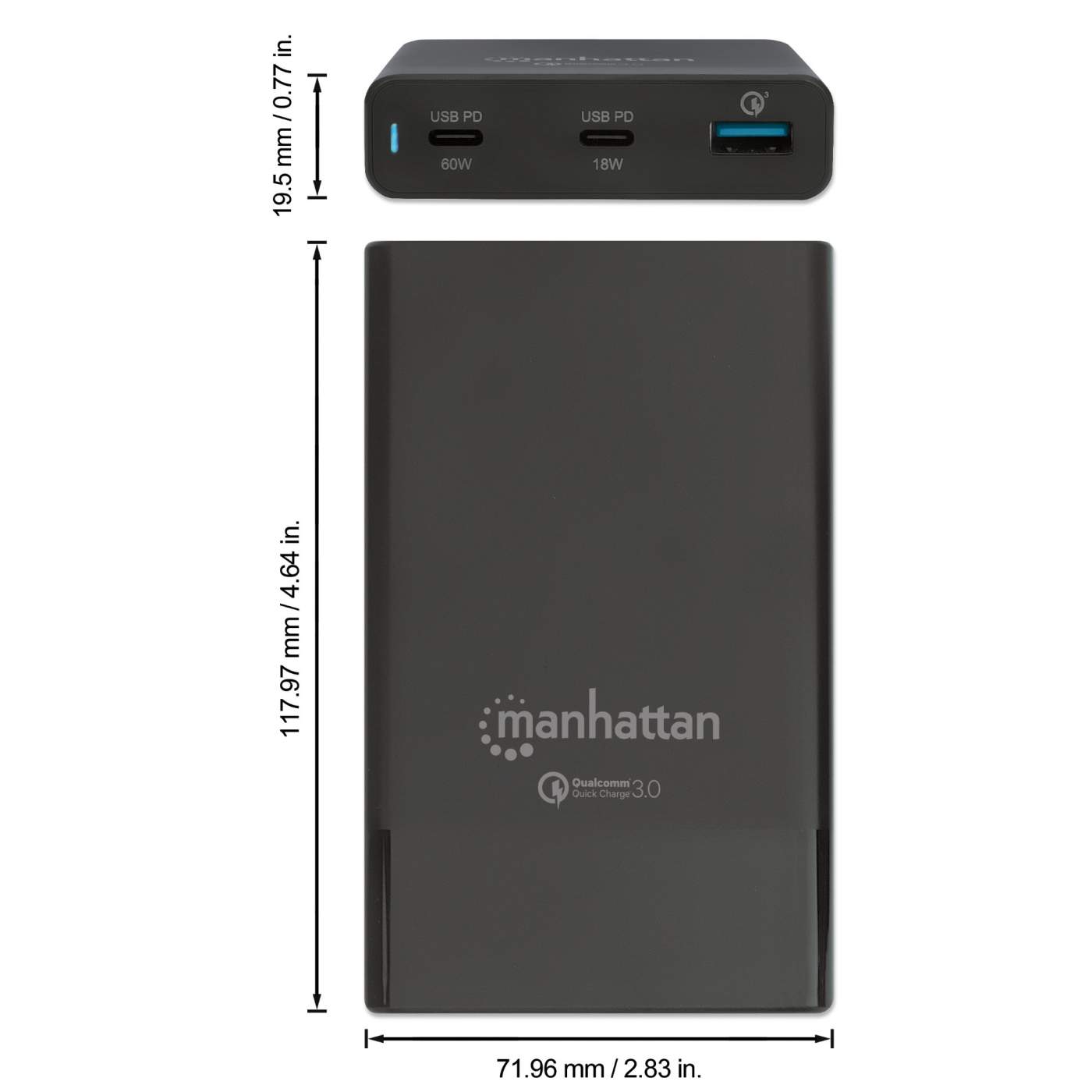

  • Dimensions: 7.2 x 11.8 x 1.95 cm (2.83 x 4.64 x 0.77 in.)
  • Weight: 0.22 kg (7.76 oz.)
  • Housing: plastic

    Operating Environment
  • Operation Temperature: 0 – 30°C (32 – 86°F)
  • Storage Temperature: -20 – 65°C (-4 – 149°F)
  • Humidity (noncondensing): 10 – 90%

    Package Contents
  • Power Delivery Charging Station - 65 W
  • 1 m (3.3 ft.) Power cord
  • 2 m (6 ft.) USB-C to USB-C cable, supports data transfer speeds of 480 Mbps
  • Instructions

California Proposition 65 WarningWarning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.


  • Additional SKUs

    • Amazon ASIN: B07ZQHHP1H
    • EAN: 0766623102223
    • UPC: 766623102223

  • Physical Specifications

    • Weight: 0.3 kg
    • Dimensions: 71.96 (L) x 117.97 (W) x 19.5 (H) [mm]
    • Packaging: Retail Box

  • Datasheet
