UVC Charging Cart - a mobile charging solution for educational environments, hospitality and more

Device management, cleanliness and charging are easy with the Manhattan UVC Charging Cart with 32 USB-A Ports and 32 AC Outlets. It's the ideal charging solution for schools, restaurants, gyms, doctor’s offices, universities, hotels, car rental agencies and more. The built-in UVC LEDs help deactivate harmful pathogens for increased peace of mind and user safety.

Multiple options for all devices

With power per USB port up to 2.4 A, smartphones, tablets and other USB devices are ready to go in no time. The front-mounted LEDs show you when a battery is fully charged. The AC outlets available on the PDUs are great for securely charging other devices such as laptops, notebooks and more. The charging cabinet also protects devices against overload, overcurrent, short-circuit, voltage spikes and even lightning strikes.

Ozone-free UVC cleaning

The Manhattan UVC Charging Cart with 32 USB-A Ports and 32 AC Outlets quickly kills off a variety of germs without liquids, heat or chemicals. Simply connect devices in their bays, close the door and let the timed UVC system do its work. Exposed surfaces are bathed in sanitizing UV light, and devices emerge energized for the next group of people to use.

Physical security is key

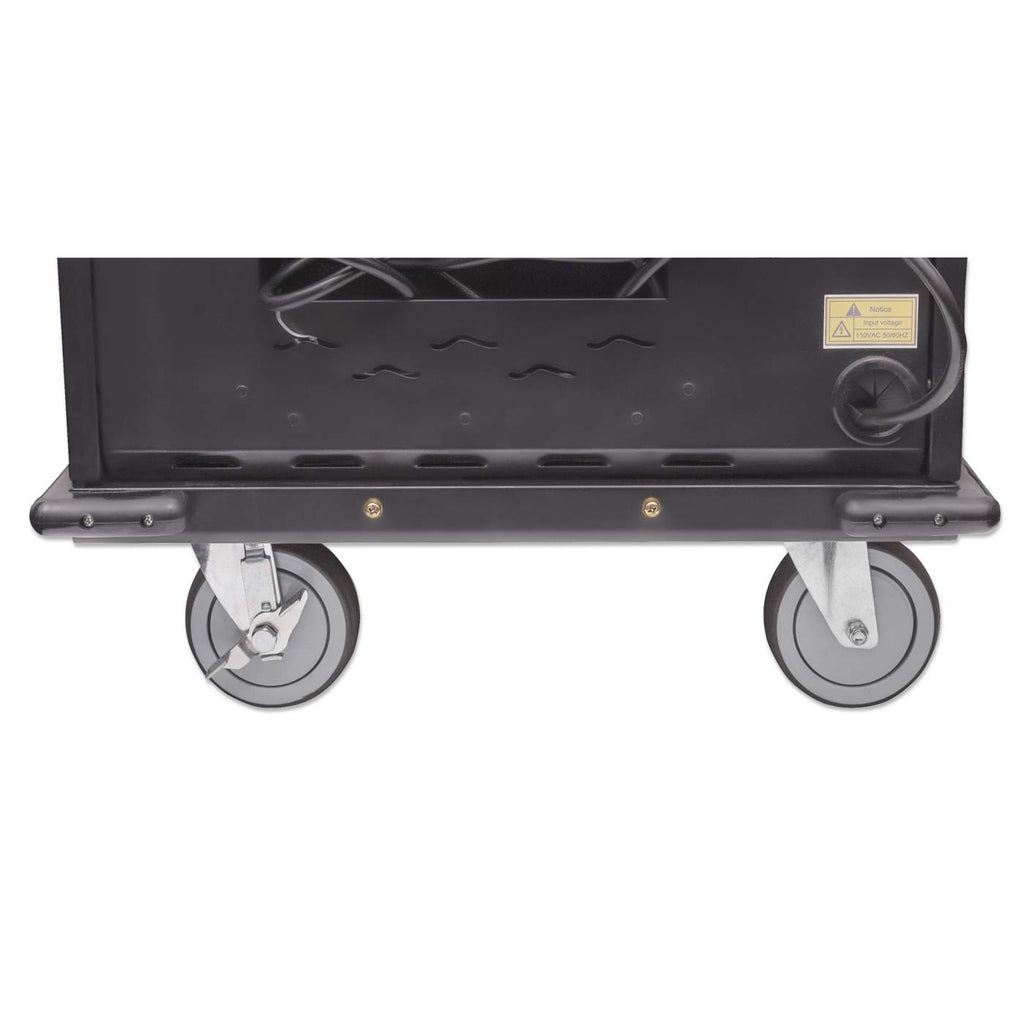

Thieves and vandals don’t stand a chance against the sturdy, durable steel housing of this Charging Cart. Its key-lock helps keep devices secure. The reversible door helps provide better access to your devices to complement the space and confines of where you store the cart. Its heavy-duty caster wheels let you roll the cart where you need it; two wheel locks let you easily secure the cart in place.

Organized and versatile

Keep your devices organized in the 32 bays that offer plenty of space (380 x 30 x 280 mm / 14.96 x 1.18 x 11.02 in.), even for bulky cases. Use the built-in cable-management clips on the bay dividers to structure your charging cables (available from Manhattan). The AC input on the back is a C20 connector that lets you replace the included power cable with other cables based on the region you take the cart to.

Please note: When using the AC outlets, it is advised not to connect them simultaneously. Doing so could result in the air-switch being triggered.

• Safely stores, charges and disinfects smartphones, tablets and notebooks up to 15.6"
• USB-A charging ports (32 total) with power up to 2.4 A / 5 V per port on the front

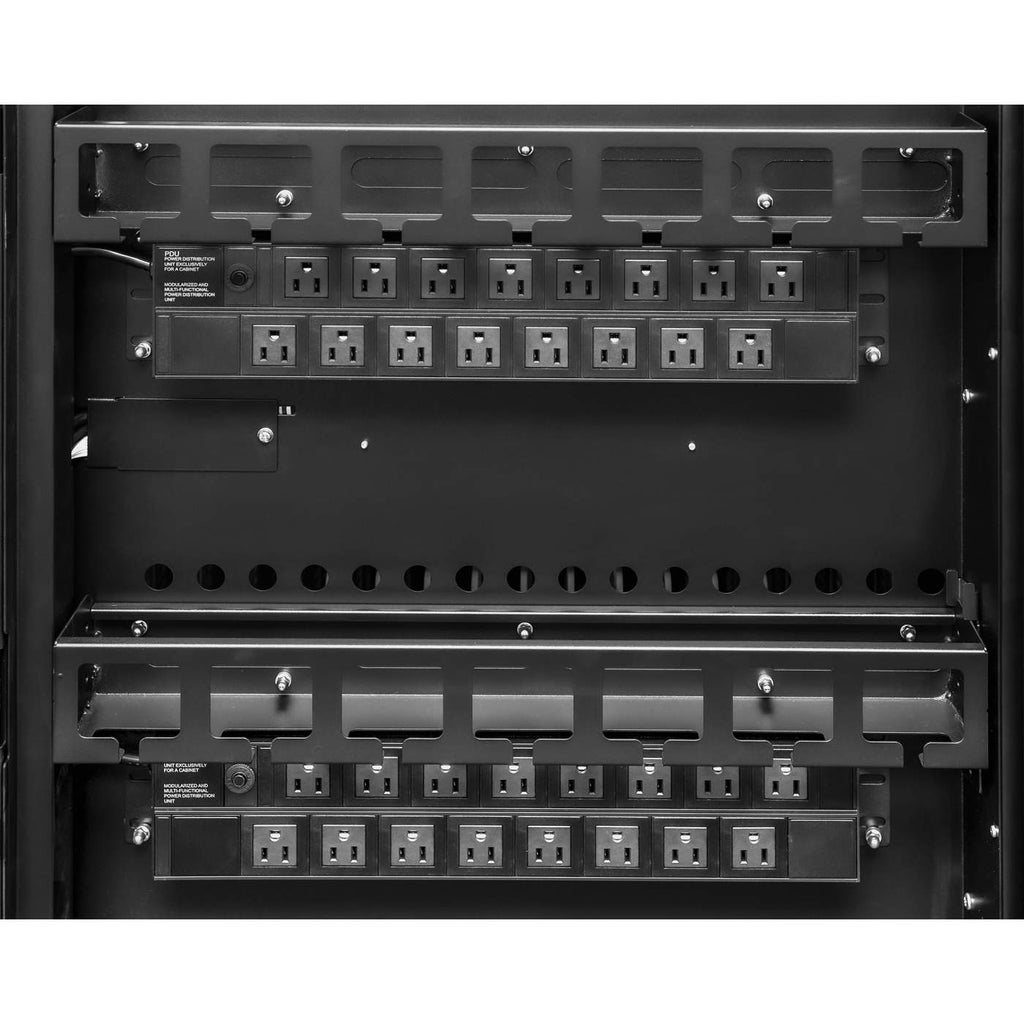

• AC outlets (32 total) in PDUs mounted on the back
• Protection against overload, overcurrent, short-circuiting, voltage spikes and lightning strikes
• Sturdy, secure, powder-coated metal housing; 3-point door lock on front and back; two included keys
• Reversible steel door on the front and back to protect the devices and PDUs; can be opened 270°
• LED indicators for easy status monitoring
• Spacious bays (380 x 30 x 280 mm / 14.96 x 1.18 x 11.02 in. each) with cable management built into the dividers
• Integrated UV LEDs to eliminate 99.99% of germs, viruses and bacteria
• Ozone-free UVC technology for safe sanitizing without heat, liquids or chemicals
• Safety mechanism that automatically turns off the UV light when door is opened to avoid damage to eyes and skin
• Silent fan and ventilation slots for maximum airflow and cooling efficiency
• Sturdy, stainless handle and four heavy-duty wheels
• Round edges to avoid injuries in busy environments
• Earthing kit included
• Universal AC input with C20 connector; power cable with C19 to regional AC plug included
• Supports 1600 W power output max. (US only)
• Three-year warranty

Standards and Certifications

• TÜV CE

• UL 1363

• IEC 62368-1

• TÜV RoHS

  Electrical

• AC input: 100.0 - 250.0 V; 16.0 A; 50 - 60 Hz; IEC320 C14

• AC outlets: 32

• USB output: 5.0 V / 2.4 A

• USB-A charging ports: 32

  Protection Characteristics

• Short-circuit (SCP) with auto-recovery mode

• Overvoltage (OVP) with auto-recovery mode

• Overcurrent (OCP) — current limit: 150% (max)

  Physical

• On/off switch

• LED status indicators

• Housing: cold-rolled, powder-coated steel

• Unit dimensions (L x W x H): 577 x 645 x 1029 mm (22.72 x 25.39 x 40.51 in.), height including wheels

• Bay dimensions (32): 380 x 30 x 280 mm (14.96 x 1.18 x 11.02 in.)

• AC power cable
  - Length: 3 m/10 ft. (US model), 2 m/7 ft. (other models)
  - Connectors: IEC320 C19 to AC male
  - Wire: 14 AWG (US model), /1.5 mm² (other models)

• Weight: 73 kg (161 lbs.)

  UV

• Sanitization method: ultraviolet germicidal irradiation (UVGI)

• UVC diodes: 2 W, 260 - 285 nm

• UVA diodes: 2 W, 390 - 410 nm

  Operating Environment

• Operation temperature: 0 - 45°C (32 - 113°F)

• Storage temperature: -15 - 45°C (-5 - 113°F)

• Humidity (noncondensing): 20 - 80%

  Package Contents

• UVC Charging Cart with 32 USB-A Ports and 32 AC Outlets

• AC power cable, 2 m (6.56 ft.)

• Two door keys

• Documentation

  Please note: When using the AC outlets, it is advised not to connect them simultaneously. Doing so could result in the air-switch being triggered.

Warning

This product can expose you to chemicals including Antimony Trioxide, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Alphanumeric Part#: MCC-UVC-AU32
• EAN: 0766623180313
• UPC: 766623180313



• Physical Specifications

• Product net weight: 73 kg
• Product gross weight: 78 kg
• Dimensions: 577 (L) x 645 (W) x 1029 (H) [mm]
• Packaging: Brown Box

• Datasheet
• Datasheet     » Download




• Manual
• Instructions     » Download
